Available

Alta Super Spec AC 1200HP Drilling Rig 12

Super Spec 1200 AC Rig — Walking-Ready, Odessa TX

1,200
Horsepower
AC Drive
550K
Hook Load
lbs
134'
GEMINI Mast
Telescoping
150'
Walking
Capability
Alta Super Spec AC 1200HP Drilling Rig 12
Super Spec 1200 AC Rig — Walking-Ready, Odessa TX

A fully equipped Alta Super Spec AC 1200HP drilling rig currently located in Odessa, Texas. Features a 4160v Reel Rig power distribution system, upgraded Drive House (4 Gen/3 Pump), Canrig 350-ton AC top drive with Rockit capability, and a 150-foot walking system. Engineered drawing plans for 1500HP/750KLB upgrade are available.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksAlta Rig AC 1200HP
  • Drill Line1-1/4"
  • Engines3× Cummins KTA50 @ 1,470HP each
  • Generators3× 1,100kW
  • Fuel Tank12,000-gallon
  • Power Dist.4160v Reel Rig System
🗼

Mast & Substructure

  • MastGEMINI 134' telescoping
  • Hook Load550,000 lbs
  • Racking Capacity21,000' with 5" DP
  • SubstructureGEMINI 22', 18' clear height
  • Rotary Load550,000 lbs
  • Setback Load500,000 lbs
🔧

Rotating Equipment

  • Top DriveCanrig 350-ton AC (Rockit capable)
  • Traveling Block275-ton, 5-sheave, 10-line
  • Rotary37-1/2" hydraulic Hagglund motor
  • Driller ControlsIDS Electronic Driller & VFD House
💧

Mud System

  • Mud Pumps2× 1,600HP Triplex AC, 7,500 PSI
  • Active Capacity850 barrels
  • Tanks2× 425-bbl covered w/ round bottoms
  • Solids Control3× Brandt King Cobra Venom shakers
  • DegasserBrandt DG-10
  • DesilterBrandt SE-16
🛡️

BOP & Well Control

  • Single Ram BOP11" 10M
  • Double Ram BOP11" 10M
  • Annular11" 5M
  • Accumulator6-station
  • Choke Manifold4" 10K
  • BOP HandlerNOV
🚜

Auxiliary Equipment

  • Walking System150' capability
  • CatwalkHydraulic with walking capability
  • Iron RoughneckIncluded
  • Drill Pipe5" S-135
  • QuartersToolpusher & Crew
  • OtherManrider, wireline unit, meeting house
Equipment Gallery

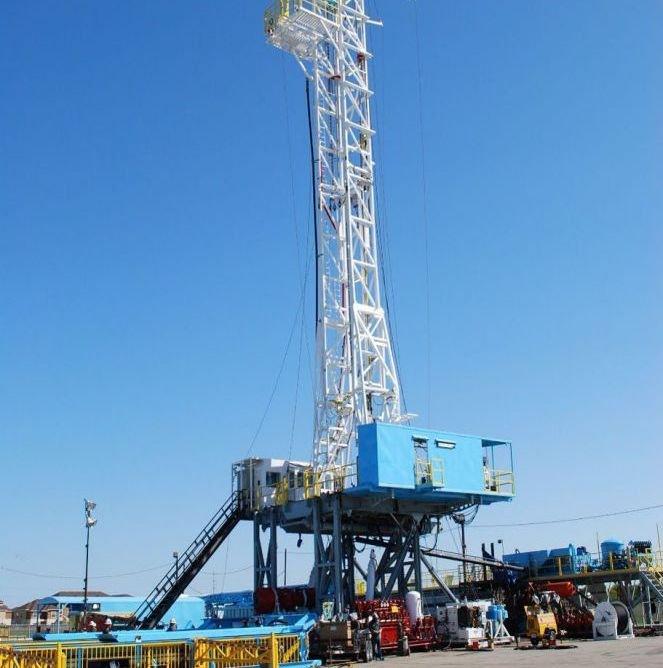

Rig Photos

Capabilities

Key Advantages

01

Super Spec AC Performance

Fully AC-driven 1200HP rig with IDS Electronic Driller, 4160V VFD distribution, and Canrig 350-ton top drive — delivering precision control for demanding horizontal and vertical programs.

02

Walking-Ready Platform

150-foot hydraulic walking system with a hydraulic catwalk enables pad-to-pad moves without rigging down, minimizing nonproductive time on multi-well pads.

03

Upgrade Path to 1500HP

Engineered drawing plans for a 1500HP/750KLB upgrade are already available, and the Drive House has been upgraded to a 4 Gen/3 Pump configuration — reducing the cost and timeline of a horsepower bump.

Complete Data

Full Equipment Status

Mast & Substructure

Mast ModelGEMINI 134' Telescoping
Hook Load550,000 lbs
Racking Capacity21,000' with 5" drill pipe
Substructure Height22' (18' clear)
Rotary Load550,000 lbs
Setback Load500,000 lbs

Power & Drawworks

DrawworksAlta Rig AC 1200HP
Drill Line1-1/4"
Engines3× Cummins KTA50 diesel @ 1,470HP
Generators3× 1,100kW
Fuel Tank12,000 gallons
Power Distribution4160V Reel Rig System

Rotating Equipment

Top DriveCanrig 350-ton AC (Rockit capable)
Traveling Block275-ton, 5-sheave, 10-line string-up
Rotary37-1/2", hydraulic Hagglund motor
Driller ControlsIDS Electronic Driller, VFD House

Mud System

Mud Pumps2× 1,600HP Triplex AC, 7,500 PSI
Active Capacity850 barrels
Tanks2× 425-bbl covered tanks
Shakers3× Brandt King Cobra Venom
DegasserBrandt DG-10
DesilterBrandt SE-16

Well Control

BOP Stack11" 10M single ram + 11" 10M double ram + 11" 5M annular
Accumulator6-station
Choke Manifold4" 10K
