ALTA Gemini 750 1500HP Drilling Rig 14

AC-driven Gemini 750 Series — upgraded 1500HP rig with full component hours logged

1,500 HP
Drawworks
ALTA GEB-28 AC Traction
750,000 lbs
Hook Load
Gemini 142' Mast
3×1476 HP
Cat 3512 Engines
Kato WEG 1375kW Gen Sets
7,500 PSI
Mud System
3× Weatherford MP-16 Triplex
ALTA Gemini 750 1500HP Drilling Rig 14
AC-driven Gemini 750 Series — upgraded 1500HP rig with full component hours logged

ALTA Gemini 750 Series Rig 14 was commissioned June 2012 and upgraded to 1500HP/750K hook load in 2015. Powered by three Cat 3512 diesel engines driving Kato WEG 1375kW generator sets, the rig features an ALTA 1500HP GEB-28 AC drawworks, three Weatherford MP-16 triplex mud pumps at 7500 PSI, and a GDM 500 1200HP AC rotary motor. Full component hours documented.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • ManufacturerALTA
  • Rating1500 HP
  • MotorGEB-28 1600HP AC Traction
  • S/N10127
  • Hours21,458
🔋

Power Package

  • Engines3× Caterpillar 3512, 1476HP each
  • Generator SetsKato Engineering WEG 1375kW
  • Hours (Eng 1/2/3)32,116 / 32,789 / 31,727
💧

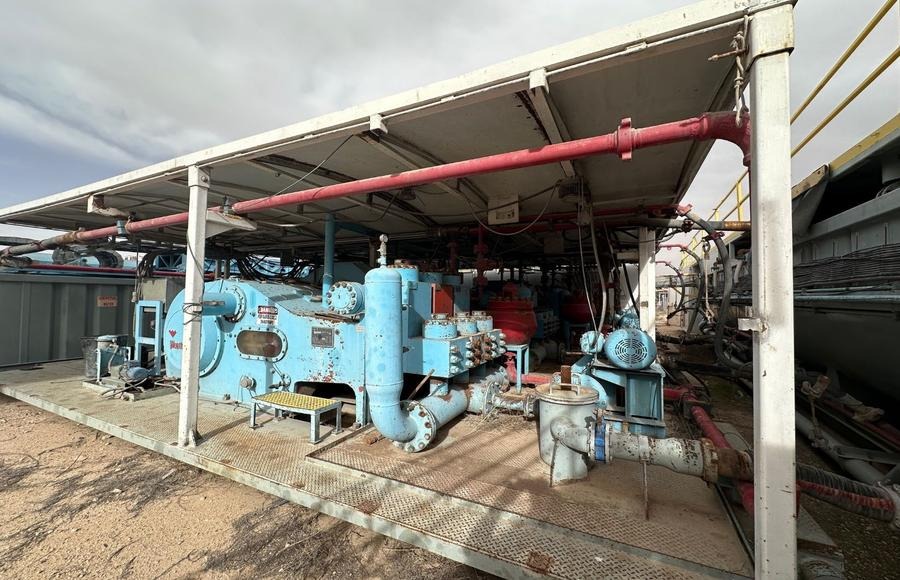

Mud Pumps

  • Qty / Type3× Weatherford MP-16 Triplex
  • Pressure7500 PSI
  • Liners5.5" Ceramic
  • MotorGEB-29A1A AC
  • Hours (MP1/2/3)15,498 / 14,345 / 12,648
🔄

Rotary System

  • MotorGDM 500 1200HP AC
  • S/N#42
  • Hours15,483
Equipment Gallery

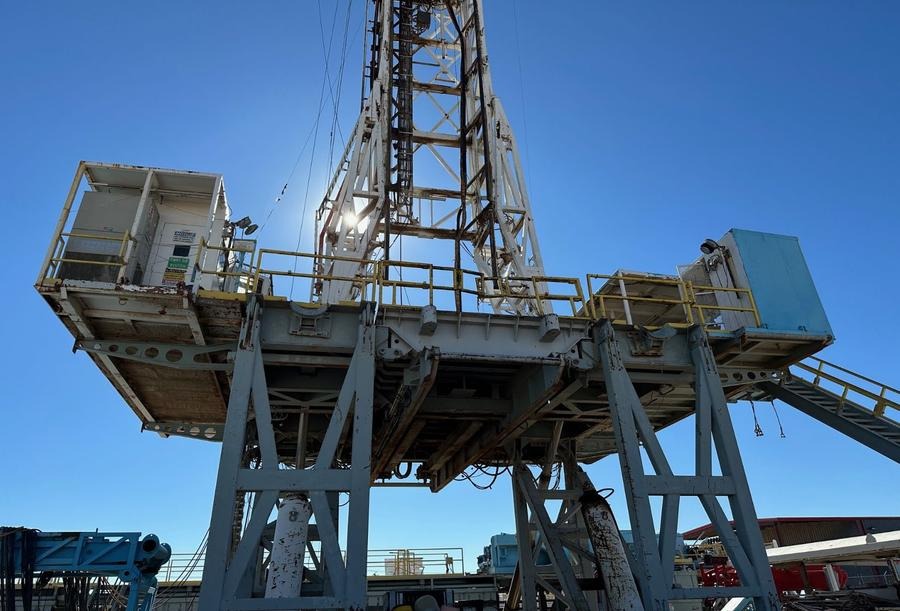

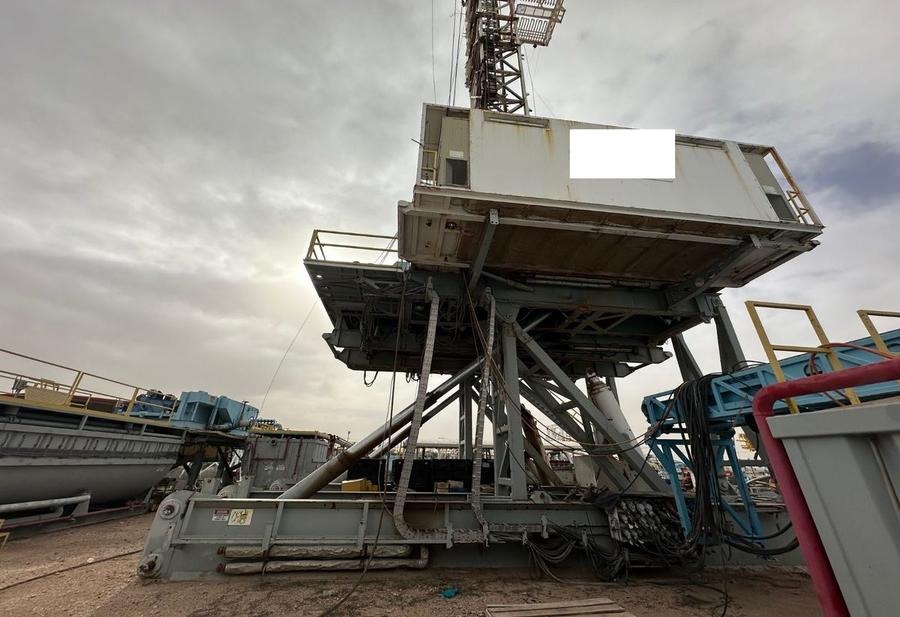

Rig Photos

Capabilities

Key Advantages

01

AC-Driven Performance

Full AC traction motor drivetrain on drawworks and mud pumps delivers smooth, variable-frequency control with lower maintenance compared to DC SCR rigs.

02

Upgraded 1500HP Package

Originally commissioned at lower HP and systematically upgraded to 1500HP/750K hook load in 2015 — all major components have documented hours since upgrade.

03

Triple Mud Pump Capacity

Three Weatherford MP-16 triplex pumps (one as standby) with 5.5" ceramic liners provide high-pressure, high-volume circulation for demanding formations.

Complete Data

Full Equipment Status

Drawworks

MakeALTA
Rating1500 HP
MotorGEB-28, 1600HP AC Traction
S/N10127
Hours21,458

Power Package

Engines3× Caterpillar 3512, 1476HP
Air StartYes, Skid Mount Enclosures
Generator SetsKato Engineering WEG 1375kW
Eng 1 S/N / HrsLLA02716 / 32,116
Eng 2 S/N / HrsLLA04809 / 32,789
Eng 3 S/N / HrsLLA02746 / 31,727

Mud Pumps

Qty / Model3× Weatherford MP-16
Pressure7500 PSI Fluid Ends
Liners5.5" Ceramic
MotorGEB-29A1A AC Traction
MP1 S/N / HrsW270 / 15,498
MP2 S/N / HrsW294 / 14,345
MP3 S/N / HrsW304 / 12,648

Rotary

MotorGDM 500 1200HP AC
S/N#42
Hours15,483

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
