1500 HP BOMCO Land Rig | Total Drilling Supply LLC

New-build 1500 HP BOMCO land drilling rig configured to demanding API specifications with CCTV, explosion-proof electrics, and full safety systems. The front-opening K-type mast carries a certified 786,831-lb hook load at 12 lines with a clear working height of 147.5 feet. Paired with a 10K BOP package, this unit is ready for challenging onshore exploration and development programs.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

Mast TypeFront-opening K-type
ModelJJ350/45-K, API 4F 5th, PSL 1, E2/U2
Clear Working Height147.5 ft
Max Hook Load786,831 lb @ 12 lines (3,500 kN)
Racking Board80 / 83.5 / 87 ft installation height
Wind Rating (operating)≤32 knots with full load

💧

BOP & Well Control

BOP Rating10,000 PSI
Configuration10K BOP package included
CertificationAPI compliant

📡

Safety & Monitoring

CCTVExplosion-proof, colour remote-control
Camera LocationsCrown block, monkey board, stabbing board, shale shaker, substructure
Safety ClassAPI RP 500/505 Class 1, Zone 1 & 2
Fall ProtectionFull body harness, self-retracting fall arrestors

🏗

Racking & Capacity

5" Drill Pipe120 stands
6.5" Drill Collar6 stands
8.25" Drill Collar6 stands
10" Drill Collar2 stands

Equipment Gallery

Rig Photos

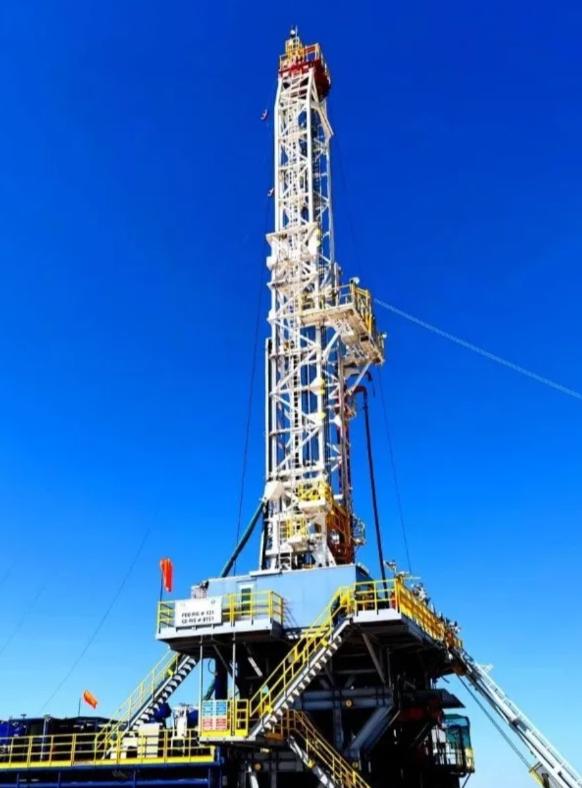

1500 HP BOMCO Land Rig

Capabilities

Key Advantages

01

High-Capacity Hoisting

The BOMCO JJ350/45-K mast is rated for a 3,500 kN (786,831 lb) static hook load at 12 lines, with structural integrity maintained through operating winds up to 32 knots fully loaded and storm-survival ratings up to 75 knots unloaded.

02

Explosion-Proof Safety Systems

Comprehensive CCTV monitoring covering all critical zones with explosion-proof certification per API RP 500/505. Full fall-protection systems installed at monkey board, stabbing board, and substructure with certified anchor points and self-retracting lanyards.

03

10K BOP Well Control

Complete 10,000 PSI BOP package configured to handle casing loads of 630,000 lbs minimum. Substructure designed to accommodate full range of BOP stack sizes with unobstructed trolley beam access and hydraulic BOP hoist system.

Complete Data

Full Equipment Status

Mast Specifications

Model	BOMCO JJ350/45-K, API 4F 5th, PSL 1, E2/U2 Level
Type	Front-opening K-type
Clear Working Height	147.5 ft
Maximum Hook Load	3,500 kN / 786,831 lb @ 12 lines
Racking Board Heights	80 ft / 83.5 ft / 87 ft
Operating Wind (full load)	≤32 knots
Storm Survival (no load, no stand)	≤75 knots
Storm Survival (no load, full setback)	≤60 knots

BOP Package

Rating	10,000 PSI
Min Casing Hook Load	630,000 lbs (excluding TDS weight)

Racking Capacity

5" Drill Pipe	120 stands
6.5" Drill Collar	6 stands
8.25" Drill Collar	6 stands
10" Drill Collar	2 stands

Safety Systems

CCTV	Explosion-proof colour remote-control system
Safety Classification	API RP 500/505, Class 1 Zone 1 & Zone 2
Fall Protection Standard	BS / ANSI equivalent, full body harness
Emergency Escape	Certified per ANSI Z259.2.2-17 / Z359.14-2014
