Bomco 2000 HP AC Land Rig 264 (2006) | Total Drilling Supply LLC

2,000 HP AC-powered Bomco land rig built in 2006. Features Bomco JJ450 152-ft cantilever mast rated to 1,000,000 lbs hook load, NOV TDS-11SA top drive, Bomco JC-70DB7 drawworks with dual AC motors, and Bomco 37½" rotary table. Four Caterpillar 3512-B diesel gensets supply 5,460 kW total. Dual Hydril BOP system rated to 13⅝" 10,000 psi with plug-and-play fifth genset capability.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

Mast Make/ModelBomco JJ450/46-K
Height/Type152 ft (46.5 m), Cantilever
Max Hook Load1,000,000 lbs (4,500 kN)
Sub TypeBomco Swing Lift
Floor Height34.5 ft (10.5 m)

⚙️

Drawworks & Top Drive

DrawworksBomco JC-70DB7
Rated Input2,000 HP (1,470 kW)
Motors2× 1,150 HP AC electric
Top DriveNOV TDS-11SA
TD Motors2× 400 HP AC

🔄

Rotary Equipment

Rotary TableBomco 37½" (952.5 mm)
RT Motor1,150 HP AC (845 kW)
Static Load Rating1,300,000 lbs

⚡

Power Generation

Engines4× Caterpillar 3512-B Diesel
HP @ RPM1,476 HP @ 1,200 RPM each
Generators4× Kato 1,365 kW (1,950 KVA) each
Option5th genset plug-and-play ready

🔒

BOP System

Annular 113⅝" Hydril 5,000 psi
Annular 221¼" Hydril 2,000 psi
Double RamCameron Type U 13⅝" 10,000 psi
Single RamCameron Type U 13⅝" 10,000 psi

Equipment Gallery

Rig Photos

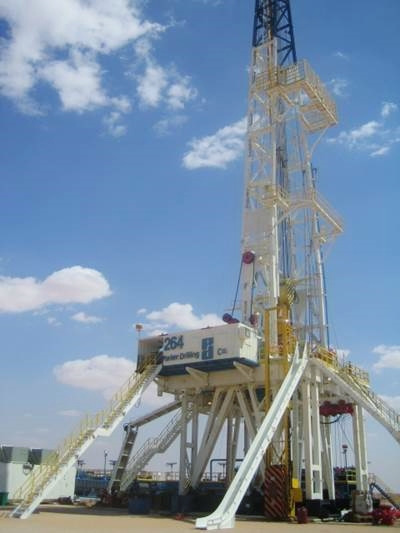

Rig 264 – 2000 HP Bomco Land Rig

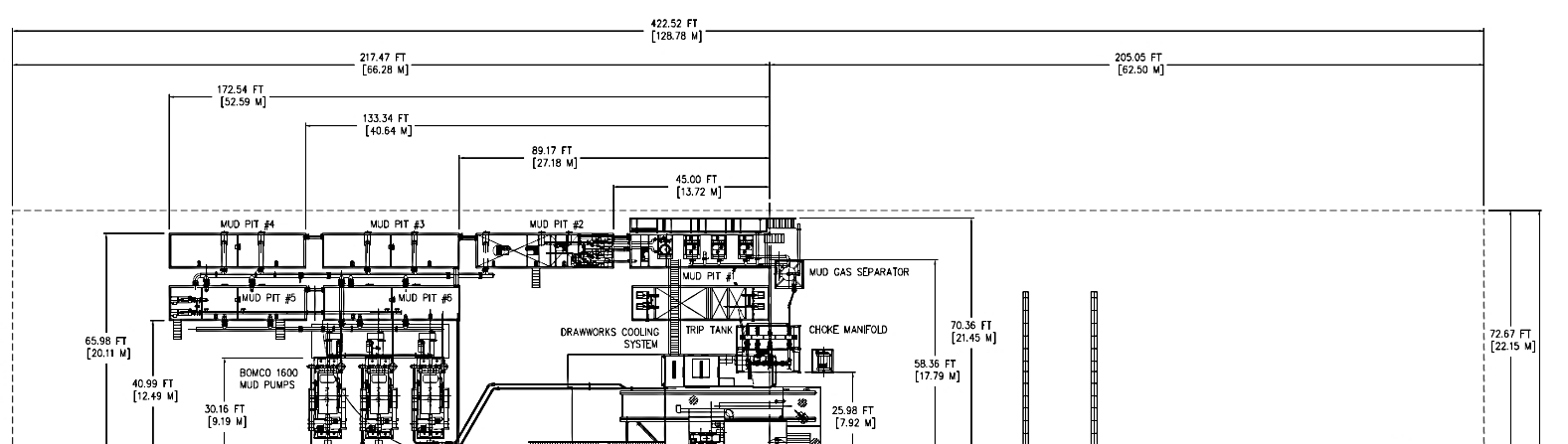

Rig 264 – Specifications

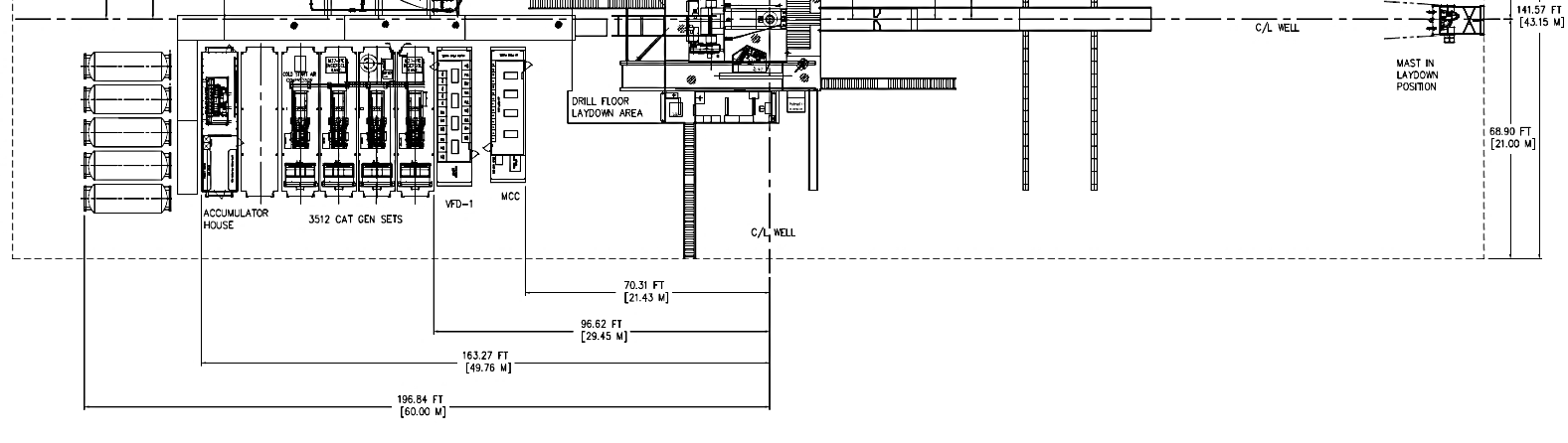

Rig 264 – Additional Specs

Capabilities

Key Advantages

01

Heavy Lift 1,000,000 lb Hook Load

Bomco JJ450 cantilever mast rated to 1,000,000 lbs with 34.5-ft floor height provides capability for large casing strings and heavy completion work.

02

Deep 23,000 ft Capacity

Rated to 23,000 ft with 4½" drill pipe — suited for deep formation targets requiring extended reach capability.

03

Scalable Power Platform

Four 3512-B gensets provide 5,460 kW with provisions for a fifth plug-and-play genset to support enhanced completion or simultaneous operations.

Complete Data

Full Equipment Status

General

Year Built	2006
Rated HP	2,000
Condition	Used

Mast

Make/Model	Bomco JJ450/46-K Cantilever
Height	152 ft (46.5 m)
Max Hook Load	1,000,000 lbs (4,500 kN)

Drawworks

Make/Model	Bomco JC-70DB7
Rated Input	2,000 HP (1,470 kW)
Motors	2× 1,150 HP AC
Drilling Line	1-1/2"

Top Drive

Make/Model	NOV TDS-11SA
Motors	2× 400 HP AC (298 kW)

Traveling Equipment

Traveling Block	Bomco YC-450, 1,000,000 lbs
Swivel	Bomco SL450-5, 1,000,000 lbs

Substructure

Make/Model	Bomco DZ450/10.5-X Swing Lift
Floor Height	34.5 ft (10.5 m)
Clear Working Height	29.5 ft (9 m)
Max Rotary Load	1,000,000 lbs
Setback Load	495,000 lbs
