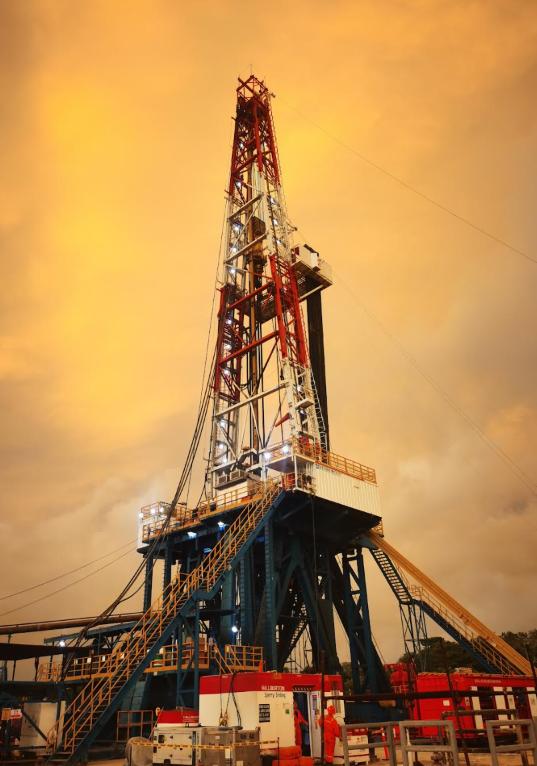

BOMCO 3000 HP Land Rig (New Build)

API-Compliant • ICC Rules • 15K BOP • Built to Spec

3,000 HP
Drawworks
BOMCO JC90DB
1,500,000 lbs
Hook Load
6,750 kN, 7×8 reeving
48.7 m
Mast Height
K-type Rotating Lift
DQ90BSC
Top Drive
BPM, 108,000 N·m max, 7500 psi
BOMCO 3000 HP Land Rig (New Build)
API-Compliant • ICC Rules • 15K BOP • Built to Spec

A factory-new 3,000 HP AC-VFD land drilling rig built by BOMCO (Baoji Oilfield Machinery Co., CNPC) to full API specification — 4F, 7K, 8C, and 9A — with a 6,750 kN rated hook load, BPM DQ90BSC top drive, triple 2,400 HP quintuplex mud pumps, and a 13-5/8" 15,000 PSI BOP stack. Designed for 9,000 m well depth in oil- and water-based mud environments, with a complete AC-VFD drive train, five CAT 3512/3512C main generators, and Siemens S7-1500 PLC control. Deliverable FOB Tianjin Port in six to eight months.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • Mast ModelJJ675/48.8-K (BOMCO)
  • Mast TypeK-type, Rotating Lifting
  • Clear Height (Crown to Drill Floor)48 m (triple stand operation)
  • Mast Height48.7 m
  • Rated Load6,750 kN (1,500,000 lbs)
  • Monkey Board Heights24.5 m / 25.5 m / 26.5 m (80.4 / 83.6 / 87 ft)
  • Racking Capacity2-7/8" drill pipe; 5-7/8" DC 6 stands, 10" DC 2 stands, 14" DC 2 stands
  • Safety DevicesMittermann RG10D escape devices, SALA fall arresters (9 m / 15 m / 39 m / 53 m)
  • Standard ComplianceAPI Spec 4F, PSL1, API monogram
  • Substructure ModelDZ675/13.7-S (BOMCO)
  • Drill Floor Height13.7 m
  • Drill Floor Size12.2 m × 14 m
  • Base Clearance Height11.99 m
  • Total Base Load2,400,000 lbs (static: 1,500,000 lbs; setback: 900,000 lbs)
  • BOP Handling DeviceDZ1200/4 — rated 2×600 kN, API 7K compliant (Baoji Hongxiang)
  • Skidding SystemRail-type, 50 m max travel, 10 m well spacing
  • Zero Discharge DesignDrill floor mud collection via recovery channels to wellhead and ground recovery tank
  • Substructure StandardAPI Spec 4F, PSL1, E2&U2 structural safety, API monogram
⚙️

Drawworks (BOMCO JC90DB)

  • ModelJC90DB (BOMCO)
  • Rated Input Power3,000 HP
  • Wire Rope DiameterΦ45 mm (1-3/4")
  • Maximum Fast Line Pull640 kN
  • Hook Speed0 – 1.48 m/s
  • Gear Configuration2+2R AC VFD stepless speed regulation
  • Drive Motors2× Yongji 1,150 kW explosion-proof VFD motors
  • GearboxNGC two-speed gear reducer, forced oil lubrication
  • Main BrakeHydraulic disc brake (service + parking), air-cooled discs (Renqiu Boke)
  • Auxiliary BrakeVFD motor dynamic braking
  • DrumLEBUS grooving, fast line spooler
  • Auto Driller2× 45 kW Nanyang explosion-proof motors — constant WOB, RPM, torque, standpipe pressure
  • Anti-collision SystemOver-wrap prevention, weighted anti-collision, electronic anti-collision & anti-dropping with monitoring/recording
  • Standard ComplianceAPI Spec 7K
🔄

Top Drive (BPM DQ90BSC)

  • ModelDQ90BSC (BPM)
  • Hook Load Rating6,750 kN (1,500,000 lbs)
  • Working Torque72,000 N·m
  • Maximum Torque108,000 N·m
  • Swivel Working Pressure7,500 psi
  • Control SystemIndependent Top Drive VFD E-house
  • Elevator Links IncludedDH350 (3,150 kN / 4 API 8C PSL2), DH500 (4,500 kN / API 8C PSL2), DH750 (6,750 kN / API 8C PSL2) — all BOMCO
  • CablesFull composite power and control cable set from VFD E-house to top drive and driller's cabin
💧

Mud Pumps (2,400 HP — Quintuplex)

  • Pump TypeQuintuplex (5-cylinder)
  • Power Rating2,400 HP per pump
  • Quantity3 sets
  • Working Pressure51.7 MPa (7,500 psi)
  • Drive Motor (each)1× 1,800 kW AC VFD, top-mounted, direct drive via pinion and bull gear
  • Charge Pump75 kW (Chengdu Westpetro), with suction filter and bypass
  • Pulsation Dampeners3× discharge pulsation dampeners at 51.7 MPa (7,500 psi)
  • Safety Valves3× shear pin type
  • High-Pressure ManifoldΦ140 mm / 69 MPa (4" ID / 10,000 psi), bore 102 mm, wall 19 mm; 4"-1003 hammer unions
  • Mud Tanks Total Volume302 m³ + 12 m³ (1,899 + 75 bbl) — 6 tanks: Shale Shaker, Intermediate, 3× Suction, Mixing
  • Kelly Hose2× 4" / 7,500 psi / 23 m, API Spec 7K FSL0, diesel-mud resistant (Hebei Jingbo)
  • Mud TypeOil-based mud and water-based mud compatible
  • Vacuum Degasser1,200 GPM (272 m³/h) — Westpetro
⚡

Power System (50/60 Hz Dual)

  • Main Generator Sets (50 Hz)5× CAT 3512 or 3512C — 1,310 kW each (with fan) @ 600V/50Hz, PF 0.7, 1,500 rpm, Generator SR4B or SR500, IP23
  • Auxiliary Generator (50 Hz)1× Volvo TAD1651GE — 400 kW @ 400V/50Hz, PF 0.8, 1,500 rpm, electric start, IP23
  • 60 Hz Generator Sets3× Volvo TAD1651GE — 400 kW @ 60Hz; 2 working + 1 standby; includes paralleling cabinet, distribution cabinet, MCC house
  • Rig Total Power5×1,200 kW + 1×400 kW (50 Hz) + 3×400 kW (60 Hz)
  • Main Electrical Voltage600V / 50Hz (main equipment); 400V / 50Hz (MCC); 220V / 50Hz (lighting); 480V / 60Hz (3rd-party); 120V / 60Hz (3rd-party lighting)
  • Drive ModeAC–VFD–AC; one-to-one drive for drawworks, rotary table, mud pumps, and top drive
  • VFD Cabinets (ABB)Drawworks 1,600 kW ×2 groups; Rotary Table 1,000 kW ×1; Mud Pump 2,000 kW ×3; Auto Driller 55 kW ×2
  • Rectifier Cabinets (ABB)2× 3,465 kW rectifier cabinets
  • MCC Cabinets (ABB)7 MCC cabinets, No. 1-4 are soft starter cabinets
  • PLC ControlSiemens S7-1500 — 2× CPU, cold standby redundancy, industrial PC
  • TransformerDry-type 1,750 kVA, 600/400V, primary side 2,000A
  • Generator Houses6× houses (10,500×3,000×3,050 mm); air source equipment co-located
  • Spark ArrestorsFitted on all generator sets
  • Air Compressors2× Sullair 37 kW / 5.6 m³/min / 1.0 MPa + 1× Xi'an Hengli diesel cold-start unit; Sullair HD-12NF refrigerated air dryer
  • Air Tank Capacity2×2.5 m³ (generator house) + 2×2 m³ (substructure), ASME certified
🛡

BOP & Pressure Control (15K)

  • 15K BOP Stack13-5/8" × 15,000 psi — Cameron / Hydril / NOV / Axon / Rongsheng double ram preventor; flanged connections with 4× 4-1/16" 15,000 psi side outlets
  • Shear/Blind RamsShearing bonnets and boosters for 5-1/2" OD 24.70 lb/ft H2S-grade drill pipe; H2S-service blade insert
  • Pipe Ram Sizes5", 7-5/8", 7-3/4", 10-3/4", 3-1/2", 5-1/2", 2-3/8", 2-7/8", 4", 4-1/2"
  • 10K BOP Stack21-1/4" × 10,000 psi double ram + single ram preventors; 13-1/2" and 13-5/8" casing rams, 5-1/2" pipe rams, shear blind rams
  • 3K BOP Stack26-3/4" × 3,000 psi Rongsheng Type 'U' double ram preventor; 5-1/2" and 18-5/8" pipe rams, blind rams
  • Annular Preventors21-1/4" × 5,000 psi (studded top, 21-1/4" 10K flanged bottom) + 13-5/8" × 10,000 psi (studded top, 13-5/8" 15K flanged bottom) — Rongsheng; sour gas and OBM compatible
  • Choke & Kill Manifold4× 4-1/16"×15K manual gate valves; 13× 3-1/16"×15K manual gate valves; 2× hydraulic orifice-type choke valves; remote choke control panel on drill floor
  • BOP Accumulator Unit12-station, 3,000 psi WP, electric and air dual power systems, API-16D compliant; rated 0°C to 55°C
  • BOP Test PumpTriplex test pump rated 20,000 psi, diesel engine + air operated, skid-mounted with recorder
  • DiverterRongsheng, 1,000 psi, 30" flanged bottom; API STD-53 compliant vent line
  • Well Control Budget$4,602,329 (Section 8 total)
Capabilities

Key Advantages

01

Full API Standards Compliance

Every major structural component carries the API monogram and is manufactured to current editions: API Spec 4F-2020 (5th Ed.) for mast and substructure; API Spec 7K-2015 (6th Ed.) for drawworks, rotary table, and BOP handling; API Spec 8C-2012 (5th Ed.) for crown block, traveling block, hook, swivel, and elevator links; and API Spec 9A-2020 (27th Ed.) for wire rope. Hazardous area classification follows API RP505-2018.

02

9,000 m Rated Drilling Depth

The ZJ90DB package is engineered for deep well work to 9,000 m with a 6,750 kN (1,500,000 lb) rated hook load at 14-line 7×8 reeving, a 48.7 m K-type mast, and triple 2,400 HP quintuplex mud pumps delivering 51.7 MPa (7,500 psi) working pressure. The 37-1/2" rotary table accommodates the full collar and casing program.

03

AC-VFD Drive Train with Siemens PLC

All primary loads — drawworks, rotary table, top drive, and mud pumps — are driven one-to-one via AC–VFD–AC with ABB drive cabinets. The control system uses Siemens S7-1500 PLC with dual-CPU cold-standby redundancy. The driller's cabin features a touch-screen interface, CCTV integration, and real-time parameter monitoring displayed at three locations (driller, toolpusher, client rep).

04

15,000 PSI BOP & Complete Well Control Stack

The well control package spans three pressure ratings: a 13-5/8" 15K stack with shear-blind rams rated for H2S service, a 21-1/4" 10K stack, and a 26-3/4" 3K diverter system. A 12-station API-16D accumulator unit with dual electric/air power and a 20,000 psi triplex BOP test pump complete the assembly. Total well control section value: $4.6M.

05

Dual 50/60 Hz Power Architecture

Five CAT 3512/3512C generators at 1,310 kW each supply 600V/50 Hz for main equipment. A Volvo TAD1651GE auxiliary unit serves camp and ancillary loads. Three additional 400 kW Volvo sets operate at 60 Hz, with 2+1 redundancy, to supply PEMEX/third-party equipment via a dedicated MCC house — enabling seamless integration with client-supplied cementing units, solids control, and trailers.

06

Turnkey Package with Drill String, Camp & Support

The quotation covers a complete turnkey scope: full drill string (2-7/8" through 5-7/8" S135 and G105 grades, 22,000+ m total), eight-unit camp accommodation (PEMEX and Chinese crews), MSA gas detection and SCBA safety systems, Bomay integrated drilling instrumentation, and BOMCO field service (8 personnel) for installation, commissioning, and 14-day operator training. Packaged FOB Tianjin Port in 6–8 months.

Complete Data

Full Equipment Status

General Specifications

Rig ModelZJ90DB
Rig Class3,000 HP AC VFD Electric Land Rig
Rated Hook Load6,750 kN (1,500,000 lbs) @ 14 lines
Reeving System7×8
Wire Rope DiameterΦ45 mm (1-3/4")
Drawworks Rated Power3,000 HP
Drawworks Gear2+2R AC VFD Stepless Speed Regulation
Hook Speed0 – 1.48 m/s
Rotary Table BoreΦ952.5 mm (37-1/2")
Mud Pump Qty / Power3 sets / 1,800 kW each
Mast TypeK-type, Rotating Lifting
Mast Height48.7 m
Racking Capacity2-7/8" drill pipe; 5-7/8" DC 6 stands, 10" DC 2 stands, 14" DC 2 stands
Drill Floor Height13.7 m
Drill Floor Size12.2 m × 14 m
Base Clearance Height11.99 m
Air Bottle Capacity2×2.5 m³ + 2×2 m³ (base buffer tank)
50 Hz Main Generator Power5× 1,200 kW (CAT 3512 / 3512C)
50 Hz Auxiliary Generator1× 400 kW (Volvo TAD1651GE)
60 Hz Generator Sets3× 400 kW (Volvo TAD1651GE)
Rig Total Power5×1,200 kW + 1×400 kW + 3×400 kW
High-Pressure ManifoldΦ140 mm / 69 MPa (4" ID / 10,000 psi)
Mud Tank Total Volume302 m³ + 12 m³ (1,899 + 75 bbl)
Electric Drive ModeAC–VFD–AC, one-to-one drive
Drawworks Motor2× 1,150 kW
Rotary Table Motor1× 800 kW
Mud Pump Motor3× 1,800 kW
Operating Temperature-18°C to +50°C
Operating Humidity≤90% at +20°C
Operating Altitude≤3,280 ft (1,000 m)
Well Depth Capacity9,000 m
Mud CompatibilityOil-based mud, water-based mud
Main API StandardsAPI 4F-2020 (5th), 7K-2015 (6th), 8C-2012 (5th), 9A-2020 (27th), RP505-2018
Explosion-proof CertificationIECEx / ATEX / UL (Zone 1 & 2); PEMEX standards
IP Protection — Indoor / OutdoorIP20 / IP65 (minimum IP54)
Nameplate LanguagesEnglish / Spanish / Chinese; metric and imperial units

Mast & Substructure

Mast ModelJJ675/48.8-K (BOMCO)
Mast Rated Load6,750 kN (1,500,000 lbs)
Mast Height48.7 m (clear crown to drill floor: 48 m)
Mast TypeK-type, triple stand operation
Monkey Board Heights24.5 m / 25.5 m / 26.5 m
FingerboardSuitable for 2-7/8" stands
Casing Stabbing BoardPneumatic, 6 m stroke, fall arrest + emergency stop (Tai'an Juling 10 kN winch)
Mast API StandardAPI Spec 4F, PSL1, API monogram
Escape Devices2× Mittermann RG10D (100 m); SALA fall arresters at 53 m, 39 m, 15 m, 9 m
Substructure ModelDZ675/13.7-S (BOMCO)
Drill Floor Height13.7 m
Rotary Table Beam Height from Ground11 m
Total Base Load2,400,000 lbs
Static Load1,500,000 lbs
Setback Load900,000 lbs
Drill Floor Size12.2 m × 14 m
Base Clearance Height11.99 m
Zero Discharge DesignMud collection via recovery channels; 2 m³ sewage collection tank
Skidding SystemRail-type; 50 m max travel, 10 m well spacing
BOP Handling DeviceDZ1200/4 — 2×600 kN, API 7K, hydraulic (Baoji Hongxiang)
Deadline AnchorJZG72D — 720 kN, 45 mm rope, forged weldment (JPIM)
Substructure API StandardAPI Spec 4F, PSL1, E2&U2, API monogram

Drawworks

ModelJC90DB (BOMCO)
Rated Power3,000 HP
Wire Rope DiameterΦ45 mm (1-3/4")
Max Fast Line Pull640 kN
Hook Speed0 – 1.48 m/s
Gear Configuration2+2R AC VFD stepless speed regulation
Drive Motors2× Yongji 1,150 kW explosion-proof VFD motors
GearboxNGC two-speed gear reducer, forced oil lubrication, auto-detection interface
Main BrakeHydraulic disc brake, service + parking, air-cooled (Renqiu Boke)
Disc Brake HPUAir-cooled, imported plunger pump, accumulator set (Renqiu Boke)
Auxiliary BrakeVFD motor dynamic braking
DrumLEBUS grooving + fast line spooler
Auto Driller2× 45 kW Nanyang explosion-proof — constant WOB, RPM, torque, standpipe pressure
Anti-collisionOver-wrap valve, weighted device, electronic system with monitoring/recording
API StandardAPI Spec 7K

Crown / Traveling Block / Rotary Table

Crown Block ModelTC675 (BOMCO)
Crown Block Rated Load6,750 kN (1,500,000 lbs)
Crown Block Reeving7×8 with lead-in sheave
Crown Block Main Sheaves7 pcs × Φ1,524 mm; fast line sheave 1 pc × Φ1,524 mm
Crown Block API StandardAPI Spec 8C/4F, PSL1, E2&U2, API monogram
Centralized LubricationIncluded; lightning rod and aviation obstruction lights
Traveling Block ModelYC675 (BOMCO)
Traveling Block Rated Load6,750 kN (1,500,000 lbs)
Traveling Block Sheaves7, for 45 mm rope
Traveling Block API StandardAPI Spec 8C, PSL1, API monogram; top drive balancing cylinder interface reserved
Rotary Table ModelZP375H (BOMCO)
Rotary Table BoreΦ952.5 mm (37-1/2")
Rotary Table Max Static Load7,250 kN
Rotary Table Max Speed300 r/min
Rotary Table Motor800 kW explosion-proof (CRRC Yongji), fan-cooled from safe area
Rotary Table API StandardAPI Spec 7K, API monogram
Master BushingSplit type, pin drive
Casing Bushing (Solid)20" casing
RT Bushing Inserts11-3/4", 9-5/8", 2-3/8"

Swivel / Hook / Top Drive

Hook ModelDG675 (BOMCO)
Hook Max Static Load6,750 kN
Hook Main Latch DiameterΦ228 mm
Hook Aux Latch DiameterΦ148 mm
Hook API StandardAPI Spec 8C PSL1, API monogram
Swivel ModelSL675 (BOMCO)
Swivel Max Static Load6,750 kN
Swivel Max Speed300 r/min
Swivel Working Pressure51.7 MPa (7,500 psi)
Swivel Stem DiameterΦ102 mm
Swivel API StandardAPI Spec 8C PSL1, API monogram
Kelly5-1/4" Hex Kelly (Shuguang Huayang)
Kelly BushingFour-pin drive hexagonal roller bushing
Kelly Cock ValvesUpper and lower kelly cock valves
Top Drive ModelDQ90BSC (BPM)
Top Drive Hook Load6,750 kN (1,500,000 lbs)
Top Drive Working Torque72,000 N·m
Top Drive Max Torque108,000 N·m
Top Drive Working Pressure7,500 psi
Top Drive ControlIndependent VFD E-house
Elevator Links DH3503,150 kN / 3,800 mm / API 8C PSL2 (BOMCO)
Elevator Links DH5004,500 kN / 4,572 mm / API 8C PSL2 (BOMCO)
Elevator Links DH7506,750 kN / 4,880 mm / API 8C PSL2 (BOMCO)

Power System

Main Generator5× CAT 3512 or 3512C, 1,310 kW each (with fan), 600V/50Hz, PF 0.7, 1,500 rpm, IP23 (Caterpillar)
Aux Generator (50 Hz)1× Volvo TAD1651GE, 400 kW, 400V/50Hz, PF 0.8, 1,500 rpm, IP23
60 Hz Generator Sets3× Volvo TAD1651GE, 400 kW, 2 working + 1 standby
Generator Houses6× 10,500×3,000×3,050 mm
VFD CabinetsABB: Drawworks 1,600 kW ×2; Rotary Table 1,000 kW ×1; Mud Pump 2,000 kW ×3; Auto Driller 55 kW ×2
Rectifier Cabinets2× ABB 3,465 kW
Braking UnitsABB: 1,615 kW×2 + 65 kW×2
MCC Cabinets7× ABB (No. 1-4 are soft starters)
Generator Control Cabinets5× (Schneider circuit breakers, synchronizing module, power limiting, 600V busbar)
PLCSiemens S7-1500, 2× CPU cold-standby redundancy, industrial PC
TransformerDry-type 1,750 kVA, 600/400V, primary 2,000A
Air Compressors2× Sullair 37 kW / 5.6 m³/min / 1.0 MPa
Cold-Start Compressor1× Xi'an Hengli diesel-engine, 9.3 kW, 1 MPa, 1 m³/min
Air DryerSullair HD-12NF refrigerated, 13 m³/min capacity
Air Tanks2×2.5 m³ (generator house) + 2×2 m³ (substructure), ASME certified
Drilling InstrumentsMartin Decker weight indicator + standpipe gauge; Bomay integrated system (hook load, torque, SPM, rotary speed/torque, flow)
CCTV9-screen display, 9 zoom cameras (4 PTZ) — Yingkou Hengtai
IntercomExplosion-proof phones, speakers, driller & monkey board hands-free — Yingkou Hengtai
Gas DetectionMSA fixed H2S/LEL/flame system; 4× Altair 4X portable; 10× Altair 2X H2S portable
VFD/MCC House2-body unit, max 14,000×3,000×3,150 mm per body

Pricing Highlights

Mast (JJ675/48.8-K) — BOMCO$689,997
Substructure (DZ675/13.7-S) — BOMCO$1,095,003
Drawworks (JC90DB) — BOMCO$967,501.50
Crown Block (TC675) — BOMCO$712,498.50
Top Drive (DQ90BSC) — BPM$1,612,495.50
Main Generator Sets (5× CAT 3512/3512C) — Caterpillar$3,829,497
Auxiliary Generator (Volvo TAD1651GE) — Volvo$404,995.50
Air Source System$2,199,004.50
Main Equipment Accessories & Facilities (subtotal)$1,079,998.50
Mud Pump Group (3× quintuplex 2,400 HP) — BOMCO$2,159,997
Mud Tanks & Solids Control System$869,998.50
Well Control Equipment (Section 8)$4,602,329
Drill String (Section 9)$3,519,001.50
Oil/Water Tanks & Functional Houses$372,004.50
Other Accessories & Tools$502,498.50
Camp Houses & 60Hz Electrical System$502,498.50
Safety Equipment & Facilities$570,003
Wellhead/Downhole Tools & Subs$138,001.50
Miscellaneous Equipment (mats, vehicles, etc.)$142,495.50
Others (commissioning, painting, packaging, training)$577,500
Domestic Inland Shipment (BOMCO Yard to Tianjin Port)$449,998.50
TOTAL PRICE — FOB Tianjin Port$27,173,717

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
