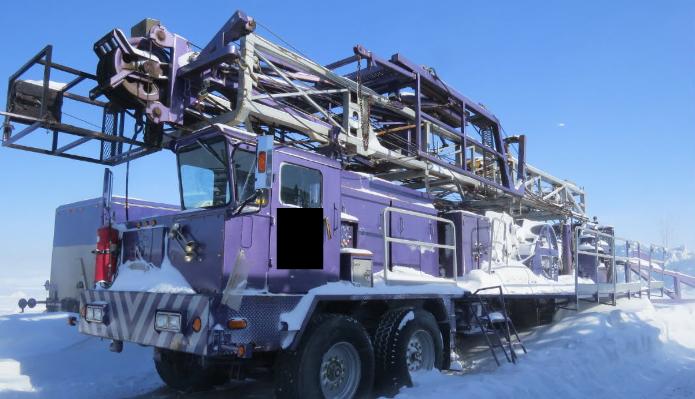

1969 Cardwell KB Single/Double Rig 8

1969 Cardwell KB single/double carrier rig with freshly rebuilt engine and drawworks (2018).

1969
Year Built
Cardwell KB
69'
Mast Height
Single/Double Telescoping
140,000#
Max Hook Load
4-Line
2018
Rebuilt
Drawworks & Engine
1969 Cardwell KB Single/Double Rig 8
1969 Cardwell KB single/double carrier rig with freshly rebuilt engine and drawworks (2018).

1969 Cardwell KB single/double workover rig (Serial #40985) featuring a tandem steer/tandem drive carrier with a Detroit Series 50 engine and Allison 4460 transmission both freshly rebuilt in May 2018. The 69-foot telescoping mast is rated to 140,000 pounds hook load with 2,400-meter racking capacity. The complete package includes a mobile pump and tank unit on a 48-foot Kenworth tri-axle trailer with a SJ Petro 300 triplex pump.

Technical Overview

Key Equipment Specifications

🚛

Carrier

  • Make1969 Cardwell
  • EngineDetroit Series 50 (rebuilt 2018)
  • TransAllison 4460 (rebuilt 2018)
  • DriveTandem Steer/Tandem Drive
🗼

Mast

  • Height69' Single/Double Telescoping
  • Hook Load140,000# (4 lines)
  • Racking2,400m 2⅞" Tubing
  • Wind Rating54 Kph
💧

Pump Unit

  • Carrier2006 T800 Kenworth
  • EngineCAT 3608 450 HP
  • PumpSJ Petro 300 5×5 Triplex
  • Tank2-Compartment 30m³
🛡️

BOP

  • BOPShaffer 5000 psi Double Gate
  • AccumulatorClass II Carrier-Mounted
  • Spool2000/5000 psi Work Spool
Capabilities

Key Advantages

01

Rebuilt Drivetrain (2018)

Detroit Series 50 engine and Allison 4460 transmission both freshly rebuilt May 2018. Drawworks drum replaced June 2018 with new disc assist brake.

02

Self-Contained Mobile Package

Complete self-contained rig with mobile pump and tank unit on dedicated 2006 Kenworth T800 tri-axle. Includes doghouse with A/C, tool room, heated floors, and 30 KW Isuzu genset.

Complete Data

Full Equipment Status

Carrier

Serial #40985
Width2.45m
Length13.75m
Height4.15m
Front Axle13,300 kg
Rear Axle20,300 kg
EngineDetroit Series 50 (rebuilt May 2018)
TransAllison 4460 (rebuilt May 2018)
DriveTandem Steer/Tandem Drive

Mast

Height69' Single/Double Telescoping
Max Hook Load140,000# (4 lines)
Racking2,400m 2⅞" Tubing
SafetyKS+M Fall Arrest + Secondary (5,000#)
BlocksMakissick 75 Ton
Wind Rating54 Kph

Drawworks

Drill Drum38×10
Sand Line38×10
Disc AssistAdded June 2018
OutriggersHydraulic

Pump & Tank Unit

Truck2006 Kenworth T800
EngineCAT 3608 450 HP
Trans13-Speed Eaton Fuller
Tank2-Compartment 30m³ (Built 2014)
PumpSJ Petro 300 5×5 Triplex

BOP

TypeShaffer 5000 psi Double Gate
AccumulatorClass II Carrier-Mounted
Spool2000/5000 psi Work Spool

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
