Available — POA

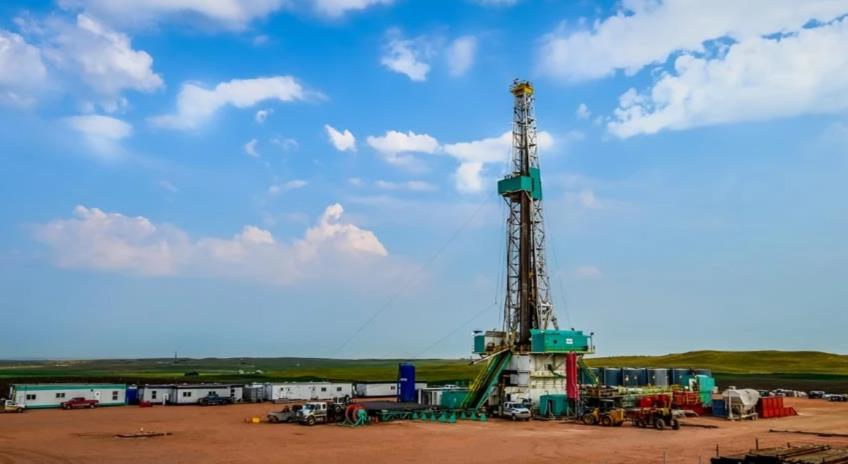

Continental Emsco C1 1500 HP Drilling Rig 24

1500 HP Continental Emsco C1 land rig with 30-ft substructure and 1,000,000 lb hook-load mast — equipped with Canrig 1250AC top drive and 7,500 PSI dual mud pump system.

1,500
Horsepower
SCR Electric Drive
142'
Mast Height
1,000,000 lb Hook Load
30'
Floor Height
Tall Substructure
1,100 BBL
Mud System
Full Solids Control
Continental Emsco C1 1500 HP Drilling Rig 24
1500 HP Continental Emsco C1 land rig with 30-ft substructure and 1,000,000 lb hook-load mast — equipped with Canrig 1250AC top drive and 7,500 PSI dual mud pump system.

Continental Emsco C1 1500 HP SCR electric land rig with a 142-ft mast rated to 1,000,000 lb static hook load and a tall 30-ft substructure. Three Caterpillar 3512C diesel engines each deliver 1,365 KW. Full surface equipment includes a Canrig 1250AC 500-ton top drive, dual 1600 HP mud pumps at 5,000 PSI fluid ends, 1,100 BBL mud system with full solids control, and Canrig PC-3000 hydraulic catwalk.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • ModelContinental Emsco C1
  • Power1,500 HP
  • DriveGE 752 Electric Motors
  • BrakeBaylor 6032 Auxiliary Electric
🗼

Mast & Substructure

  • Mast Height142 ft
  • Hook Load1,000,000 lb Static
  • Floor Height30 ft
  • Mobility120-ft Skid System
🔩

Power

  • Engines(3) Cat 3512C Diesel
  • Generators1,365 KW each
  • Control House1600A 4-Bay w/ Dynamic Braking
💧

Mud System

  • Mud Pumps(2) 1600 HP, 5,000 PSI
  • Pit Capacity1,100 BBL
  • Shale Shakers(3) MI SWACO Linear Motion
  • Fuel Tank12,000 Gal Dual Wall
Capabilities

Key Advantages

01

Tall-Floor Substructure

The 30-ft floor height substructure provides maximum BOP clearance for large casing programs and complex well control configurations, reducing time-consuming BOP stack reconfigurations between wells.

02

High Hook-Load Mast

A 142-ft mast rated to 1,000,000 lb static hook load paired with the Canrig 1250AC 500-ton top drive enables heavy casing runs and high-weight drill strings without operational compromise.

03

Integrated Pipe Handling

Canrig PC-3000 hydraulic catwalk with walking package, hydraulic V-door, and wireless control combined with Canrig TM80 handling tool deliver a fully automated surface pipe-handling system.

Complete Data

Full Equipment Status

Drawworks & Drive

ModelContinental Emsco C1
Power1,500 HP
DriveGE 752 Electric Motors
BrakeBaylor 6032 Auxiliary Electric
Control1600A 4-Bay w/ Dynamic Braking & PLC

Mast & Substructure

Mast Height142 ft
Hook Load1,000,000 lb Static
Floor Height30 ft
Mobility120-ft Skid System

Power Plant

Engines(3) Cat 3512C Diesel
Generator Output1,365 KW each
Fuel Tank12,000 Gal Dual Wall
Water Tank500 BBL

Mud System

Mud Pumps(2) 1600 HP
Working Pressure5,000 PSI Fluid Ends
Pit Capacity1,100 BBL (3×500 BBL)
Shale Shakers(3) MI SWACO Linear Motion
Choke Manifold4" 10,000 PSI

Drilling Equipment

Top DriveCanrig 1250AC 500 Ton, 7,500 PSI
Rotary TableNational 275, 27.5"
Traveling BlockNational 500 Ton, 50" Sheaves, 1-3/8" Line
CatwalkCanrig PC-3000 Hydraulic w/ Walking Package
Handling ToolCanrig TM80

Well Control

BOP11" 10,000 PSI Double & Single Ram
Annular11" 5,000 PSI
Choke Manifold4" 10,000 PSI
