Available — POA

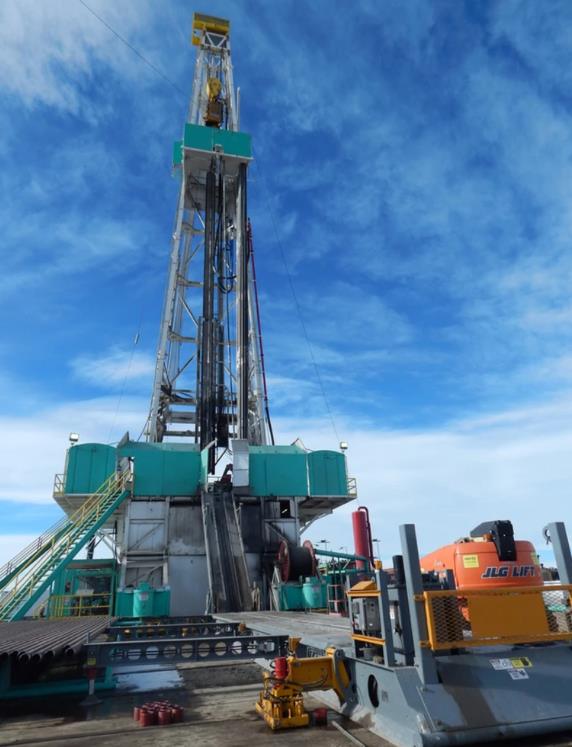

Continental Emsco C1 1500 HP Drilling Rig 26

1500 HP Continental Emsco C1 SCR electric land rig with DSI 142-ft mast — fully equipped with Canrig top drive, catwalk, and complete solids-control package.

1,500
Horsepower
SCR Electric Drive
142'
DSI Mast
750,000 lb Hook Load
26.5'
Floor Height
DSI Substructure
1,100 BBL
Mud System
Full Solids Control
Continental Emsco C1 1500 HP Drilling Rig 26
1500 HP Continental Emsco C1 SCR electric land rig with DSI 142-ft mast — fully equipped with Canrig top drive, catwalk, and complete solids-control package.

Continental Emsco C1 1500 HP SCR electric land drilling rig featuring a DSI 142-ft mast rated to 750,000 lb static hook load and a 26.5-ft floor height substructure. Power comes from three Caterpillar 3512C diesel engines with 1,365 KW generators. The rig includes a Canrig 1250AC 500-ton top drive, dual 1600 HP mud pumps rated to 7,500 PSI, a 1,100 BBL mud system with full solids control, and a Canrig PC-3000 hydraulic catwalk with walking package.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • ModelContinental Emsco C1
  • Power1,500 HP
  • Drive(2) GE 752 Electric Motors
  • BrakeBaylor 6032
🗼

Mast & Substructure

  • MastDSI 142 ft
  • Hook Load750,000 lb Static
  • Floor Height26.5 ft
  • Mobility120-ft Skid System
🔩

Power

  • Engines(3) Cat 3512C Diesel
  • Generators1,365 KW each
  • Control House1600A 4-Bay w/ PLC Failover
💧

Mud System

  • Mud Pumps(2) 1600 HP, 7,500 PSI
  • Pit Capacity1,100 BBL
  • Shale Shakers(3) MI SWACO Linear Motion
  • Fuel Tank12,000 Gal Dual Wall
🔄

Top Drive & Handling

  • Top DriveCanrig 1250AC 500 Ton
  • CatwalkCanrig PC-3000 Hydraulic
  • Rotary TableNational 275, 27.5"
  • Handling ToolNational ST-80C
Capabilities

Key Advantages

01

High-Capacity AC Electric Drive

The Continental Emsco C1 drawworks powered by dual GE 752 motors delivers precise SCR-controlled 1500 HP torque, ideal for deep formations and challenging drilling programs requiring consistent power management.

02

Heavy-Lift DSI Mast

The DSI 142-ft mast rated to 750,000 lb static hook load accommodates large bottom-hole assemblies and heavy casing strings. The Canrig 1250AC 500-ton top drive provides full directional drilling capability.

03

Complete Surface Equipment

Dual 1600 HP mud pumps at 7,500 PSI, 1,100 BBL pit system with full solids control (desander, desilter, mud/gas separator), and Canrig PC-3000 hydraulic catwalk with walking package provide a fully integrated rig package.

Complete Data

Full Equipment Status

Drawworks & Drive

ModelContinental Emsco C1
Power1,500 HP
Drive(2) GE 752 Electric Motors
BrakeBaylor 6032
ControlSCR with Dynamic Braking

Mast & Substructure

Mast ManufacturerDSI
Mast Height142 ft
Static Hook Load750,000 lb
SubstructureDSI 26.5-ft Floor Height
Mobility120-ft Skid System

Power Plant

Engines(3) Caterpillar 3512C Diesel
Generator Output1,365 KW each
Control House1600A 4-Bay Electric
AutomationPLC Failover System

Mud System

Mud Pumps(2) 1600 HP, 7,500 PSI
Pit Capacity1,100 BBL
Mixing Pumps6×8
Shale Shakers(3) MI SWACO Linear Motion
Fuel Tank12,000 Gal Dual Wall
Water Tank500 BBL

Drilling Equipment

Top DriveCanrig 1250AC 500 Ton, 7,500 PSI
Rotary TableNational 275, 27.5"
Traveling BlockNational 500 Ton, 50" Sheaves, 1-3/8" Line
CatwalkCanrig PC-3000 Hydraulic w/ Walking Package
Handling ToolNational ST-80C

Well Control

BOP Stack11" 10,000 PSI Double Ram
Annular11" 5,000 PSI
Choke Manifold4", 10,000 PSI Skid Mounted

Lighting & Safety

Lighting100% LED Class I DIV I & DIV II
Dog House10'×8'×45' DS, 10'×8'×22' ODS
