Continental EMSCO 1500 HP Rig 3 | Total Drilling Supply LLC

Continental EMSCO C-1 1500 HP SCR drilling rig commissioned March 2006, CAT IV certified 2025. Features National Oilwell 136' telescoping mast at 750,000 lb hookload, Cat 3512B generator sets, dual Continental EMSCO FB-1600 mud pumps, Canrig 350-ton top drive, and complete driller's cabin with Varco electronic control. Located in Corpus Christi, TX. Priced at $7.5 million USD.

Technical Overview

Key Equipment Specifications

🗼

Mast & Structure

Mast MFGNational Oilwell 136' Telescoping
Hook Load750,000 lbs
SubstructureIDM 22' Hydraulic Telescoping
Rotary Load750,000 lbs
Setback400,000 lbs simultaneous

⚙️

Drawworks & Power

DrawworksContinental EMSCO C-1, 1,500 HP (Asset DW014)
Motors(2) GM 800-HP DC Traction Motors
Hours9,785
Generators(3) Caterpillar 3512B
SCR House3x4 Configuration

🛢️

Drilling Equipment

Top DriveCanrig 350-Ton
RotaryEMSCO Type 37½" independent 800-HP motor
Mud Pumps(2) Continental EMSCO FB-1600
Mud System848 bbl total active
BOP13-5/8" 10,000 LB Double/Single Ram + Annular (Shaffer)

Equipment Gallery

Rig Photos

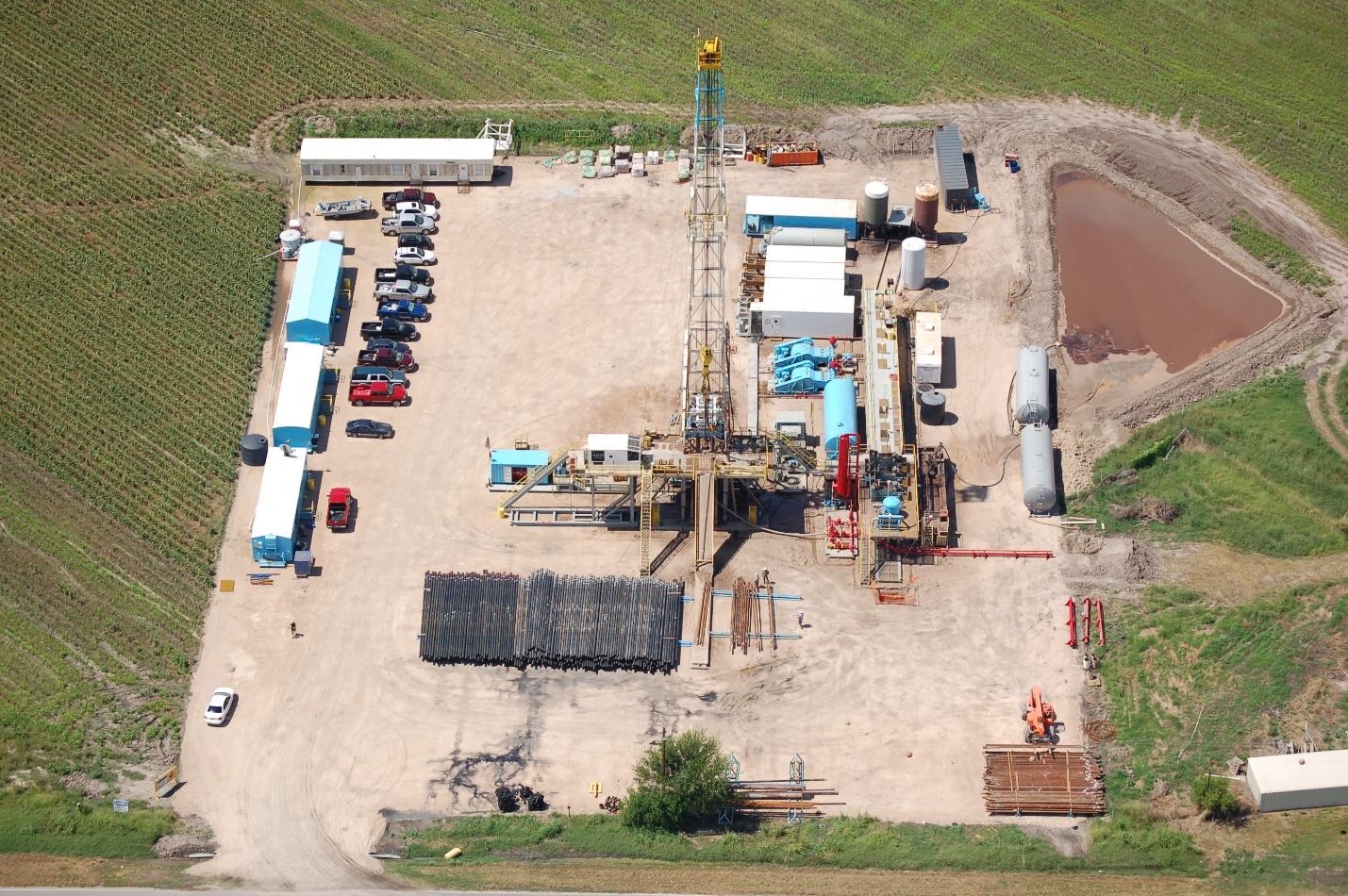

Continental EMSCO 1500 HP Rig 3 — Corpus Christi TX

Capabilities

Key Advantages

01

CAT IV 2025 Certification

Freshly CAT IV certified 2025 at $7.5 million USD — fully compliant and ready for immediate deployment without additional inspection cost.

02

Comprehensive Mud System

848 bbl total active mud capacity with four separate tanks, hydraulically-raised processing skid with triple Brandt King Cobra shakers, DG-10 degasser, 16-cone desilter, and dedicated trip and suction tanks.

03

Complete Auxiliary Package

Forum Wrangler automatic catwalk, wireline unit, driller's cabin with Varco electronic driller, crew and toolpusher quarters, 12,000 gal double-wall fuel tank, and power washer included.

Complete Data

Full Equipment Status

Rig Overview

Rig Number	3
Commissioned	March 2006
Location	Corpus Christi, TX
Price	$7,500,000 USD
CAT IV	2025

Drawworks

Manufacturer	Continental EMSCO
Model	C-1 (Asset DW014)
Power	1,500 HP
Motors	(2) GM 800-HP DC Traction Motors
Brake	Wichita Auxiliary Brake
Control	Varco Drilling System Interface
Hours	9,785

Mast & Substructure

Mast	National Oilwell 136' Telescoping
Hook Load	750,000 lbs
Substructure	IDM 22' Hydraulic Telescoping
Rotary Load	750,000 lbs
Setback	400,000 lbs simultaneous

Power & Drive

Generator Sets	(3) Caterpillar 3512B
SCR House	3x4 Configuration

Circulation System

Mud Pumps	(2) Continental EMSCO FB-1600
Mud Capacity	848 bbl total active
Solids Control	(3) Brandt King Cobra shakers, DG-10 degasser, 16-cone desilter

Well Control

BOP	(1) 13-5/8" 10,000 LB Double Ram + (1) Single Ram + (1) 5,000 LB Annular (Shaffer API 16D)
Accumulator	6-Station Beijing Petroleum FXQ720-6 API 16E
Choke Manifold	4' x 4" 10,000 LB
