Crow Energy CE 1000 DD – 1000 HP Drilling Rig 117

Rig 117 is a Crow Energy Technology CE 1000 DD mechanical telescopic double rated at 1,000 HP. Features a 118-ft mast with 400,000 lb static hook load, Tesco 250 EMI-450 top drive, and Detroit Diesel power. 40-load count with skidding capability requiring two cranes. Designed for shallow to mid-depth drilling programs.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

DrawworksCrow Energy CE 1000 DD

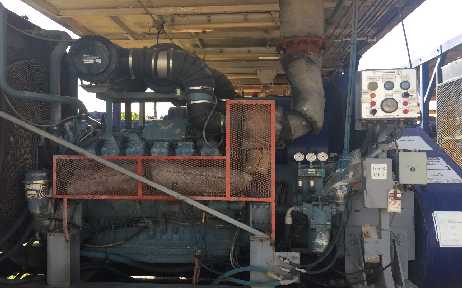

Input Power(2) Detroit Diesel Series 60, 665 HP each
Rated HP1,000 HP
Rig TypeMechanical Telescopic Double

🗼

Mast & Substructure

Mast Height118 ft / 40 m
Static Hook Load400,000 lb / 177,800 daN
Sub Floor Height18 ft / 5.5 m (Telescoping)
Setback Capacity300,000 lb / 133,500 daN

🔩

Top Drive & Rotating

Top DriveTesco 250 EMI-450
Load Rating500,000 lb / 222,400 daN
Max Torque36,000 ft-lbs / 48,800 Nm
Travelling BlockArctic T250, 400,000 lb

💧

Mud System

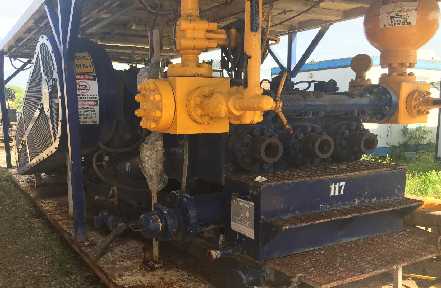

Mud PumpFB-1300, 1,300 HP Max
Input Power(2) Detroit Diesel 12v2000, 1,000 HP
Fuel Tank400 BBL capacity
Load Count40 loads

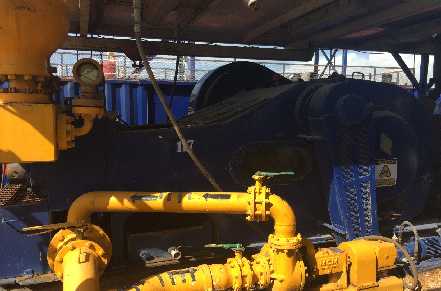

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Mechanical Double Mast

118-ft mechanical telescopic mast rated 400,000 lb static hook load — optimized for shallow to mid-range drilling programs.

02

Tesco Top Drive

Tesco 250 EMI-450 top drive provides 500,000 lb capacity and 36,000 ft-lb torque for reliable directional control.

03

Detroit Diesel Power

Twin Detroit Diesel Series 60 engines provide a proven, fuel-efficient power package for moderate HP requirements.

Complete Data

Full Equipment Status

Rig Summary

HP Rating	1,000 HP
Rig Type	Mechanical Telescopic Double
Load Count	40
Skidding	Yes (2 cranes required)

Mast

Height	118 ft / 40 m
Static Hook Load	400,000 lb / 177,800 daN
Drilling Line	1-1/8 inch / 28.5 mm

Substructure

Type	Telescoping
Floor Height	18 ft / 5.5 m
Rotary Load Capacity	400,000 lb / 177,800 daN
Setback Capacity	300,000 lb / 133,500 daN

Drawworks

Make/Model	Crow Energy CE 1000 DD
Input Power	(2) Detroit Diesel Series 60, 665 HP
HP Rating	1,000 HP

Top Drive

Make/Model	Tesco 250 EMI-450
Load Rating	500,000 lb / 222,400 daN
Max Torque	36,000 ft-lbs / 48,800 Nm
Floor Height	16 ft / 4.9 m

Travelling Assembly

Block	Arctic T250, 400,000 lb
Swivel	Tesco 250,000 lb
