Stewart & Stevenson (Crown Duke) 2008 CE750 Drill Rig

A 2008 Stewart & Stevenson (Crown Duke) CE750 carrier-mounted drill rig offered at $3 million. Powered by a Detroit Series 60 14L diesel (665HP) with Allison 6610 automatic transmission. Includes two CAT C27-powered Mud King MKP-1000 triplex mud pumps, a 630-barrel twin mud tank system, dual generator house, and a full complement of ancillary equipment including a 350-ton Rineer FTI power sub.

Technical Overview

Key Equipment Specifications

🚛

Prime Mover

EngineDetroit Series 60 14L Diesel (665HP)
S/N06R0943411
TransmissionAllison 6610 Automatic
MountCarrier Mounted
Serial (Rig)1C9ST184982978004

🗼

Mast & Drawworks

Mast118' x 350,000 lbs capacity (Nast)
DrawworksSingle Drum
SubstructureHydraulic raised, 14'H × 10'W × 18'L
Block & HookNational 175-ton block hook

💧

Mud Pumps

Pump 12008 Mud King MKP-1000, CAT C27, 1000HP
Pump 1 S/NP08083
Pump 22006 Mud King MKP-1000, CAT C27, 1000HP
Pump 2 S/NP060183
MountOilfield skidded

🛢️

Mud Tank System

Capacity~630 barrels, twin tanks
Tank 12 compartments, 2× Mission Magnum pumps
Tank 24 compartments, Derrick shakers, desander/desilter
AgitationMud agitators, internal plumbing

⚡

Power Generation

Generator 1Marathon 450kW, Detroit Series 60
Generator 2CAT LC5 225kW, CAT C9
Fuel Tank8,000-gallon double-walled
Power Sub350-ton Rineer FTI Roto-Tac

🔧

Auxiliary Equipment

Drilling RecorderGeolograph + Auto Driller
Water Tank300 BBL with wash pump
Frac Tanks2× 2006 Dragon 500-bbl wheeled
Drill PipeMin. 10,000' of 3-1/2" double white band
BOPWashington Series 2000 Rotating Head, TIW Valve
Kelly4-1/4" hex, 150-ton swivel, kelly spinner

Equipment Gallery

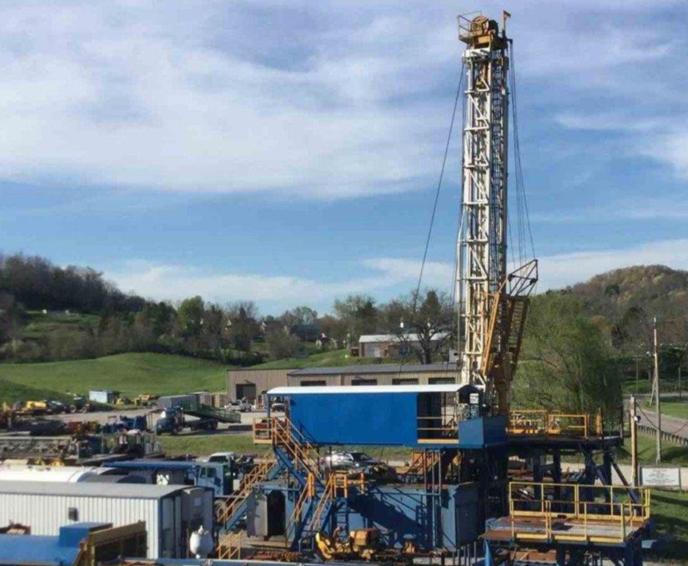

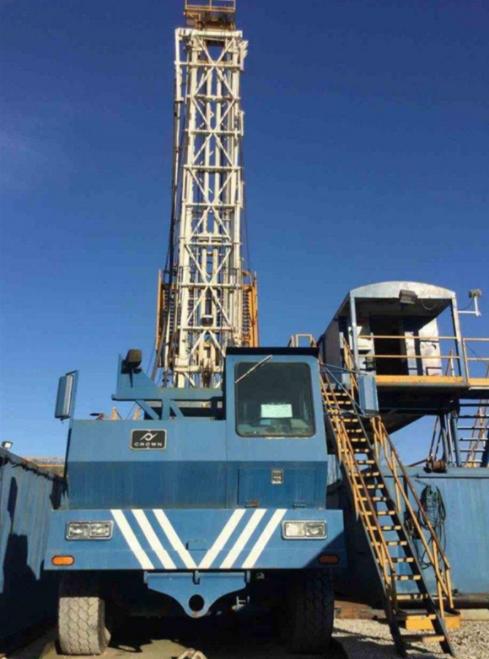

Rig Photos

Capabilities

Key Advantages

01

Carrier-Mounted Mobility

CE750 carrier-mounted configuration enables rapid repositioning between locations with minimal setup time, ideal for shallow-to-medium depth work programs in tight rig markets.

02

Dual High-Capacity Mud Pumps

Two 1,000HP Mud King MKP-1000 triplex pumps powered by CAT C27 engines provide substantial circulating capacity for challenging hole sections.

03

Competitive Price Point

Offered at $3 million ex-works, this 2008 Stewart & Stevenson package represents proven CE-series engineering at a fraction of new-build cost.

Complete Data

Full Equipment Status

Prime Mover & Structure

Rig Serial	1C9ST184982978004
Engine	Detroit Series 60 14L, 665HP
Transmission	Allison 6610 Automatic
Mast	118' × 350,000 lbs (Nast), Single Drum Drawworks
Substructure	Hydraulic raised, 14'H × 10'W × 18'L
Mount Type	Carrier Mounted

Mud Pumps

Pump 1	2008 Mud King MKP-1000, S/N P08083
Pump 1 Engine	CAT C27, S/N TWM00838, Allison DP8962
Pump 2	2006 Mud King MKP-1000, S/N P060183
Pump 2 Engine	CAT C27, S/N TMW00859, Allison DP8962
Rating	1,000HP each, oilfield skidded

Power & Ancillary

Generator 1	Marathon 450kW, Detroit Series 60
Generator 2	CAT LC5 225kW 480V, CAT C9
Fuel Tank	8,000-gallon, double-walled
Water Tank	300 BBL
Power Sub	350-ton Rineer FTI Roto-Tac
Frac Tanks	2× 2006 Dragon 500-bbl wheeled (#44481, #44486)

Key Equipment Specifications

Prime Mover

Mast & Drawworks

Mud Pumps

Mud Tank System

Power Generation

Auxiliary Equipment

Rig Photos

Key Advantages

Carrier-Mounted Mobility

Dual High-Capacity Mud Pumps

Competitive Price Point

Full Equipment Status

Prime Mover & Structure

Mud Pumps

Power & Ancillary

Interested in This Rig?
