Davis 1000HP Land Rig 102

1000HP Land Rig — Davis Drawworks • Dual Cat D-3512 Mud Pumps

1000 HP
Drawworks
Davis In-Line Single Drum
520K LB
Hook Load
DSI 131' Cantilever Mast
250 Ton
Top Drive
JH AC Top Drive
600 BBL
Mud System
Two-Pit Active

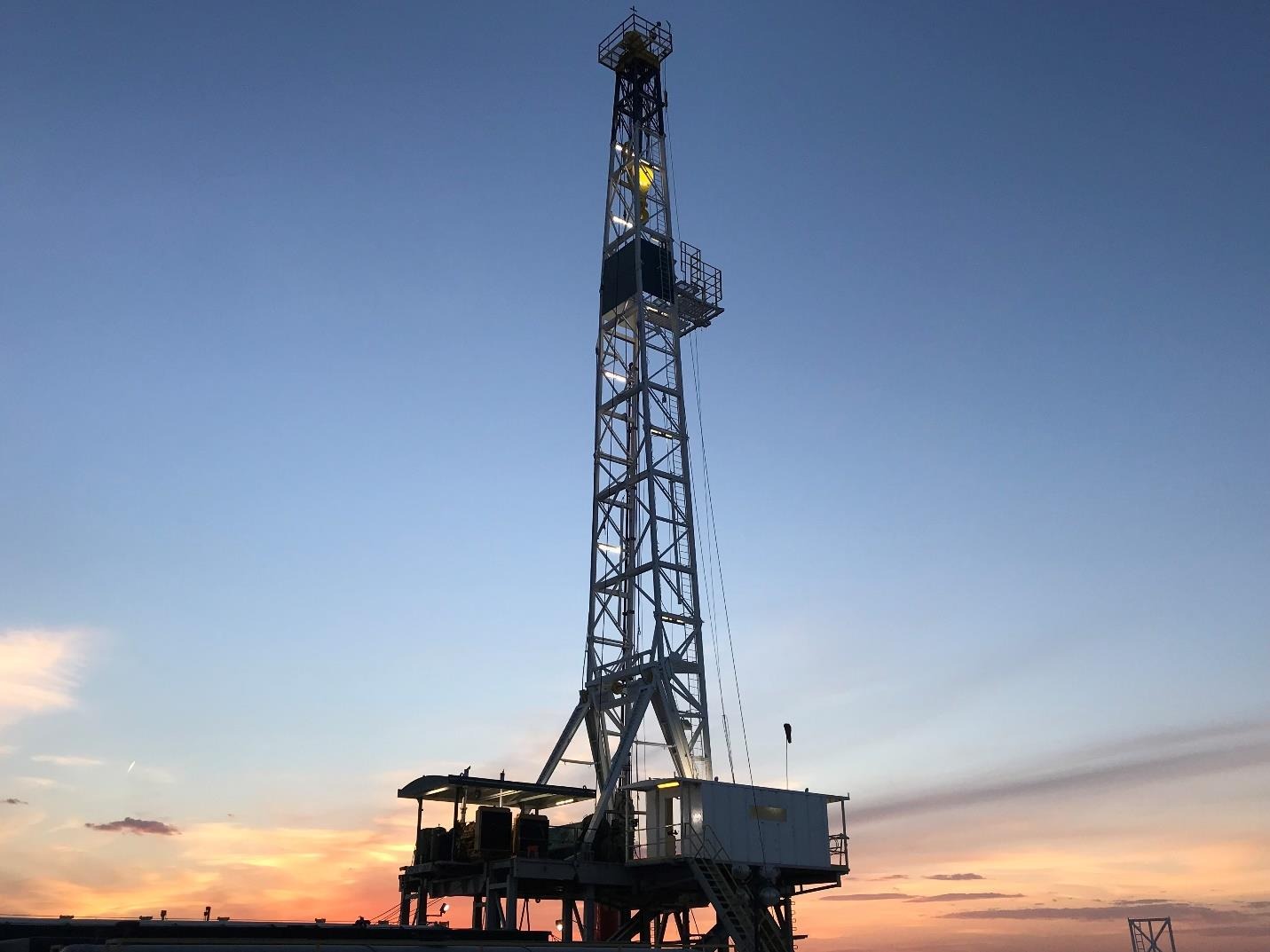

Davis 1000HP Land Rig 102
1000HP Land Rig — Davis Drawworks • Dual Cat D-3512 Mud Pumps

Field-proven 1000HP land rig featuring a Davis In-Line single drum drawworks, DSI 131-foot cantilever mast rated at 520,000 lb SHL, and a JH 250-ton AC top drive. Twin 1,600HP triplex mud pumps powered by Caterpillar D-3512 diesels provide ample hydraulic horsepower. Hydril GK 13-5/8" annular and double-gate BOP stack, 600-barrel two-pit mud system with Brandt King Cobra shakers, and full auxiliary package included.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksDavis 1000 In-Line, 1000 HP
  • BrakeWTI 242 Disc Brake
  • Engines(2) Caterpillar D-3408, 550 HP each
  • Generators(2) Caterpillar 475 KW
🗼

Mast & Substructure

  • MastDSI 131' Cantilever
  • Hook Load520,000 LB SHL
  • SubstructureDreco Slingshot 19'H × 18'W × 41'L
  • Setback350,000 LB Simultaneous
🔩

Mud System

  • Pumps(2) 1,600 HP Triplex, Cat D-3512
  • Active Capacity600 Barrels (Two Pit)
  • Shakers(2) Brandt King Cobra Linear
  • Pre-mix Tank300 Barrels
🛡️

BOP Stack

  • AnnularHydril GK 13-5/8" 5,000 psi
  • Double GateHydril 13-5/8" 5,000 psi
  • Choke Manifold4" × 2" 5,000 psi
  • AccumulatorKoomey 6-Station, 180 Gallon
Equipment Gallery

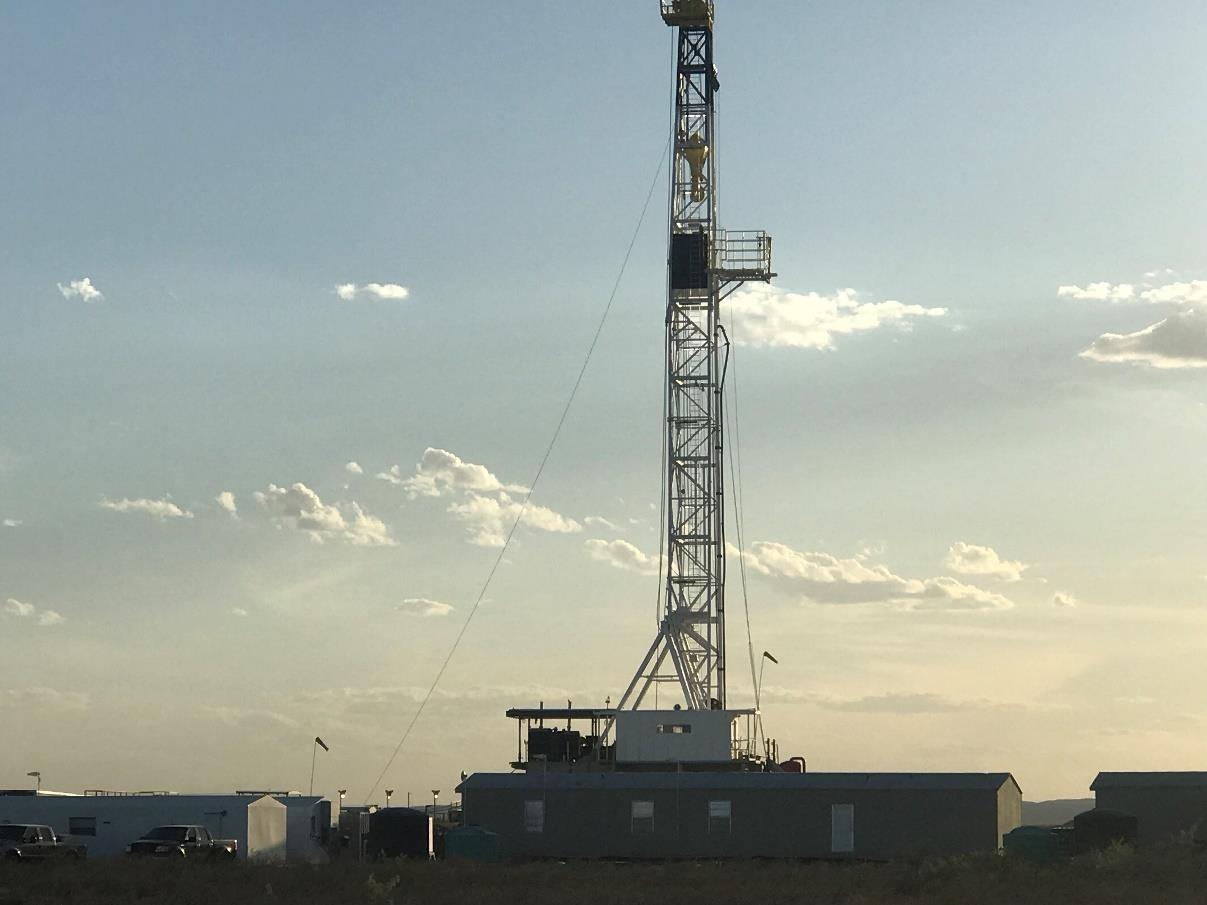

Rig Photos

Capabilities

Key Advantages

01

Proven Pumping Capacity

Dual 1,600HP triplex mud pumps with Cat D-3512 prime movers deliver abundant hydraulic horsepower for demanding formations.

02

Complete Solids Control

Dual Brandt King Cobra linear shale shakers, mud gas separator, and 600-barrel two-pit system with premix conditioning tank.

03

Full Auxiliary Package

Wire line machine, drill pipe spinner, IR air hoists, 10,000-gallon fuel tank, houses and water tank included for complete self-contained operations.

Complete Data

Full Equipment Status

General

Rig Number102
ConditionUsed
PricePOA

Drawworks

ManufacturerDavis
Model1000 In-Line, Single Drum
Power1000 HP
BrakeWTI 242 Disc Brake
Drill Line1-1/4"

Power

Engines(2) Caterpillar D-3408, 550 HP each
Torque ConvertersNational, Compound Drive
Air Compressors(2) Quincy
Generators(2) Caterpillar 475 KW, D-3412
ElectricalSquare D MCC with Transformer

Mast & Substructure

MastDSI 131' Cantilever
Hook Load520,000 LB SHL
Drill LineGrooved for 1-1/4"
SubstructureDreco Slingshot
Substructure Size19'H × 18'W × 41'L
Simultaneous Setback350,000 LB

Top Drive & Rotary

Top DriveJH 250-Ton AC
Rotary TableIdeco RH 27-1/2" with Split Master Bushings
Traveling BlockIdeco 275-Ton Shorty

BOP Stack

AnnularHydril GK 13-5/8" 5,000 psi
Double GateHydril 13-5/8" 5,000 psi
Choke Manifold4" × 2" 5,000 psi
AccumulatorKoomey 6-Station, 180 Gallon

Mud System

Pump 11,600 HP Triplex, Cat D-3512
Pump 21,600 HP Triplex, Cat D-3512
Active Capacity600 Barrels (Two Pit)
Shaker Tank6'6"H × 9'6"W × 34'L with Agitators
Suction Tank6'6"H × 9'6"W × 34'L with Agitators
Pre-mix Tank300 Barrels, (2) 5×6 Mixing Pumps
Shakers(2) Brandt King Cobra Linear Motion

Houses & Tanks

Top Dog House8' × 20'
Change House7'8" × 27'
Water Tank500 BBL
Fuel Tank10,000 Gallons

Miscellaneous

Wireline MachineIncluded
Drill Pipe SpinnerOilworks
Mud Gas SeparatorIncluded
Air Hoists(2) IR K5UL 5K Rated
