Rig 11 is a complete 1,500 HP Davis 1500-E drilling package powered by three Caterpillar 3512C generators (1,365 kW each) through a Ross Hill 3×4 bay SCR house. The 142-foot Superior cantilever mast carries a 768,000-pound static hook load and is fitted with a 350-ton Warrior hydraulic top drive and Columbia In-Sub walking system. Twin 3-F-1600 triplex pumps deliver 7,500 psi, and a comprehensive BOP stack with 13⅝" annular and dual ram preventers rounds out this capable land drilling package.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

DrawworksDavis 1500-E (National 110 UE copy)
Motors2× GE 752 DC
Drill LineGrooved for 1⅜"
Aux BrakeWPT 235 Electric
Power3× Caterpillar 3512C / 1,365 kW
SCR HouseRoss Hill Type 3×4 bay

🗼

Derrick & Mast

DerrickSuperior 142′ Cantilever Mast
Static Hook Load768,000 lbs
Casing Capacity768,000 lbs
Setback Capacity500,000 lbs
Rotary Beam Clearance21′
Substructure Height25′ Box on Box

🔩

Pumps & Fluid System

Mud Pumps2× 3-F-1600 Triplex (7½" × 12")
Working Pressure7,500 psi
Drive2× GE 752 DC Motors each
Mud Tanks750 BBL 2-tank round bottom
Slug Tank105 BBL
Drill Water Tank498 BBL

🛡️

BOP Stack

Annular13⅝" Hydril, 5,000 psi
Double RamsShaffer 13⅝" 10,000 psi
Single RamShaffer 13⅝" 10,000 psi
Closing UnitCAD Type M, 6-station, 150 gal reserve
Choke Manifold10,000 psi 4⅟₁₆" × 3"

Equipment Gallery

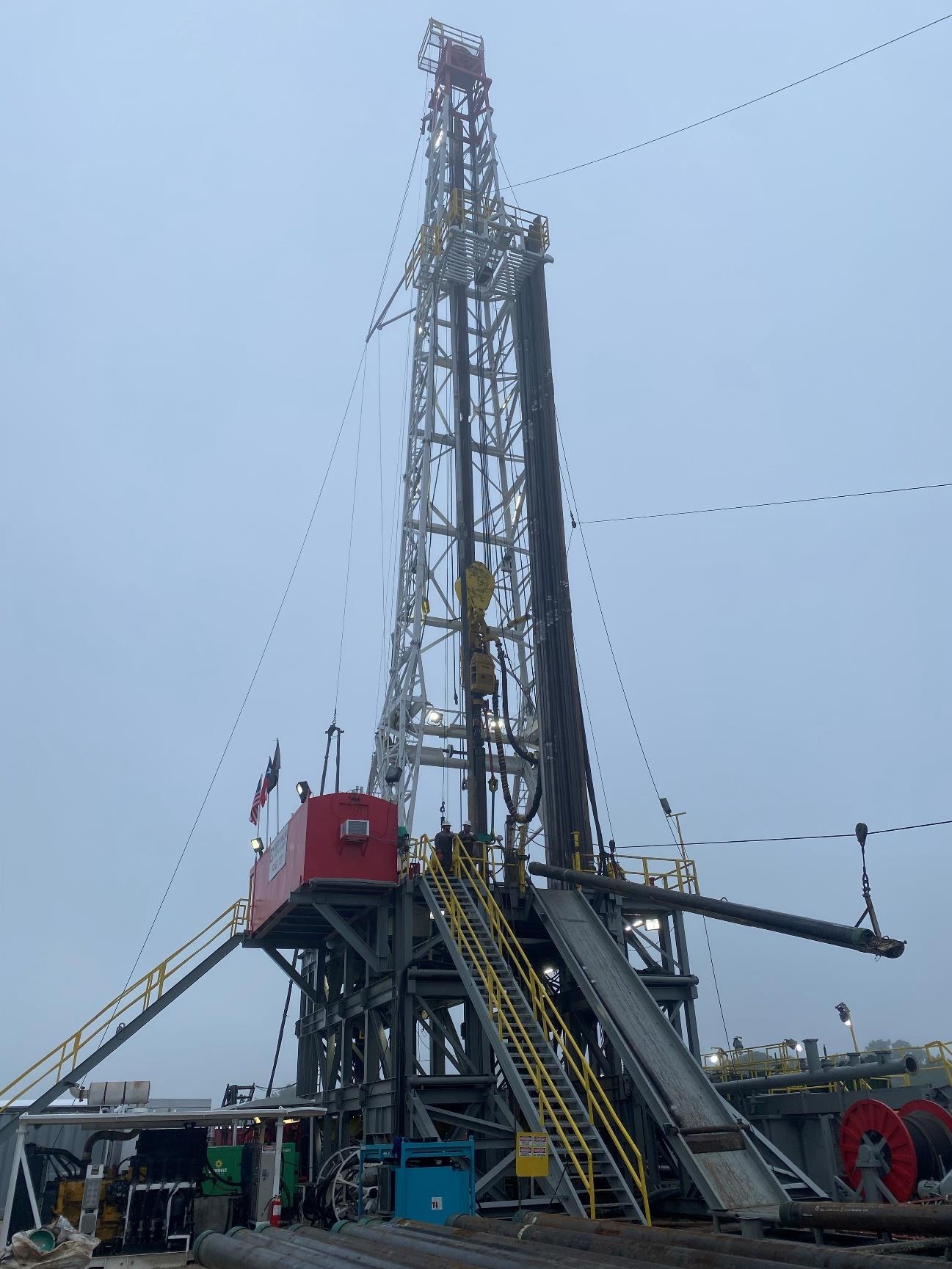

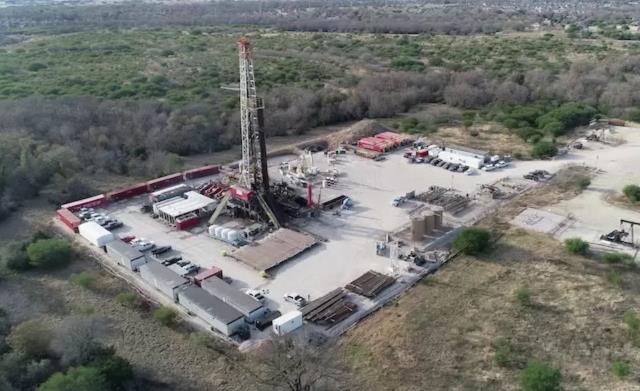

Rig Photos

Capabilities

Key Advantages

01

Triple Cat 3512C SCR Power

Three Caterpillar 3512C generators at 1,365 kW each feed a Ross Hill 3×4 bay SCR house, delivering stable DC power to the Davis 1500-E drawworks and twin 3-F-1600 triplex pumps at 7,500 psi.

02

Walking System Ready

Columbia In-Sub Walking System with HPU enables pad drilling without rigging down — a competitive capability on multi-well pad locations.

03

350-Ton Top Drive

The 350-ton Warrior hydraulic top drive with 7,500 psi circulation rating adds directional drilling capability and reduces connection time compared to conventional kelly systems.

Complete Data

Full Equipment Status

Drawworks

Model	Davis 1500-E (National 110 UE copy)
DC Motors	2× GE 752
Drill Line	1⅜"
Aux Brake	WPT 235 Electric

Derrick

Type	Superior 142′ Cantilever Mast
Static Hook Load	768,000 lbs
Casing Capacity	768,000 lbs
Setback Capacity	500,000 lbs
Rotary Beam Clearance	21′
Substructure	25′ Box on Box Type

Power

Prime Movers	3× Caterpillar 3512C
Generator Output	1,365 kW each
SCR House	Ross Hill Type 3×4 bay

Pumps

Mud Pumps	2× 3-F-1600 Triplex 7½" × 12"
Working Pressure	7,500 psi
Motors	2× GE 752 DC each
LP Mixing	2× 6" × 5" × 11" Centrifugal / 40 HP

Drill String

Drill Pipe	4½" S-135/G-105, 16.60 NC46 X-Hole Hardband
Drill Collars	6"–6½" OD NC44; 8" OD 5"H90
Pipe Spinner	J29 Varco Chain Type

BOP Stack

Annular	13⅝" Hydril 5,000 psi
Double Rams	Shaffer 13⅝" 10,000 psi
Single Ram	Shaffer 13⅝" 10,000 psi
Closing Unit	CAD Type M, 6-station, 20×11-gal bottles, 150 gal reserve
Choke Manifold	10,000 psi 4⅟₁₆" × 3", 2× adjustable 3⅟₁₆" chokes

Other Equipment

Top Drive	350-ton Warrior Hydraulic, 7,500 psi circ
Walking System	Columbia In-Sub with HPU
Crown Block	Superior 7× 48" sheaves
Traveling Block	NOV 500-ton
Rotary Table	27½" × 53¼"
Fuel Tank	15,000 gal with lubester
Trip Tank	50 BBL
Wireline Unit	.092 line
Mud Tanks	750 BBL 2-tank + 105 BBL slug
Drill Water Tank	498 BBL
Shakers	3× Derrick 503 Linear Motion
Desander	Derrick 2× 12" cones
Desilter	Derrick 12× 4" cones
Degasser	Derrick Drilco type
