Dreco Cantilever Triple 1500 HP Rig 24

Dreco Cantilever Triple 1500 HP land rig with Varco top drive and Gardner Denver mud pumps

1,500
Horsepower
NOV DSGD 375
750,000
Hook Load
lbs / 12 lines
16,400+
Drilling Depth
feet (5,000 m)
350
Top Drive
Varco TDS 11SA tons
Dreco Cantilever Triple 1500 HP Rig 24
Dreco Cantilever Triple 1500 HP land rig with Varco top drive and Gardner Denver mud pumps

Dreco P1604008 Cantilever Triple 1500 HP land rig rated to 5,000 m (16,400 ft) TMD. Features NOV DSGD 375 drawworks (1,500 HP / 1,100 kW), Dreco 642TB375 500-ton traveling block, Varco TDS 11SA top drive with 47,000 ft-lb make-up torque, dual Gardner Denver Maverick mud pumps at 7,500 PSI, and one-piece telescoping substructure with 37.5" rotary table.

Technical Overview

Key Equipment Specifications

πŸ—Ό

Mast & Structure

  • MastDreco Model P1604008 Cantilever Triple
  • Mast Height142 ft clear
  • Static Hook Load750,000 lbs / 333,617 daN
  • Lines12 lines, 1ΒΌ" drill line
  • SubstructureOne-Piece Telescoping (Dreco de156358)
  • Rotary Table37.5" / 952 mm, 350-ton
βš™οΈ

Drawworks & Top Drive

  • Drawworks MFGNOV DSGD 375
  • DriveNOV CM632UUT
  • Power1,500 HP / 1,100 kW
  • BrakeDynamic Disc Brake
  • Top DriveVarco TDS 11SA
  • Make-Up Torque47,000 ft-lbs
  • Continuous Torque32,500 ft-lbs
  • BlockDreco 642TB375, 375-ton
πŸ›’οΈ

Mud System

  • Mud Pumps(2) Gardner Denver Maverick, 1,500 HP each
  • Pump Drive(2) Baylor Induction Motors
  • System Pressure7,500 PSI
  • Gear BoxGardner Denver 7.842:1
  • Stroke Length11"
Equipment Gallery

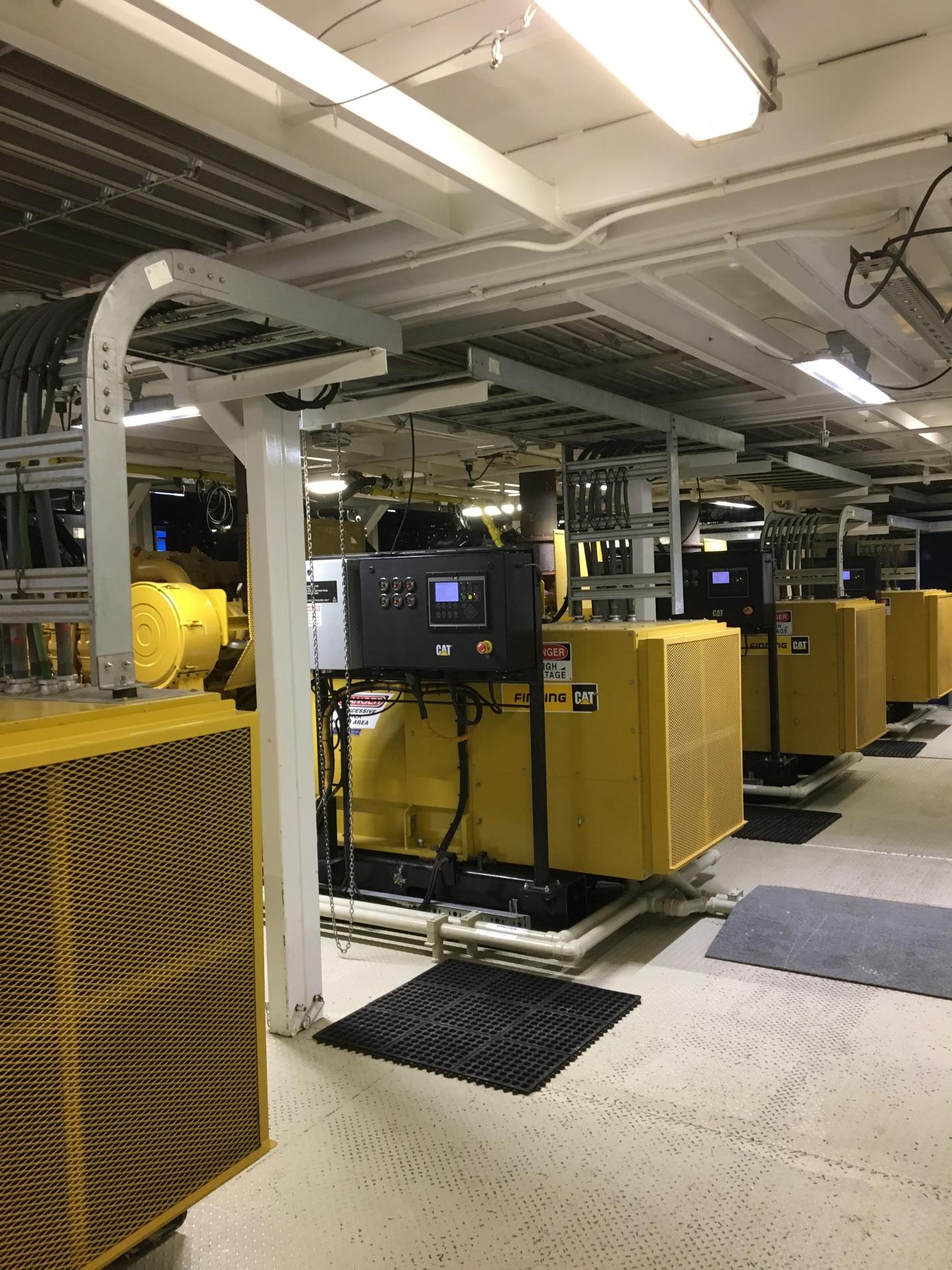

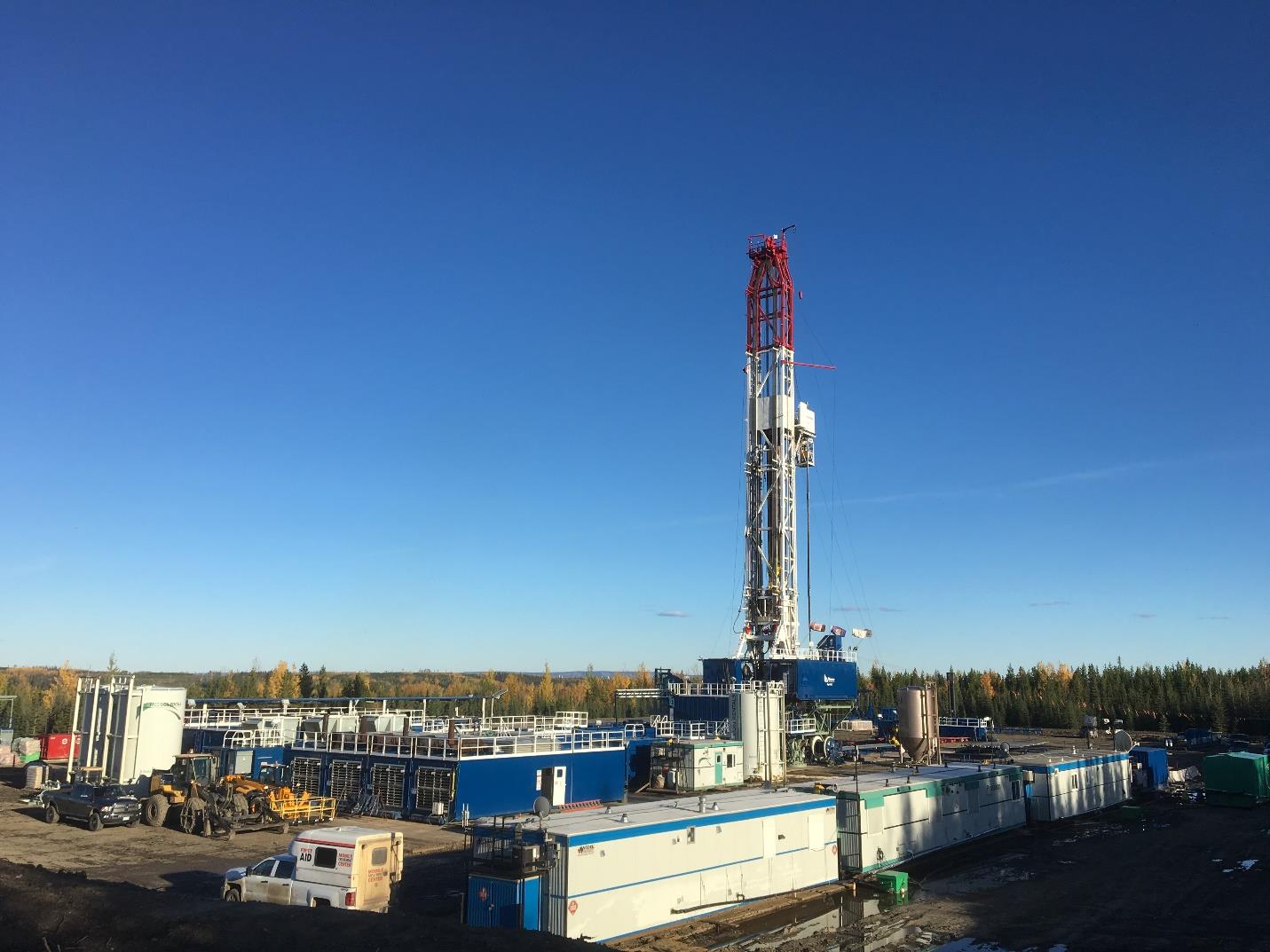

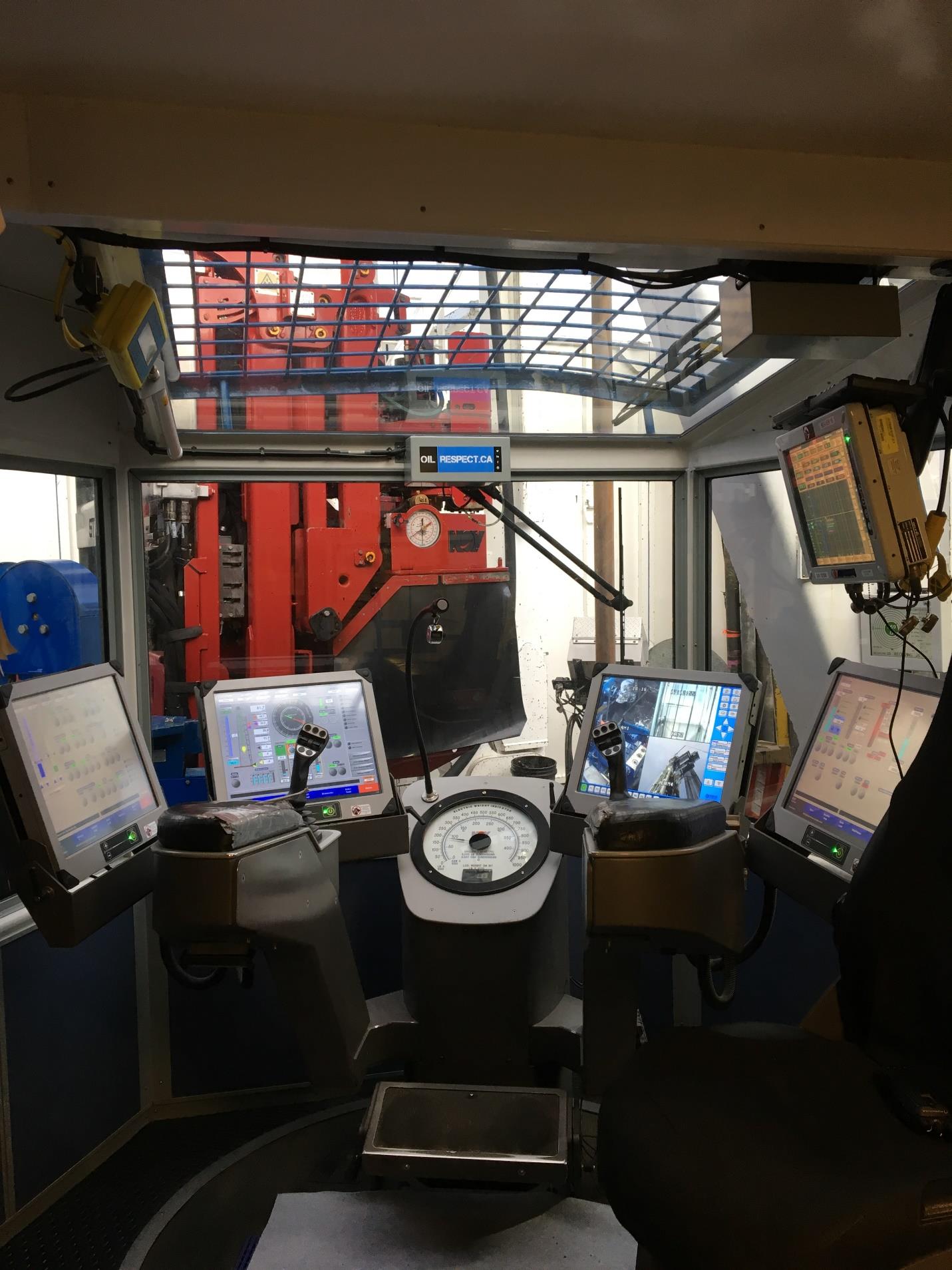

Rig Photos

Capabilities

Key Advantages

01

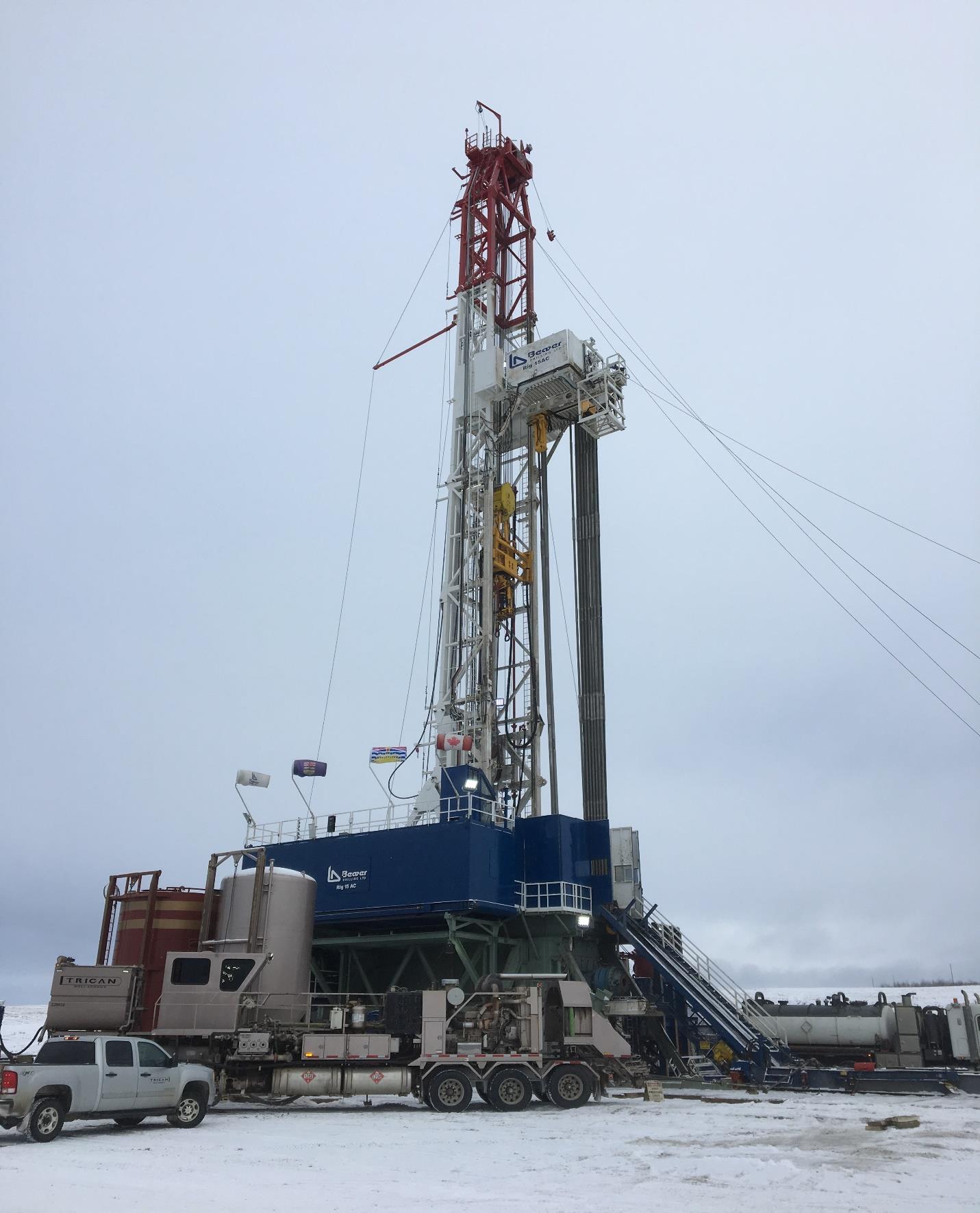

Cantilever Triple Configuration

Dreco P1604008 cantilever triple mast rated 750,000 lb static hook load on 12 lines with 142 ft clear height. One-piece telescoping substructure with 460,000 lb setback capacity and 5,500 m racking for 4" pipe.

02

Varco TDS 11SA Top Drive

NOV Varco TDS 11SA top drive delivering 47,000 ft-lb make-up torque, 32,500 ft-lb continuous torque, and 56,000 ft-lb break-out torque for high-demand directional and horizontal drilling applications.

03

High-Pressure Mud System

Dual Gardner Denver Maverick 1,500 HP mud pumps with 7,500 PSI system pressure and Baylor induction motor drives β€” proven reliability for deep well operations up to 5,000 m TMD.

Complete Data

Full Equipment Status

Mast

TypeCantilever Triple
MFG / ModelDreco P1604008
Clear Height142 ft
Static Hook Load750,000 lbs / 333,617 daN
8-Line Capacity750,000 lbs / 333,617 daN
Lines12
Drill Line1ΒΌ" / 31.7 mm

Substructure

TypeOne-Piece Telescoping
MFGDreco de156358
Setback Capacity460,000 lbs / 204,618 daN
Racking Capacity(4.0") 5,500 m β€” SS-105 CDS40
Rotary Table37.5" / 952 mm
Rotary Capacity350 ton
Casing Capacity750,000 lbs / 333,617 daN
Under Table Height17'-6" / 5.36 m
Floor Height20'-0" / 6.09 m

Drawworks

MFG / ModelNOV DSGD 375
DriveNOV CM632UUT
Power1,500 HP / 1,100 kW
Single Line Pull84,184 lbs
BrakeDynamic Disc Brake

Top Drive & Block

Top DriveVarco TDS 11SA
Make-Up Torque47,000 ft-lbs / 20,900 Nm
Continuous Torque32,500 ft-lbs / 14,450 Nm
Break-Out Torque56,000 ft-lbs / 24,900 Nm
BlockDreco 642TB375, 375 ton / 341,000 daN

Mud Pumps

ModelGardner Denver Maverick (x2)
DriveBaylor Induction Motor (x2)
Power per Pump1,500 HP / 1,192 kW
System Pressure7,500 PSI
Stroke Length11"
Gear Box Ratio7.842:1
Gear Box MFGGardner Denver

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
