Available – Stacked

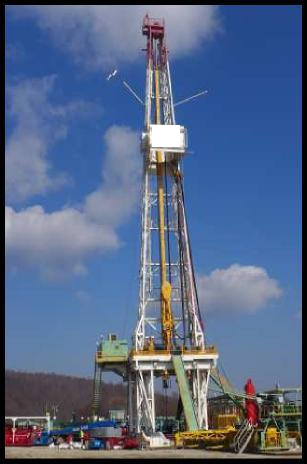

Dreco / Emsco C-2 2000 HP Triple Electric Land Drilling Rig 425

2000 HP Dreco/Emsco triple electric rig with NOV TDS-11SA top drive, refurbished 2014, stacked in Georgia.

2,000
Drawworks HP
Emsco C-2
142 ft
Mast Height
1,000,000 lb Hook Load
25,000 ft
Rated Depth
Triple Electric
Dreco / Emsco C-2 2000 HP Triple Electric Land Drilling Rig 425
2000 HP Dreco/Emsco triple electric rig with NOV TDS-11SA top drive, refurbished 2014, stacked in Georgia.

Rig 425 is a 2,000 HP triple electric land drilling rig built in 1981 and refurbished in 2014. Features a 142-ft Dreco mast rated at 1,000,000 lb static hook load, Emsco C-2 drawworks, NOV TDS-11SA 500-ton top drive, and twin American Block K-1600 mud pumps. Rated to 25,000 ft vertical depth. Currently stacked and available in Georgia, USA.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksEmsco C-2, 2,000 HP
  • Drilling Line1-1/2 inch
  • MotorsGE 752 DC
  • Aux Brake7838 Eddy Current
  • Generators(4) CAT 3512C, 1,365 KW each
🗼

Mast & Substructure

  • Mast TypeDreco, 142 ft
  • Static Hook Load1,000,000 lb
  • Sub TypeDreco, 32 ft 10 in floor
  • Setback Capacity800,000 lb
🔩

Hoisting & Rotating

  • Top DriveNOV TDS-11SA, 500 Ton
  • BlockDreco, 1,600,000 lb
  • Rotary TableJingsu Ratong ZP 375, 37.5 inch, 650T
💧

Mud System

  • Mud Pumps(2) American Block K-1600, 1,600 HP
  • Motors(2) GE 752 DC
  • Total Tank Volume3,068 BBL
  • Shale Shakers(3) Derrick FLC-504
🛡️

Well Control

  • Annular 121-1/4 inch 5K
  • Annular 213-5/8 inch 10K
  • Double Ram 121-1/4 inch 5K
  • Double Ram 213-5/8 inch 15K
  • Single Ram 121-1/4 inch 5K
  • Single Ram 213-5/8 inch 15K
Capabilities

Key Advantages

01

Deep Well Capability

Rated to 25,000 ft vertical depth with 1,000,000 lb hook load and full six-BOP well control stack for high-pressure applications.

02

NOV TDS-11SA Top Drive

500-ton NOV TDS-11SA top drive provides reliable torque and speed control for the most demanding 2,000 HP drilling programs.

03

Refurbished & Ready

Original 1981 build with comprehensive 2014 refurbishment — proven iron with modern updates, stacked and available in Georgia.

Complete Data

Full Equipment Status

Rig Summary

Rig TypeTriple Electric
HP Rating2,000 HP
Hook Load1,000,000 lb
Rated Depth25,000 ft
Year Built1981
Refurbished2014
StatusStacked – Available
LocationGeorgia, USA

Mast

TypeDreco
Clear Height142 ft
Static Hook Load1,000,000 lb

Substructure

TypeDreco
Floor Height32 ft 10 in
Clear Height27 ft 8 in
Setback Capacity800,000 lb

Drawworks

TypeEmsco C-2
Rated Power2,000 HP
Drilling Line1-1/2 inch
MotorsGE 752
Aux Brake7838 Eddy Current

Hoisting & Rotating

Top DriveNOV TDS-11SA, 500 Ton
Block ModelDreco
Block Capacity1,600,000 lb
Rotary TableJingsu Ratong ZP 375
Rotary Capacity650 Ton
Rotary Clearance37-1/2 inch

Well Control

Annular 121-1/4 inch 5K
Annular 213-5/8 inch 10K
Double Ram 121-1/4 inch 5K
Double Ram 213-5/8 inch 15K
Single Ram 121-1/4 inch 5K
Single Ram 213-5/8 inch 15K

Mud System

Mud Pumps(2) American Block K-1600, 1,600 HP
Motors(2) GE 752 DC
Total Tank Volume3,068 BBL
Trip Tank80 BBL
Shale Shakers(3) Derrick FLC-504
DesilterDerrick 20 x 4
DesanderDerrick 10 x 3
DegasserMI-Swaco CD-1400

Power Generation

Type4x Diesel Electric
DrivesCAT 3512C
Rating1,365 KW each

Miscellaneous

CatwalkPipe Wrangler Mod. 4000 Hydraulic
