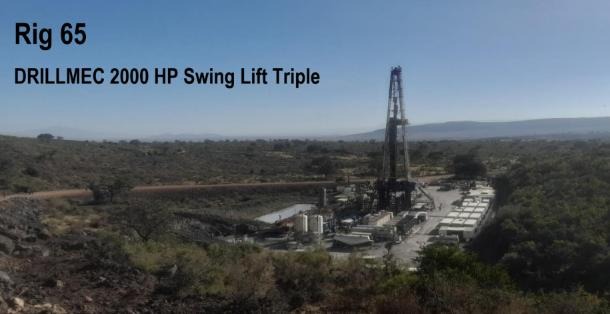

Drillmec 2000HP Rig 65

High-torque AC/VFD triple with Tesco 500T top drive and five-gen power package.

2000 HP
Power Rating
Drillmec
156 ft
Mast Height
Cantilever Swing Lift
1.3M lbs
Hook Load
14 lines
5 × CAT
Generators
C-3512B, 1200 kW each
Drillmec 2000HP Rig 65
High-torque AC/VFD triple with Tesco 500T top drive and five-gen power package.

Drillmec 2000HP Cantilever Swing Lift Triple (Rig 65) equipped with a Tesco 500 ESI 1350HP top drive rated 500 MT and the MS-7000-AC drawworks on 14 lines. Five CAT C-3512B generators at 1200 kW each feed a 6500 kW Drillmec VFD power control room. BOP stack includes 21¼" and 13⅝" annular and RAM equipment to 5000 psi. Iron roughneck rated to 100,000 ft-lbs torque.

Technical Overview

Key Equipment Specifications

🗼

Mast & Hoisting

  • Mast TypeCantilever Swing Lift Triple
  • Clear Height156 ft (47.55 m)
  • Static Hook Load1,300,000 lbs (590 MT)
  • DrawworksMS-7000-AC Electric 2000HP, 14 lines
🔄

Top Drive & Rotary

  • Top DriveTesco 500 ESI 1350 HP
  • Capacity500 MT (1,102,310 lbs)
  • Max Torque72,000 ft-lbs (97,618 Nm)
  • Rotary TableDrillmec 1500 HP, 37½" opening
⚡

Power Generation

  • Generator Sets5 × CAT C-3512B, 1200 kW, 600V
  • Power ControlDrillmec VFD, 6500 kW, 12 bays
💧

BOP & Well Control

  • Annular21¼" 2M & 13⅝" 5M
  • Double RAM13⅝" 5M
  • Single RAM21¼" 2M & 13⅝" 5M
  • Choke ManifoldWeir 3 1/16" 10M
Capabilities

Key Advantages

01

AC/VFD Triple Power Train

Five CAT C-3512B generators backed by a 6500 kW Drillmec VFD provide full variable-frequency drive capability for smooth, energy-efficient drilling.

02

Tesco High-Torque Top Drive

The Tesco 500 ESI delivers 72,000 ft-lbs torque at 218 RPM for demanding directional and extended-reach programs.

03

Full Iron Roughneck

WFT Torq Wrench rated to 100,000 ft-lbs make-up and break-out torque for pipes from 2⅞" to 10".

Complete Data

Full Equipment Status

Mast

TypeCantilever Swing Lift Triple
Clear Height156 ft (47.55 m)
Static Hook Load1,300,000 lbs (590 MT)

Substructure

Setback Capacity800,000 lbs (362 MT)
Max Combined Load2,100,000 lbs (952 MT)
RKB Height35 ft (10.7 m)
Clear Working Height30 ft (9.3 m)

Drawworks / Hoisting

TypeMS-7000-AC Electric 2000HP
Drilling Line1½" (38 mm)
Lines14
Primary Brake×12 hydraulic discs (positive & negative)
Auxiliary BrakeAker Wirth WN72 eddy current

Top Drive

ModelTesco 500 ESI
Power1350 HP
Capacity500 MT (1,102,310 lbs)
Max Torque72,000 ft-lbs
Speed218 RPM
Pressure5000 psi

Iron Roughneck

ModelWFT Torq Wrench 1-0-100 IR
Range2⅞" to 10"
Make-up Torque100,000 ft-lbs
Break-out Torque100,000 ft-lbs

Power Generation

Generator Sets5 × CAT C-3512B
Rating1200 kW, 600V each
Power ControlDrillmec VFD, 6500 kW, 12 bays

Well Control

Annular21¼" 2M & 13⅝" 5M
RAM (Double)13⅝" 5M
RAM (Single)21¼" 2M & 13⅝" 5M
Choke ManifoldWeir 3 1/16" 10M
AccumulatorCAD 14-station, 3M, 572 gal

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
