Available · POA

Drillmec 2000 HP Land Rig 66

Full-spec 2,000 HP Drillmec triple with Tesco top drive, VFD power, and complete camp.

2,000
Horsepower
AC Electric
156 ft
Mast Height
Cantilever Swing Lift
1,300,000
Hook Load (lbs)
590 MT
5 × CAT
Generators
C-3512B · 1,200 kW each
Drillmec 2000 HP Land Rig 66
Full-spec 2,000 HP Drillmec triple with Tesco top drive, VFD power, and complete camp.

A fully-equipped Drillmec 2,000 HP cantilever triple land rig featuring a Tesco 500 ESI top drive, five CAT C-3512B generators with Drillmec VFD controls, three Drillmec 12T1600 mud pumps, complete BOP stack, and a 132-person main camp. Full pipe-racking, slickline, and casing-handling packages included.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • TypeCantilever Swing Lift Triple
  • Height156 ft (47.55 m)
  • Hook Load1,300,000 lbs (590 MT)
  • Substructure Setback800,000 lbs (362 MT)
  • Max Combined Load2,100,000 lbs (952 MT)
  • RKB Height35 ft (10.7 m)
⚙️

Draw Works & Top Drive

  • Draw WorksMS-7000-AC Electric 2000HP
  • Drilling Line1½ in (38 mm) · 14 lines
  • Top DriveTesco 500 ESI 1350 HP
  • TD Capacity1,102,310 lbs (500 MT)
  • Max Torque72,000 ft-lbs (97,618 Nm)
  • Rotary TableDrillmec two-speed 1500 HP · 37½ in
⚡

Power Generation

  • Generator Sets5 × CAT C-3512B, 1,200 kW, 600V
  • VFD / PCRDrillmec VFD, 6,500 kW, 12 bays
  • Mud Pumps3 × Drillmec 12T1600, 5,000 psi
  • Pump Drives6 × GE B22 AC Electric 1,150 HP
  • Compressors4 × Ingersoll Rand UP5-37-10
🛢️

Mud System

  • Total Volume2,282 bbl (441 m³)
  • Active System484 bbl (77 m³)
  • Reserve509 bbl (81 m³)
  • Shale Shakers3 × Mi-Swaco Mongoose PT-1
  • Mud CleanerMi-Swaco desander + desilter
  • DegasserMi-Swaco CD-1400
🔧

BOP / Well Control

  • Annular21¼ in 2M · 13⅝ in 5M
  • RAM (double)13⅝ in 5M
  • RAM (single)21¼ in 2M · 13⅝ in 5M
  • Choke ManifoldWeir 3 1/16 in 10M
  • AccumulatorCAD 14-station 3M 572 gal
  • Iron RoughneckWFT Torq Wrench 1-0-100 IR · 100,000 ft-lbs
🏕️

Camp & Handling

  • Main Camp132 people (24 sleeper + welfare + clinic)
  • Mini Camp12 people
  • Forklift / CraneManitou MHT10120 (12 MT) · Terex TRT60 (60 MT)
  • SlicklineLC Surveyor by Millenium, 20,000 ft × 0.108 in
  • Casing HandlingEckel STND 4–13⅜ in · WFT 24-50 UHT 10¾–20 in
  • Data SystemsDrillmec Data Acquisition & PVT Systems
Equipment Gallery

Rig Photos

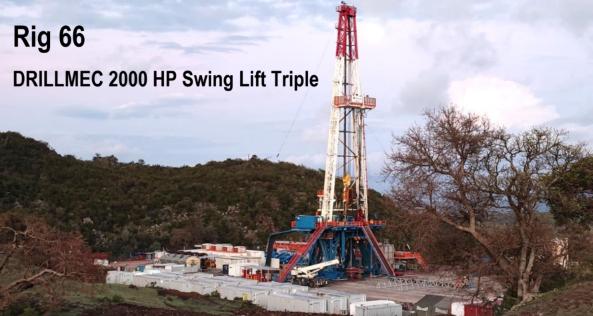

Drillmec 2000 HP Rig 66
Drillmec 2000 HP Rig 66
Capabilities

Key Advantages

01

AC-VFD Power Architecture

Five CAT C-3512B generators feeding a 6,500 kW Drillmec VFD power control room deliver smooth, variable-frequency drive control across all rotating equipment — top drive, draw works, and mud pumps.

02

Triple Drillmec Mud Pumps

Three Drillmec 12T1600 pumps each driven by twin GE B22 AC 1,150 HP motors, rated to 5,000 psi, with a 2,282-bbl total mud system and Mi-Swaco solids-control train.

03

Complete Camp & Logistics

132-person main camp plus 12-person mini camp, Manitou and Terex material handling, and full slickline capability make this rig self-sufficient for remote or international operations.

Complete Data

Full Equipment Status

Mast & Substructure

Mast TypeCantilever Swing Lift Triple 2000 HP
Height156 ft (47.55 m)
Hook Load1,300,000 lbs (590 MT)
Setback Capacity800,000 lbs (362 MT)
Max Combined Load2,100,000 lbs (952 MT)
RKB Height35 ft (10.7 m)
Clear Working Height30 ft (9.3 m)

Draw Works / Hoisting

Draw WorksMS-7000-AC Electric 2000HP
Drilling Line1½ in (38 mm)
Lines14
Primary Brakex12 hydraulic discs (positive & negative)
Auxiliary BrakeAker Wirth WN72 eddy current

Top Drive

TypeTesco 500 ESI 1350 HP
Capacity1,102,310 lbs (500 MT)
Max Torque72,000 ft-lbs (97,618 Nm)
Speed218 RPM
Pressure5,000 psi

Rotary & Iron Roughneck

Rotary TableDrillmec two-speed, 1500 HP, 37½ in (953 mm)
Iron RoughneckWFT Torq Wrench 1-0-100 IR
Operating Diameter2⅞ in to 10 in
Make-up Torque100,000 ft-lbs
Break-out Torque100,000 ft-lbs

Power Generation

Generators5 × CAT C-3512B, 1,200 kW, 600V
VFD PCRDrillmec VFD, 6,500 kW, 12 bays

BOP / Well Control

Annular21¼ in 2M · 13⅝ in 5M
RAM (double)13⅝ in 5M
RAM (single)21¼ in 2M · 13⅝ in 5M
Choke ManifoldWeir 3 1/16 in 10M
AccumulatorCAD 14-station 3M 572 gal

Mud Pumps

Make / Qty3 × Drillmec 12T1600
Drive6 × GE B22 AC Electric 1,150 HP
Pressure Rating5,000 psi

Mud System

Total Volume2,282 bbl (441 m³)
Sand Trap440 bbl (70 m³)
Settling566 bbl (90 m³)
Active484 bbl (77 m³)
Mixing283 bbl (45 m³)
Reserve509 bbl (81 m³)
Trip Tank42 bbl (6.6 m³)
Shale Shakers3 × Mi-Swaco Mongoose PT-1
Mud CleanerMi-Swaco 2-12 desander + 6T4 desilter
DegasserMi-Swaco CD-1400, 400V
Charging Pumps9 × Forum CP12, 100 HP

Casing & Pipe Handling

Eckel TongSTND 4–13⅜ in, 25,000 ft-lbs
WFT Tong24-50 UHT 10¾–20 in, 50,000 ft-lbs

Slickline

TypeLC Surveyor by Millenium
Capacity20,000 ft × 0.108 in

Cranes & Material Handling

ForkliftManitou MHT10120 · 12 MT
CraneTerex TRT60 · 60 MT

Camp

Mini Camp12 people (5 offices, 2 welfare, 1 change, 6 sleep)
Main Camp132 people (24 sleeper, 9 welfare, 3 recreational, clinic, galley)
