Drillmec 2300 HP Land Rig

2026-certified 2300 HP Drillmec land rig — Cameron TX, ready to work

2,300
Horsepower
AC-VFD Drive
20,000
Drilling Depth
feet
2026
Certified
CAT IV / 10 yr
US$10M+
Value
Certified
Drillmec 2300 HP Land Rig
2026-certified 2300 HP Drillmec land rig — Cameron TX, ready to work

2300 HP Drillmec land rig built by AMC Texas, in service since September 2013 and certified through 2026 (CAT IV, 10-year). Box-on-box design rated to 20,000 ft with three Cat 3512B gensets, Gardner Denver PZ-11 mud pumps, NOV Varco top drive, and American Block DKS-2300A drawworks. Located in Cameron, TX — ready for immediate deployment.

Technical Overview

Key Equipment Specifications

🗼

Rig & Structure

  • BuilderAMC, Texas
  • DesignBox on Box
  • Service DateSeptember 2013
  • Rated Depth20,000 ft
  • Base Footprint152' x 24'-4"
  • LocationCameron, TX, USA
🔋

Power System

  • Engines(3) Cat 3512B Gensets 1388 KVA 600V 1200rpm
  • DriveAC-VFD
  • Active Mud500 bbls
  • Reserve Mud500 bbls
  • Water Storage1,500 bbls
🛢️

Drilling Equipment

  • DrawworksAmerican Block DKS-2300A (2300 hp, 872 kips/12 lines)
  • Top DriveNOV Varco 11SA; 800 hp, 500 Ton
  • Mud PumpsTwo (2) 2,400 hp PZ-11 Gardner Denver 5,000 psi
  • Standpipe Rating5,000 psi
  • Rotary Table37½"
  • BOP13 5/8" 2026 Certified BOP with 15k Choke
Equipment Gallery

Rig Photos

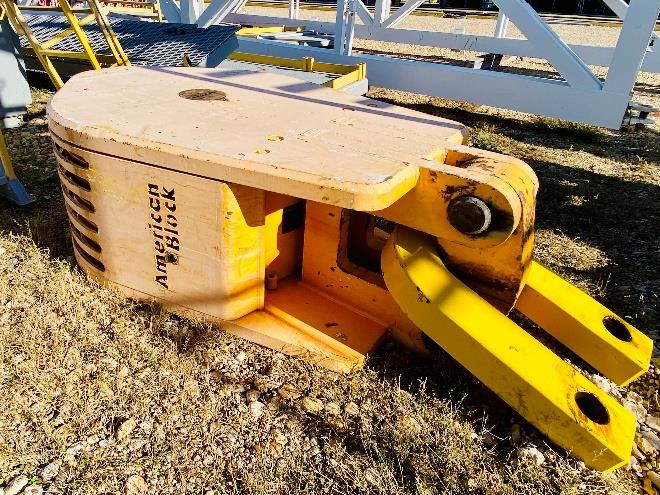

Drillmec 2300 HP rig on location
Drillmec 2300 HP rig on location

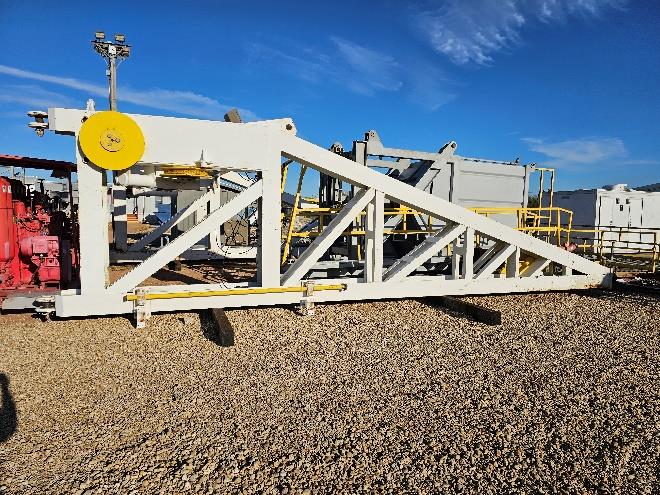

Rig structure detail
Rig structure detail

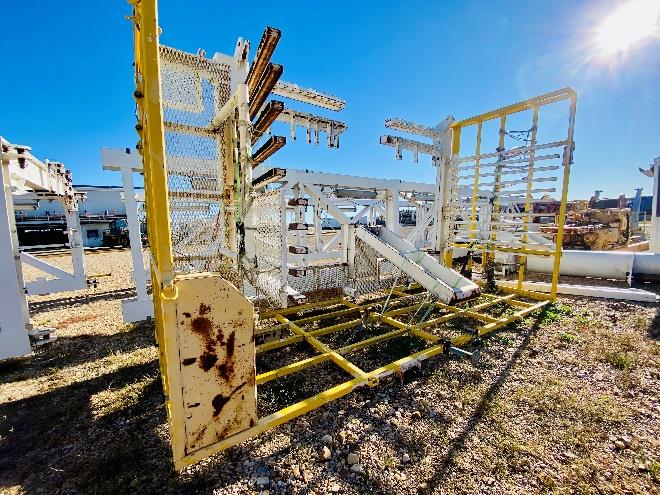

Equipment close-up
Equipment close-up
Drillmec 2300 HP land rig — Cameron TX
Drillmec 2300 HP land rig — Cameron TX
Capabilities

Key Advantages

01

2026 CAT IV Certification

Fully certified through 2026 with 10-year CAT IV inspection — valued at US$10M+. No recertification delays; ready for immediate contract deployment.

02

Heavy-Duty AC-VFD Drive

Three Cat 3512B gensets delivering 1388 KVA each power a full AC-VFD system with 2,300 HP American Block drawworks capable of 872 kips on 12 lines.

03

High-Pressure Mud System

Dual Gardner Denver PZ-11 mud pumps rated 2,400 HP each at 5,000 psi, with 1,000 bbls total mud storage and 1,500 bbls water capacity.

Complete Data

Full Equipment Status

Rig Identification

BrandDrillmec
Type2300 HP Land Rig
BuilderAMC, Texas
DesignBox on Box
Service Date09/2013
Last CAT IVAt Production
Rated Drilling Depth20,000 ft
Base Footprint152' x 24'-4"
LocationCameron, TX, USA
Certification2026 CAT IV, 10 years, US$10M+

Power System

Engines(3) Cat 3512B Gensets 1388 KVA 600V 1200rpm
DriveAC-VFD
Active Mud System500 bbls
Reserve Mud System500 bbls
Water Storage1,500 bbls (400+500+600 bbls)

Hoisting & Rotating

DrawworksAmerican Block DKS-2300A
Drawworks Power2300 hp, 872 kips on 12 lines
BrakeAirflex Disc Brake – DBBS 81.10
Top DriveNOV Varco 11SA; 800 hp, 500 Ton
BlockAmerican Block
Rotary Table37½"

Circulation System

Standpipe Rating5,000 psi
Mud PumpsTwo (2) 2,400 hp PZ-11 Gardner Denver 5,000 psi

Well Control

BOP13 5/8" 2026 Certified BOP with 15k Choke
Choke Manifold15,000 psi
Accumulator12 bottles, 3,000 psi

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
