Drillmec HH-300FA 1500 HP Ram Rig (2011)

Drillmec HH-300FA hydraulic single-lift ram rig — 1,500 HP, recertified 2022, with full pipe handling automation.

1,500 HP
Ram Rig
Drillmec HH-300FA
600K lbs
Hook Load
Hydraulic Mast
14,765 ft
Design Depth
w/ 5" Drill Pipe
2011 / 2022
Built / Recertified
Fully Operational
Drillmec HH-300FA 1500 HP Ram Rig (2011)
Drillmec HH-300FA hydraulic single-lift ram rig — 1,500 HP, recertified 2022, with full pipe handling automation.

Drillmec HH-300FA hydraulic single-lift ram rig built 2011 and recertified 2022. Rated 1,500 HP with 600,000-lb hook load at 10 lines and 14,765-ft design depth. Features Drillmec HH275 top drive (600K lb capacity, 36,200 ft-lb torque), full-auto pipe handling and make-up system, two Drillmec 12-T-160 triplex mud pumps at 1,600 HP each, and three MTU 12V4000 gensets at 1,500 HP each. MI Swaco Mongoose shale shakers and 1,344-bbl active mud system.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • TypeHH-300 Hydraulic Single-Lift
  • Mast Height16.6 m (54.5 ft)
  • Base Height25 ft (7.6 m)
  • Hook Load600,000 lbs (272 mt)
  • Casing Load600,000 lbs (272 mt)
⚙️

Drawworks (Ram Rig)

  • TypeHH 300 Ram Rig
  • HP Rating1,500 HP (1,118 kW)
  • Max Line Pull76,435 lbs (34.67 mt)
  • Drilling Line1 3/8" (34.9 mm)
🔄

Top Drive

  • TypeDrillmec HH275
  • Capacity600,000 lbs (272 mt)
  • Torque36,200 ft-lbs @ 90 RPM
  • Pipe HandlingFull Auto Make-Up System
💧

Mud System

  • Mud Pumps2× Drillmec 12-T-160 Triplex
  • Pump Rating1,600 HP each
  • Standpipe Pressure5,000 psi (345 bar)
  • Active Mud System1,344 bbl (215 m³)
  • Shale Shakers2× MI Swaco Mongoose
⚡

Power Generation

  • Engine TypeMTU 12V4000 G23
  • Qty / Rating3× 1,500 HP @ 1,800 RPM
  • Generators3× LS LSA51.2, 1,750 kVA
  • Voltage600/460 V, 50 Hz
  • Drive SystemDrillmec PCR SCR Unit
🔒

BOP System

  • Annular13⅝" 5,000 psi
  • Double Ram13⅝" 5,000 psi
  • Single RamN/A
Equipment Gallery

Rig Photos

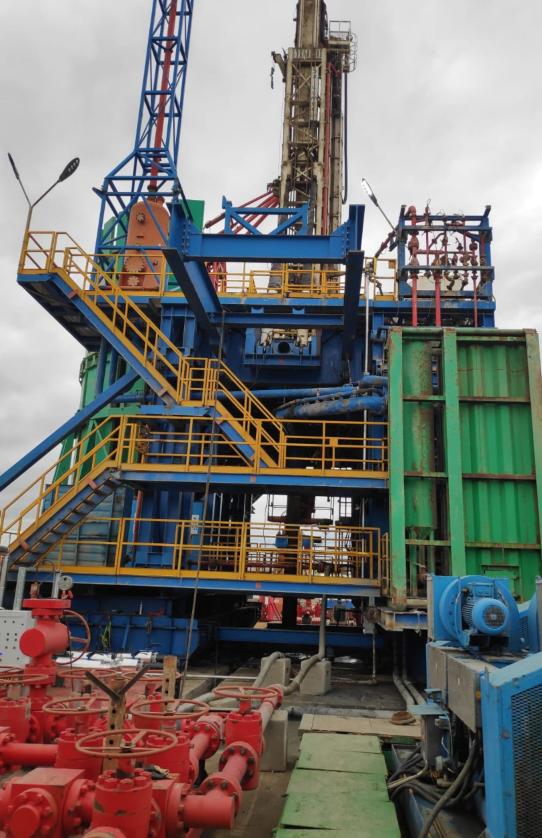

Drillmec HH-300FA on location
Drillmec HH-300FA on location
Drillmec HH-300FA – Rig view
Drillmec HH-300FA – Rig view

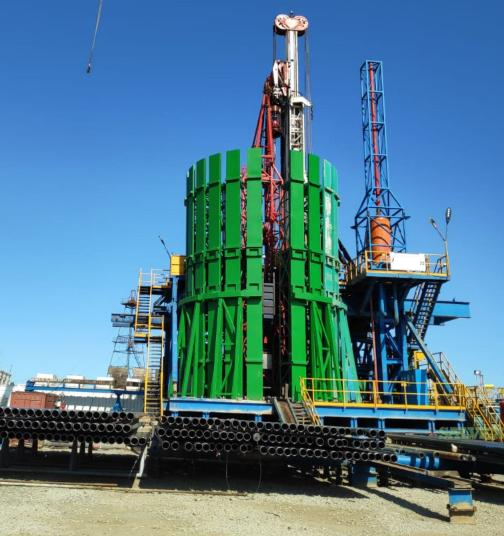

Drillmec HH-300FA – Side elevation
Drillmec HH-300FA – Side elevation

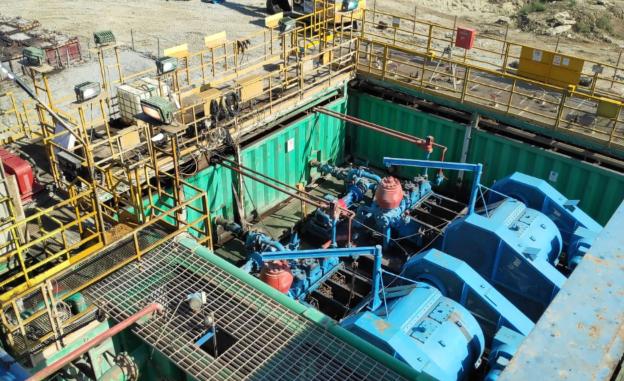

Drillmec HH-300FA – Equipment detail
Drillmec HH-300FA – Equipment detail

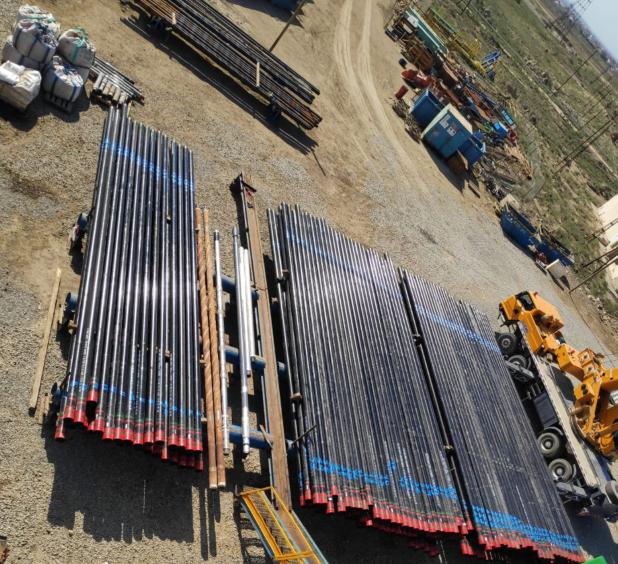

Drillmec HH-300FA – Drilling package
Drillmec HH-300FA – Drilling package
Capabilities

Key Advantages

01

Hydraulic Ram Rig Design

The HH-300FA hydraulic single-lift design enables fast rig-up/rig-down with minimal crane requirements — ideal for pad drilling and remote locations.

02

Full Pipe Handling Automation

Integrated full-auto pipe handling and make-up system reduces crew requirements and improves tripping speed and safety.

03

Recertified 2022

Built 2011 and fully recertified in 2022 — equipment is in verified operational condition with updated compliance certifications.

Complete Data

Full Equipment Status

General

TypeHydraulic Ram Rig HH-300FA
Year Built2011
Recertified2022
Rated HP1,500
Hook Load600,000 lbs @ 10 lines
Design Depth14,765 ft w/ 5" DP

Mast

TypeHH-300 Hydraulic Single-Lift
Height16.6 m
Hook Load600,000 lbs (272 mt)

Drawworks

TypeHH 300 Ram Rig
HP1,500 HP (1,118 kW)
Max Line Pull76,435 lbs (34.67 mt)
Drilling Line1 3/8" (34.9 mm)

Top Drive

TypeDrillmec HH275
Capacity600,000 lbs (272 mt)
Torque36,200 ft-lbs @ 90 RPM

Rotary Table

TypeDrillmec
Opening27½"

Mud Pumps

TypeDrillmec 12-T-160 Triplex
Qty2
Rating1,600 HP each
Standpipe Pressure5,000 psi (345 bar)

Mud System

Active System1,344 bbl (215 m³)
Trip Tank50 bbl (8 m³)
Shale Shakers2× MI Swaco Mongoose
Reserve System0 bbl

Power Generation

EngineMTU 12V4000 G23
Qty / Rating3× 1,500 HP @ 1,800 RPM
GeneratorLS LSA51.2 1,750 kVA each
Voltage600/460 V, 50 Hz
DriveDrillmec PCR SCR System

BOP

Annular13⅝" 5,000 psi
Double Ram13⅝" 5,000 psi

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
