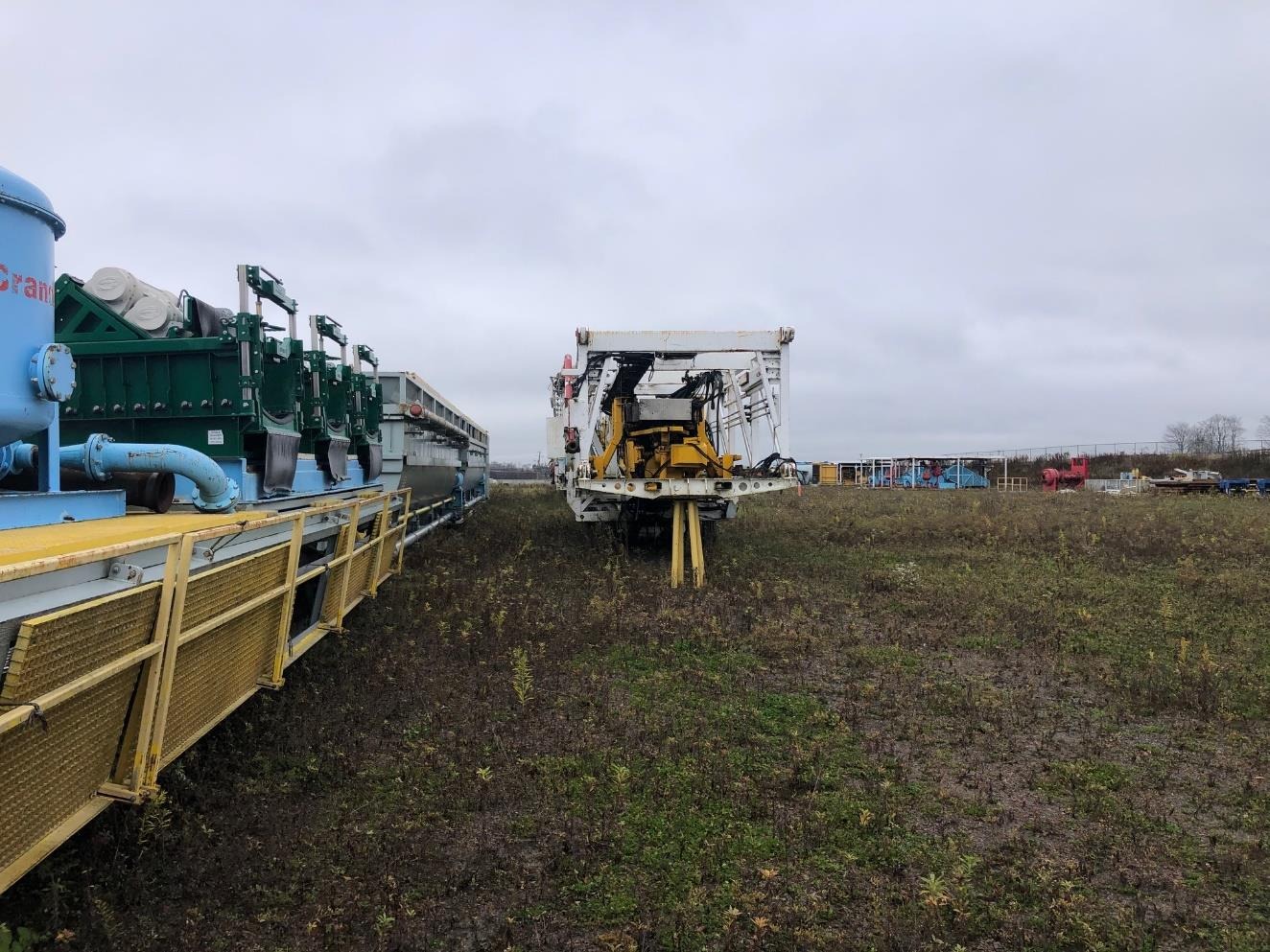

GEMINI 1200HP AC-VFD Drilling Rig — Rig 15

Compact GEMINI 1200HP AC-VFD land rig with walking system, Canrig Rockit top drive, and full solids control.

1,200 HP
Drawworks
Alta Rig AC
550,000#
Hook Load
GEMINI 134 ft mast
45 ft
Walking
Pad drill capable
7,500 PSI
Mud System
2x 1600HP pumps
GEMINI 1200HP AC-VFD Drilling Rig — Rig 15
Compact GEMINI 1200HP AC-VFD land rig with walking system, Canrig Rockit top drive, and full solids control.

Rig 15 is a GEMINI 550-Series 1200HP AC-VFD land rig featuring a 134-foot GEMINI mast with 550,000 lb hookload and a 45-foot on-location walking system. Equipped with an Alta Rig AC 1200HP drawworks, Canrig 350-ton AC top drive with Rockit capability, and three Caterpillar 3512C engines at 1,476 HP each. Dual 1600HP BOMCO triplex mud pumps at 7,500 PSI round out a capable, mobile drilling package.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • MastGEMINI 134 ft telescoping
  • Hook Load550,000 lb
  • Racking Capacity16,500 ft of 5" DP
  • SubstructureGEMINI 22 ft, 18 ft clear height
  • Rotary Load550,000 lb
  • Setback Load500,000 lb
⚙️

Drawworks & Controls

  • DrawworksAlta Rig AC 1200HP
  • Drill Line1-1/4"
  • Top DriveCanrig 350-ton AC (Rockit)
  • Traveling Block275-ton, 5-sheave, 10-line
  • Driller ControlsOmron VFD/PLC Electronic
  • Rotary37-1/2" hydraulic hagglund
🔋

Power & Mud System

  • Engines3x CAT 3512C @ 1,476 HP each
  • Generators3x 1,365kW unitized
  • Fuel Tank12,000 gallon
  • Mud Pumps2x 1600HP Triplex AC, 7,500 PSI
  • Mud Capacity850 bbl active (2x 425 bbl)
  • Shakers3x Derrick Hyperpool
Equipment Gallery

Rig Photos

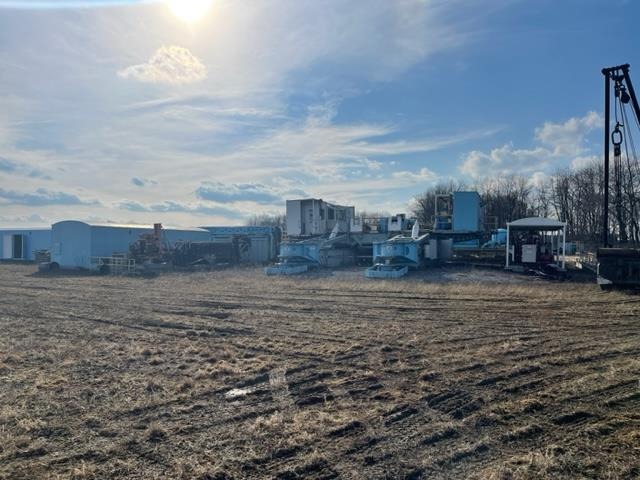

Rig 15 — mast detail
Rig 15 — mast detail

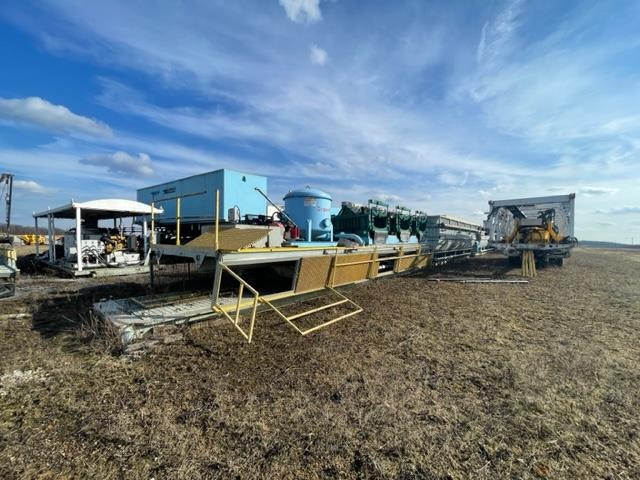

Rig 15 — drill floor
Rig 15 — drill floor

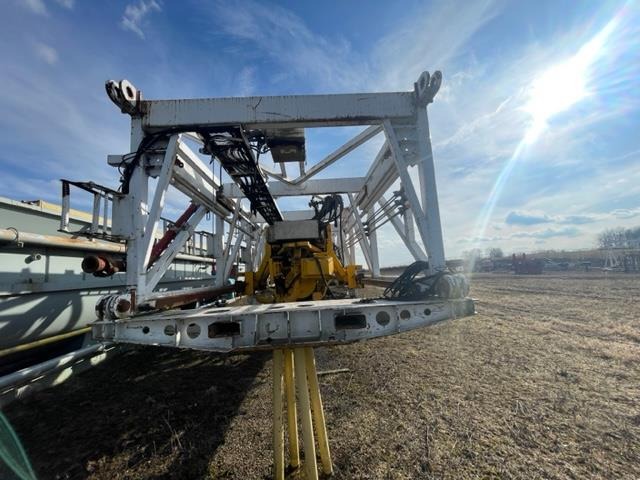

Rig 15 — substructure
Rig 15 — substructure

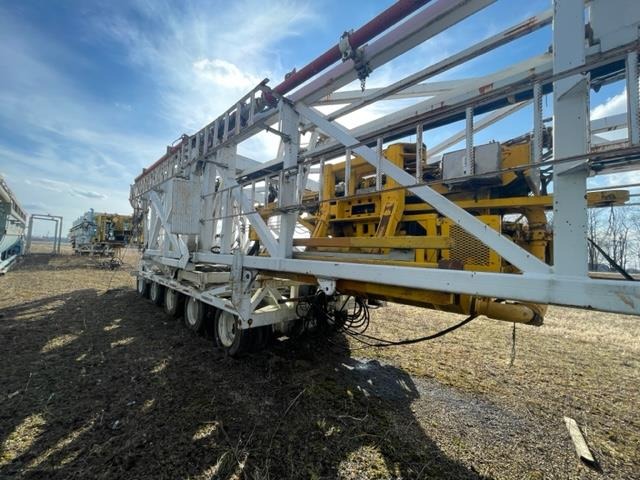

Rig 15 — top drive
Rig 15 — top drive

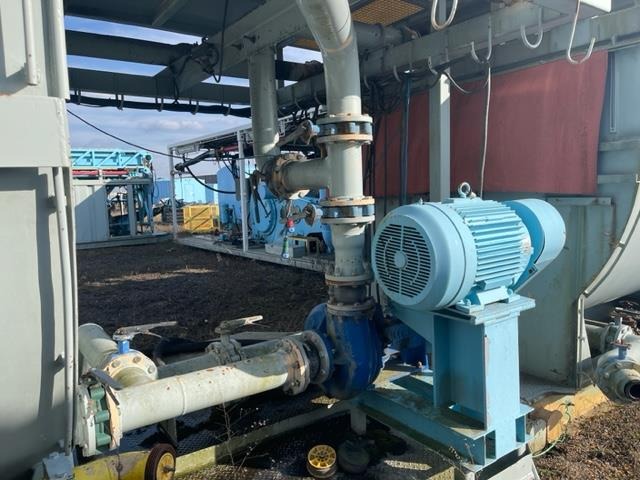

Rig 15 — mud system
Rig 15 — mud system

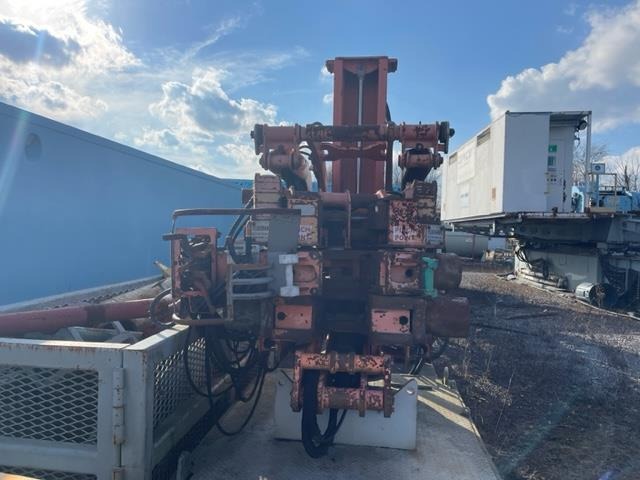

Rig 15 — engines
Rig 15 — engines

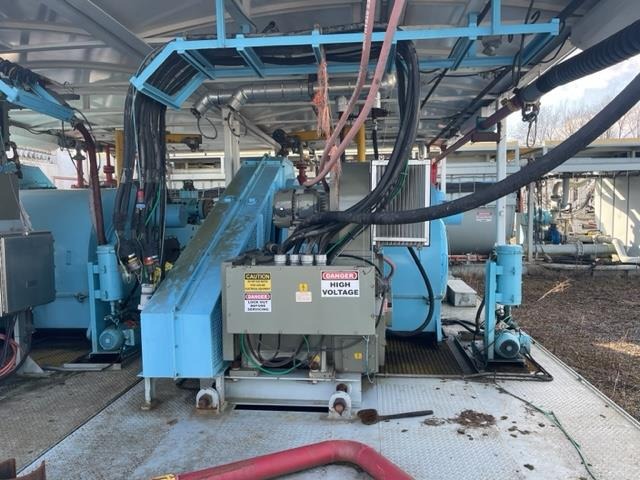

Rig 15 — equipment
Rig 15 — equipment

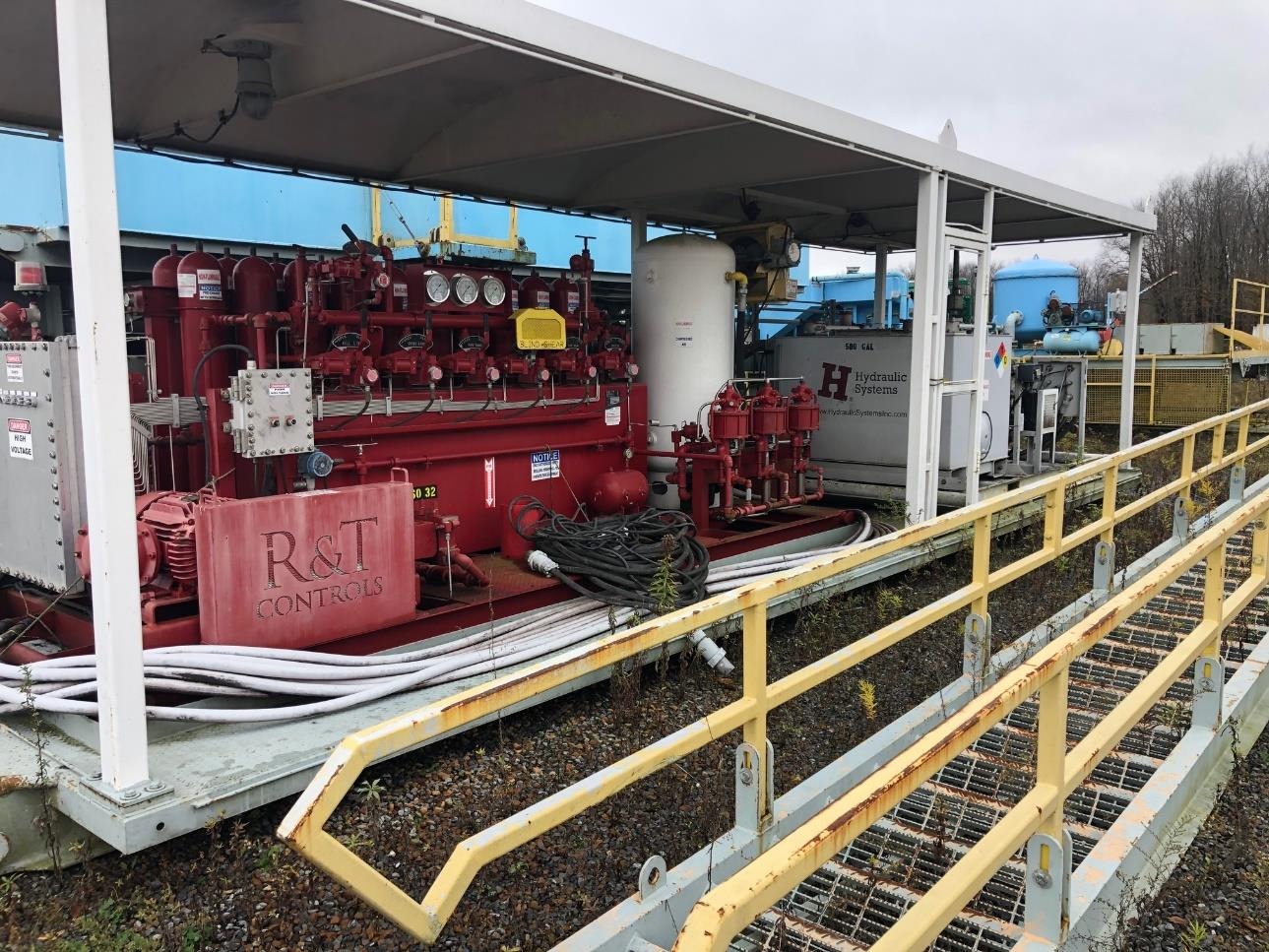

Rig 15 — on location
Rig 15 — on location

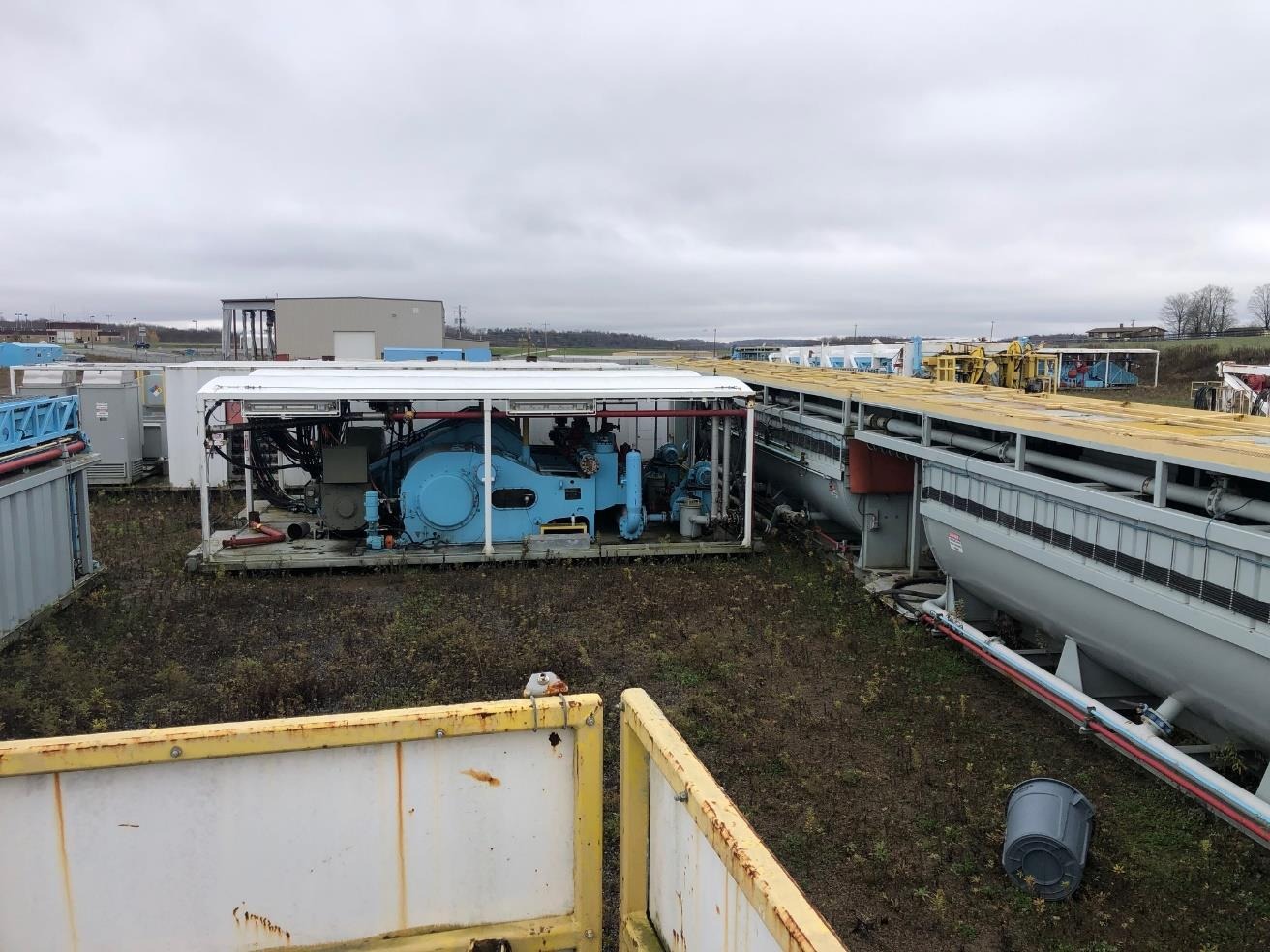

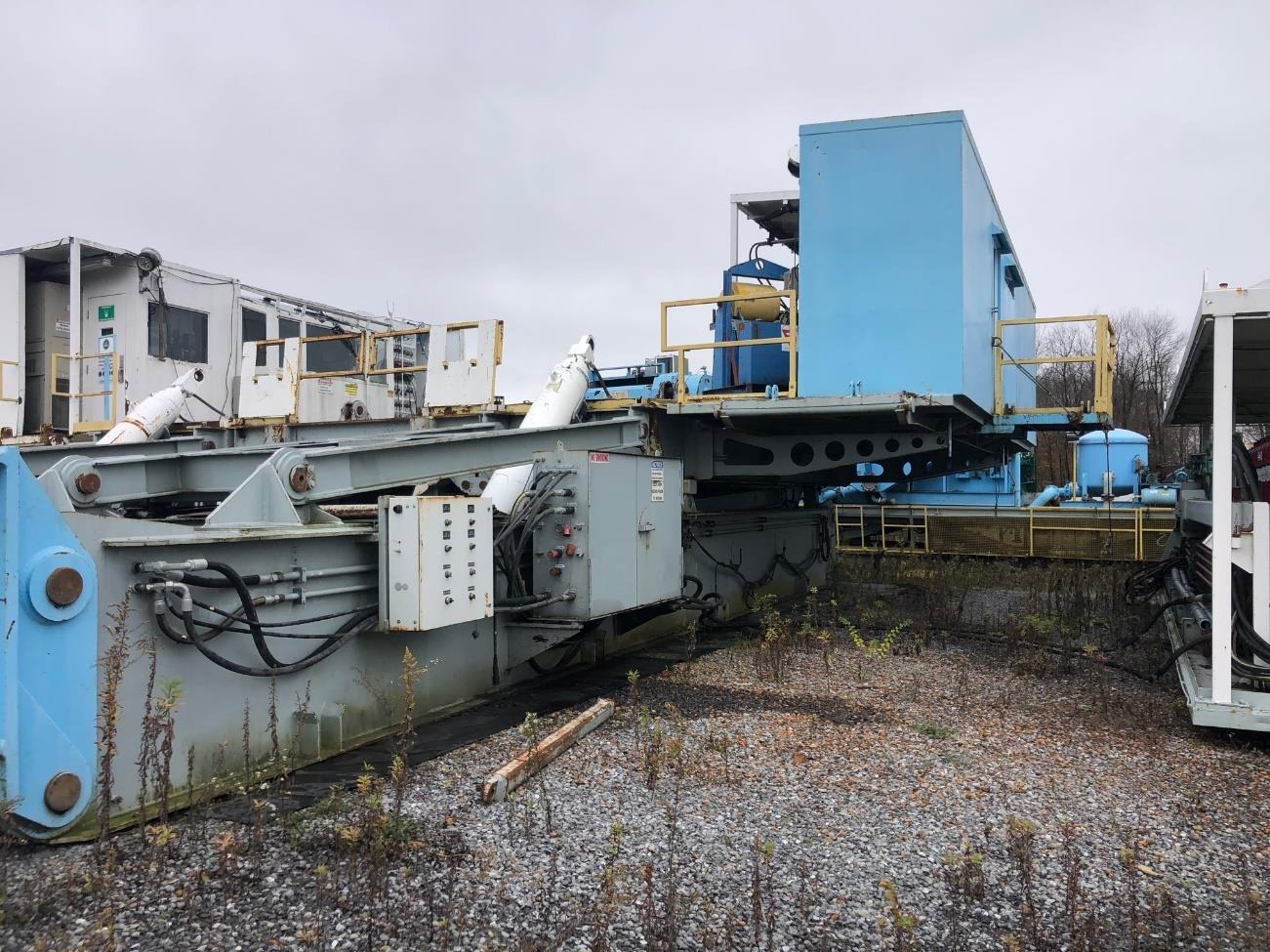

Rig 15 — rig view
Rig 15 — rig view
Rig 15 — rig view
Rig 15 — rig view
Capabilities

Key Advantages

01

Walking Pad Drilling

45-foot on-location walking capability with hydraulic catwalk for efficient pad development. Includes winterization with boiler for cold-weather operations.

02

Canrig Rockit Top Drive

350-ton Canrig AC top drive with Rockit capability provides jar-up functionality without a safety clamp, improving connection efficiency and reducing downtime.

03

Full Auxiliary Package

Complete auxiliary package includes iron roughneck, Mathey wireline unit (25,000 ft), DGB dual-fuel generator kits, Totco recorder, crew quarters, manrider, and pressure washer.

Complete Data

Full Equipment Status

Mast & Substructure

MastGEMINI 134 ft telescoping
Hook Load550,000 lb
Racking Capacity16,500 ft of 5" drill pipe
SubstructureGEMINI 22 ft, hydraulic cylinders
Clear Height18 ft
Rotary Load550,000 lb
Setback Load500,000 lb

Drawworks & Drive

DrawworksAlta Rig AC 1200HP
Drill Line1-1/4"
Top DriveCanrig 350-ton AC (Rockit)
Traveling Block275-ton, 5-sheave, 10-line string-up
Driller ControlsOmron Electronic VFD/PLC
Rotary37-1/2" hydraulic hagglund motor

Power Generation

Engine Count3
Engine ModelCaterpillar 3512C Diesel, 1,476 HP each
Generators3x 1,365kW unitized with engines
Fuel Tank12,000 gallon included

Mud System

Mud Pumps2x 1600HP Triplex AC, 7,500 PSI
Mud Capacity850 bbl active (2x 425 bbl round-bottom)
Shakers3x Derrick Hyperpool
DegasserBrandt DG-10
Trip Tank100 bbl with 2x3x40HP pump
Separator48" mud gas separator

BOP & Well Control

BOP11" 5M Single Ram
BOP11" 5M Double Ram
Annular11" 5M
Accumulator6-station
Choke Manifold3" 5K

Auxiliary Equipment

Walking System45 ft on-location
Hydraulic CatwalkIncluded
Top Drive Drill LineMotorized spool
Wireline UnitMathey, 25,000 ft of 0.092"
Iron RoughneckIncluded
RecorderTotco electronic drilling recorder
ManriderIncluded
WinterizationIncluded with boiler
Dual FuelDGB dual fuel generator kits
QuartersToolpusher & crew quarters
Drill Pipe5" S-135 as required
