Available

GW 903TE 1500-2000HP Super Triple Electric

NOV-integrated wheeled STE with Amphion/Cyberbase controls — available in Kuwait.

2000 HP
Rated Power
Super Triple Electric
2015
Year Built
Kuwait (Available)
142 ft
Mast Height
NOV Cantilever
750K lbs
Hook Load
12 lines

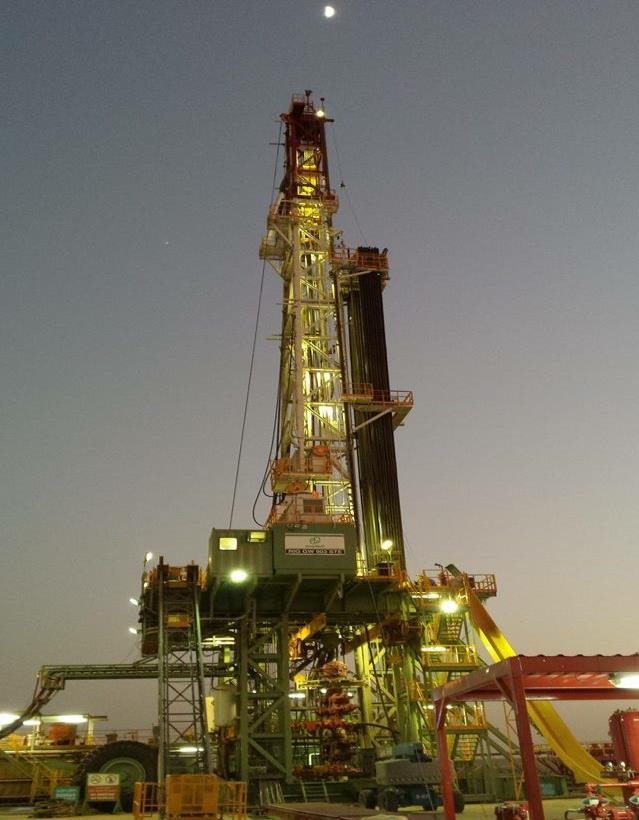

GW 903TE 1500-2000HP Super Triple Electric
NOV-integrated wheeled STE with Amphion/Cyberbase controls — available in Kuwait.

GW 903TE 1500-2000HP Super Triple Electric land rig built 2015, currently available in Kuwait. Equipped with full NOV Amphion and Cyberbase integrated control system with NOVOS capability. Wheeled rig for fast mobilization. Drawworks: NOV ADS-10SD 2000HP; Varco TDS-11SA 500-ton top drive; two NOV FD1600 triplex mud pumps at 5000 psi; 3200 bbl total mud volume.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • Mast TypeNOV Cantilever
  • Clear Height142 ft
  • Hook Load750,000 lbs @ 12 lines
  • Depth Rating18,000 ft
  • Floor Height37 ft
⚙️

Drawworks & Top Drive

  • DrawworksNOV ADS-10SD, 2000 HP
  • Capacity925,000 lbs @ 12 lines
  • Top DriveVarco TDS-11SA, 500 Ton
  • BlockYC450-3, 500 Ton
💧

Mud System

  • Mud Pumps2 × NOV FD1600 Triplex
  • Rated Power1600 HP each
  • Pressure5000 psi
  • Tank Volume3200 bbl + 100 bbl trip
  • Shakers3 × Brandt King Cobra
🖥️

Controls & Mobility

  • Control SystemNOV Amphion + Cyberbase (NOVOS)
  • Moving SystemWheeled Rig
  • LocationKuwait
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

NOV Digital Drilling Platform

Full Amphion and Cyberbase integration with NOVOS capability enables automated drilling, real-time optimization, and modern driller-assist functions.

02

Wheeled Fast-Move Design

Wheeled rig configuration minimizes rig-up/rig-down time for multi-well pad programs and lease-to-lease relocations.

03

Dual High-Pressure Pump Package

Two NOV FD1600 triplex pumps at 5000 psi provide full redundancy and capacity for high-volume directional drilling operations.

Complete Data

Full Equipment Status

Rig Identity

ModelGW 903TE
TypeSuper Triple Electric
Rating1500-2000 HP
Built2015
StatusAvailable
LocationKuwait
Moving SystemWheeled
Control SystemNOV Amphion + Cyberbase + NOVOS

Mast

TypeNOV Cantilever
Clear Height142 ft
Hook Load750,000 lbs @ 12 lines
Rated Depth18,000 ft

Substructure

TypeNOV
Floor Height37 ft
Clear Height32 ft
Rotary Capacity750,000 lbs
Setback Capacity500,000 lbs

Drawworks

ModelNOV ADS-10SD
Rated Power2000 HP
Capacity925,000 lbs @ 12 lines
Motors2 × GEB22 (AC)

Top Drive

ModelVarco TDS-11SA
Capacity500 Ton
BlockYC450-3, 500 Ton

Mud System

Pumps2 × NOV FD1600 Triplex
Rated Power1600 HP each
Pressure5000 psi
Motors2 × DM27A (AC)
Total Tank Volume3200 bbl
Trip Tank100 bbl
Shakers3 × Brandt King Cobra
DesilterBrandt — 16 cones
DesanderBrandt — 2 cones
DegasserMI-Swaco

Well Control

Annular11" GX-10,000 Hydril
Double RAM2 × 11" U-type 15,000 psi Cameron
Choke Manifold4-1/16" 15,000 psi NOV
