Available

HH 2000 HP AC VFD Drilling Rig

Deep-reach AC VFD land rig engineered for Kuwait desert operations

2,000
Horsepower
AC VFD Drive
23,000
Drilling Depth
feet
1,000,000
Max Hook Load
lbs / 12 lines
147
Mast Height
feet
HH 2000 HP AC VFD Drilling Rig
Deep-reach AC VFD land rig engineered for Kuwait desert operations

High-capacity 2000 HP AC VFD land drilling rig engineered for deep operations up to 23,000 ft in Kuwait. Features sling-shot substructure, JJ450/44.8-K mast with 1,000,000 lb static hook load, AC-VFD-AC drive system rated for 0°C–55°C ambient, and API RP 505 hazardous area certification. Ready for export deployment.

Technical Overview

Key Equipment Specifications

⚙️

Mast & Substructure

  • Mast ModelJJ450/44.8-K
  • Mast Height147 ft (44.8 m)
  • Static Hook Load1,000,000 lb (12 lines)
  • Substructure ModelDZ450/10.668-G
  • Drill Floor Height35 ft (10.668 m)
  • Setback220 stands 5" DP + DC
🔋

Power & Drive

  • Drive ModeAC-VFD-AC
  • Drawworks Input2,300 HP (1,716 kW)
  • Ambient Range0°C to +55°C
  • Hazardous AreaAPI RP 505 2nd Edition-2018
🛢️

Hoisting & Rotating

  • Max Hook Load1,000,000 lb (4,500 kN)
  • Drilling Depth23,000 ft with 5" DP
  • Rotary Capacity1,000,000 lbs max static
  • Setback Capacity700,000 lbs (3,113 kN)
Equipment Gallery

Rig Photos

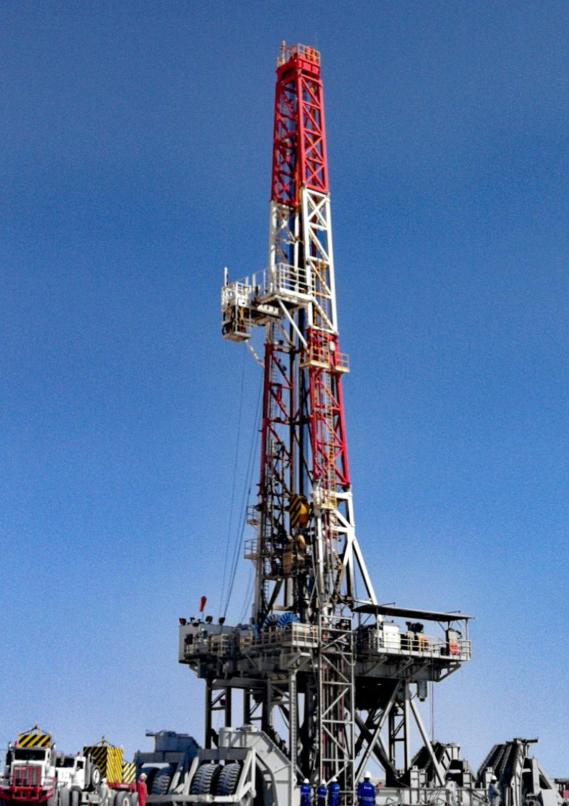

2000 HP AC VFD drilling rig for Kuwait operations
2000 HP AC VFD drilling rig for Kuwait operations
Capabilities

Key Advantages

01

Deep Well Performance

Engineered for nominal drilling depth of 23,000 ft with 5" drill pipe and 12-line string configuration delivering 1,000,000 lb maximum static hook load.

02

AC-VFD Drive System

Full AC-VFD-AC electrical drive provides precise speed and torque control for all hoisting and rotating operations, with 2,300 HP drawworks input power.

03

Desert-Ready Design

Rated for 0°C to +55°C ambient temperature range with API RP 505 2nd Edition-2018 hazardous area classification — built for Middle East field conditions.

Complete Data

Full Equipment Status

General Specifications

Rig Type2000 HP AC VFD Drilling Rig
LocationKuwait
Drilling Depth23,000 ft (7,000 m) with 5" Drill Pipe
Max Static Hook Load1,000,000 lb (4,500 kN) @ 12 lines
Drawworks Input Power2,300 HP (1,716 kW)
Drive ModeAC-VFD-AC
Substructure TypeSling shot
Drill Floor Height35 ft (10.668 m)
Ambient Temperature0°C to +55°C
Hazardous AreaAPI RP 505 2nd Edition-2018

Mast & Substructure

Mast ModelJJ450/44.8-K
Mast Height147 ft (44.8 m)
Mast Hook Load1,000,000 lb (12 lines)
Setback Capacity220 stands 5" DP, 12 stands 8-1/4" DC, 6 stands 10" DC, 2 stands 14" DC
Substructure ModelDZ450/10.668-G
Clearance Under Rotary30.34 ft (9.248 m)
Rotary Capacity1,000,000 lbs max static
Pipe Setback Capacity700,000 lbs (3,113 kN)

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
