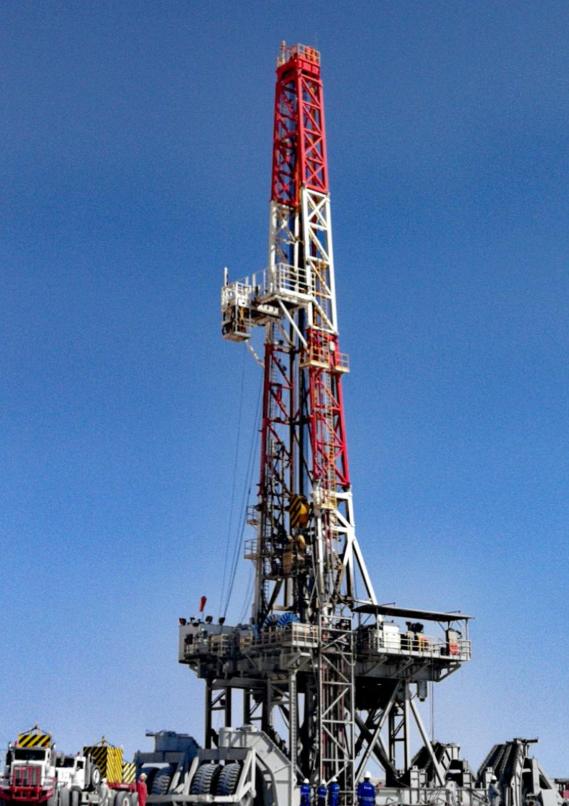

3300HP AC DBS Drilling Rig — Kuwait Desert Operations

3300HP AC DBS Drilling Rig — Ultra-Deep Desert Spec, Kuwait

3,300
Horsepower
AC Drive
1.7M
Max Hook Load
lbs @ 14 lines
160'
Mast Height
K-style cantilever
4,840
Mud Capacity
BBLs usable
3300HP AC DBS Drilling Rig — Kuwait Desert Operations
3300HP AC DBS Drilling Rig — Ultra-Deep Desert Spec, Kuwait

A high-capacity 3300HP AC DBS drilling rig engineered for extreme deep-well desert operations in Kuwait. Features a 160-foot K-style cantilever mast, 1,700,000-lb static hook load, three quintuplex 7,500 PSI mud pumps, seven CAT 3512CHD generators totaling 8,330 ekW, and a 1,000-ton AC top drive. Desert-rated to +55°C ambient with full instrumentation and CCTV.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksJC90DB, 850-ton static hook load @ 14 lines
  • DW Motors2× AC motors, combined 3,000kW (4,000HP)
  • DW BrakesAC dynamic main + double hydraulic disc aux
  • Generators7× CAT 3512CHD @ 1,190 ekW each (8,330 ekW total)
  • VFD SystemHH VFD house w/ ABB or Siemens drives
  • MCC Voltage600V / 480V / 60Hz
🗼

Mast & Substructure

  • Mast ModelJJ750/48.768-K (K-style cantilever)
  • Clear Mast Height160 ft (48.768 m)
  • Max Static Hook Load1,700,000 lbs (850 tons) @ 14 lines
  • Setback Capacity1,000,000 lbs (500 tons)
  • Rig Floor Height46.59 ft (14.2 m)
  • Under Rotary Beams39.37 ft (12 m)
🔧

Hoisting & Rotating

  • Crown Block1,700,000 lbs (850 ton), 7+1 sheaves
  • Traveling BlockYC1000, 1,000-ton capacity
  • Top Drive1,000-ton electrical AC Top Drive System
  • Rotary TableZP495, 49-1/2" opening, 10,000 kN static
  • Rotary DriveOne 800kW (1,072HP) AC motor
  • Wireline1-3/4", 6×31WS+IWRC+2160, 7,500 ft
💧

Mud System

  • Mud Pumps3× Quintuplex single-acting, 7,500 PSI
  • Pump MotorsHTB24 AC motor, 1,800kW each
  • Max Liner × Stroke7" × 12", rated 115 SPM
  • Total Capacity4,840 BBLs usable
  • Active/Reserve1,510+ BBL active / 3,072 BBL reserve
  • Shakers4× linear motion + 1 combo (desilter/desander)
🛡️

Well Control

  • BOP Hoist2× 600kN = 1,200kN, 7m lifting distance
  • Choke/SeparatorAuto Igniter DN250, 10" 840ft flare line
  • Air Compressors3× QGDP75 screw type, 75kW, 12m³/min @ 10 bar
  • Centrifuge2× Decanting Centrifuge
📊

Instrumentation

  • Driller CabinDriller's cabin cum Dog house
  • Drilling RecorderReal-time data acquisition system
  • CCTVClosed Circuit Television System
  • Gas DetectionFixed H2S & LEL detection system
  • Operating Temp.0°C to +55°C (desert rated)
  • Water Storage8× 625 BBL drill water + 2× 500 BBL cementing/fire
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Ultra-Deep Desert Drilling

3300HP AC DBS configuration with 1,700,000-lb hook load and 160-foot K-style mast — engineered for Kuwait desert operations at +55°C ambient, targeting extreme-depth formations.

02

Triple Quintuplex Mud System

Three 1,800kW quintuplex pumps delivering 7,500 PSI with 4,840 BBL total mud capacity, supported by four linear motion shakers and dual centrifuges for demanding high-density mud programs.

03

Massive Power Redundancy

Seven CAT 3512CHD generators producing 8,330 ekW total — paired with ABB or Siemens VFD drives — ensure full rig power with multiple unit redundancy for uninterrupted operations.

Complete Data

Full Equipment Status

General Specifications

Rig Model3300HP DBS Rig
Drive SystemAC-DC-AC
Operating Temperature0°C to +55°C
Altitude≤ 1,000 m
Hazardous AreaAPI RP 505 2nd Edition-2018
LocationKuwait

Mast & Substructure

Mast ModelJJ750/48.768-K (K-style cantilever)
Mast Height160 ft (48.768 m)
Max Hook Load1,700,000 lbs / 850 ton @ 14 lines
Setback Capacity1,000,000 lbs (500 ton)
Rig Floor Height46.59 ft (14.2 m)
Under Rotary Beams39.37 ft (12 m)
Monkey Board274 stands 5-7/8" DP + 6 stands 8" DC + 3 stands 10" DC + 2 stands 14" DC

Drawworks

ModelJC90DB
Static Hook Load850 ton @ 14 lines
Drive Motors2× AC, combined 3,000kW (4,000HP)
BrakesAC dynamic main + double hydraulic disc auxiliary

Power Package

Generator Sets7× CAT 3512CHD (or equivalent)
Output Per Set1,190 ekW (with fan) @ 60Hz
Total Rig Power8,330 ekW
VFD SystemHH VFD house, ABB or Siemens drives
MCC Power600V / 480V / 60Hz

Mud System

Pumps3× Quintuplex single-acting piston
Pump MotorHTB24 AC, 1,800kW each
Working Pressure7,500 PSI
Max Liner × Stroke7" × 12", 115 SPM
Total Mud Capacity4,840 BBLs usable
Active/Reserve1,510+ BBL / 3,072 BBL
Shakers4× linear motion + 1 combo
Centrifuge2× decanting
Degasser1× Brant Degasser

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
