IDE 2000HP Land Rig 4

Heavy-duty 2000HP DC land rig with CANRIG top drive and Weatherford triplex pumps

2,000
Horsepower
IDE 2000 DC DW Drawworks
1,000,000
Hook Load (lbs)
142 ft Telescopic Mast
20,000
Max Depth (ft)
12-line configuration
500T
Top Drive
CANRIG 1250AC-681
IDE 2000HP Land Rig 4
Heavy-duty 2000HP DC land rig with CANRIG top drive and Weatherford triplex pumps

A proven 2000HP DC land rig built by IDE (Integrated Drilling Equipment) and fully documented for operational readiness. Equipped with IDE's two-section telescopic mast rated to 1,000,000 lbs hook load, a CANRIG 1250AC-681 top drive (500-ton capacity), and dual Weatherford Triplex M-13 mud pumps at 1,600 HP / 5,000 psi. Power is supplied by four Caterpillar 3512-C engines totaling approximately 5,900 HP. All components documented as in good operating condition.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • Mast ManufacturerIDE
  • Mast Height142 ft (Telescopic, 2-section)
  • Max Hook Load1,000,000 lbs (12 lines)
  • Hook Load (10-line)750,000 lbs
  • SubstructureIDE, 25 ft, Self-elevating (hydraulic)
⚙️

Drawworks & Top Drive

  • DrawworksIDE 2000 DC DW
  • Drawworks Rating2,000 HP (2 × 1,050 HP motors)
  • Drill Line1-1/2"
  • Max Depth20,000 ft
  • Top DriveCANRIG 1250AC-681
  • Top Drive Capacity500 ton
🔄

Rotating System

  • Rotary TableIDE-375 RT
  • Table Opening37.5"
  • Capacity1,300,000 lbs
  • Max RPM300
  • Travelling BlockAMERICAN B60F500, 500 ton
  • Crown BlockAMERICAN, 500 ton, 6-sheave
🌊

Mud System

  • Mud Pumps2 × Weatherford Triplex M-13
  • Pump Rating1,600 HP / 5,000 psi each
  • Stroke Length12"
  • Agitators10 × Mud Hopper MAX2000 (10 HP each)
  • DegasserMI SWACO
  • DesanderMI SWACO
⚡

Power & Controls

  • Engines4 × Caterpillar 3512-C
  • Engine Rating1,475 HP each (5,900 HP total)
  • Generators4 × Caterpillar 3512C, 1,643 HP each
  • SCR SystemI-DRIVE SCR 2000, 1,684 AMP
  • Air Compressors2 × Gardner Denver / WEG, 150 psi / 75 HP
🛡️

BOP & Safety

  • Single BOPT3 Energy Services 6012, 13-5/8" 10M
  • Double BOPT3 Energy Services 6012, 13-5/8" 10M
  • Spherical BOPHYDRILL GX, 13-5/8" 10M
  • AccumulatorCPC 263549, 25 HP
  • RoughneckFloor Hand, 2,500 psi
Equipment Gallery

Rig Photos

IDE 2000HP Rig 4 — full mast view
IDE 2000HP Rig 4 — full mast view

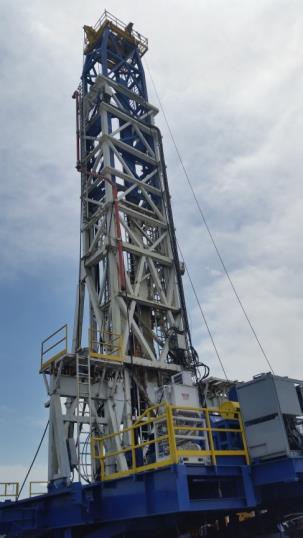

IDE 2000HP Rig 4 — mast detail
IDE 2000HP Rig 4 — mast detail
Capabilities

Key Advantages

01

1,000,000 lb Hook Load Capacity

IDE's two-section telescopic mast delivers 1,000,000 lbs on 12 lines, supporting casing operations in deep wells to 20,000 ft. Self-elevating substructure via hydraulic cylinders.

02

CANRIG AC Top Drive

The CANRIG 1250AC-681 top drive provides 500-ton capacity with robust torque delivery, enabling directional drilling capability. Documented in good operating condition.

03

Dual High-Pressure Mud Pumps

Two Weatherford Triplex M-13 pumps at 1,600 HP / 5,000 psi each deliver aggressive fluid circulation rates for deep formations. Supported by MI SWACO solids control equipment.

Complete Data

Full Equipment Status

Mast & Substructure

Mast TypeIDE IMBPIRAMIDAL, 2-section Telescopic
Mast Height142 ft
Hook Load (12 lines)1,000,000 lbs
Hook Load (10 lines)750,000 lbs
Substructure ManufacturerIDE
Substructure Height25 ft
Elevation MethodSelf-elevating, hydraulic cylinders

Drawworks

ModelIDE 2000 DC DW
Rating2,000 HP
Motor Configuration2 × 1,050 HP
Drill Line Diameter1-1/2"
Max Depth20,000 ft
Deadline AnchorE-80

Top Drive

ManufacturerCANRIG
Model1250AC-681
Capacity500 ton

Rotating System

Rotary TableIDE-375 RT
Table Opening37.5"
Rotary Capacity1,300,000 lbs
Max RPM300
Crown BlockAMERICAN, 6-sheave 50" × 1-5/8", 500 ton
Travelling BlockAMERICAN B60F500, 500 ton, 6-sheave 60" × 1-5/8"

Mud System

Mud Pumps2 × Weatherford Triplex M-13
Pump HP1,600 HP each
Pump Pressure5,000 psi
Stroke Length12"
Agitators10 × Mud Hopper MAX2000, 10 HP each (WEG motors)
DegasserMI SWACO
DesanderMI SWACO
Shale Shakers2 × MI SWACO
Supercharge Pumps2 × FORUM 999881BGC, 60 HP / 2,200 RPM
Trip Tank Pumps2 × FORUM 999881BBC, 25 HP / 1,200 RPM
Water Transfer Pumps2 × FORUM 999881BAC, 25 HP / 1,200 RPM
Diesel TankIDE, 80 m³
Mud PitsFORUM

Power & Electrical

Prime Movers4 × Caterpillar 3512-C
Engine HP1,475 HP each
Generators4 × Caterpillar 3512C, 1,643 HP each
SCR SystemI-DRIVE SCR 2000, 1,684 AMP
Main HPUWEG / PARKER, 100 HP / 2,200 RPM
Lift HPUPERKINS / PARKER, 3,000 psi
Top Drive HPUMetaris / WEG, 20 HP
Air Compressors2 × Gardner Denver / WEG, 150 psi / 75 HP
Air Tanks2 × vertical, 12 m³ each

BOP Stack

Single BOPT3 Energy Services 6012, 13-5/8" 10,000 psi
Double BOPT3 Energy Services 6012, 13-5/8" 10,000 psi
Spherical BOPHYDRILL GX, 13-5/8" 10,000 psi
AccumulatorCPC 263549, 25 HP

Pipe Handling

RoughneckFloor Hand, 2,500 psi
Pipe RampACCUFORM WELDING LTD
Winches2 × BRANDEN
