IDM-1500 Rig 5 – 1500 HP SCR Drilling Rig

IDM-1500 1500 HP SCR drilling rig commissioned February 2007, CAT IV certified 2025. IDM 136' telescoping mast (M-5698) rated 750,000 lb hookload, Cummins KTA50DR engines, AVK/WEG generator sets with IDM SCR 3x4, dual Continental EMSCO FB-1600 mud pumps, Canrig 350-ton top drive, and Brandt solids control package. Located in Corpus Christi, TX at $7.5 million USD.

Technical Overview

Key Equipment Specifications

🗼

Mast & Structure

MastIDM QDS-1500, 136' Telescoping (S/N M-5698)
Hook Load750,000 lbs
SubstructureIDM 22' Hydraulic Telescoping
Rotary Load750,000 lbs
Setback450,000 lbs simultaneous

⚙️

Drawworks & Power

DrawworksIDM-1500 (Asset DW005)
DW Motors(2) Gulf Electroquip 800-HP DC Traction
DW Hours11,405
Engines(3) Cummins KTA50DR x 1,470 HP
Generators(3) AVK/WEG DSG 86 L1-6W 1,050-KW + IDM SCR 3x4

🛢️

Drilling Equipment

Top DriveCanrig 350-Ton
RotaryEMSCO Type 37½" hydraulic motor driven
Mud Pumps(2) Continental EMSCO FB-1600
Mud System848 bbl total active
BOP11" 10M Shaffer Double/Single Ram + 5M Annular

Equipment Gallery

Rig Photos

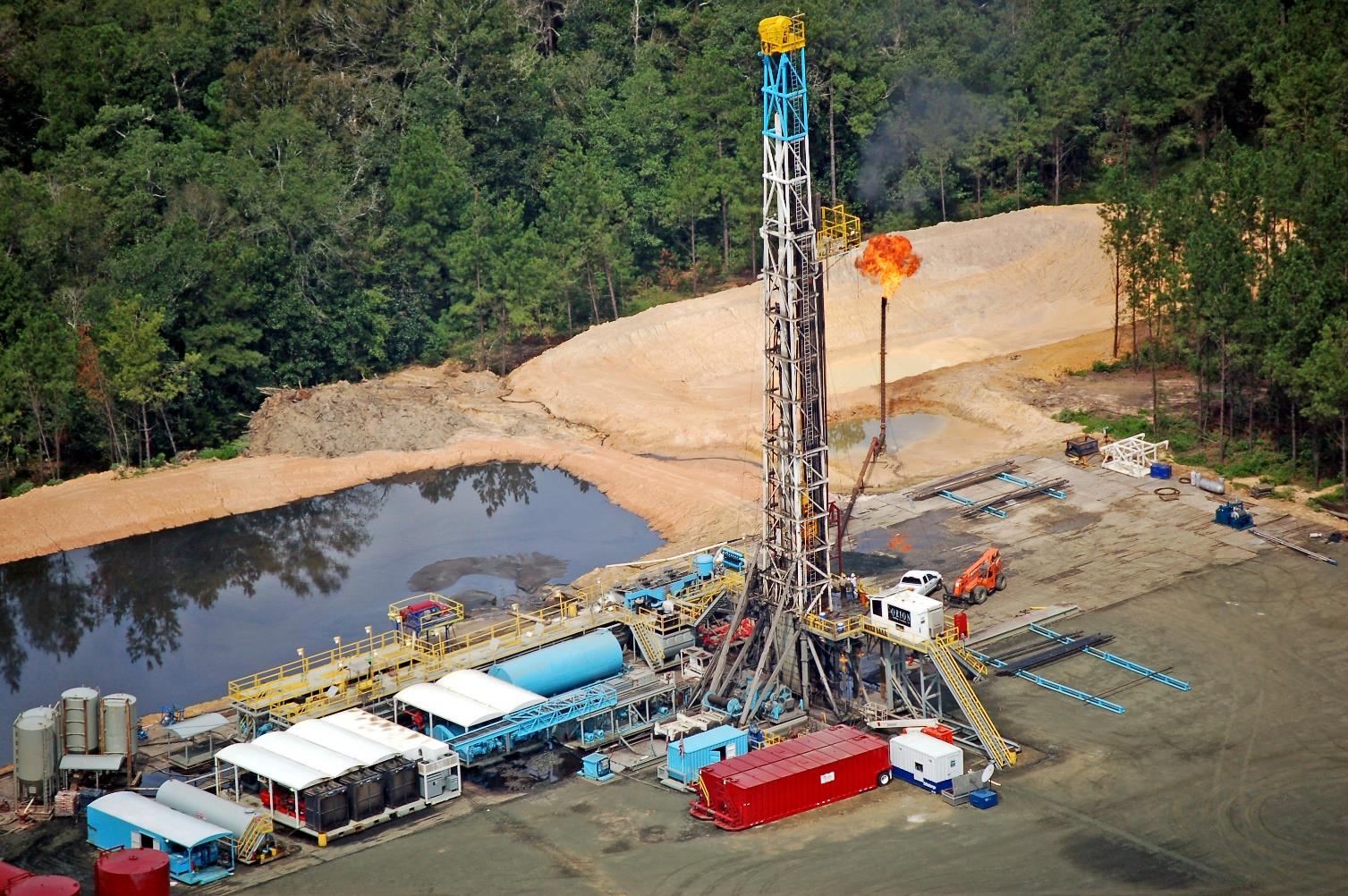

IDM-1500 Rig 5 — Corpus Christi TX

Capabilities

Key Advantages

01

CAT IV 2025 Certification

Freshly CAT IV certified 2025 at $7.5 million USD — inspection complete, fully compliant for immediate deployment to US or international operations.

02

Reliable Cummins Power

Three Cummins KTA50DR diesel engines each producing 1,470 HP with air start, unitized with AVK/WEG 1,050-KW generator sets and IDM SCR 3x4 package for proven DC-SCR performance.

03

Complete Drilling Package

Forum automatic catwalk, Varco electronic driller's cabin, crew quarters, 12,000 gal double-wall fuel tank, and Brandt solids control (King Cobra shakers, DG-10 degasser, 16-cone desilter).

Complete Data

Full Equipment Status

Rig Overview

Rig Number	5
Commissioned	February 2007
Location	Corpus Christi, TX
Price	$7,500,000 USD
CAT IV	2025

Drawworks

Model	IDM-1500 (Asset DW005)
Power	1,500 HP
Motors	(2) Gulf Electroquip 800-HP DC Traction
Hours	11,405

Engines & Generators

Engines	(3) Cummins KTA50DR @ 1,470 HP, Air Start
Generators	(3) AVK/WEG DSG 86 L1-6W @ 1,050-KW each
SCR	IDM SCR 3x4

Mast & Substructure

Mast	IDM QDS-1500, 136' Telescoping (S/N M-5698)
Hook Load	750,000 lbs
Substructure	IDM 22' Hydraulic Telescoping
Rotary Load	750,000 lbs
Setback	450,000 lbs simultaneous

Circulation System

Mud Pumps	(2) Continental EMSCO FB-1600
Mud Capacity	848 bbl total active (2x 424 bbl covered tanks)
Solids Control	(3) Brandt King Cobra shakers, DG-10 degasser, 16-cone desilter

Well Control

BOP	(1) 11" 10M Shaffer Double Ram + (1) 11" 10M Single Ram + (1) 11" 5M Annular
Accumulator	6-Station Beijing Petroleum FXQ720-6 API 16E
Choke Manifold	4' x 4" 10,000 LB
