IDM DC-1500 Rig 7 – 1500 HP SCR Walking Rig

IDM DC-1500 1500 HP SCR drilling rig with hydraulic walking system, freshly CAT IV certified in 2025. Features 136' telescoping mast with 750,000 lb hookload, Cummins KTA50 engines, Canrig 350-ton AC top drive, dual BOMCO F-1600 mud pumps at 7,500 PSI, and Orion hydraulic walking system. Complete auxiliary package included. Priced at $7.5 million USD.

Technical Overview

Key Equipment Specifications

🗼

Mast & Structure

MastIDM 136' Telescoping (S/N M-5699)
Hook Load750,000 lbs
SubstructureIDM 22' Hydraulic Telescoping
Rotary Load750,000 lbs
Setback450,000 lbs simultaneous
Top Drive Capacity350-Ton accommodation

⚙️

Drawworks & Engines

DrawworksIDM DC-1500 (Asset DW012)
DW Power1,500 HP via (2) GE/GM 800-HP DC motors
DW Hours/Rebuild5,629
Engines(3) Cummins KTA50 x 1,470 HP
Generators(3) AVK/WEG 1,050 KW with SCR

🛢️

Drilling & Walking

Top DriveCanrig 350-Ton AC, Model 350 (S/N 454)
Mud Pumps(2) BOMCO F-1600, 7,500 PSI
Mud System848 bbl total active
Walking SystemOrion Hydraulic HPU Skid
BOP13-5/8" 10,000 LB Double Ram + Single Ram + Annular
RotaryEMSCO 37½" independent 800-HP motor

Equipment Gallery

Rig Photos

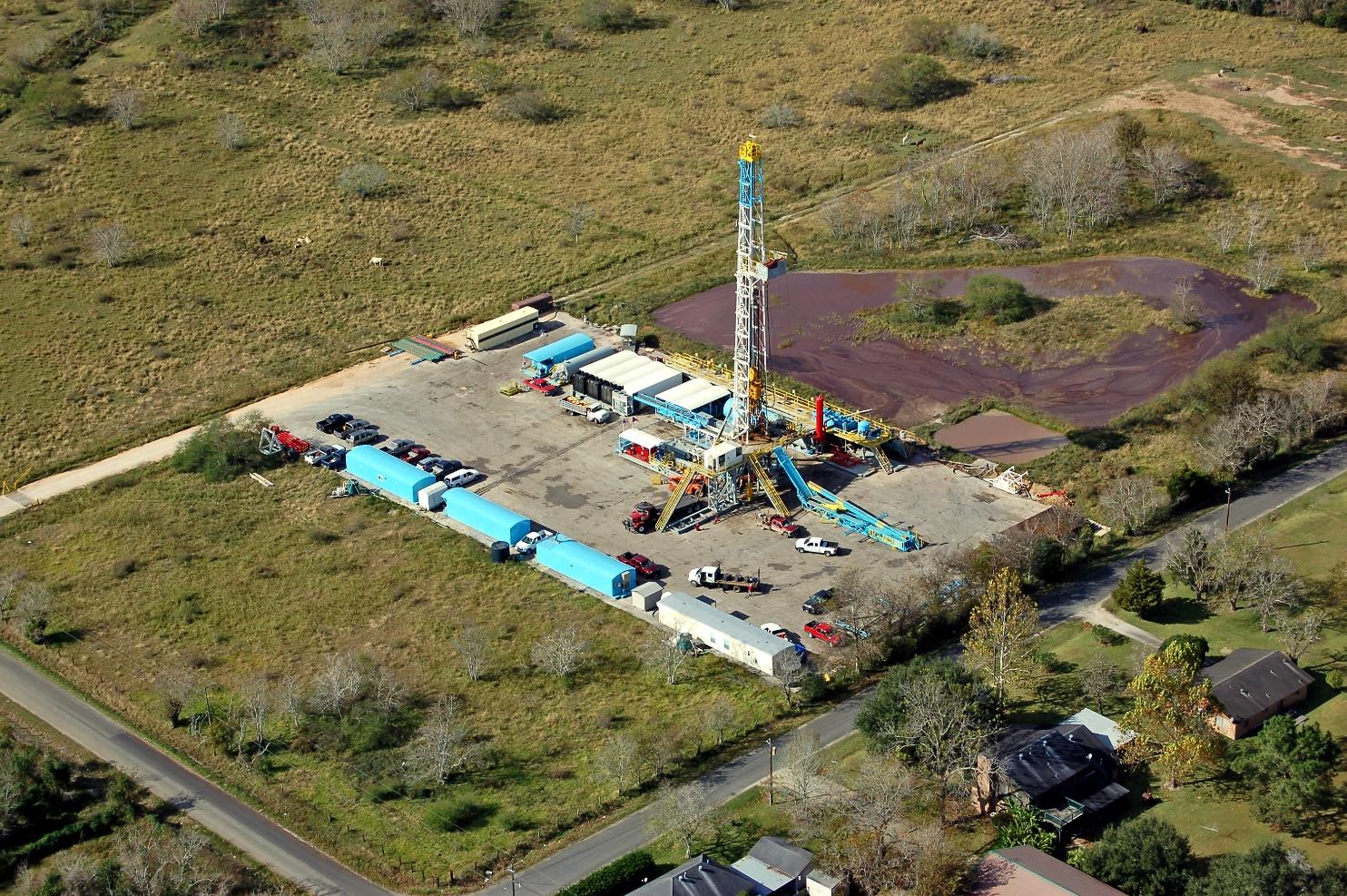

IDM DC-1500 Rig 7 — Corpus Christi TX

Capabilities

Key Advantages

01

CAT IV 2025 Certification

Freshly CAT IV certified in 2025 — no recertification cost or delay before deployment. Priced at $7.5 million USD with full inspection records.

02

Hydraulic Walking System

Orion hydraulic walking system (HPU skid and trailer) enables pad drilling operations without rig-down moves between well slots, increasing efficiency and reducing mobilization cost.

03

Complete Ancillary Package

Includes Canrig automatic catwalk, five-star wireline unit, driller's cabin with Varco electronic driller, crew quarters, fuel tank (12,000 gal double-wall), and full auxiliary pump skids.

Complete Data

Full Equipment Status

Drawworks

Manufacturer	IDM Equipment
Model	IDM DC-1500 (Asset DW012)
Power	1,500 HP via (2) GE/GM 800-HP DC Traction Motors
Hours/Rebuild	5,629

Engines & Generators

Engines	(3) Cummins KTA50 Diesel @ 1,470 HP each, Air Start
Engine S/Ns	3316778 (50010 hrs), 33167782 (49456 hrs), 33167860 (49144 hrs)
Generators	(3) AVK/WEG 1,050-KW unitized with SCR Skid

Mast & Substructure

Mast	IDM 136' Telescoping (S/N M-5699)
Hook Load	750,000 lbs
Substructure	IDM 22' Hydraulic Telescoping
Rotary Load	750,000 lbs
Setback	450,000 lbs simultaneous

Rotating & Hoisting

Rotary	EMSCO Type 37½", (1) 800-HP DC Traction Motor
Top Drive	Canrig 350-Ton AC Model 350 (S/N 454), ROCKIT
Overhead String	400-Ton 6-Sheave Block, 12-line, 1-3/8"

Mud System

Mud Pumps	(2) BOMCO F-1600 Triplex, 7,500 PSI
Mud Pump Motors	EMD DC Traction @ 1,600 HP
MP2 Hours	9,173
Mud Capacity	848 bbl total active (2x 424 bbl covered tanks)
Solids Control	Brandt shakers, degasser, desilter

Well Control

BOP	(1) 13-5/8" 10,000-LB Shaffer Double Ram + (1) Single Ram + (1) 5,000-LB Annular
Accumulator	6-Station Consolidated API 16E
Choke Manifold	4' x 4" 10,000-LB

Walking System

Manufacturer	Orion
Type	Hydraulic Walking System
Components	HPU Skid and Trailer
