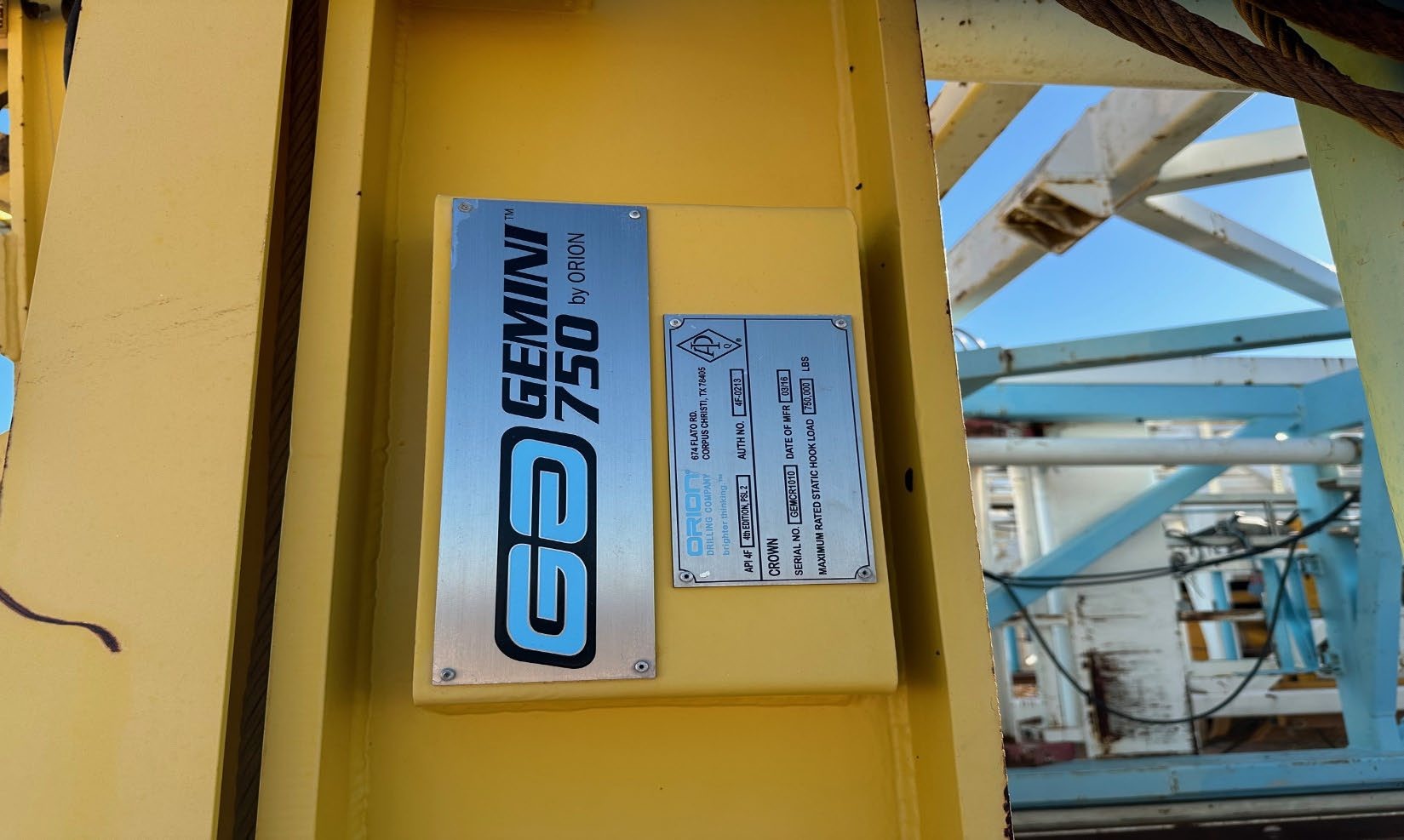

IDS Gemini 750 1500HP Drilling Rig 11 (Leo)

Gemini 750 Series AC rig — commissioned 2011, upgraded 1500HP/750K in 2016 with Canrig top drive

1,500 HP
Drawworks
IDS GEB-28 AC Traction
750,000 lbs
Hook Load

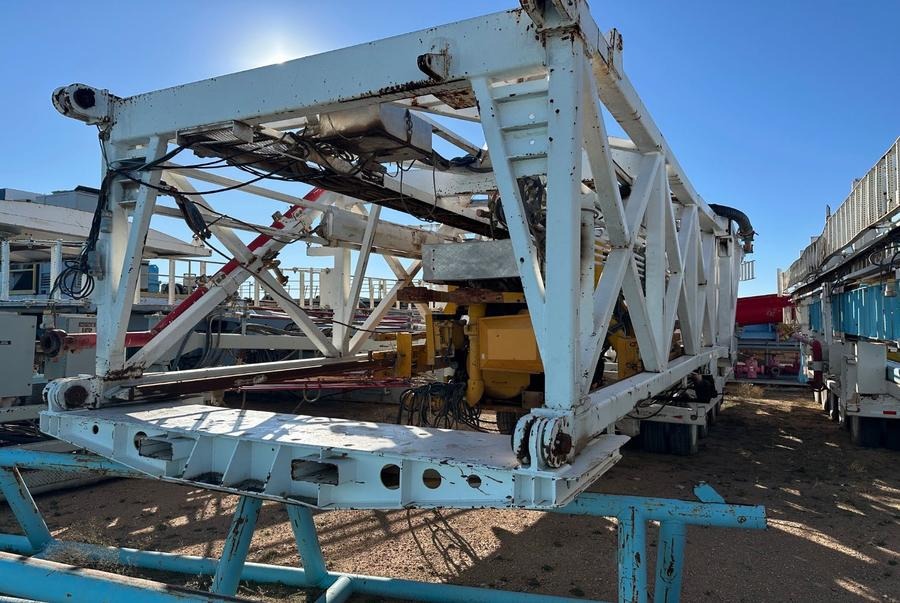

Gemini 142' Telescoping Mast
4×1470 HP
Cummins KTA50 DR
AVK WEG 1100kW Gen Sets
7,500 PSI
Mud System
3× Bomco F-1600 Triplex

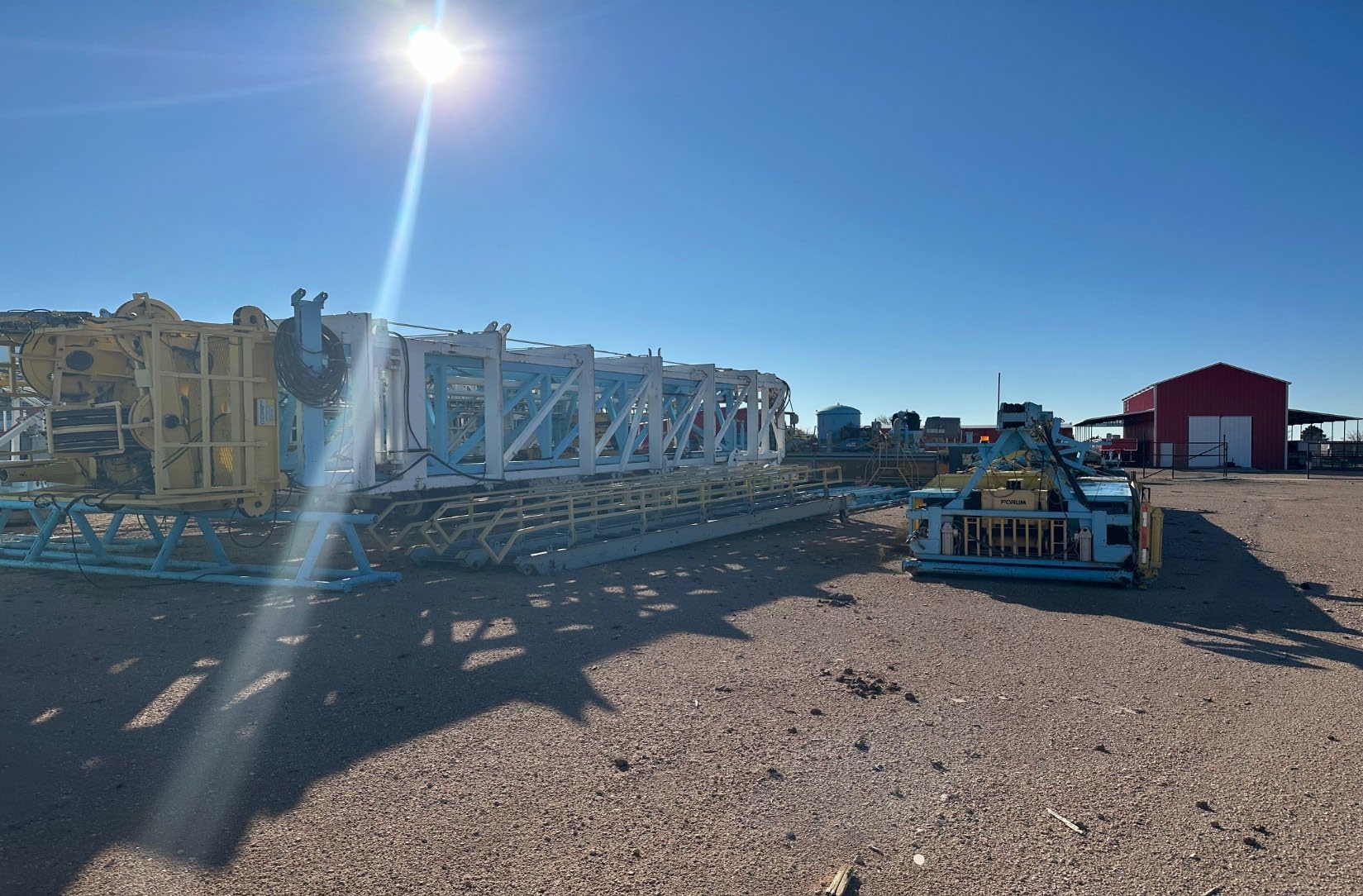

IDS Gemini 750 1500HP Drilling Rig 11 (Leo)
Gemini 750 Series AC rig — commissioned 2011, upgraded 1500HP/750K in 2016 with Canrig top drive

IDS Gemini 750 Series Rig 11 (Leo) was originally commissioned September 2011 and upgraded to 1500HP/750K hook load in 2016. Powered by four Cummins KTA50 DR diesel engines with AVK WEG 1100kW generator sets, it features an IDS 1500HP GEB-28 AC drawworks, three Bomco F-1600 triplex mud pumps, and a Canrig 350-ton AC top drive with Rockit capability. Full component hours on file.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • ManufacturerIDS
  • Rating1500 HP
  • MotorGEB-28 1500HP AC Traction
  • S/N20044575-2
  • Hours15,360
🔋

Power Package

  • Engines4× Cummins KTA50 DR, 1470HP
  • Generator SetsAVK WEG 1100kW
  • Hours (Eng 1/2/3/4)37,631 / 47,669 / 38,577 / 60,033
💧

Mud Pumps

  • Qty / Type3× Bomco F-1600 Triplex
  • Pressure7500 PSI
  • Liners6" Ceramic
  • MotorGEB-29 AC 1500HP
  • Hours (MP1/MP2)23,182 / 16,583
🔝

Top Drive

  • Make / ModelCanrig 1035AC
  • Capacity350 Ton AC
  • FeatureRockit Capability
  • S/N793
  • Hours6,921
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Rockit-Equipped Top Drive

Canrig 350-ton AC top drive with Rockit capability enables oscillation to free stuck pipe — a high-value feature that reduces non-productive time in difficult formations.

02

Four-Engine Power Train

Quad Cummins KTA50 DR engine package provides redundant power with individual air start and skid-mounted enclosures — enabling independent maintenance without full rig shutdown.

03

Bomco High-Pressure Mud System

Three Bomco F-1600 triplex pumps at 7500 PSI with GEB-29 AC traction motors deliver sustained high-pressure circulation for extended-reach and deep directional wells.

Complete Data

Full Equipment Status

Drawworks

MakeIDS
Rating1500 HP
MotorGEB-28, 1500HP AC Traction
S/N20044575-2
Hours15,360

Power Package

Engines4× Cummins KTA50 DR, 1470HP
Air StartYes
Generator SetsAVK WEG 1100kW (×4)
Eng 1 S/N3367799 / 37,631 hrs
Eng 2 S/N33167760 / 47,669 hrs
Eng 3 S/N331667819 / 38,577 hrs
Eng 4 S/N33165080 / 60,033 hrs

Mud Pumps

Qty / Model3× Bomco F-1600
Pressure7500 PSI
Liners6" Ceramic
MotorGEB-29 AC Traction, 1500HP
MP1 S/N / HrsBZ10-220E / 23,182
MP2 S/N / HrsBF09-114E / 16,583

Top Drive

Make / ModelCanrig 1035AC
Capacity350 Ton AC
FeatureRockit
S/N793
Hours6,921
