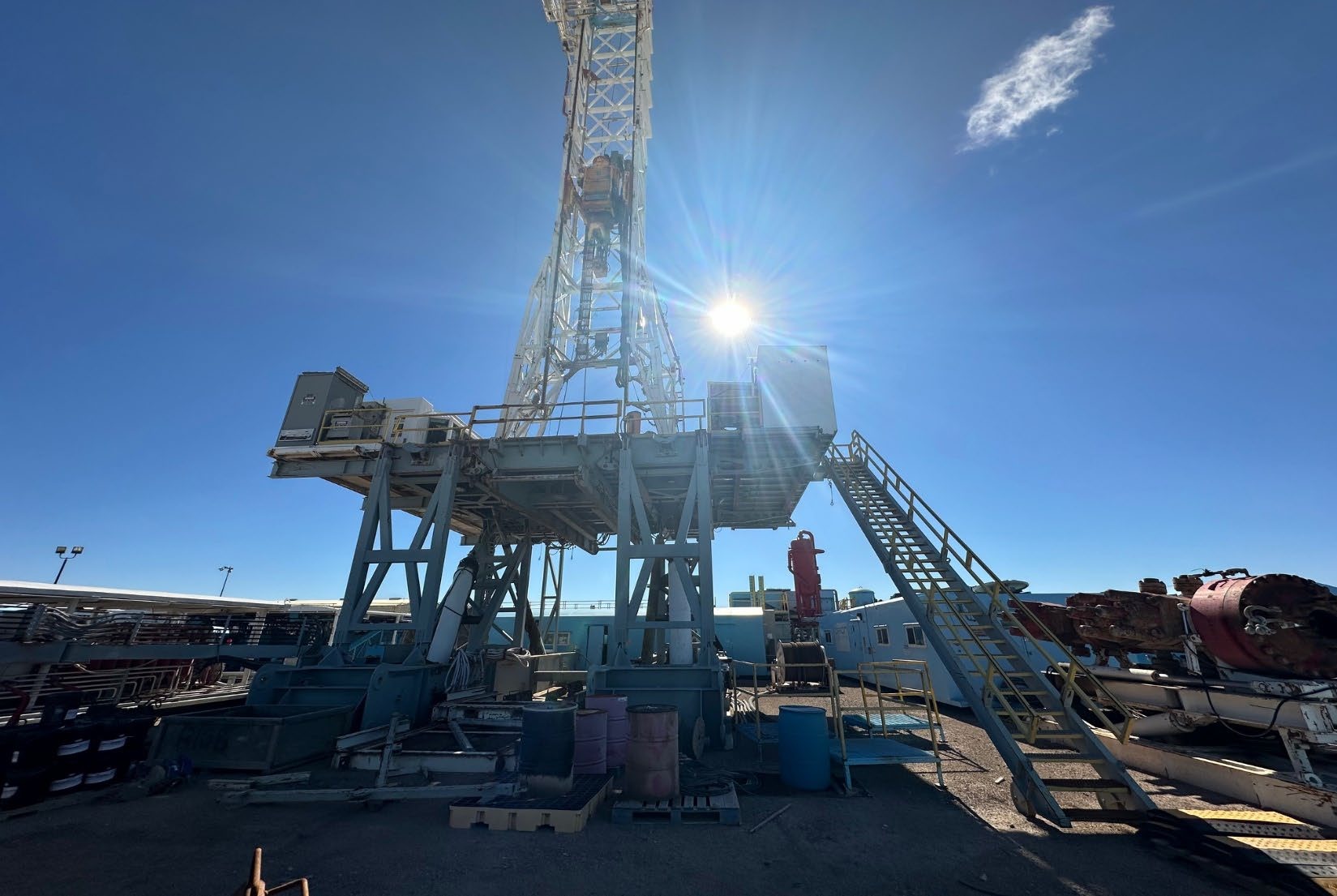

IDS Gemini 750 1500HP Drilling Rig 13

Gemini 750 Series AC rig — commissioned March 2012, upgraded 1500HP/750K in 2016

1,500 HP
Drawworks
IDS GEB-28 AC Traction
750,000 lbs
Hook Load
Gemini 142' Telescoping Mast
4×1470 HP
Cummins KTA50 DR
AVK WEG 1100kW Gen Sets
7,500 PSI
Mud System
3× Bomco F-1600 Triplex
IDS Gemini 750 1500HP Drilling Rig 13
Gemini 750 Series AC rig — commissioned March 2012, upgraded 1500HP/750K in 2016

IDS Gemini 750 Series Rig 13 was commissioned March 2012 and upgraded to 1500HP/750K hook load in 2016. Powered by four Cummins KTA50 DR diesel engines with AVK WEG 1100kW generator sets, it features an IDS 1500HP AC drawworks, three Bomco F-1600 triplex mud pumps at 7500 PSI, and a GDM 500 1200HP AC rotary motor. Detailed component serial numbers and hours documented throughout.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • ManufacturerIDS
  • Rating1500 HP
  • MotorGEB-28 1500HP AC Traction
  • S/N20044575-3
  • Hours12,572
🔋

Power Package

  • Engines4× Cummins KTA50 DR, 1470HP
  • Generator SetsAVK WEG 1100kW
  • Hours (Eng 1/2/3/4)46,626 / 46,565 / 67,077 / 60,033
💧

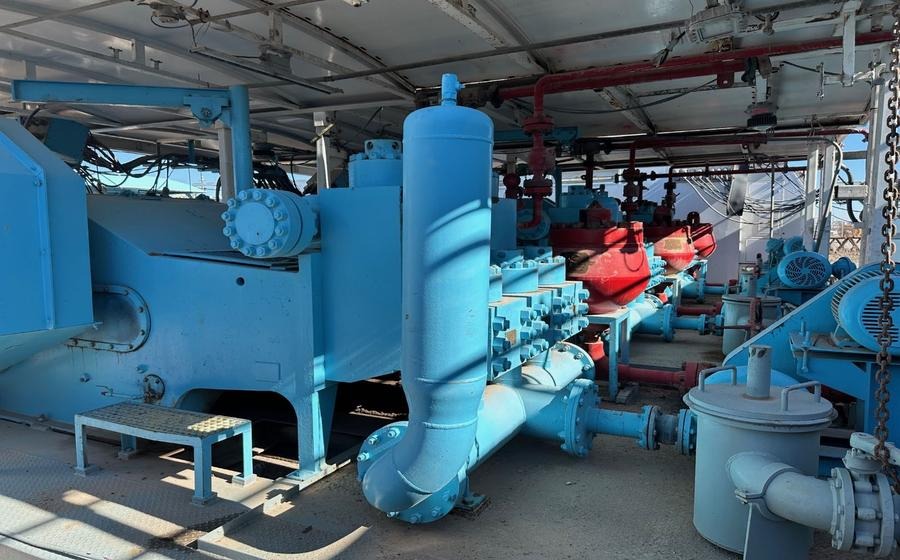

Mud Pumps

  • Qty / Type3× Bomco F-1600 Triplex
  • Pressure7500 PSI
  • Liners6" Ceramic
  • MotorGEB-29 AC 1500HP
  • Hours (MP1/2/3)5,975 / 5,797 / 20,414
🔄

Rotary System

  • MotorGDM 500 1200HP AC
  • S/N#02
  • Hours10,237

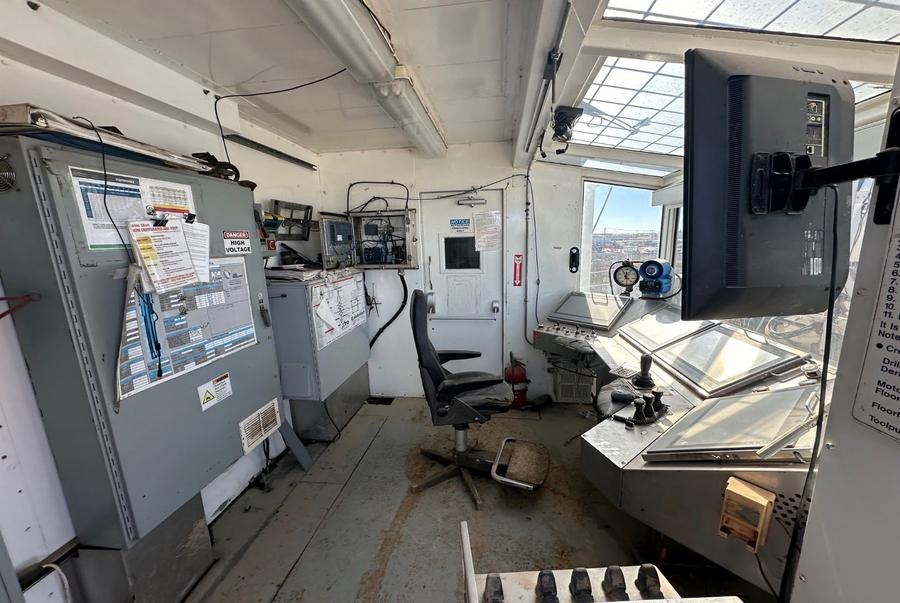

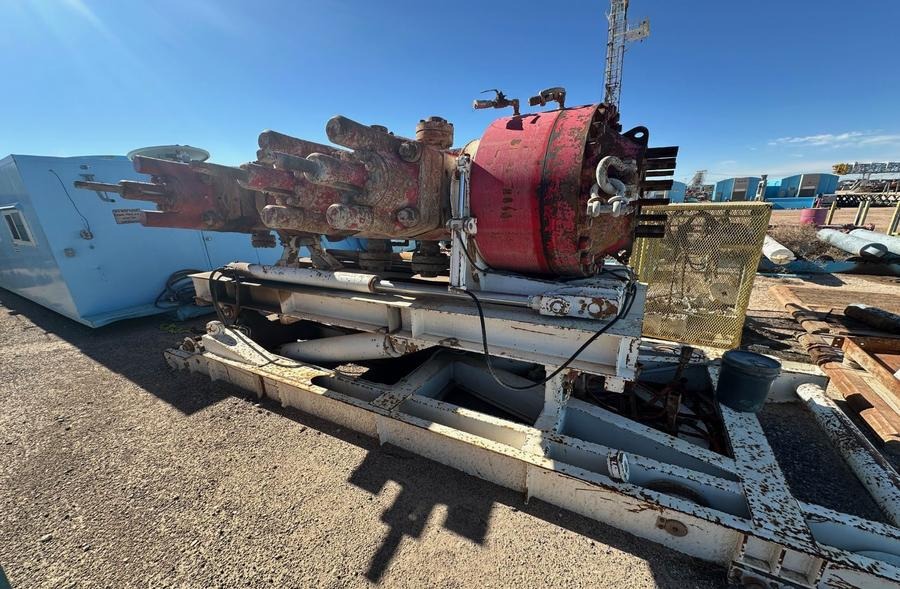

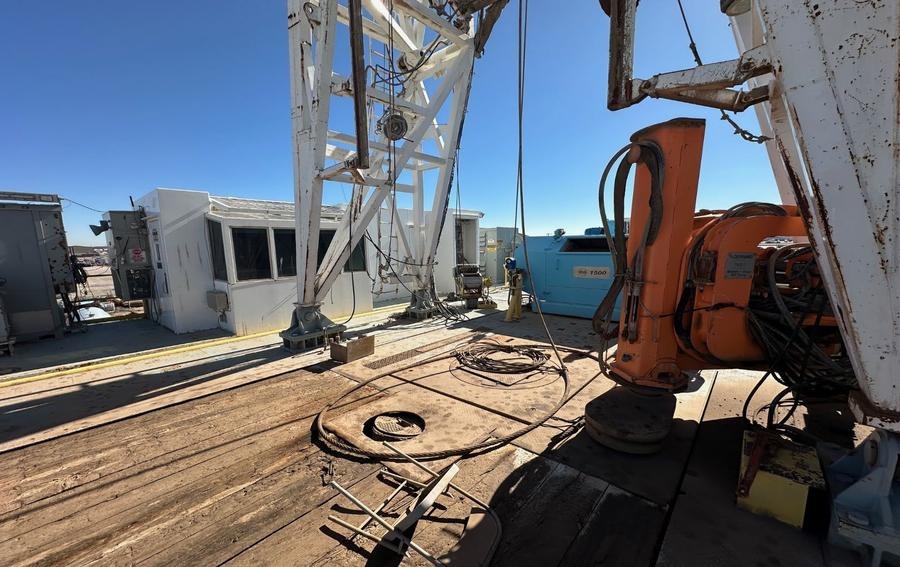

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

AC Variable-Frequency Drivetrain

Full AC traction motors throughout drawworks and mud pumps provide smooth variable-speed operation and lower maintenance burden than SCR/DC equivalents.

02

Triple Bomco High-Pressure Pumps

Three Bomco F-1600 triplex pumps with recently-rebuilt fluid ends (5,975/5,797 hrs) and one pump at 20,414 hrs — majority of pump system recently serviced.

03

Complete Documentation

Full component serial numbers and hours documented for all major systems — drawworks, engines, generator sets, and mud pumps — supporting rapid due diligence.

Complete Data

Full Equipment Status

Drawworks

MakeIDS
Rating1500 HP
MotorGEB-28, 1500HP AC Traction
S/N20044575-3
Hours12,572

Power Package

Engines4× Cummins KTA50 DR, 1470HP
Generator SetsAVK WEG 1100kW (×4)
Eng 1 S/N33167760 / 46,626 hrs
Eng 2 S/N33165734 / 46,565 hrs
Eng 3 S/N33167571 / 67,077 hrs
Eng 4 S/N33165080 / 60,033 hrs

Mud Pumps

Qty / Model3× Bomco F-1600
Pressure7500 PSI
Liners6" Ceramic
MotorGEB-29 AC 1500HP
MP1 S/N / Hrs14-095 / 5,975
MP2 S/N / Hrs14-097 / 5,797
MP3 S/N / HrsBZ10-198E / 20,414

Rotary

MotorGDM 500 1200HP AC
S/N#02
Hours10,237

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
