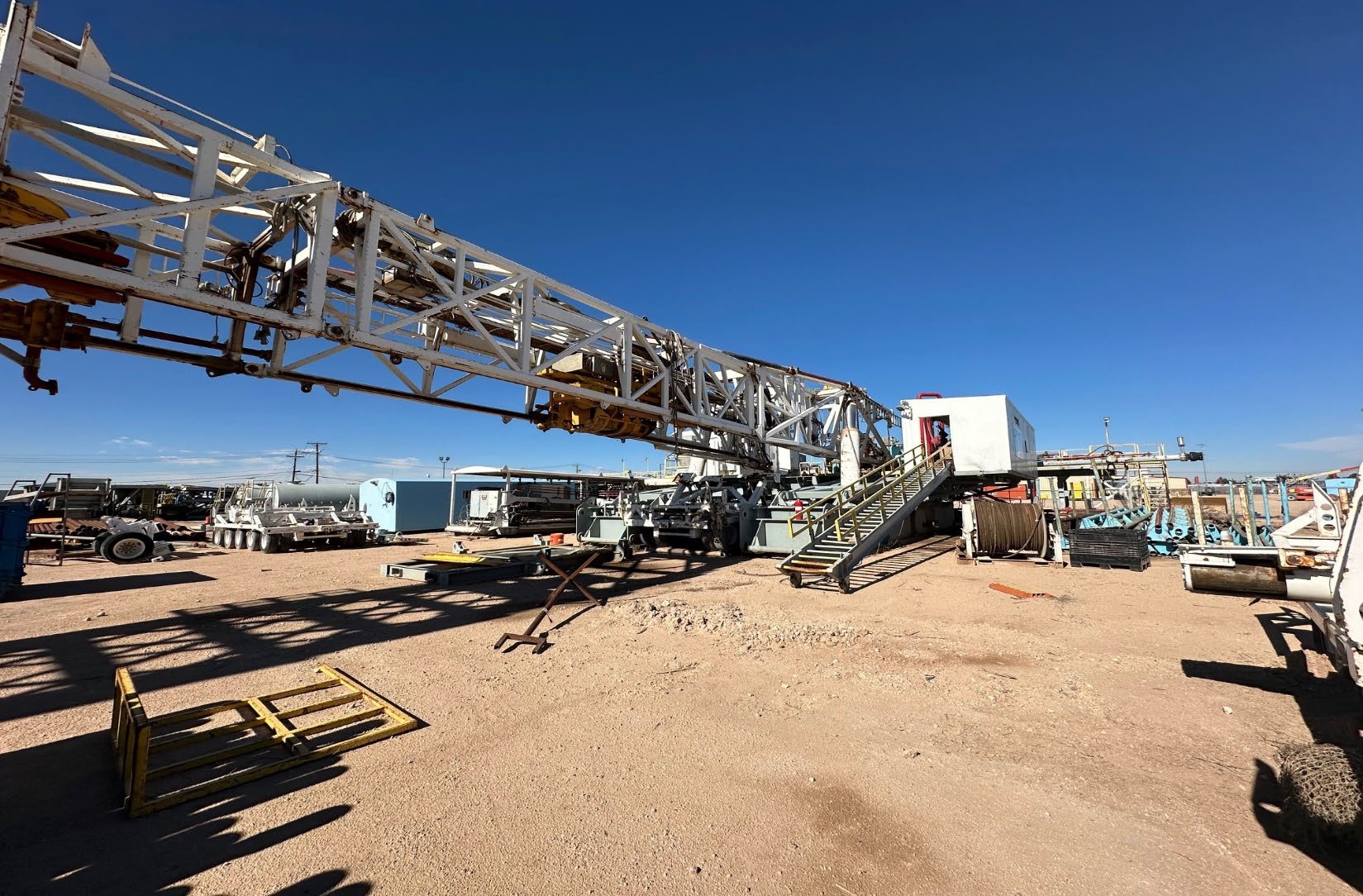

IDS Gemini 750 1500HP Drilling Rig 17 | Total Drilling Supply LLC

IDS Gemini 750 Series Rig 17 features a 142-foot hydraulic telescoping mast rated 750,000 lb hook load with 21,000 ft racking capacity. Powered by four Cat 3512C diesel engines driving 1365kW generator sets, with an IDS AC 1500HP drawworks, Canrig 350-ton AC top drive (Rockit-capable), and three 1600HP triplex AC mud pumps at 7500 PSI. Reel Rig 4160V AC distribution system throughout.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

MastGemini 142' Hydraulic Telescoping
Hook Load750,000 lbs
Racking Capacity21,000 ft with 5" drill pipe
SubstructureGemini 22', 18' Clear Height
Rotary Load750,000 lbs

⚙️

Drawworks & Top Drive

DrawworksIDS AC 1500HP
Drill Line1-3/8"
Top DriveCanrig 350-ton AC
FeatureRockit Capability
Traveling Block500-ton, 6 Sheave, 12-line

🔋

Power Package

Engines4× Caterpillar 3512C, 1476HP
Generator Sets1365kW Unitized
Fuel Tank12,000 Gallon
Distribution4160V Reel Rig System

💧

Mud Pumps & BOP

Mud Pumps3× 1600HP Triplex AC, 7500 PSI
Mud Tanks850 BBL Total Active Capacity
Annular BOP13-5/8" 5M
Ram BOP13-5/8" 10M Single + Double

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Hydraulic Raise/Lower System

Mast and substructure both raise and lower using hydraulic cylinders — no crane required for rig-up, reducing mobilization time and third-party crane costs significantly.

02

4160V Reel Rig Distribution

Integrated 4160V power distribution system with PLC-integrated AC drives on drawworks, mud pumps, and top drive provides precise, software-controlled drilling operations.

03

Canrig Rockit Capability

350-ton AC top drive with Rockit oscillation enables pipe rotation during stuck-pipe events, dramatically reducing fishing jobs and associated non-productive time.

Complete Data

Full Equipment Status

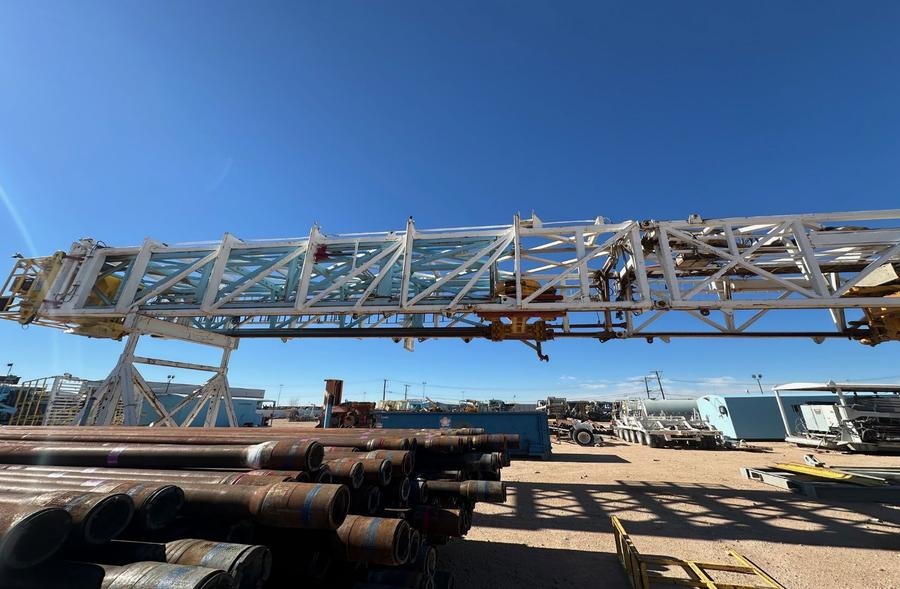

Mast

Make	Gemini
Height	142' Hydraulic Telescoping
Hook Load	750,000 lbs
Racking Capacity	21,000 ft (5" DP)
Raise/Lower	Hydraulic Cylinders

Substructure

Make	Gemini
Height	22', 18' Clear
Rotary Load	750,000 lbs
Setback Load	500,000 lbs
Raise/Lower	Hydraulic Cylinders

Drawworks

Make	IDS AC
Rating	1500 HP
Drill Line	1-3/8"

Engines

Engines	4× Caterpillar 3512C, 1476HP
Generator Sets	1365kW Unitized
Fuel Tank	12,000 Gallon

Top Drive

Make / Model	Canrig 350-ton AC
Feature	Rockit Capability
Traveling Block	500-ton, 6 Sheave, 12-line

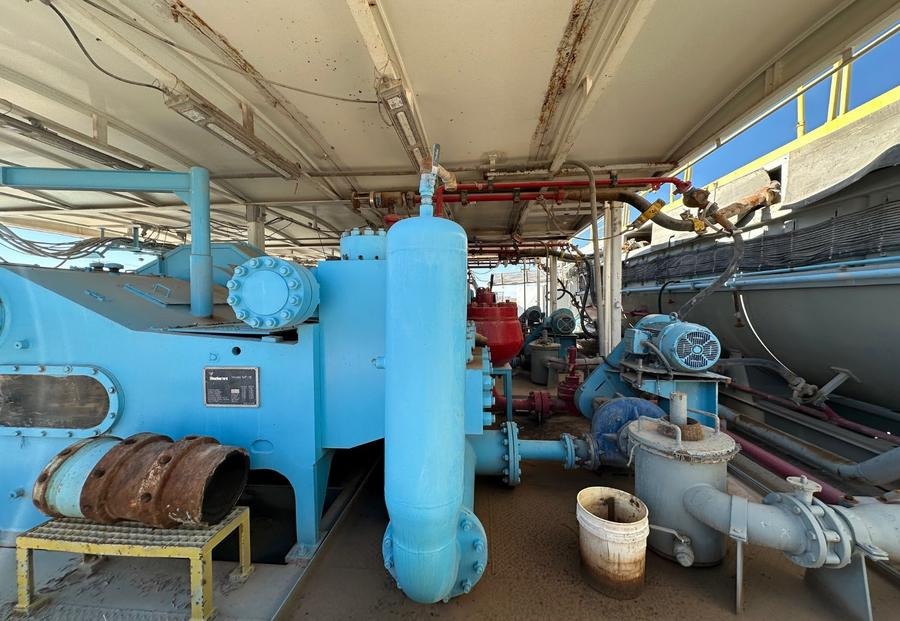

Mud Pumps

Qty	3× 1600HP Triplex AC
Working Pressure	7500 PSI
Tanks	850 BBL Active

BOP / Well Control

Annular	13-5/8" 5M Annular
Single Ram	13-5/8" 10M
Double Ram	Per Contract
Accumulator	6-Station
Choke Manifold	4" 10K
