IDS/Gemini 2000HP Rig 18

Fully recertified 2000HP AC rig — new motor, new API Cat IV on mast, sub, and top drive.

2000 HP
IDS Drawworks
AC Electric
850K lbs
Hook Load
Gemini 142' mast
30,000 ft
Depth Capacity
With 5" DP
4 × CAT
Generators
3512C, 1476 HP each
IDS/Gemini 2000HP Rig 18
Fully recertified 2000HP AC rig — new motor, new API Cat IV on mast, sub, and top drive.

Rig 18 is a 2000HP AC electric land rig built around a Gemini 142' telescoping mast with 850,000 lb hook load and IDS AC 2000HP drawworks with a new 2300HP Drill Max AC motor. Fully recertified: new API 10-Year Cat IV inspections on mast, substructure, and GDS 500-ton top drive. Four CAT 3512C engines at 1476HP each with 1365 kW generators and a 12,000-gallon fuel tank.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • MastGemini 142' Telescoping
  • Hook Load850,000 lbs
  • Depth Capacity~30,000 ft (5") / ~25,000 ft (5.5")
  • Mast InspectionNew API 10-Yr Cat IV (Oil Works INC, 4F API)
  • SubstructureGemini 28', 24' clear, 750K setback
⚙️

Drawworks

  • ModelIDS AC 2000HP
  • MotorNew Drill Max 2300HP AC (whisper clean blower)
  • Drilling Line1-3/8" Tuf-Flex DLX compacted
  • Pull Capacity680,000 lbs @ 8 lines (100%)
  • Emergency BrakeNew 436 Air Max (Wichita Clutch)
🔄

Top Drive & Rotary

  • Top DriveGDS GDM-500 Ton
  • InspectionNew CAT 4 rebuild / 5-yr recertification
  • Rotary TableTFI 37½" (hydraulic Hagglund motor)
  • Block500 Ton, 6 sheave
⚡

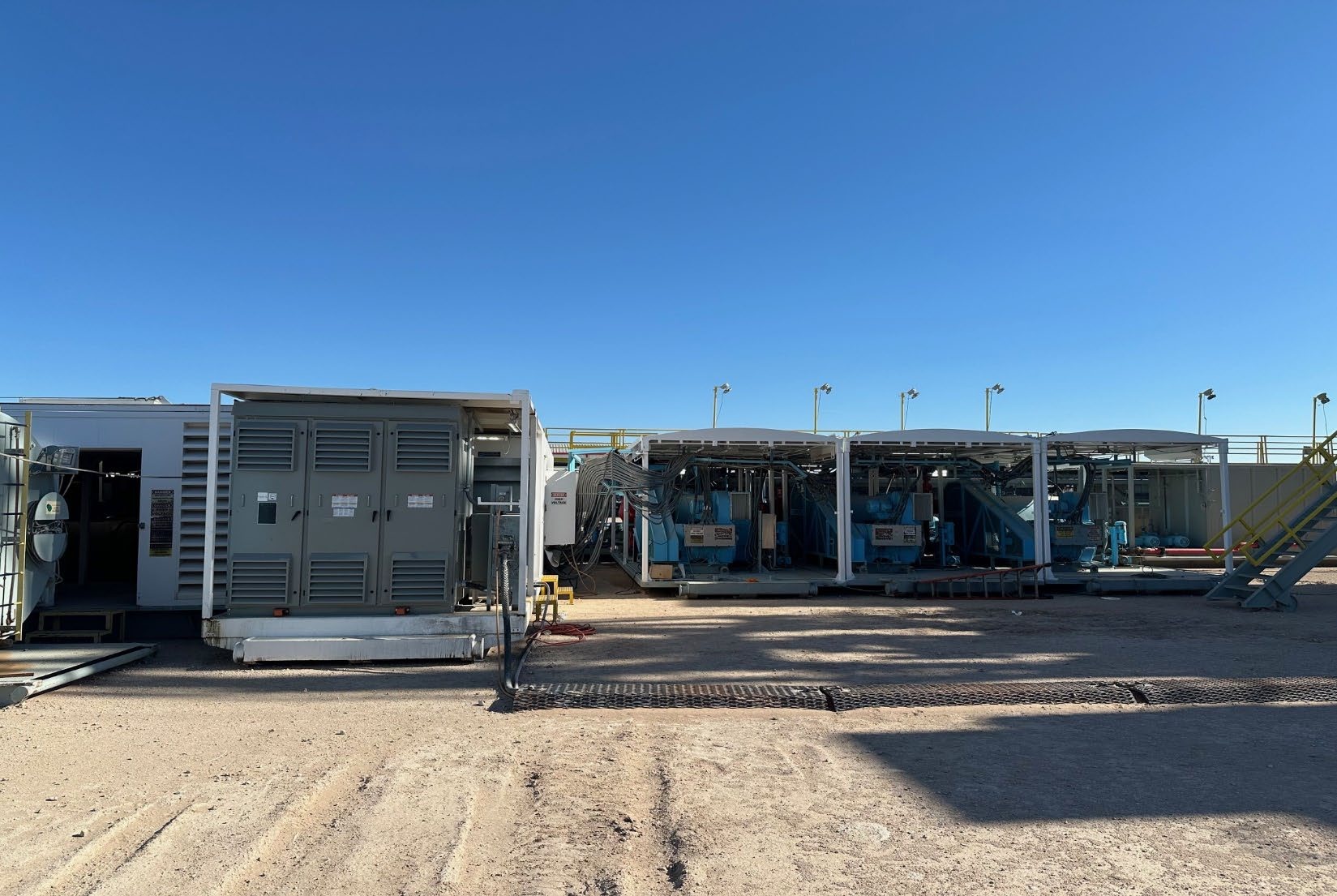

Power Package

  • Engines4 × CAT 3512C
  • Engine Rating1476 HP each
  • Generator Rating1365 kW each
  • Fuel Tank12,000 gallons
Equipment Gallery

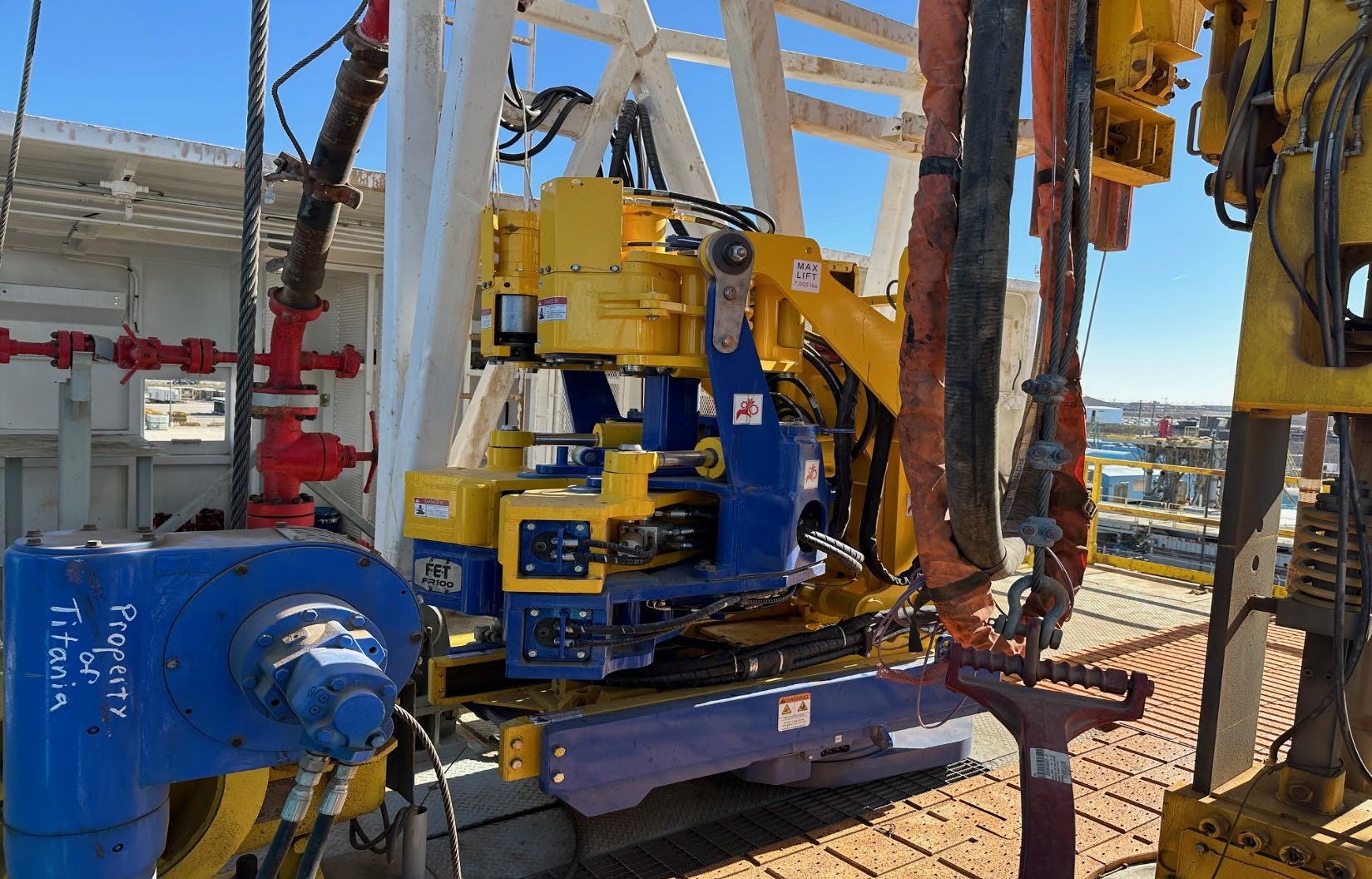

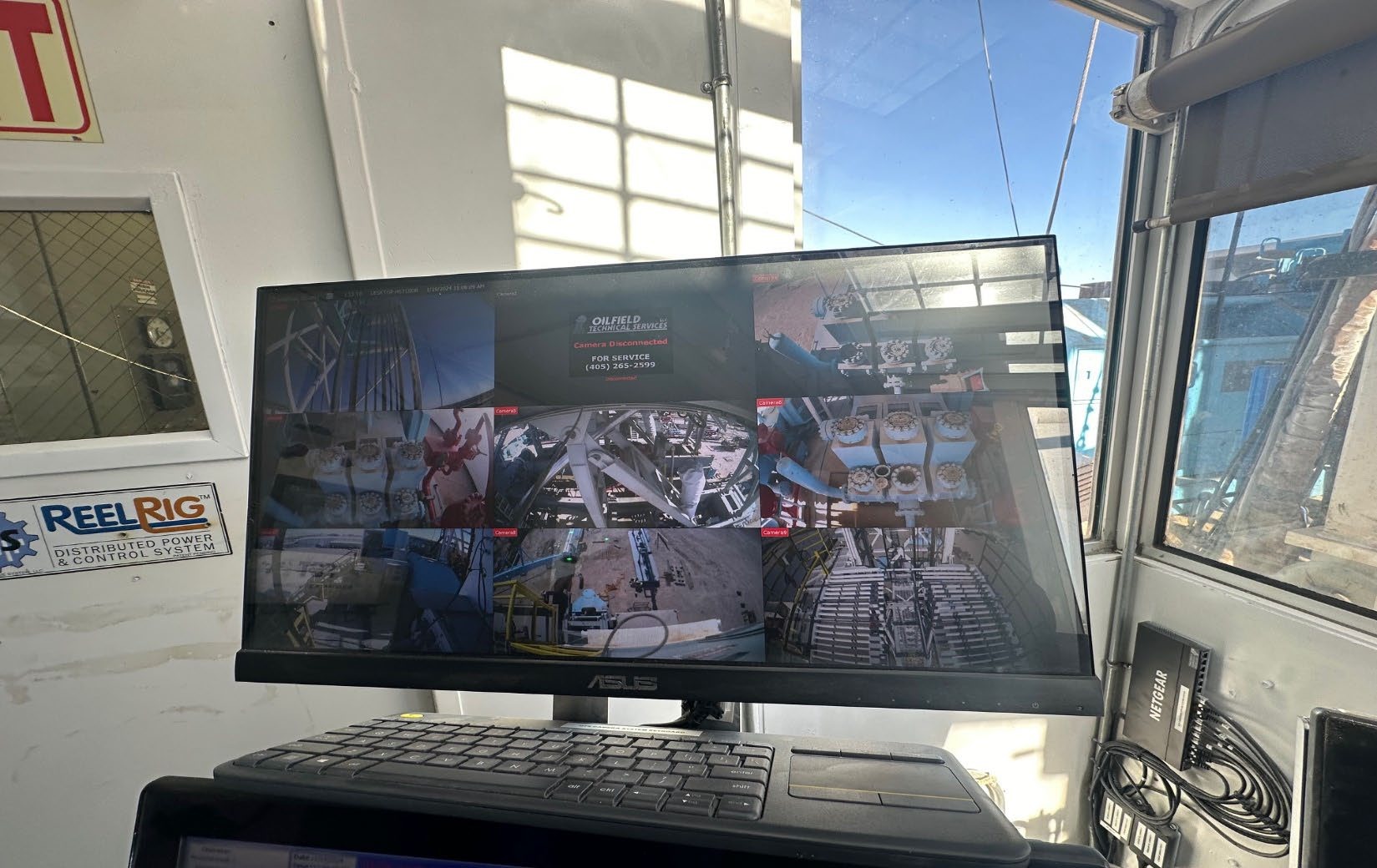

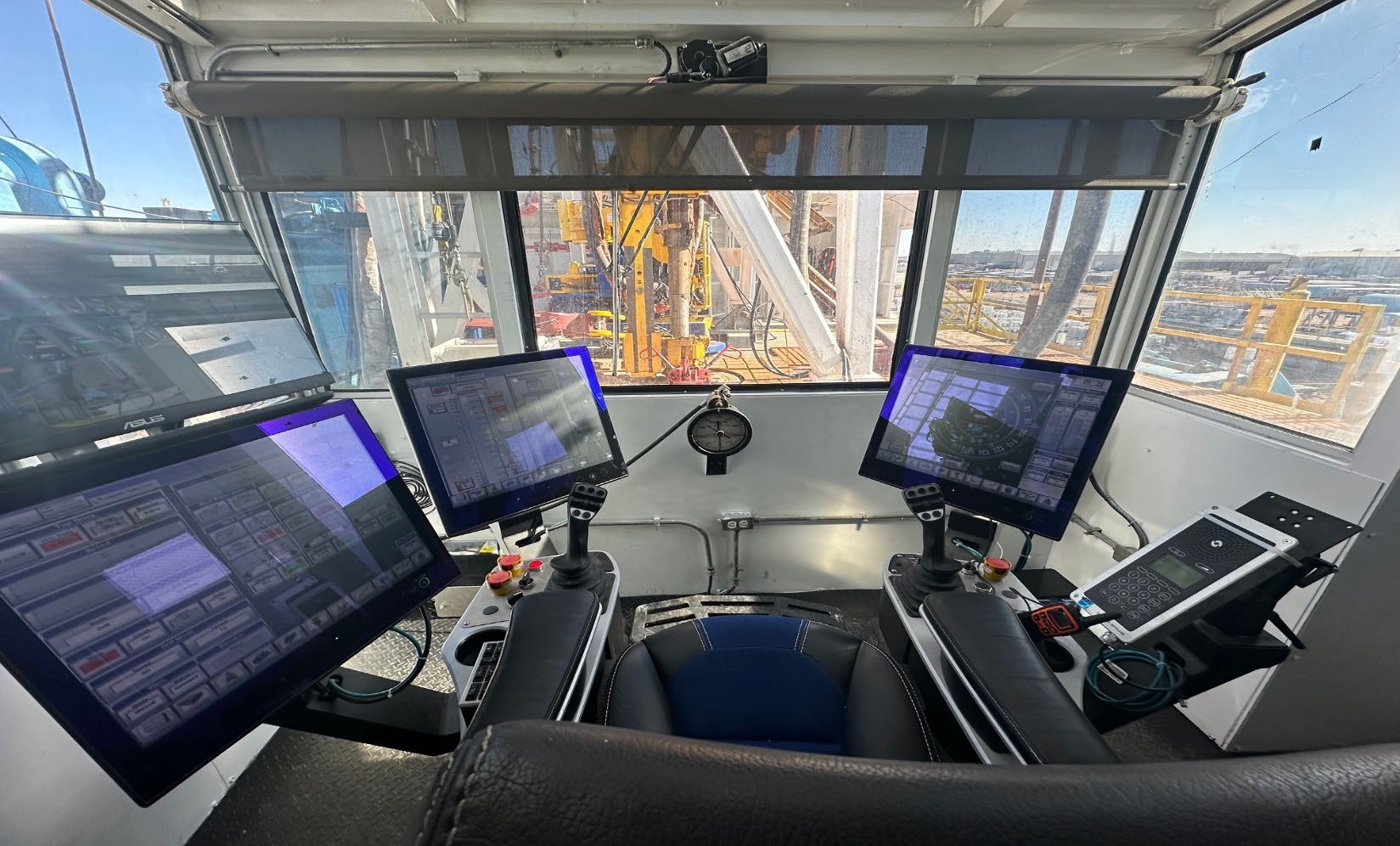

Rig Photos

Capabilities

Key Advantages

01

New-Generation Drawworks Motor

Newly installed Drill Max 2300HP AC motor with whisper clean blower system delivers quiet, high-efficiency hoisting with full Cat IV drawworks inspection.

02

Full Stack Recertification

Mast, substructure, and GDS 500-ton top drive all carry new API 10-Year Cat IV certifications completed by Oil Works INC (4F API licensed facility).

03

Deep-Reach 30,000 ft Capacity

Gemini 142' telescoping mast with 850,000 lb hook load accommodates 30,000 ft of 5" or 25,000 ft of 5.5" drill pipe for deep basin programs.

Complete Data

Full Equipment Status

Mast

ModelGemini 142' Telescoping
Hook Load850,000 lbs
Depth (5")~30,000 ft
Depth (5.5")~25,000 ft
InspectionNew API 10-Yr Cat IV (Oil Works INC)
NoteStructural work by Oil Works INC (4F API)

Substructure

ModelGemini 28'
Clear Height24 ft
Rotary Load850,000 lbs
Setback Load750,000 lbs
Pony Sub6' tall × 8' wide × 50' long
InspectionAPI 10-Yr Cat IV complete

Drawworks

ModelIDS AC 2000HP
MotorNew Drill Max 2300HP AC
Drilling Line1-3/8" Tuf-Flex DLX compacted
Pull Capacity680,000 lbs @ 8 lines (100%)
Emergency BrakeNew 436 Air Max (Wichita Clutch)
InspectionFull Cat IV — new drum bearings

Top Drive & Rotary

Top DriveGDS GDM-500 Ton
TD InspectionNew CAT 4 rebuild / 5-yr recertification
Block500 Ton, 6 sheave
RotaryTFI 37½" — hydraulic Hagglund motor (new re-mfr)

Engines & Power

Engines4 × CAT 3512C
Engine HP1476 HP each
Generator Rating1365 kW each
Fuel Tank12,000 gallons
InspectionPer 4,000-hr criteria — discrepancies remedied

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
