1500 HP Land Rig 107 (Ingersoll-Rand 2550)

Proven 1,500 HP SCR land rig with IR 2550 drawworks and Lee C. Moore free-standing beam-leg mast.

1,500 HP
Drawworks
Ingersoll-Rand 2550
750K lbs
Max Hook Load
Lee C. Moore Mast
16,800 ft
Drill Depth
4½" Drill Pipe
3× Cat 3512A
Gensets
840 kW each
1500 HP Land Rig 107 (Ingersoll-Rand 2550)
Proven 1,500 HP SCR land rig with IR 2550 drawworks and Lee C. Moore free-standing beam-leg mast.

1,500 HP SCR-powered land rig built around an Ingersoll-Rand 2550 drawworks with twin GE-752 DC traction motors. Features Lee C. Moore 136-ft free-standing beam-leg mast rated to 750,000 lbs hook load, twin Gardner Denver PZK-10 mud pumps at 1,300 HP each, and three Caterpillar 3512A gensets providing 2,520 kW total. Solids control includes Derrick 2000 linear motion shakers and Swaco vacuum degasser.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

  • Mast Make/TypeLee C. Moore, Beam Leg Free-Standing
  • Height136 ft (41 m)
  • Max Hook Load750,000 lbs
  • Sub TypeLee C. Moore Telescopic
  • Floor Height17.8 ft (5.4 m)
⚙️

Drawworks

  • Make/ModelIngersoll-Rand 2550
  • Rated Input1,500 HP (1,119 kW)
  • Motors2× GE-752 DC, 1,000 HP each
  • Drilling Line1-1/4"
💧

Mud System

  • Mud Pumps2× Gardner Denver PZK-10
  • Pump Rating1,300 HP (970 kW) each
  • Active Mud System700 bbl (111 m³)
  • Shale Shakers2× Derrick 2000 Linear Motion
  • DegasserSwaco Vacuum 800 GPM
⚡

Power Generation

  • Engines3× Caterpillar 3512A Diesel
  • Rating1,210 HP @ 1,200 RPM each
  • Generators3× CAT 840 kW (1,050 kVA) each
  • SCR4× Ross Hill Model 1000
🔒

BOP System

  • Annular11" Hydril 5,000 psi
  • Double Ram11" Cameron Type U 10,000 psi
  • Single Ram11" Cameron Type U 10,000 psi
Equipment Gallery

Rig Photos

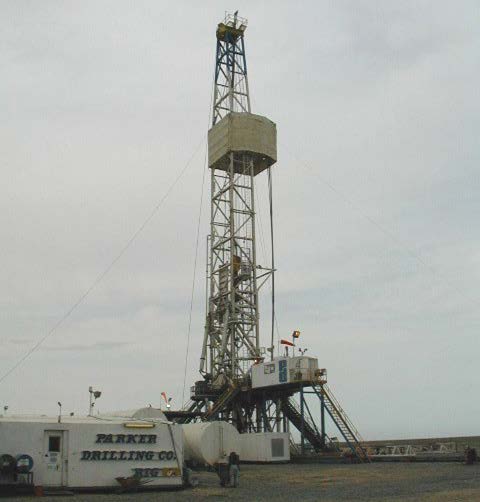

Rig 107 – 1500 HP Land Rig
Rig 107 – 1500 HP Land Rig

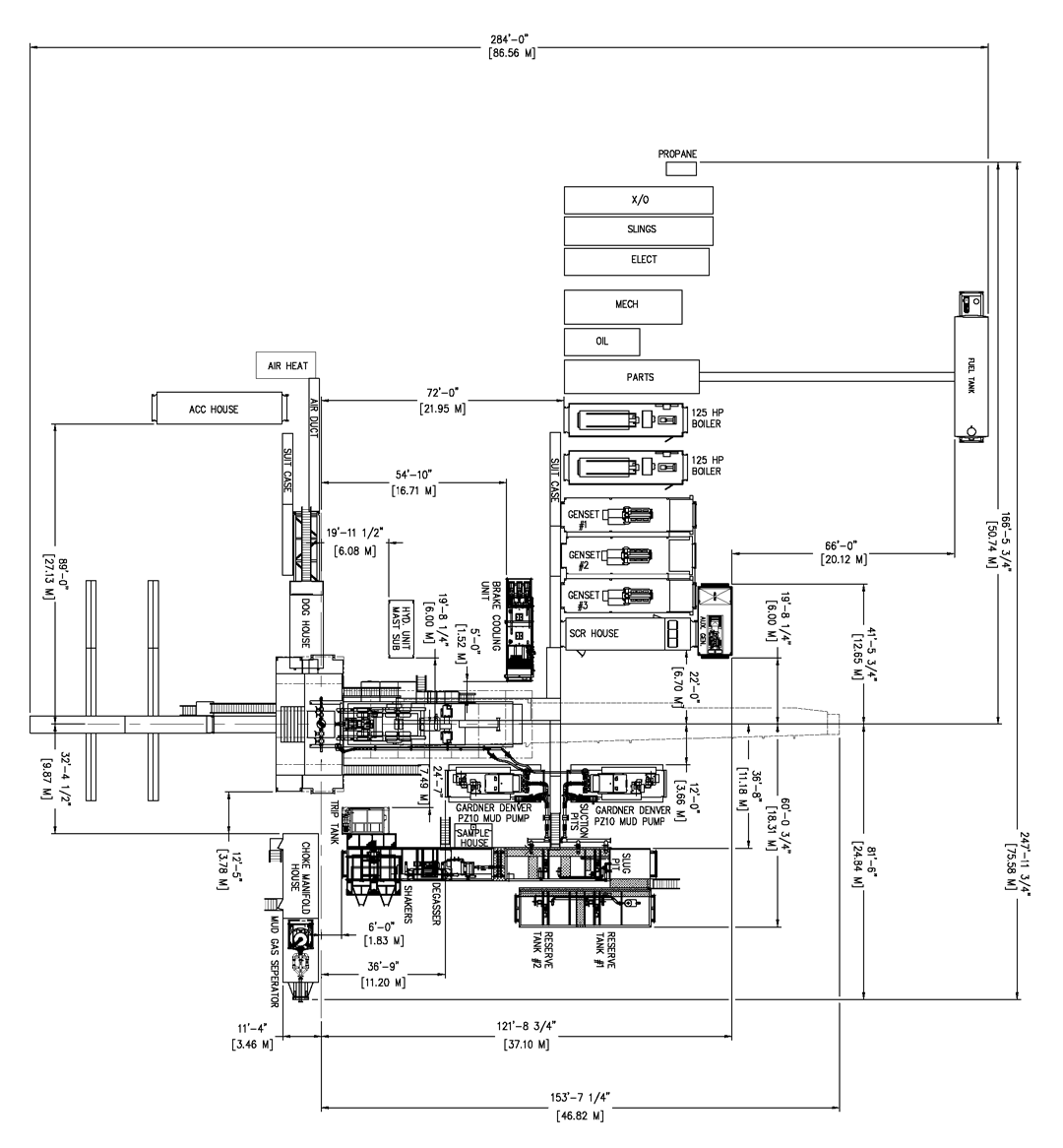

Rig 107 – Plot Plan
Rig 107 – Plot Plan
Capabilities

Key Advantages

01

15,000-ft Rated Depth

Rated to 15,000 ft with 5" drill pipe (16,800 ft with 4½") — standard mid-depth land operations.

02

Dual High-Horsepower Mud Pumps

Two Gardner Denver PZK-10 triplex pumps at 1,300 HP each ensure high circulating rates and redundancy.

03

Proven SCR Drive System

Four Ross Hill Model 1000 SCR bays provide reliable DC drive control for drawworks and mud pump motors.

Complete Data

Full Equipment Status

General

Year Modified2006
Rated HP1,500
ConditionUsed

Mast

Make/TypeLee C. Moore, Beam Leg Free-Standing
Height136 ft (41 m)
Max Hook Load750,000 lbs
Racking Capacity16,800 ft of 4½" DP @ 93-ft stands

Drawworks

Make/ModelIngersoll-Rand 2550
Rated Input1,500 HP (1,119 kW)
Motors2× GE-752 DC 1,000 HP each
Drilling Line1-1/4"

Traveling Equipment

Traveling BlockMcKissick, 700,000 lbs max
SwivelContinental Emsco, 700,000 lbs max

Rotary Equipment

Rotary TableIdeco 27½"
RT Motor1,000 HP DC electric
Static Load Rating648,000 lbs

Mud Pumps

Qty2
Make/ModelGardner Denver PZK-10 Triplex
Rating1,300 HP (970 kW) each
Motors2× GE 752 DC 1,000 HP each per pump

Power Generation

Engines3× Caterpillar 3512A Diesel
HP @ RPM1,210 HP @ 1,200 RPM each
Generators3× CAT 840 kW (1,050 kVA) each

SCR / Controls

Gen Control3× Ross Hill Model 1000
SCR Bays4× Ross Hill Model 1000

BOP System

Annular11" Hydril 5,000 psi
Double Ram11" Cameron Type U 10,000 psi
Single Ram11" Cameron Type U 10,000 psi

Solids Control

Active System700 bbl (111 m³)
Shale Shakers2× Derrick 2000 Linear Motion
DegasserSwaco Vacuum 800 GPM
