Available — POA

2006 KSM 550 Rig 2

Freestanding double service rig with full workover package, rated to 4,200 m.

550
Horsepower
KSM Model 550
4,200 m
Depth Rating
Freestanding service rig
104 ft
Mast Height
CDN-M-5520, 220,000 lb SHL
2006
Year
KSM carrier VIN 2KSSP55046N064002
2006 KSM 550 Rig 2
Freestanding double service rig with full workover package, rated to 4,200 m.

A well-equipped 2006 KSM 550 freestanding double service rig with a 104-ft CDN-M-5520 mast rated at 220,000 lbs. Paired with a 2002 Peterbilt 379 pump truck (Cummins 475 HP, 5x5 5,000-psi pump) and a 2013 Isuzu 25 kW generator. Complete workover and well-control package included, current CVIP on all units.

Technical Overview

Key Equipment Specifications

🗼

Rig Carrier

  • Year2006
  • Make / ModelKSM 550
  • AxlesTriS-TridemD w/ Tag
  • Odometer31,437 km
  • Engine Hours26,856 hrs
  • Carrier VIN2KSSP55046N064002

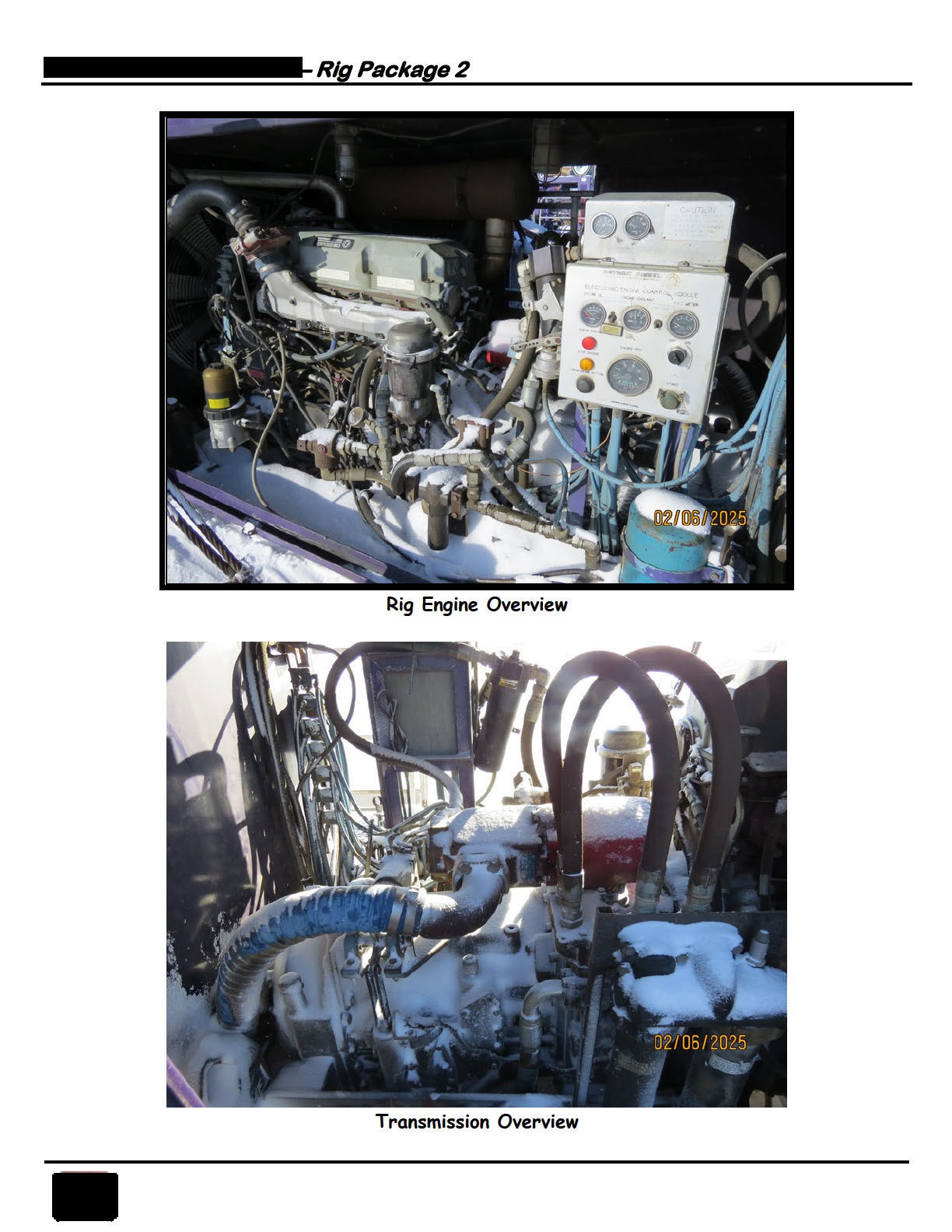

  • EngineDD Series 60, 14L, 500 HP
  • Trans SN311010261
🏗️

Mast & Drawworks

  • TypeFreestanding
  • Mast SerialCDN-M-5520
  • Height / SHL104 ft / 220,000 lbs
  • DW ModelLebus Grooving
  • BrakeKobelt
  • Blocks100-t w/ 7/8" line
  • BOP RemoteCarrier mounted
  • Weight IndicatorMartin-Decker
⚙️

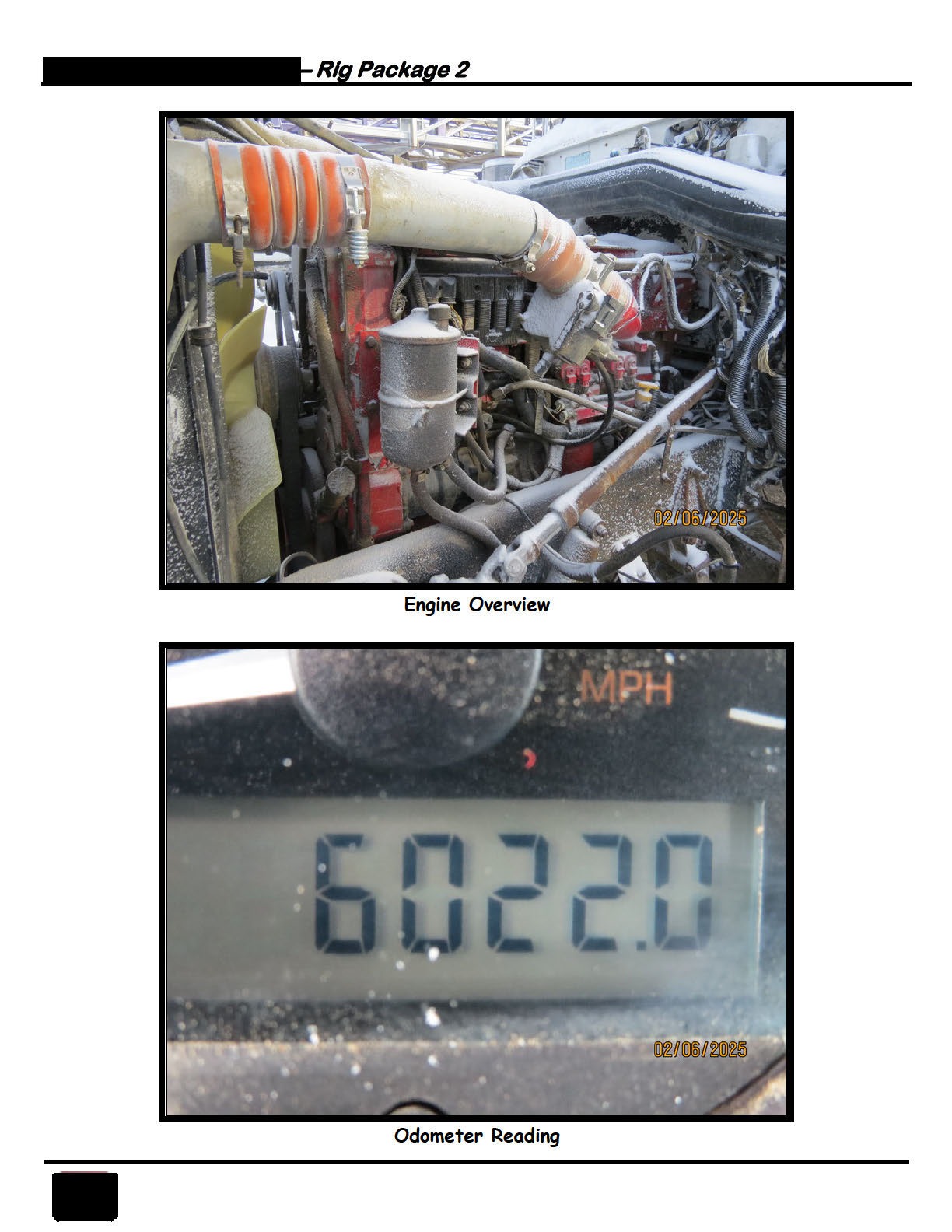

Pump Truck

  • Year / Make2002 Peterbilt 379
  • EngineCummins 475 HP, 18-spd manual
  • Odometer6,022 km
  • Hydraulic Power300 HP
  • Pump5x5 5,000-psi
  • Pump SN20071002
  • Precharge3-in Bowie
  • Manifold7-valve x 5K
⚡

Generator & Well Control

  • Generator2013 Isuzu 25 kW
  • Proof Meter14,169 hrs
  • BOPUnity U5-M 7-1/16" DBL RAM, 5,000 psi
  • Working Spool7-1/16" x 3,000 psi
  • Rod BOPWestern Rod Ragan 3" x 3,000 psi
  • Stand Pipe2-in @ 3,000 psi
  • DegasserYes
  • Mud Tank~30 m³
Equipment Gallery

Rig Photos

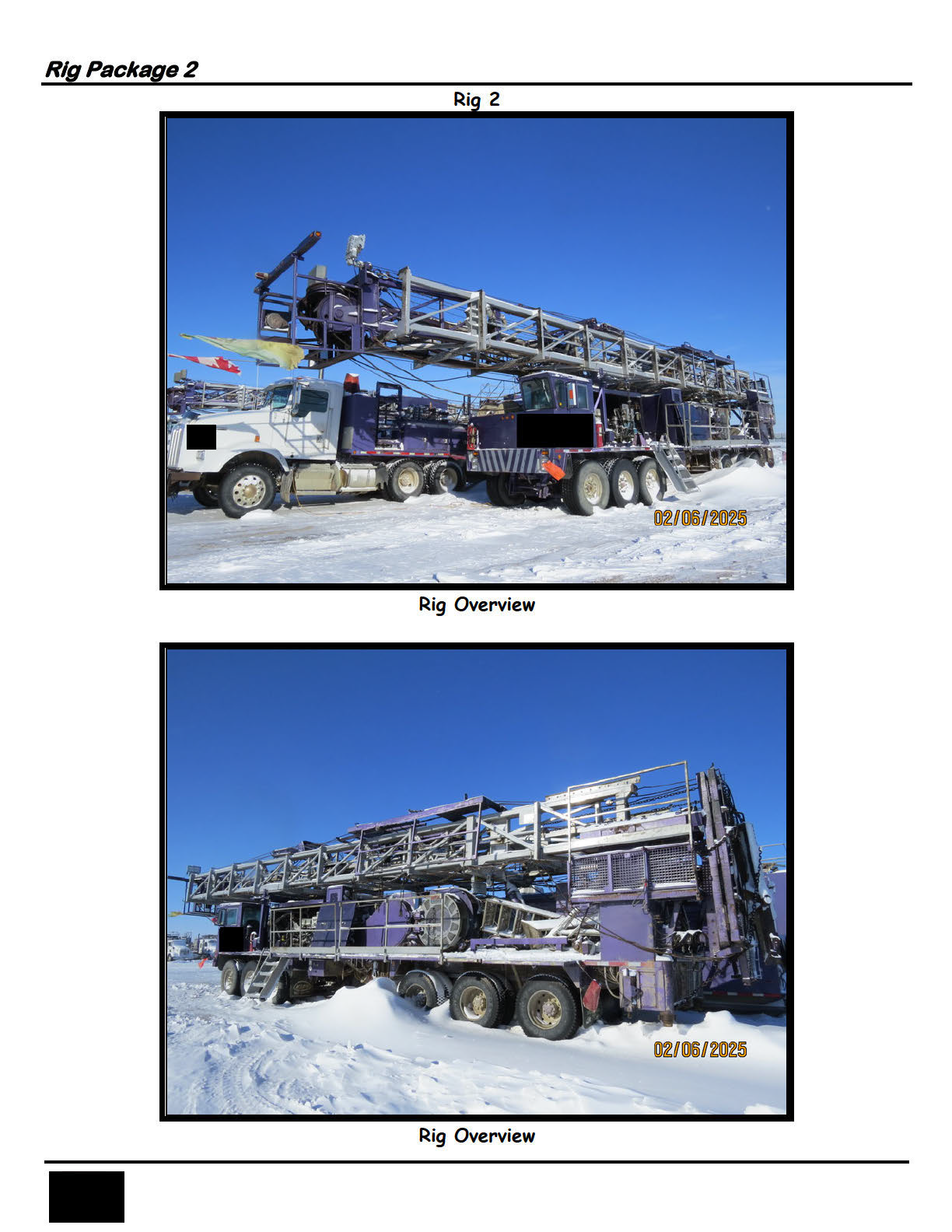

Rig carrier and mast
Rig carrier and mast

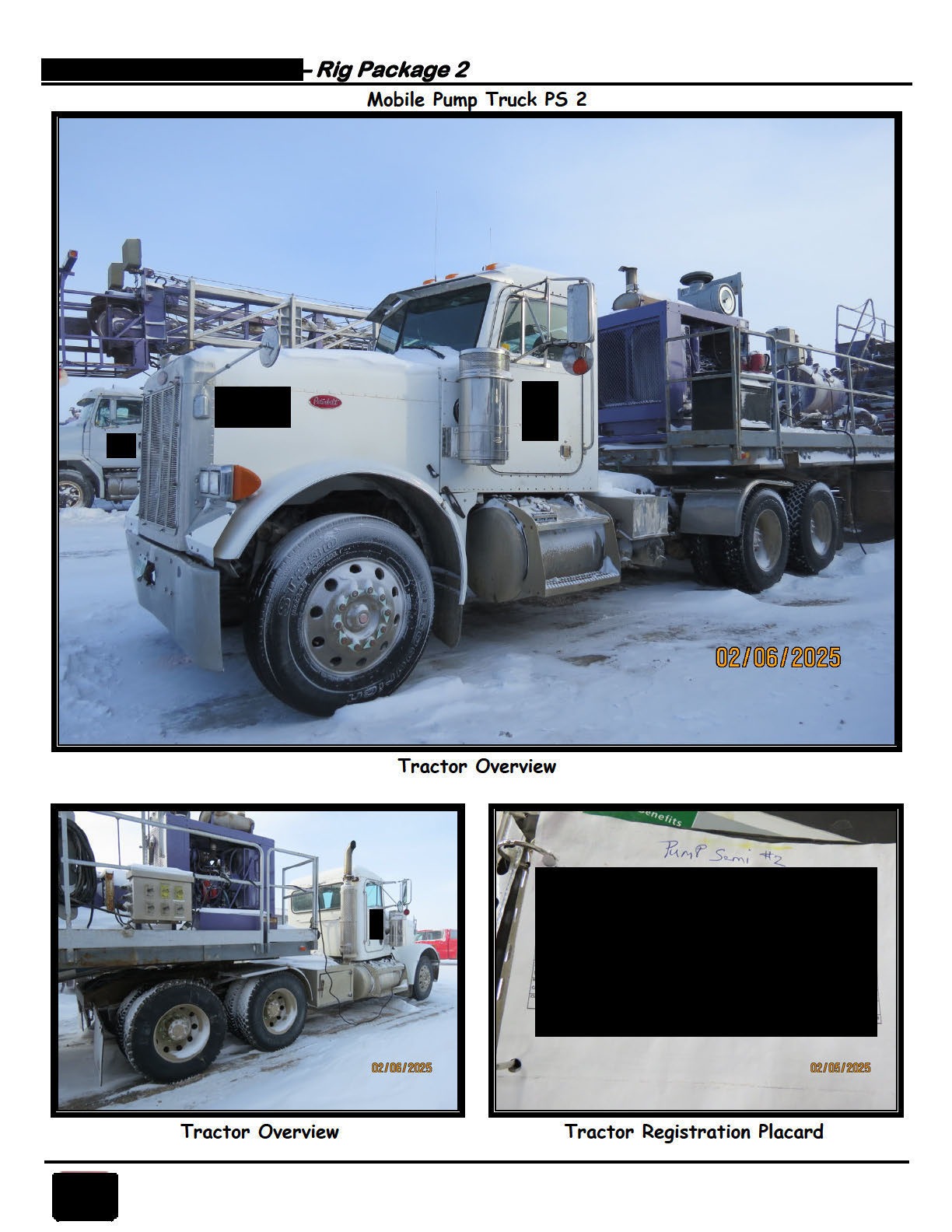

Pump truck
Pump truck

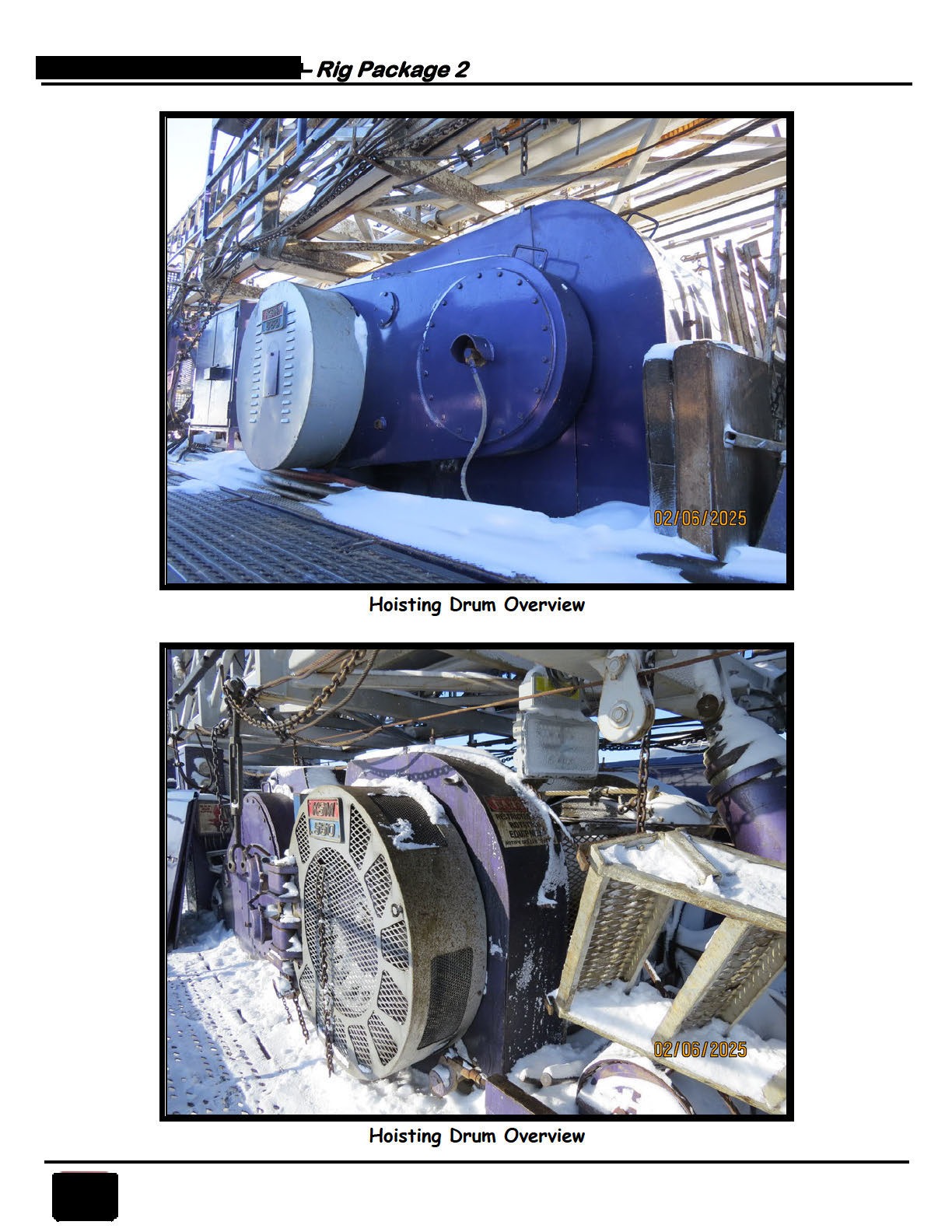

Drawworks
Drawworks
Well control equipment
Well control equipment
Rig floor
Rig floor
Generator trailer
Generator trailer

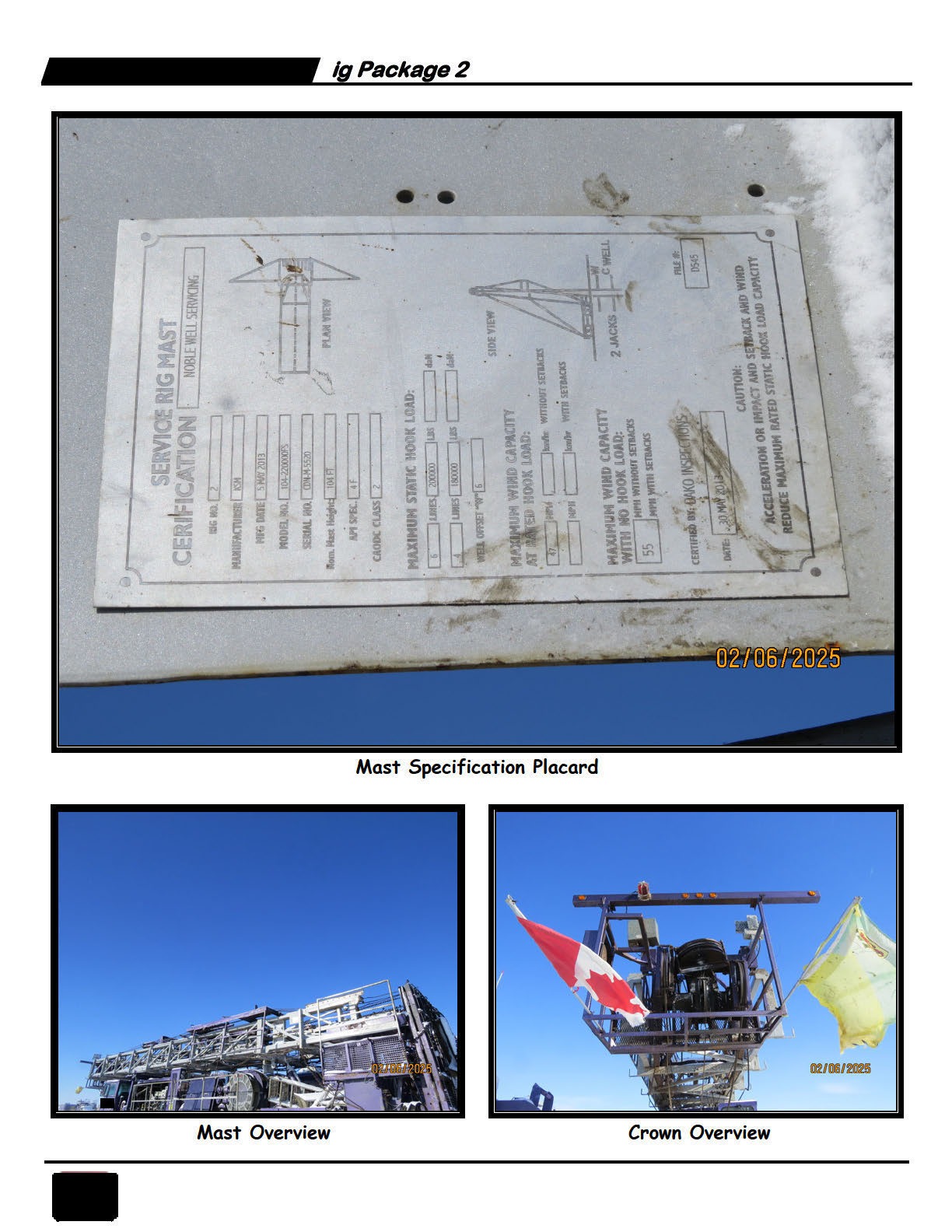

Mast detail
Mast detail
Capabilities

Key Advantages

01

Deep Servicing Capability

Rated to 4,200 m with a 104-ft freestanding mast and 220,000-lb hook load — handles deep single and double completions with full tubing and rod handling equipment included.

02

Complete Well Control Package

Unity double-gate RAM BOP (7-1/16" x 5,000 psi, NACE), working spool, rod BOP, and 3-station accumulator. All units report current CVIP with zero days on Level IV.

03

Self-Contained Rig Package

Full pump truck, generator, toolbed, doghouse with HVAC, mud tank, and extensive tubing/rod handling inventory included. Ready to mobilize as a complete standalone package.

Complete Data

Full Equipment Status

Rig Carrier — 2006 KSM 550

Year / Make / Model2006 KSM 550
AxlesTriS-TridemD w/ Tag
Odometer31,437 km
Carrier VIN2KSSP55046N064002
Engine Hours26,856 hrs
Trans SN311010261
EngineDD Series 60, 14-litre, 500 HP, CLT5860
Engine SN06R0785125

Mast & Drawworks

Mast TypeFreestanding
Mast SerialCDN-M-5520
Height / SHL104 ft / 220,000 lbs
DW ModelLebus Grooving
BrakeKobelt
Blocks100-t w/ 7/8" line
BOP RemoteCarrier mounted
Tubing BoardNon-adjustable
Weight IndicatorMartin-Decker
Stand Pipe2-in @ 3,000 psi

Pump Truck — 2002 Peterbilt 379

Year / Make / Model2002 Peterbilt 379
Engine / TransCummins 475 HP / 18-spd manual
AxlesS/S - Tan/D
Odometer6,022 km
VIN1XP5D40X82D585449
Hydraulic Power300 HP
Pump5x5, 5,000 psi
Pump SN20071002
Precharge3-in Bowie
Manifold7-valve x 5K

Generator

Year / Make / Model2013 Isuzu 25 kW
Proof Meter14,169 hrs
AxlesTri axle w/ DW Pintel
VIN / IDDEMHBDH120 / 14163U5D-M / U14249

Well Control Equipment

BOPUnity Model U5-M 7-1/16" DBL double-gate RAM, 5,000 psi, NACE
Working Spool7-1/16" x 3,000 psi, NACE trim
Rod BOPWestern Rod Ragan 3" x 3,000 psi, NACE trim
Accumulator3-station, 20-gal, 0 days Level IV
DegasserYes — DD465
Mud Tank~30 m³, current CVIP

Servicing & Swab Equipment

Oil SaverGuibberson HD double oil saver w/ HP pump & hose
Lubricator76 mm x 9.14 m (3-in x 30-ft), EUE connections
Pack-off Spool600/900 Series
Mandrels / OvershotsIncluded

Tubing & Rod Handling

Tubing SlipsOil Country 125-ton tubing air slips; 40-ton hand slips
Tubing TongsOil Country 57,850 hydraulic power tubing tongs
Rod TongsSet Maverick M40 rod tongs
Tubing Elevators (2-3/8")Oil Country 60 mm, 100-ton
Tubing Elevators (2-7/8")Oil Country 73 mm, 100-ton
Tubing Elevators (3-1/2")Oil Country 89 mm, 100-ton
Rod Elevators2x Trico 3/4 x 7/8-in; 2x Trico 1-in set
BailsKOT Bails, 1-3/4 x 72-in weldless, 150-ton
Weight IndicatorMartin-Decker Clipper
