Available — POA

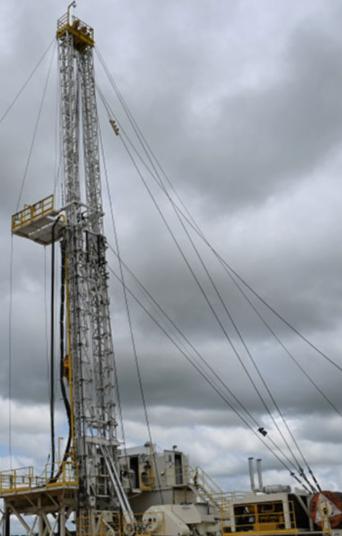

2014 Loadcraft 1000 HP Land Drilling Rig

Compact 1,000 HP mechanical rig with hydraulic top drive, triple 1,000 HP pump spread, and full BOPs — field-ready, US-based.

1,000
Horsepower
2× Cat C-15 engines
118 ft
Mast Height
410,000 lb capacity
250 Ton
Top Drive
Warrior hydraulic HPU
2014
Year Built
Loadcraft Industries
2014 Loadcraft 1000 HP Land Drilling Rig
Compact 1,000 HP mechanical rig with hydraulic top drive, triple 1,000 HP pump spread, and full BOPs — field-ready, US-based.

A 2014 Loadcraft Industries 1000 HP drilling rig configured for efficient shallow-to-mid-depth land operations. Powered by twin Cat C-15 engines driving a 42×12 drawworks, the package includes a Warrior 250-ton hydraulic top drive, three 1,000 HP MZ-9 mud pumps, dual 380 KW Detroit generator houses, and a Shaffer 11" double-ram BOP. Drill pipe (279 joints, ~8,370 ft) included.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • Make/ModelLCI 1000 42×12
  • Year2014
  • Prime Movers2× Cat C-15 540 HP
  • TransmissionAllison CLT 6061RB
🗼

Mast & Substructure

  • MakeLoadcraft
  • Height118 ft
  • Hook Load410,000 lbs — 10 lines
  • SubstructureS-LCI-1000 19.5 telescopic
  • Setback Capacity225,000 lbs
🔄

Top Drive

  • Make/ModelWarrior 250H14HR
  • Capacity250 Ton
  • TypeHydraulic HPU
  • Prime MoverCat C-17
💧

Mud System

  • Pumps3× MZ-9 @ 1,000 HP each
  • Pump Prime MoverCat 3508
  • Active Pit Volume491 bbl (Pit #1)
  • Reserve Pit Volume419 bbl (Pit #2)
  • Shale ShakersCagle C-98 & unit 99
⚡

Power Generation

  • Gen House #1 EngineDetroit 60 Series 14L (2006)
  • Gen House #2 EngineDetroit 60 Series 14L (2007)
  • Output (each)380 KW / 475 KVA
  • Voltage480V, 3-Ph, 60 Hz, 1800 RPM
🛡️

BOP & Well Control

  • BOPShaffer 11" × 5M Double Ram
  • ConfigurationFlange × flange, mud cross
  • Valves1× 2-1/16" 5M, 2× 3-1/8" 5M
  • AccumulatorKoomey Type 80 3-Station
Equipment Gallery

Rig Photos

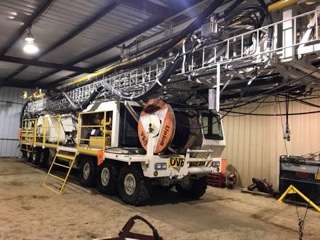

Mast and substructure
Mast and substructure

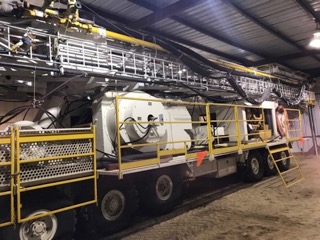

Drawworks and floor
Drawworks and floor
Pump spread
Pump spread

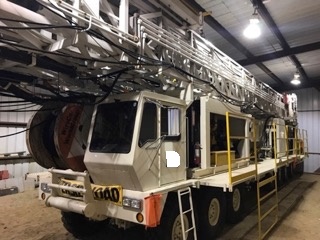

Generator houses
Generator houses

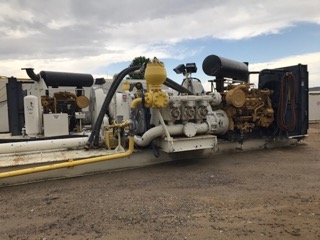

Rig components
Rig components

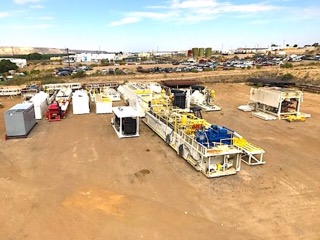

Equipment detail
Equipment detail
Capabilities

Key Advantages

01

Efficient 1,000 HP Power Train

Twin Cat C-15 engines paired with Allison automatic transmissions deliver smooth, reliable power transfer through the 42×12 drawworks — minimizing maintenance complexity on remote locations.

02

Hydraulic Top Drive Included

The Warrior 250-ton hydraulic top drive, powered by its own Cat C-17 prime mover, enables faster tripping and directional capability without dependency on rig power generation.

03

Triple-Pump Mud Spread

Three 1,000 HP MZ-9 mud pumps give this 1,000 HP rig exceptional circulation redundancy and flexibility for high-flow-rate operations or simultaneous pumping scenarios.

04

Drill Pipe Package Included

279 joints (~8,370 ft) of 4-1/2" 16.60 lb/ft drill pipe plus 30 joints of 6-1/2" heavyweight and 11 drill collars are included, reducing mobilization costs significantly.

Complete Data

Full Equipment Status

Drawworks

Make/ModelLCI 1000 42×12 Drilling Rig
Year2014
Prime Movers2× Cat C-15 @ 540 HP each
TransmissionAllison CLT 6061RB

Mast

MakeLoadcraft
Height118 ft
Static Hook Load410,000 lbs
Lines10-line string
Drilling Line Size1-1/8"

Top Drive

Make/ModelWarrior HPU 250H14HR
Capacity250 Ton
TypeHydraulic
Prime MoverCat C-17

Substructure

ModelS-LCI-1000
Height19.5 ft telescopic
Rotary Opening22"
Casing Capacity410,000 lbs
Setback Capacity225,000 lbs

Mud Pumps

Quantity/Model3× MZ-9
Power Rating1,000 HP each
Prime MoverCat 3508 (each)

Mud Pits

Pit #110' × 5' × 50' — 491 bbl, 5-compartment
Pit #210'1" × 5'3" × 47' — 419 bbl, 4-compartment
Shale Shaker #1Cagle C-98
Shale Shaker #2Cagle unit 99
DesilterHalco 10-cone

Power Generation

Gen House #1 EngineDetroit 60 Series 14L (mfg. 2006)
Gen House #1 GeneratorMarathon 572RSL4025 — 380 KW / 475 KVA
Gen House #2 EngineDetroit 60 Series 14L (mfg. 2007)
Gen House #2 GeneratorMarathon Magnamax — 380 KW
Voltage/Frequency480V, 3-Ph, 60 Hz, 1800 RPM

Fuel System

Fuel Tank Capacity5,000 Gallons

Traveling Equipment

Traveling BlockAmerican Block ABCO-200-5-30 — grooved 1-1/8"
Floor EquipmentST-80C p/b NOV HPU (45 gpm, 2,500 psi)

BOP & Well Control

BOPShaffer 11" × 5M Double Ram
ConfigurationFlange × flange with mud cross
Valves1× 2-1/16" 5M, 2× 3-1/8" 5M
AccumulatorKoomey Type 80 3-Station

Drill String

Drill Pipe279 jts. (~8,370 ft) 4-1/2" 16.60 lb/ft
Heavyweight Drill Pipe30 jts. 6-1/2" Spiral
Drill Collars11 × 6-1/2" double-zipped

Ancillary Equipment

ElevatorsWooley Tool
Catwalk4' W × 50' L × 3'5" H
Pipe WranglerForum/Little Tripper LTWW1108PWC2004062 — hydraulic

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
