Available — Contact for Details

TDS Drilling Rig 17 — 1,500 HP

Fully equipped 1,500 HP AC SCR land rig with triple mud pumps and Canrig top drive — ready for demanding operations.

1,500 HP
Drawworks Power
Mid-Continent 914
142 FT
Mast Height
1,000,000 LB Hook Load
500 TON
Top Drive Capacity
Canrig 1250AC
26.5 FT
Floor Height
DSI Substructure
TDS Drilling Rig 17 — 1,500 HP
Fully equipped 1,500 HP AC SCR land rig with triple mud pumps and Canrig top drive — ready for demanding operations.

Purpose-built 1,500 HP AC land drilling rig with Mid-Continent 914 drawworks, triple 1,600 HP FB 1600 mud pumps, and a Canrig 1250AC 500-ton top drive rated at 7,500 PSI. The DSI 90-foot skid system features wireless control, Caterpillar 3512C generator sets, and a fully integrated 1,100 BBL mud system — a high-spec package built for extended reach and demanding well programs.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • MakeMid-Continent 914
  • Power1,500 HP
  • BrakeBaylor 6032 Electric
🗼

Mast & Substructure

  • Mast Height142 FT
  • Static Hook Load1,000,000 LB
  • Floor Height26.5 FT (DSI)
  • Mobility90' Skid, Wireless HPU
🔄

Top Drive

  • Make/ModelCanrig 1250AC
  • Capacity500 Ton
  • Fluid Pressure7,500 PSI
  • CatwalkCanrig PC-3000 Hydraulic
💧

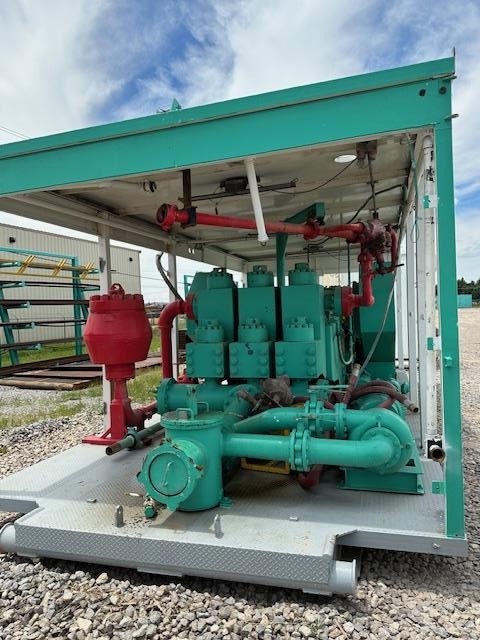

Mud Pumps

  • Quantity3 × 1,600 HP
  • Make/ModelFB 1600
  • Motors2 × 1,000 HP GE 752 each
  • Fluid End Rating7,500 PSI
⚡

Power Generation

  • Prime Movers3 × Caterpillar 3512C
  • Output1,365 KW each
  • Control House4×4-Bay Omron, 1,600A SCR
🛡️

BOP & Well Control

  • BOP11" 5,000 PSI Double Ram
  • Annular11" 5,000 PSI
  • Choke Manifold3-1/16" 10,000 PSI Skid
🔧

Rotary & Handling

  • Rotary TableNational 275, 27.5"
  • Traveling BlockNational 500 Ton, 50" Sheaves
  • CatwalkCanrig PC-3000 + V-Door
  • Handling ToolNational ST-80C
🏗️

Mud System & Utilities

  • Mud System1,100 BBL with 6×8 Mixing Pumps
  • Shale Shakers3 × MI SWACO Linear Motion
  • Fuel Tank12,000 Gal Dual Wall
  • Lighting100% LED Class I DIV I
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Triple-Pump Hydraulic Power

Three 1,600 HP FB 1600 mud pumps with dual 1,000 HP GE 752 motors each deliver 7,500 PSI fluid pressure — exceptional flow and pressure headroom for extended-reach and deep well programs.

02

500-Ton AC Top Drive

Canrig 1250AC top drive rated at 500 tons and 7,500 PSI, with rig-floor mounted TDSU and hydraulic catwalk, enables continuous drill-string rotation and rapid pipe handling with minimal crew exposure.

03

Wireless Skid Mobility

90-foot skid system with wireless control and redundant HPU allows repositioning without personnel under load, cutting rig-move time and improving field safety on multi-well pad programs.

Complete Data

Full Equipment Status

Drawworks

MakeMid-Continent 914
Power1,500 HP
BrakeBaylor 6032 Electric

Mast

Height142 FT
Static Hook Load1,000,000 LB

Substructure

MakeDSI
Floor Height26.5 FT
Boxes(1) 10' Box, (1) 11' Box, (1) 5' Box
Mobility90' Skid, Wireless Control, Redundant HPU

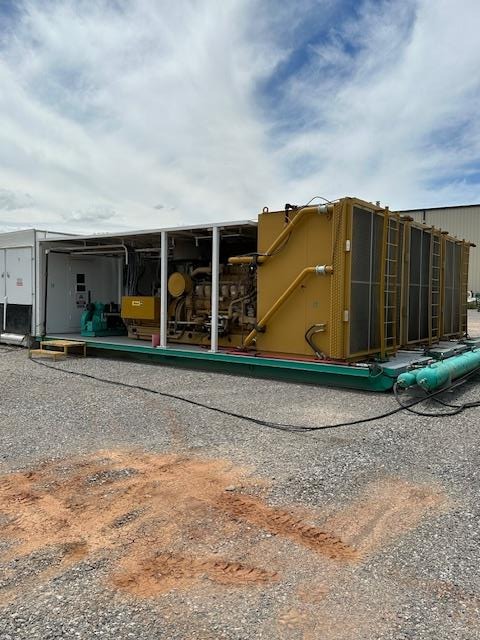

Generators

Quantity3
Prime MoverCaterpillar 3512C Diesel
Output1,365 KW each
Control House4×4-Bay Omron, 1,600 Amp SCR

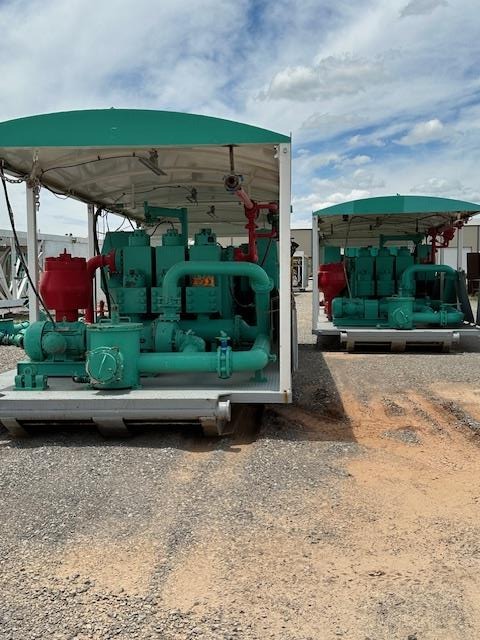

Mud Pumps

Quantity3
Make/ModelFB 1600, 1,600 HP
Motors2 × 1,000 HP High Torque GE 752 each
Fluid End Rating7,500 PSI
Liner/Piston SystemP-Quip Liner and Piston Retention

Top Drive

Make/ModelCanrig 1250AC
Capacity500 Ton
Fluid System7,500 PSI
TDSURig Floor Mounted
CatwalkCanrig PC-3000 Hydraulic with Walking Package, Hydraulic V-Door, Wireless Control

Rotary & Handling

Rotary TableNational 275, 27.5"
Handling ToolNational ST-80C
Traveling BlockNational 500 Ton, 50" Sheaves for 1-3/8" Drilling Line

BOP & Well Control

BOP11" 5,000 PSI Double Ram with 11" 5,000 PSI Annular
Choke Manifold3-1/16" 10,000 PSI Skid Mounted

Mud System & Utilities

Mud System1,100 BBL
Mixing Pumps6×8
Agitators10 HP
Shale Shakers3 × MI SWACO Linear Motion
Mud/Gas Separator48"
Fuel Tank12,000 Gallon Dual Wall with Redundant Fuel Pumps
Water Tank500 BBL
Lighting100% LED Class I DIV I & DIV II, Spot and Flood
Dog House10'×8'×45' DS; 10'×8'×22' ODS

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
