National 1625M 3000HP Drilling Rig

National 1625M 3000HP rig in Texas — SCR-powered deep-well capable unit with DRECO cantilever mast.

3,000 HP
Drawworks Power
National 1625M
147 ft
DRECO Cantilever Mast
1.5M lb pullback
Texas
Current Location
USA
National 1625M 3000HP Drilling Rig
National 1625M 3000HP rig in Texas — SCR-powered deep-well capable unit with DRECO cantilever mast.

This National 1625M is a 3000HP SCR-powered land drilling rig currently located in Texas. Equipped with a 147-ft DRECO cantilever mast rated at 1,500,000 lbs pullback, VARCO TDS-4 top drive, DRECO 30×34×68 substructure, and four CAT 3512B generator sets, this rig is ready for deep-well drilling programs in the Permian Basin and beyond.

Technical Overview

Key Equipment Specifications

🏗️

Mast & Substructure

  • Mast147ft DRECO Cantilever
  • Pullback1,500,000 lbs
  • Setback800,000 lbs
  • SubstructureDRECO 30×34×68
⚙️

Drawworks

  • ModelNational 1625M
  • Power3 × GE752 Traction Motors
  • BrakeBaylor ELMAGO 7838
🔄

Top Drive

  • ModelVARCO TDS-4
  • HPUVARCO HPU Unit
🔋

Power Generation

  • Generators4 × CAT 3512B
  • Generator ModelKATO 6P6-3150
  • Output600V / 1,204 kW each
Equipment Gallery

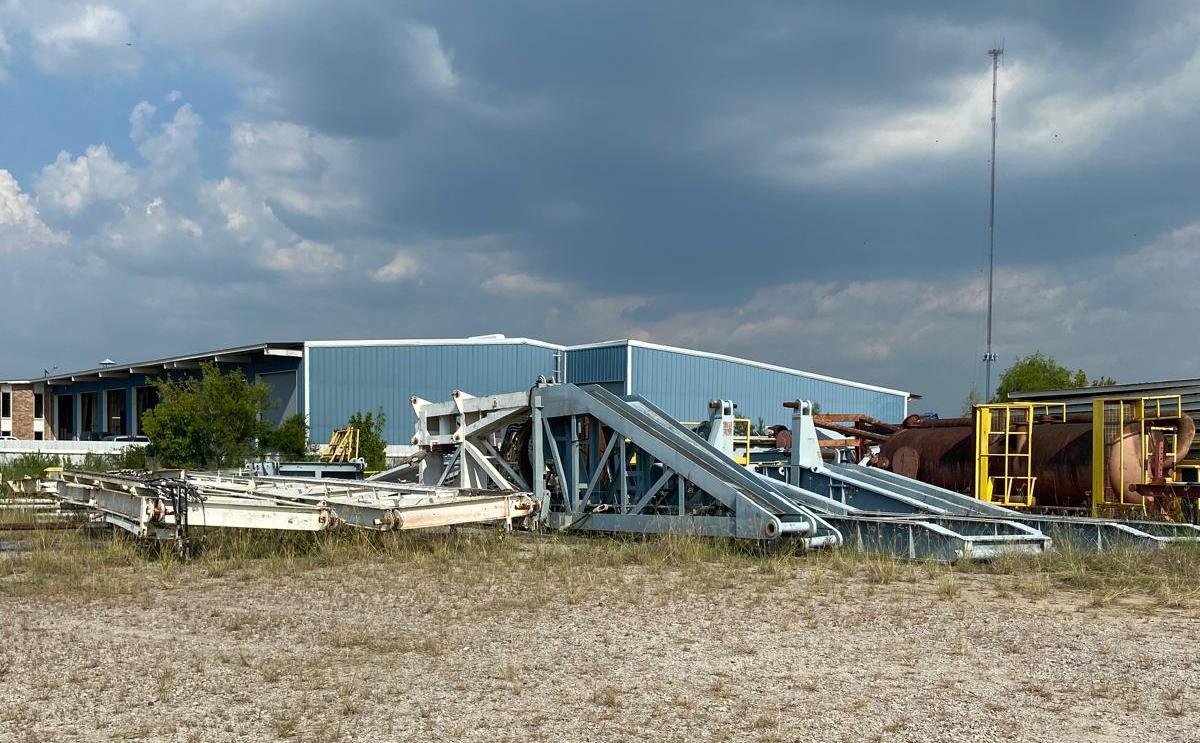

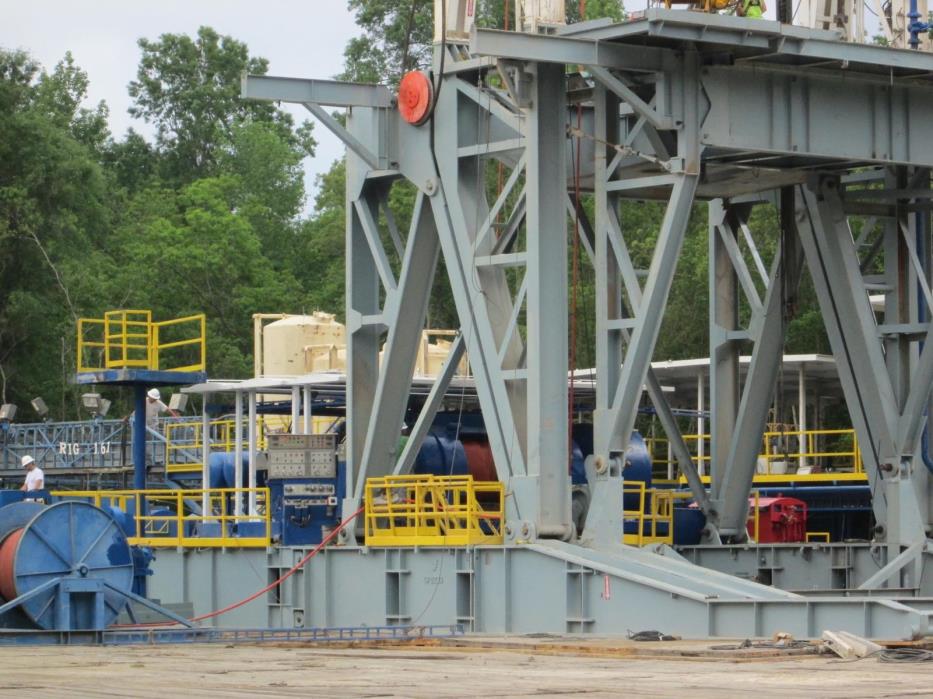

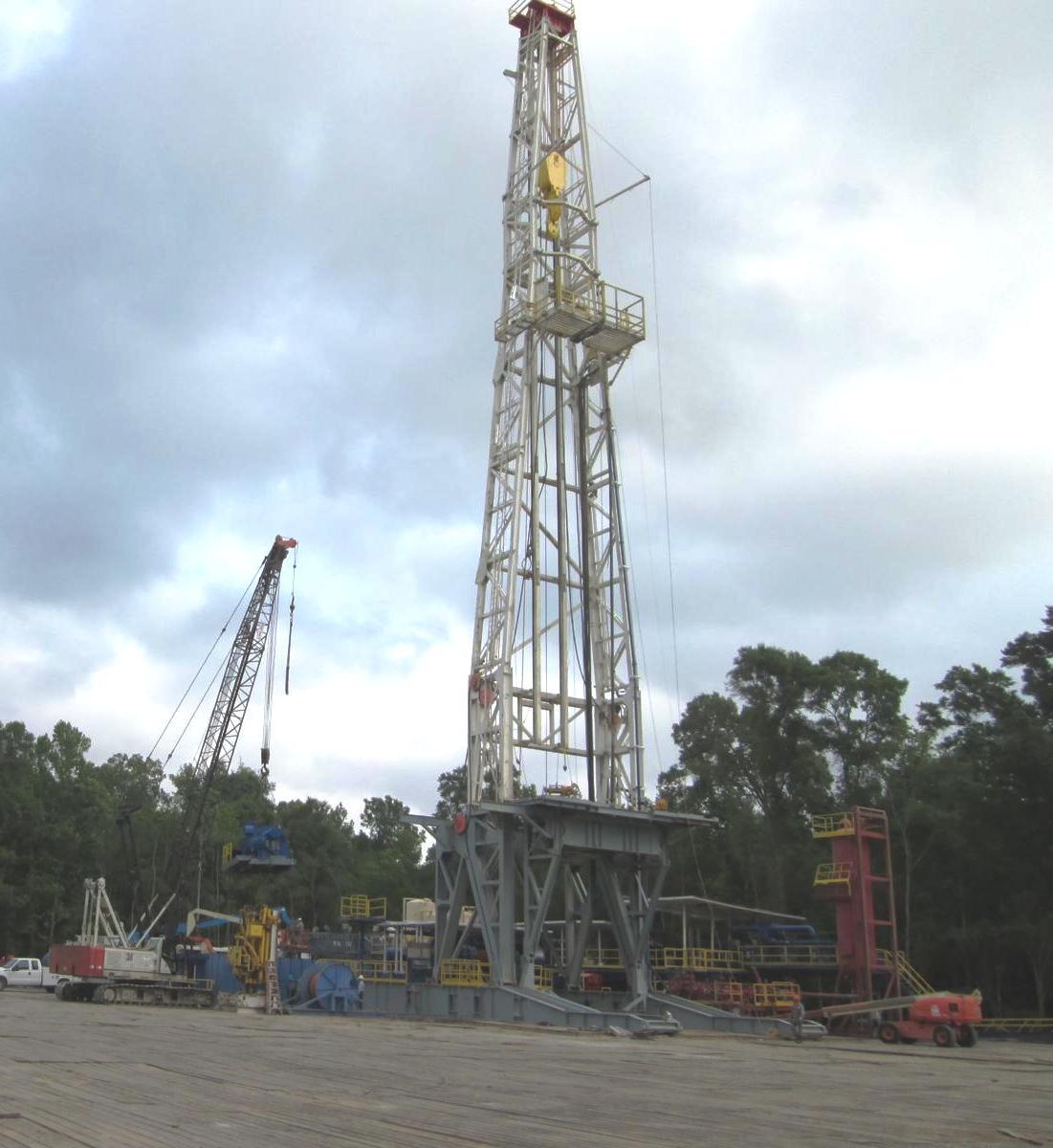

Rig Photos

Capabilities

Key Advantages

01

3000HP Deep-Well Capable

National 1625M drawworks with triple GE752 traction motors delivers the torque and line speed needed for wells to 25,000+ feet.

02

VARCO Top Drive

TDS-4 top drive with dedicated HPU enables efficient connection-making and directional drilling in all formations.

03

Quad-Generator Power Plant

Four CAT 3512B engines provide reliable 600V SCR power with redundancy for uninterrupted drilling operations.

Complete Data

Full Equipment Status

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
