Available

National 80UE 1200HP Drilling Rig 14

National 80UE 1200HP • Certified 2024 • Available for Sale or Lease

1200 HP
Drawworks
National 80UE
750K LB
Hook Load
142' Triple Cantilever Derrick
Cert. 2024
Recently Certified
$3M Down + $9,500/day
750 BBL
Mud System
Round Bottom Tanks
National 80UE 1200HP Drilling Rig 14
National 80UE 1200HP • Certified 2024 • Available for Sale or Lease

National 80UE 1200HP drilling rig, independently certified in 2024 and available for sale ($3M down + $9,500/day) with critical components covered by lessor. The rig features a full-circle 142-foot triple cantilever derrick rated at 750,000 lb static hook load with 10 lines, three Caterpillar 3512C Tier-2 gensets at 1,365 KW each through a Ross Hill 4×4 SCR house, dual Weatherford 1,600HP mud pumps, and a 750-barrel round-bottom mud system with Derrick solids control.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksNational 80UE
  • Motors(2) GE 752 DC, Auxiliary Electric Brake
  • Generators(3) Caterpillar 3512C Tier-2, 1365 KW
  • SCR HouseRoss Hill 4×4
🗼

Derrick & Substructure

  • DerrickFull Circle, 142' Triple Cantilever
  • Hook Load750,000 LB Static, 10 Lines
  • SubstructureOklahoma Rig, Box-on-Box
  • RKB Height20' 7"
🔩

Mud & Solids Control

  • Mud Pumps(2) Weatherford 1600HP 7"×12"
  • Active Capacity750 Barrels, Round Bottom
  • DesanderDerrick, (2) 12" Cones
  • DesilterDerrick, (12) 4" Cones
🛡️

BOP Stack

  • AnnularNL Schaffer 11" 5,000 psi
  • Double RamShaffer LWS 11" 10,000 psi
  • Single RamShaffer LWS 11" 10,000 psi
  • Choke Manifold10,000 psi, 4"×3", Dual Adjustable

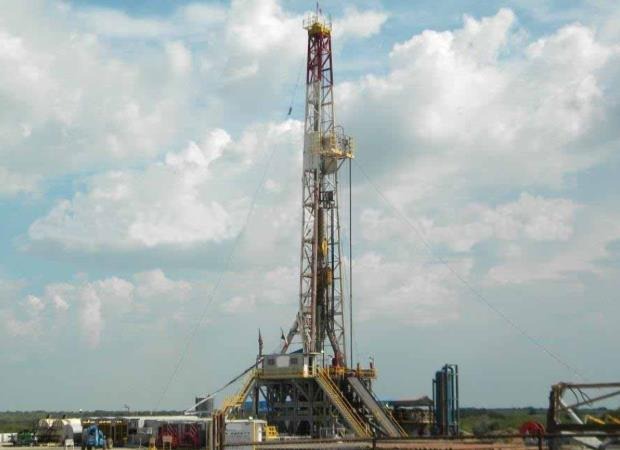

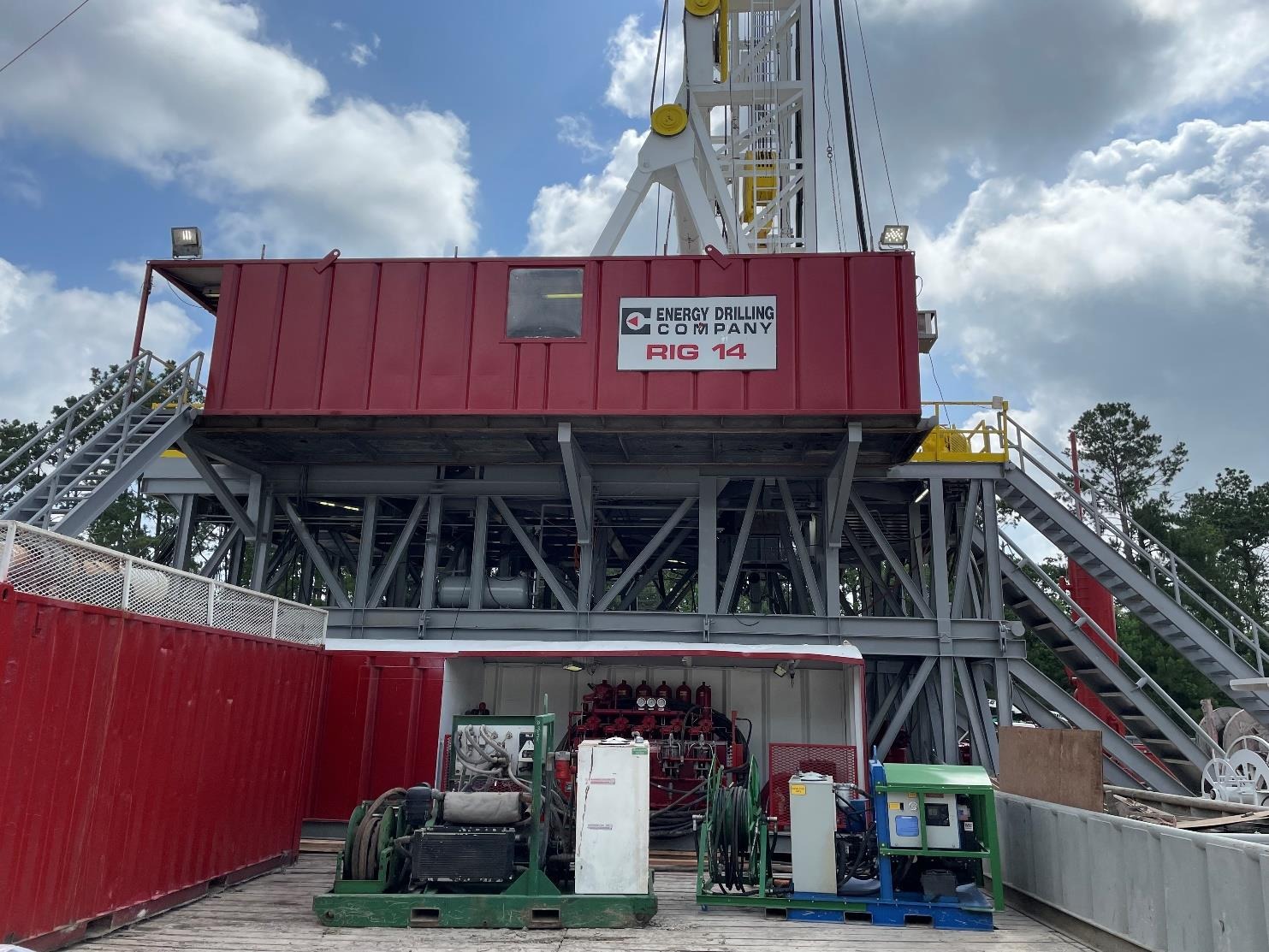

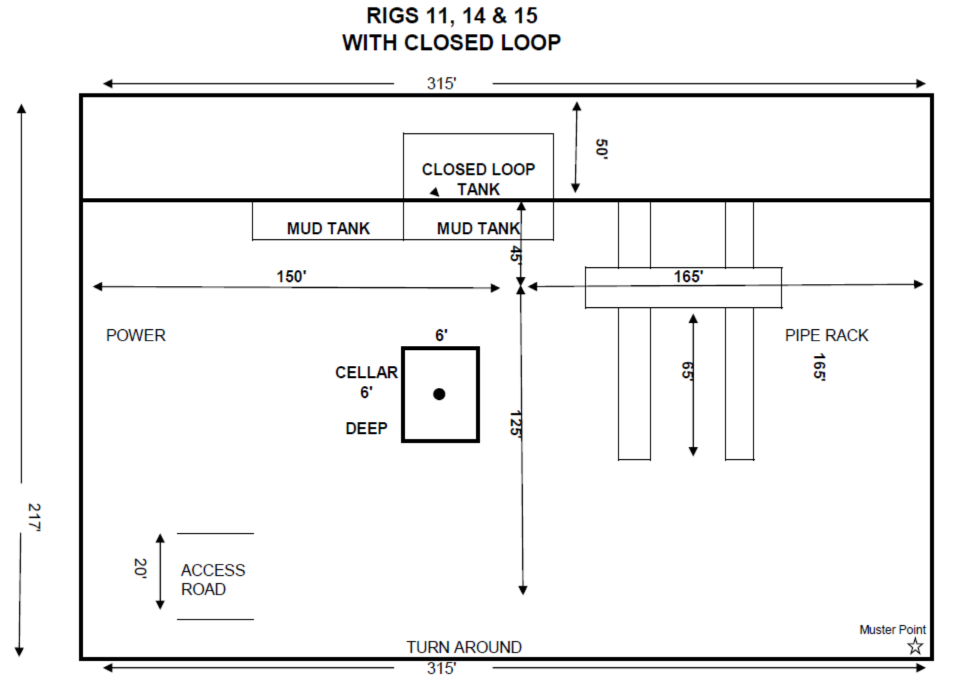

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Sale or Lease Flexibility

Available as $3M down plus $9,500/day lease with critical components covered by lessor — or discuss outright purchase. Certified 2024 for rapid operational readiness.

02

Full Drill String Package

Complete drill string included: 4-1/2" G-105 drill pipe with hardband, 6"–7-1/4" OD drill collars, and 275–350-ton hydraulic top drive.

03

Derrick Solids Control Suite

Dual Brandt linear motion shakers, Derrick desander (2×12" cones) and desilter (12×4" cones), Derrick Drilco degasser, and 523-barrel drill water tank.

Complete Data

Full Equipment Status

General

Rig Number14
Certification2024
Pricing$3.0M Down + $9,500/Day (Lease) or POA (Sale)
Critical Component CoverageBy Lessor

Drawworks

ModelNational 80UE
Motors(2) GE 752 DC
Auxiliary Brake6032 Electric
Drill LineGrooved for 1-1/4"

Derrick

TypeFull Circle Triple Cantilever
Height142'
Hook Load750,000 LB Static, 10 Lines
Crown BlockFull Circle, (5) 50" + (1) 60" FL Sheaves
Traveling Block400-Ton Ideco UTB, 5 Sheaves

Substructure

TypeOklahoma Rig, Box-on-Box, 20' Box
Rotary Beam Clearance16'
RKB Height20' 7"

Power

Generators(3) Caterpillar 3512C Tier-2, 1365 KW each
SCR HouseRoss Hill 4×4
Air Compressors(2) Quincy QSI 120 Screw Type
Air DryerOHD

Mud System

Pump 1Weatherford 1600HP 7"×12", GE 752 DC
Pump 2Weatherford 1600HP 7"×12", GE 752 DC
Mud TanksTwo Tank, Round Bottom, 750 Barrels
Agitators5 Electric
Shakers(2) Brandt Type Linear Motion
DesanderDerrick (2) 12" Cones
DesilterDerrick (12) 4" Cones
DegasserDerrick Drilco
Drill Water Tank523 Barrels

Top Drive & Rotary

Top Drive250 or 350-Ton Hydraulic
Rotary27-1/2" × 53-1/4", 275
Weight IndicatorMartin Decker Totco

BOP Stack

AnnularNL Schaffer Spherical 11" 5,000 psi
Double RamShaffer LWS 11" 10,000 psi PS2 Space Saver
Single RamShaffer LWS 11" 10,000 psi
Accumulator5-Station, (12) 10-Gallon Bottles, Air + Electric Pumps
Choke Manifold10,000 psi 4"×3", (2) Adjustable Chokes

Drill String

Drill Pipe4-1/2" Grade G-105 16.60, X-Hole, Hardband
Drill Collars6"–6-1/2" OD NC44, Hardband
Heavy Weight7"–7-1/4" OD 5" H90, Hardband

Auxiliary

Wireline UnitMathey GC3-B2, .092 Line
Fuel Tank15,000 Gallon with Lubester
Pipe SpinnerIncluded
