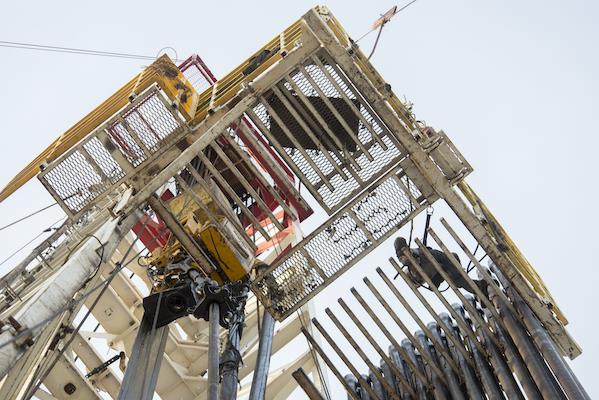

National D1000E 1000 HP Land Rig 15 | Total Drilling Supply LLC

A well-appointed 1,000 HP National D1000E land rig featuring a DSII 142' triple derrick rated at 550,000# static hook load, triple Emsco F-1000 mud pumps, dual Caterpillar 3512C generators through a Ross Hill SCR house, and a 250-ton Warrior top drive. The hydraulic walking system and complete solids-control train make this rig ready for immediate deployment.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

DrawworksNational D1000E
Motors2× DC 752
Drill Line1¼" Grooved
Aux Brake424 Air/Water-Cooled
Engines2× Caterpillar 3512C
Generators1,225 KW each
SCR HouseRoss Hill 3-Bay

🗼

Derrick & Substructure

DerrickNational DSII
Height142' Triple / 110' Double
Hook Load550,000 lbs (10 lines)
SubstructureDSII 16' Box-on-Box
RKB Height17'
Rotary Clearance12'6"

💧

Mud Pumps & Solids Control

Pumps3× Emsco F-1000 Triplex
Pump Size6¾" × 10"
Mud Tanks2-Tank, 560 BBL Round Bottom
Shakers2× Derrick 504 Hyperpool Linear
DesanderBrandt 2× 12" Cones
DesilterBrandt 12× 4" Cones
DegasserDerrick Drilco

🔩

Top Drive & BOP

Top DriveWarrior 250 Ton
Walking SystemHydraulic
Rotary Table27½" × 53¼" (275T)
AnnularShafer Hydril 11" / 5,000 psi
Double RamsNL Shafer 11" / 5,000 psi
Choke Manifold5,000 psi 4" × 2"

📐

Drill String & Ancillary

Drill Pipe4½" G-105 16.60 X-Hole
Drill Collars6"–6½" OD NC44
Crown BlockDSII 5-Sheave
Traveling BlockYG-225 250T 5× 36" Sheaves
Fuel Tank8,000 Gallon w/ Lubester
Drill Water Tank315 BBL
WirelineMathey GC3-B2 .092 Line

Equipment Gallery

Rig Photos

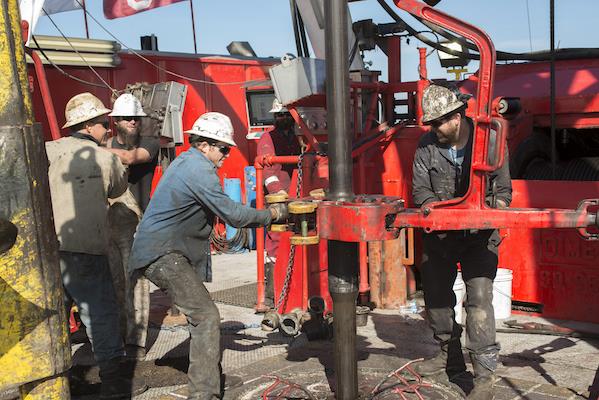

Drill floor crew working pipe on Rig 15

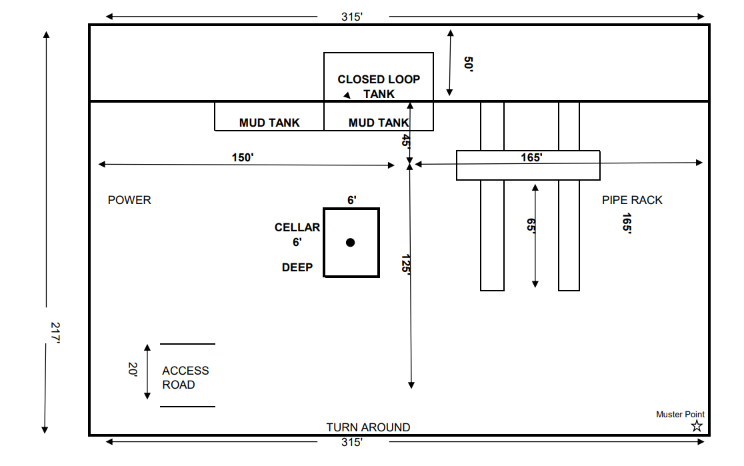

Rig 15 pad layout — 315′ × 217′

Capabilities

Key Advantages

01

SCR DC Drive System

Dual Caterpillar 3512C engines paired with a Ross Hill 3-Bay SCR house deliver reliable, variable-speed DC power through 752-motor drawworks and Emsco triplex pumps — a proven configuration for extended drilling campaigns.

02

Hydraulic Walking

Factory hydraulic walking system eliminates costly rig move time between pad locations, reducing non-productive time and maximizing operational efficiency on multi-well pad programs.

03

Full Solids Control Train

Complete Brandt desander/desilter, dual Derrick 504 linear-motion shakers, Derrick Drilco degasser, and a closed-loop 560-barrel mud system support continuous drilling without interruption.

Complete Data

Full Equipment Status

Drawworks

Model	National D1000E
Motors	2× DC 752
Drill Line	1¼" Grooved
Auxiliary Brake	424 Air Operated Water-Cooled

Derrick

Make/Model	National DSII
Height (Triple)	142'
Height (Double)	110'
Hook Load	550,000 lbs Static (10 Lines)

Substructure

Make/Model	National DSII
Type	16' Box-on-Box
Rotary Beam Clearance	12'6"
RKB Height	17'

Power

Engines	2× Caterpillar 3512C
Generators	1,225 KW each
SCR House	Ross Hill 3-Bay

Mud Pumps

Type	Emsco F-1000 Triplex
Quantity	3
Liner Size	6¾" × 10"
Drive	1× DC 752 Motor each
Mix Pump	2× 5" × 6" Centrifugal / 60 HP

Top Drive

Make	Warrior
Capacity	250 Ton

BOP Stack

Annular	Shafer Hydril 11" / 5,000 psi
Double Rams	NL Shafer 11" Type LWS / 5,000 psi
Closing Unit	CPC 4-Station / 3,000 psi / 25 HP
Bottles	8× 10-Gallon Bladder Type
Choke Manifold	5,000 psi 4" × 2" Dual Adjustable

Solids Control

Shakers	2× Derrick 504 Hyperpool Linear Motion
Desander	Brandt 2× 12" Cones / Mission 5"×6" / 75 HP
Desilter	Brandt 12× 4" Cones / Mission 5"×6" / 75 HP
Degasser	Derrick Drilco
Mud Tanks	2-Tank Round Bottom 560 BBL w/ Electric Agitators

Drill String

Drill Pipe	4½" Grade G-105 16.60 X-Hole w/ Hardband
Drill Collars	6"–6½" OD NC44 w/ Hardband
Pipe Spinner	Included

Ancillary Equipment

Rotary Table	27½" × 53¼" 275T
Crown Block	DSII 5-Sheave
Traveling Block	YG-225 250T 5× 36" Sheaves
Air Compressors	2× Quency 120 Screw Type
Fuel Tank	8,000 Gallon w/ Lubester
Drill Water Tank	315 BBL
Wireline Unit	Mathey GC3-B2 .092 Line
Walking System	Hydraulic
