For Sale • Land Rig • Available

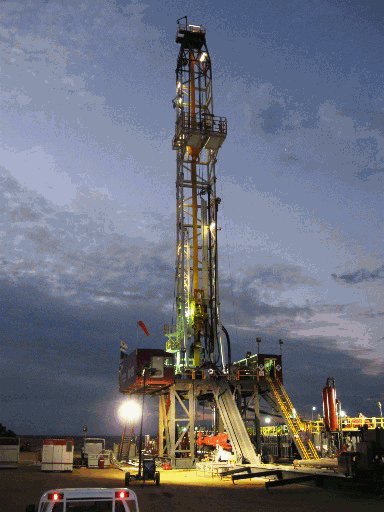

NOV Ideal 1500HP AC Rig #826

AC VFD Drilling System • 1,500 HP • 18,000 ft Depth Rating • Available Now

1,500 HP
Drawworks
NOV SSGD-360
720,000 lbs
Hook Load
142 ft Cantilever Mast
500 Ton
Top Drive
NOV TDS-11SA
VFD
Power System
3x MTU / Baylor 1,225 KW
NOV Ideal 1500HP AC Rig #826
AC VFD Drilling System • 1,500 HP • 18,000 ft Depth Rating • Available Now

NOV Ideal Rig #826 is a 1,500 HP AC variable frequency drive drilling system rated to 18,000 ft. Equipped with the NOV SSGD-360 drawworks, a 142-foot cantilever mast with 720,000 lb hook load, NOV TDS-11SA top drive, and dual NOV 12-P-160 mud pumps at 1,600 HP each, this VFD rig offers full electronic driller control with a Sling Shot substructure and comprehensive solids control package.

Technical Overview

Key Equipment Specifications

🗼ï¸

Mast & Substructure

  • Mast TypeCantilever on Dolly, Hydraulic Lift
  • Mast Height142 ft
  • Static Hook Load720,000 lbs
  • Racking Capacity20,000 ft
  • Substructure StyleSling Shot
  • Substructure Height25 ft
  • Clear Height21 ft
  • Casing Capacity750,000 lbs
⚙️

Drawworks

  • MakeNOV
  • ModelSSGD-360
  • Power Rating1,500 HP
  • Input Motors2x NOV CM628TUT 119KR
  • Brake TypeDisc
  • Drilling Line1-3/8”
🔄

Top Drive

  • Make / ModelNOV TDS-11SA
  • Capacity500 Ton
  • Continuous Torque37,500 ft-lb @ 125 RPM
  • Rotary TableNOV ZP-375
  • Table Opening37.5”
  • Rotary Max Load650 Ton
  • Iron RoughneckNOV ST-80 CL
  • Pipe CatNOV PC-5-47
  • Power SlipsNOV PS-21
💧

Mud Pumps

  • Quantity2
  • Make / ModelNOV 12-P-160
  • Power Rating1,600 HP @ 120 spm
  • Pressure Rating5,000 PSI
  • Active Mud Volume792 BBL
  • Reserve Mud Volume402 BBL
  • Shale Shakers2x Scomi SCM-4
  • DesanderBrandt 10” x 3 Cones
  • DesilterBrandt 4” x 20 Cones
⚡

Power System

  • Prime Movers3x MTU T1238A34 / 12V4000 @ 1,481 HP
  • Generators3x Baylor S637UUT-200 @ 1,225 KW each
  • Drive TypeVFD (AC Variable Frequency)
🛡

BOP / Pressure Control

  • Annular BOP13-5/8” 5,000 PSI Shaffer SL Spherical Bolted
  • Single Ram Preventer13-5/8” 10,000 PSI Shaffer LXT
  • Choke ManifoldM-I Swaco 10K 4-1/16”
  • BOP Closing UnitSara Sae Type 80
Capabilities

Key Advantages

01

AC VFD Drive System

Full AC variable frequency drive architecture provides smooth, precise control of drawworks, top drive, and mud pumps. The VFD system reduces mechanical wear and enables advanced drilling automation.

02

18,000 ft Depth Rating

Rated to 18,000 ft drilling depth with 20,000 ft of mast racking capacity, this rig handles deep vertical and directional wells with 80 estimated move loads per year.

03

NOV TDS-11SA Top Drive

The 500-ton NOV TDS-11SA delivers 37,500 ft-lb continuous torque at 125 RPM. Combined with the NOV ZP-375 rotary table and ST-80 CL iron roughneck, tubular handling is fully mechanized.

04

Dual NOV 12-P-160 Mud Pumps

Two NOV 12-P-160 pumps rated at 1,600 HP each and 5,000 PSI pressure supply robust mud circulation. Active system holds 792 BBL; reserve system holds 402 BBL.

05

Complete BOP Stack

Well control equipment includes a Shaffer 13-5/8-inch 5,000 PSI spherical annular, a Shaffer 10,000 PSI LXT single ram, MI Swaco choke manifold, and Sara Sae closing unit.

06

Sling Shot Substructure

The 25-foot Sling Shot substructure with 21-foot clear height and 750,000 lb casing capacity supports BOP handling and accommodates large-diameter wellhead equipment.

Complete Data

Full Equipment Status

General Specifications

ManufacturerNOV Ideal
ModelSSGD-360 (Drawworks)
Rated HP1,500
Drive TypeVFD (AC)
Max Drilling Depth18,000 ft
Rig Move Loads80 estimated
StatusAvailable

Mast & Substructure

Mast TypeCantilever on Dolly, Hydraulic Lift
Mast Height142 ft
Static Hook Load720,000 lbs
Racking Capacity20,000 ft
Substructure StyleSling Shot
Substructure Height25 ft
Clear Height21 ft
Casing Capacity750,000 lbs

Drawworks

Make / ModelNOV SSGD-360
Rated HP1,500
Input Motors2x NOV CM628TUT 119KR
Brake TypeDisc
Drilling Line1-3/8”

Power System

Engines3x MTU 12V4000 @ 1,481 HP each
Generators3x Baylor 1,225 KW each
Drive TypeVFD

Mud System

Mud Pumps2x NOV 12-P-160, 1,600 HP @ 120 spm
Max Pressure5,000 PSI
Active Mud792 BBL
Reserve Mud402 BBL
Shale Shakers2x Scomi SCM-4
DesanderBrandt 10” x 3 Cones
DesilterBrandt 4” x 20 Cones

Pressure Control

Annular BOP13-5/8” 5,000 PSI Shaffer SL Spherical
Ram BOP13-5/8” 10,000 PSI Shaffer LXT
Choke ManifoldM-I Swaco 10K 4-1/16”
BOP Closing UnitSara Sae Type 80

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
