NOV Ideal 1500HP AC Drilling Rig — Rig 10

Drilling Rig 10 is a NOV Ideal 1500HP Series land rig commissioned January 2011, featuring a telescoping NOV 142-foot mast with 750,000 lb hookload, a Canrig 500-ton AC top drive with Rockit capability, and a 75-foot on-location walking system. Powered by three Cummins KTA50 engines driving AVK/WEG 1,100kW generators with Omron VFD-based driller controls.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

MastNOV 142 ft telescoping
Hook Load750,000 lb
Racking Capacity17,000 ft of 5" DP
SubstructureNOV 25 ft, 21.5 ft clear height
Rotary Load750,000 lb
Setback Load500,000 lb

⚙️

Drawworks & Controls

DrawworksAlta-Fab Rig AC 1500HP (GEB-28)
Drawworks S/N10046
Top DriveCanrig 500-ton AC (Rockit)
Traveling Block400-ton, 6-sheave, 12-line
Driller ControlsOmron VFD/PLC Electronic
Rotary37-1/2" hydraulic hagglund

🔋

Power & Mud System

Engines3x Cummins KTA50 @ 1,470 HP each
Generators3x AVK/WEG 1,100kW unitized
Mud Pumps2x BOMCO F-1600, 7,500 PSI
Mud Capacity850 bbl active (2x 425 bbl tanks)
Shakers3x Brandt King Cobra Venom
Walking75 ft on-location walk

Equipment Gallery

Rig Photos

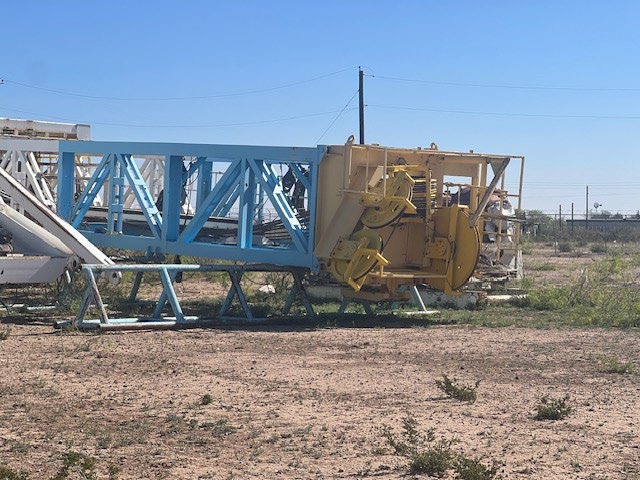

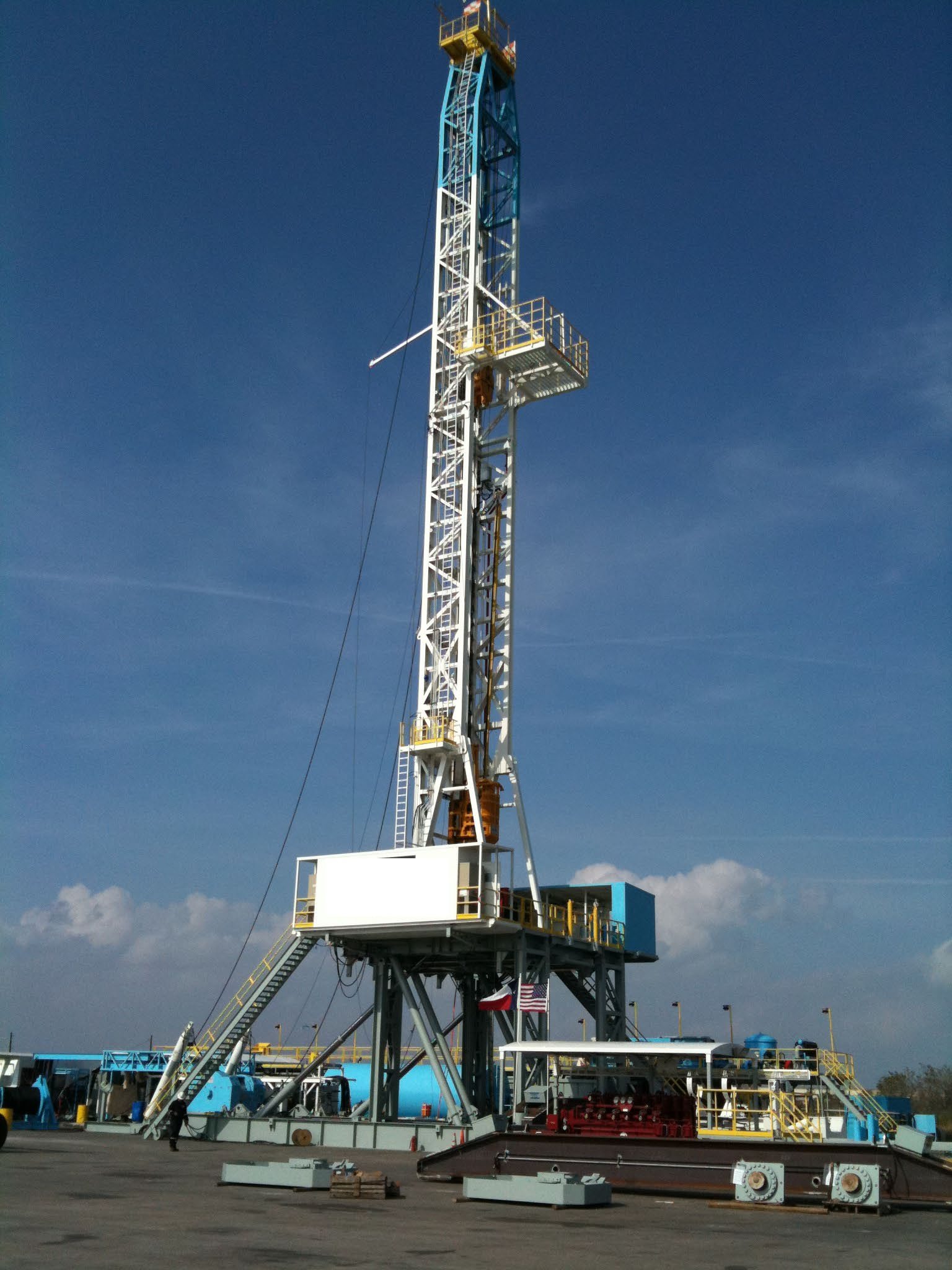

Rig 10 — overall

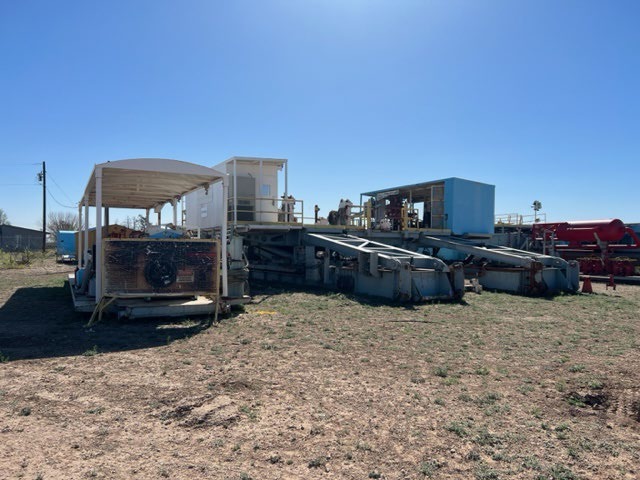

Rig 10 — mast detail

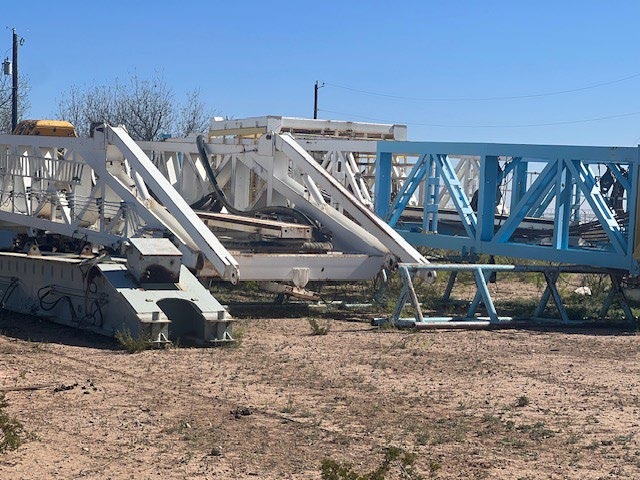

Rig 10 — substructure

Rig 10 — drill floor

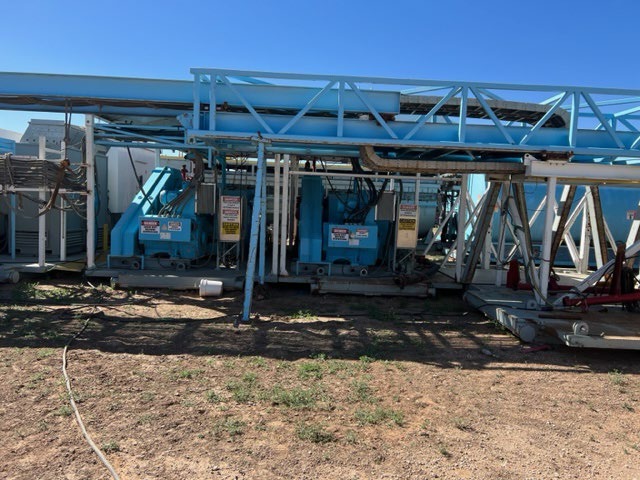

Rig 10 — top drive

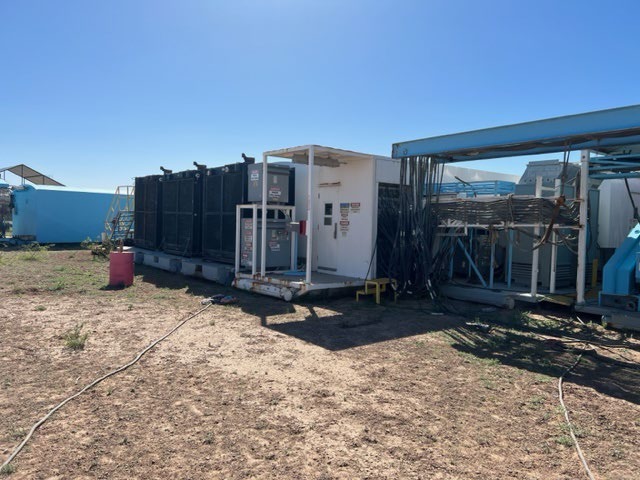

Rig 10 — engines

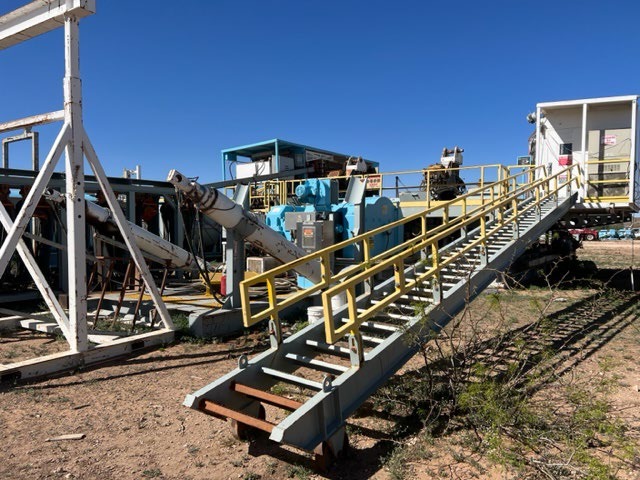

Rig 10 — mud pumps

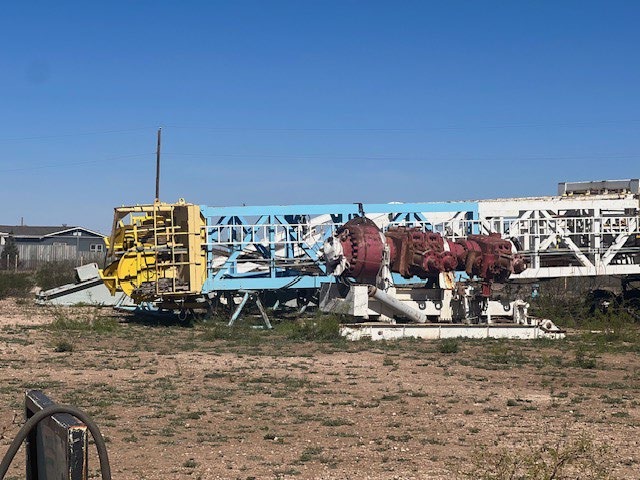

Rig 10 — mud system

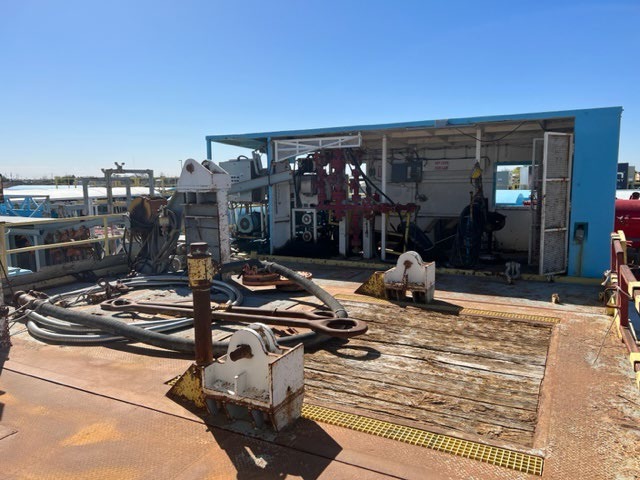

Rig 10 — shakers

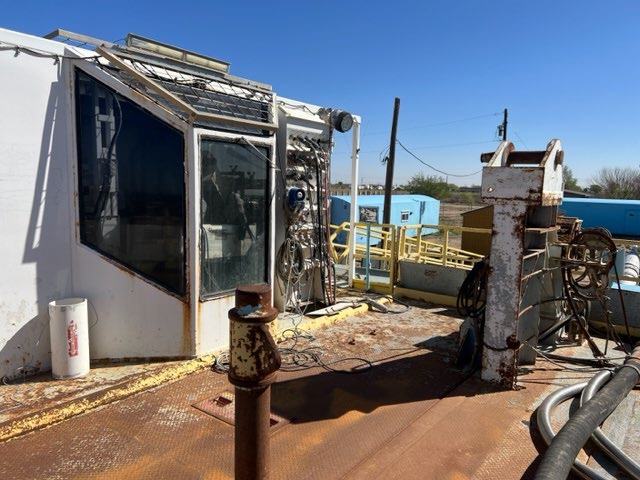

Rig 10 — equipment

Capabilities

Key Advantages

01

Walking Pad Drilling

75-foot on-location walking capability enables efficient pad drilling, reducing rig-up time between wellbores and lowering per-well cost.

02

Canrig Rockit Top Drive

500-ton Canrig AC top drive with Rockit capability provides superior torque control and jar-up capability without a safety clamp, improving tripping efficiency.

03

Full AC-VFD Controls

Omron Electronic Driller with integrated VFD house. AC drives regulate drawworks, mud pumps, and top drive via PLC technology for precise weight-on-bit and ECD management.

Complete Data

Full Equipment Status

Mast & Substructure

Mast	NOV 142 ft telescoping
Hook Load	750,000 lb
Racking Capacity	17,000 ft of 5" drill pipe
Substructure	NOV 25 ft, hydraulic cylinders
Clear Height	21.5 ft
Rotary Load	750,000 lb
Setback Load	500,000 lb

Drawworks & Drive

Drawworks	Alta-Fab Rig AC 1500HP
Motor	GEB-28 1,500 HP AC Traction
S/N	10046
Hours	43,812
Drill Line	1-3/8"
Top Drive	Canrig 500-ton AC (Rockit)
Traveling Block	400-ton, 6-sheave, 12-line
Driller Controls	Omron Electronic VFD/PLC
Rotary	37-1/2" hydraulic hagglund

Power Generation

Engine Count	3
Engine Model	Cummins KTA50 DR, 1,470 HP each, air start
Engine 1 S/N	G206-33165295 — 40,442 hrs
Engine 2 S/N	H303-33165302 — 40,189 hrs
Engine 3 S/N	B103-33165314 — 40,193 hrs
Generators	3x AVK/WEG 1,050–1,100kW unitized
Fuel Tank	12,000-gallon

Mud System

Mud Pumps	2x BOMCO F-1600 Triplex AC, 7,500 PSI
Pump Motor	GEB-29 AC Traction 1,500 HP each
Liners	6" ceramic
Mud Capacity	850 bbl active (2x 425 bbl round-bottom tanks)
Shakers	3x Brandt King Cobra Venom
Degasser	Brandt DG-10
Desilter	Brandt SE-16
Trip Tank	100 bbl with 2x3x40HP pump
Separator	48" mud gas separator

BOP & Well Control

BOP	13-5/8" 10M Single Ram
BOP	13-5/8" 10M Double Ram
Annular	13-5/8" 5M
Accumulator	6-station
Choke Manifold	4" 10K
BOP Handler	NOV BOP Handler

Auxiliary Equipment

Walking System	75 ft on-location capability
Drill Line Spool	Motorized
Wireline Unit	Mathey, 25,000 ft of 0.092"
Iron Roughneck	Included
Quarters	Toolpusher & Crew
Recorder	Totco electronic drilling recorder
Drill Pipe	5" S-135 as required
Drill Collars	3-8" / 21-6.5"
