NOV National 110-UE 1500 HP Land Rig 2 — Walking System

NOV National P-110UE 1500 HP land drilling rig (Rig 2) certified Q2 2024, located in New Mexico. Features OWI Stealth Stomper walking system, CanRig 1250AC 500-ton top drive, Forum Pipe Wrangler hydraulic catwalk, and three Gardner Denver PZ-11 mud pumps. Asking $6M.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

ModelNOV National P-110UE
Input Power1,500 HP
Main Brake1,500 HP Baylor 6032 (Dynomatic)
Aux BrakesOWI Band Brake System

🗼

Mast & Substructure

MastOWI 142 ft
Drill Line1-3/8"
Racking22,000 ft of 5½" DP
SubOWI Box-on-Box, 28 ft floor, 23 ft clear
Rotary Cap1,000,000 lb
Setback750,000 lb

💧

Mud System

Pumps3× Gardner Denver PZ-11 @ 7,500 psi
Mud Tanks3 tanks, 1,100 bbl total
Shakers2× Derrick
MGSMi Swaco 48" OD × 120" tall
Trip Tank80 bbl

🔧

Top Drive & Accessories

Top DriveCanRig 1250 AC 500 Ton
Max Torque65,300 ft-lbs continuous
Walking SystemOWI Stealth Stompers
CatwalkForum Pipe Wrangler Hydraulic

Equipment Gallery

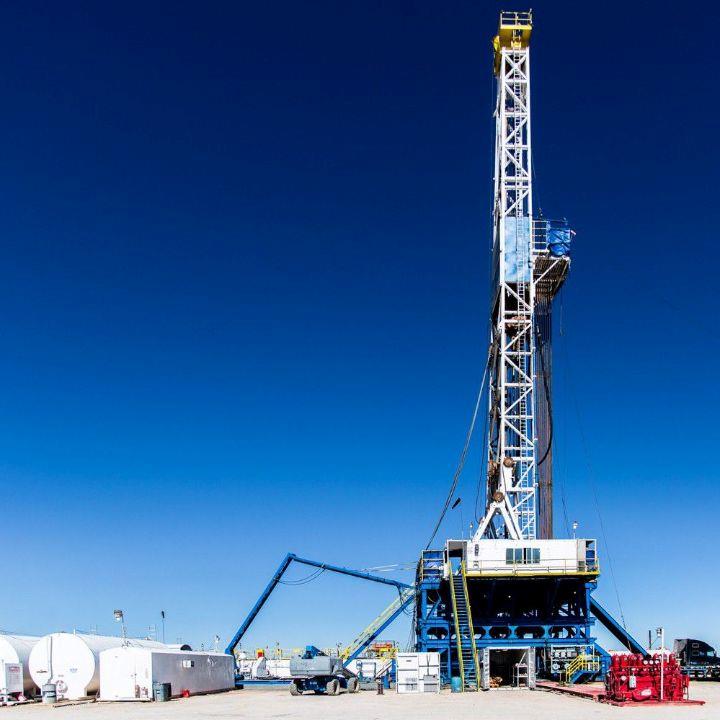

Rig Photos

Capabilities

Key Advantages

01

Q2 2024 Certified

Full API Cat IV certification completed Q2 2024. Rig 2 is ready for immediate deployment with current paperwork — eliminating pre-deployment certification delays and costs.

02

Walking System Equipped

OWI Stealth Stomper walking system enables efficient pad drilling without rig-down moves, increasing well-per-pad efficiency and reducing non-productive time significantly.

03

Super-Spec Configuration

Three Gardner Denver PZ-11 mud pumps at 7,500 psi, CanRig 1250AC top drive, hydraulic catwalk, and iron roughneck represent a complete super-spec configuration targeting pad-drilling operators.

Complete Data

Full Equipment Status

General

Drawworks	NOV National P-110UE, 1,500 HP
Location	New Mexico, USA
Certification	Q2 2024 Cat IV
Asking Price	$6,000,000 USD

Mast & Sub

Mast	OWI 142 ft, 1-3/8" drill line
Racking	22,000 ft 5½" DP
Sub Type	OWI Box on Box
Floor Height	28 ft
Clear Height	23 ft
Rotary Cap	1,000,000 lb
Setback	750,000 lb

Mud Pumps

Model	3× Gardner Denver PZ-11
Stroke	11"
Pressure	7,500 psi
Input Power	1,600 HP each

Top Drive

Model	CanRig 1250 AC 500 Ton
Max Speed	225 rpm
Drill Torque	65,300 ft-lbs
Max Torque	95,000 / 128,800 ft-lbs (Make/Break)
Motors	2× 400 HP AC induction

BOP

Annular	13-5/8" Shaffer 5,000 psi
Double Ram	13-5/8" Cameron Type-U 10,000 psi
Single Ram	13-5/8" Cameron Type-U 10,000 psi

Accumulator

Model	Scarbrough 400 gal, 7-Station
Pumps	4× Pneumatic + 1× Electric Triplex
