Available

Oilwell 760-E 1200 HP Land Drilling Rig 123

Oilwell 760-E 1200 HP skid-mounted rig with Tesco top drive and twin BOMCO mud pumps.

1,200
Horsepower
Oilwell 760-E
Rig 123
Unit Number
Skidding Capable
500T
Top Drive
Tesco 500 ECI 900
Oilwell 760-E 1200 HP Land Drilling Rig 123
Oilwell 760-E 1200 HP skid-mounted rig with Tesco top drive and twin BOMCO mud pumps.

Rig 123 is a 1,200 HP Oilwell 760-E mechanical telescopic double configuration with skidding capability. Features a 1,000,000 lb hook load capacity mast, Tesco 500 ECI 900 top drive rated 1,000,000 lb, and four Gulf Electroquip generators. Mud system includes twin BOMCO pumps and a Derrick FLC 504 shaker package.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksFB-1600, 1,600 HP Max
  • Input Power(4) Gulf Electroquip, 1,085 HP each
  • Rig TypeMechanical Telescopic Double
  • Load Count40 loads
🗼

Mast & Substructure

  • Static Hook Load1,000,000 lb
  • Drilling Line1-1/8 inch
  • SubstructureTelescoping, 18 ft
  • SkiddingYes (2 cranes required)
🔩

Top Drive & Rotating

  • Top DriveTesco 500 ECI 900
  • Load Rating1,000,000 lb
  • Max Torque36,700 ft-lbs
  • Opening27-1/2 inch
💧

Mud System

  • Mud Pumps(2) BOMCO
  • Mud Volume1,000 BBL / 160 m³
  • Tanks2 tanks, 6 compartments
  • Shale Shaker(2) Derrick FLC 504

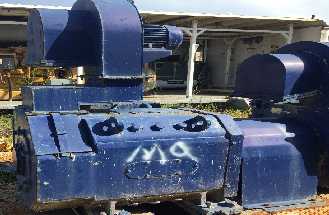

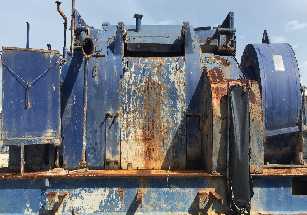

Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Skid Mobility

Skidding-capable configuration with 40-load count enables efficient rig-up on multi-well locations.

02

Tesco Top Drive

Tesco 500 ECI 900 provides 1,000,000 lb load rating and 36,700 ft-lb torque for demanding directional programs.

03

Solids Control

Dual Derrick FLC 504 shakers with 10x4 desander cones and Derrick Vac-Flo 1200 vacuum degasser.

Complete Data

Full Equipment Status

Rig Summary

HP Rating1,200 HP
Rig TypeMechanical Telescopic Double
Load Count40
SkiddingYes (2 cranes required)

Drawworks & Power

DrawworksFB-1600, 1,600 HP Max
Power Input(4) Gulf Electroquip, 1,085 HP each

Top Drive

Make/ModelTesco 500 ECI 900
Load Rating1,000,000 lb
Max Torque36,700 ft-lbs / 49,760 Nm
Opening27-1/2 inch

Travelling Assembly

BlockEmsco, 800,000 lb
SwivelEmsco, 800,000 lb
Drilling Line1-1/8 inch

Mud System

Mud Pumps(2) BOMCO
Active Volume1,000 BBL / 160 m³
Tanks2 tanks, 6 compartments
Shale Shakers(2) Derrick FLC 504
Desander10 x 4 inch cones
DegasserDerrick Vac-Flo 1200

Ancillary

CatwalkDual Make-up Power Catwalk
Fuel Tank400 BBL / 63,600 L
Water Tank286 BBL / 45,400 L
Camp(3) TA Structures

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
