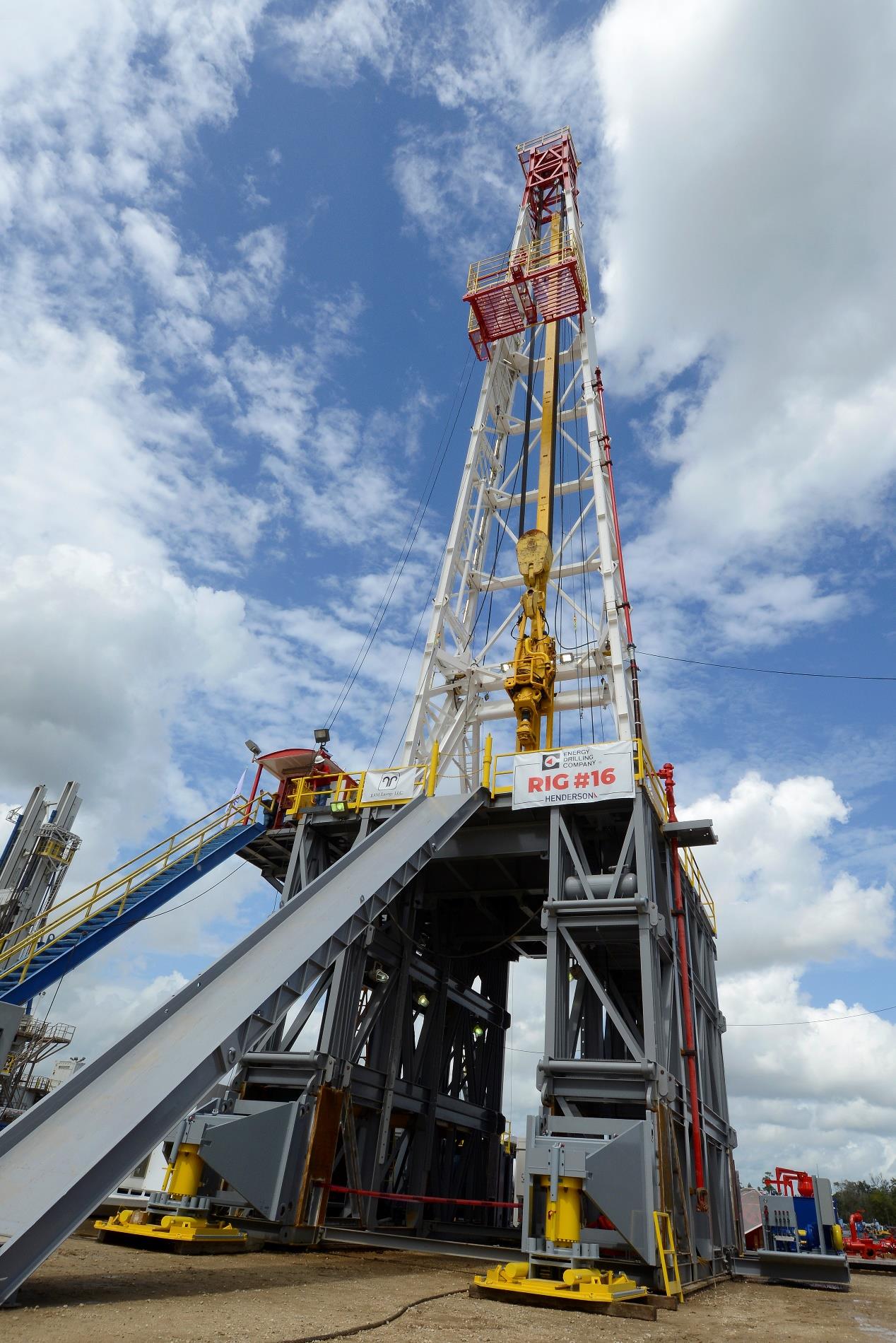

OIME 2000 HP Rig #16 | Total Drilling Supply LLC

OIME Rig #16 is a well-configured 2,000 HP land drilling rig built around a DSI 150-ft cantilever mast rated to 1,000,000 lbs static hook load and a 30-ft box-on-box substructure. Power comes from three Caterpillar 3512C gensets feeding an Omron Hill 4×4 bay SCR house. A NOV TDS-11 500-ton top drive with walking system, three Weatherford MP-16 7,500 psi triplex pumps, a full Swaco solids-control train, and a 10,000 psi BOP stack round out a complete, field-ready package now available in the Houston area.

Technical Overview

Key Equipment Specifications

🗼

Mast & Substructure

Mast MakeDSI Cantilever
Mast Height150 ft
Hook Load (Static)1,000,000#
Substructure MakeDSI Box-on-Box
Substructure Height30 ft
Casing Capacity1,000,000#
Setback Capacity600,000#
Rotary Beam Clearance26 ft

⚙️

Drawworks

Make / ModelOIME 2000
Motors2× GE 752 DC
Drill LineGrooved for 1-3/8"
Auxiliary BrakeWichita 336 Water-Cooled

🔄

Top Drive

Make / ModelNOV TDS-11
Capacity500 ton
Drive TypeAC VFD
Working Pressure7,500 psi
Walking SystemIncluded with HPU
Crown Block7× 60" Sheaves
Traveling BlockOilwell 500 ton
Rotary Table37-1/2" × 500 ton

💧

Mud Pumps

Pumps3× Weatherford MP-16
Liner Size7-1/2" × 12" Triplex
Motors (each pump)2× GE 752 DC
Working Pressure7,500 psi
LP Mixing System2× 8"×6" Centrifugal, 75 HP
Shakers3× Derrick 514 Linear Motion
DesanderSwaco (2) 12" Cones, Mission Magnum 5"×6"/40 HP
DesilterSwaco (12) 4" Cones, Mission Magnum 5"×6"/40 HP
DegasserSwaco
Mud Tanks2-Tank Round Bottom, 1,000 BBL + Slugging Tank
Drill Water Tank500 BBL
Trip Tank100 BBL

⚡

Power System

Engines3× Caterpillar 3512C
Generators1,365 KW each
SCR HouseOmron Hill 4×4 Bay
Fuel Tank11,000 Gallons with Lubester

🛡

BOP & Preventers

Annular13-5/8" Hydril-type, 5,000 psi
Double Ram13-5/8" Shaffer-style, 10,000 psi
Single Ram13-5/8" Shaffer-style, 10,000 psi
Valves1× 4" Manual, 1× 4" HCR, 2× 2-1/16", 1× 2-1/16" Check — all 10,000 psi
Closing UnitCAD Type M, 5-Station, 220-Gal, with Remote
Choke Manifold10,000 psi 4"×3" with 2× Adjustable 3" Chokes

Equipment Gallery

Rig Photos

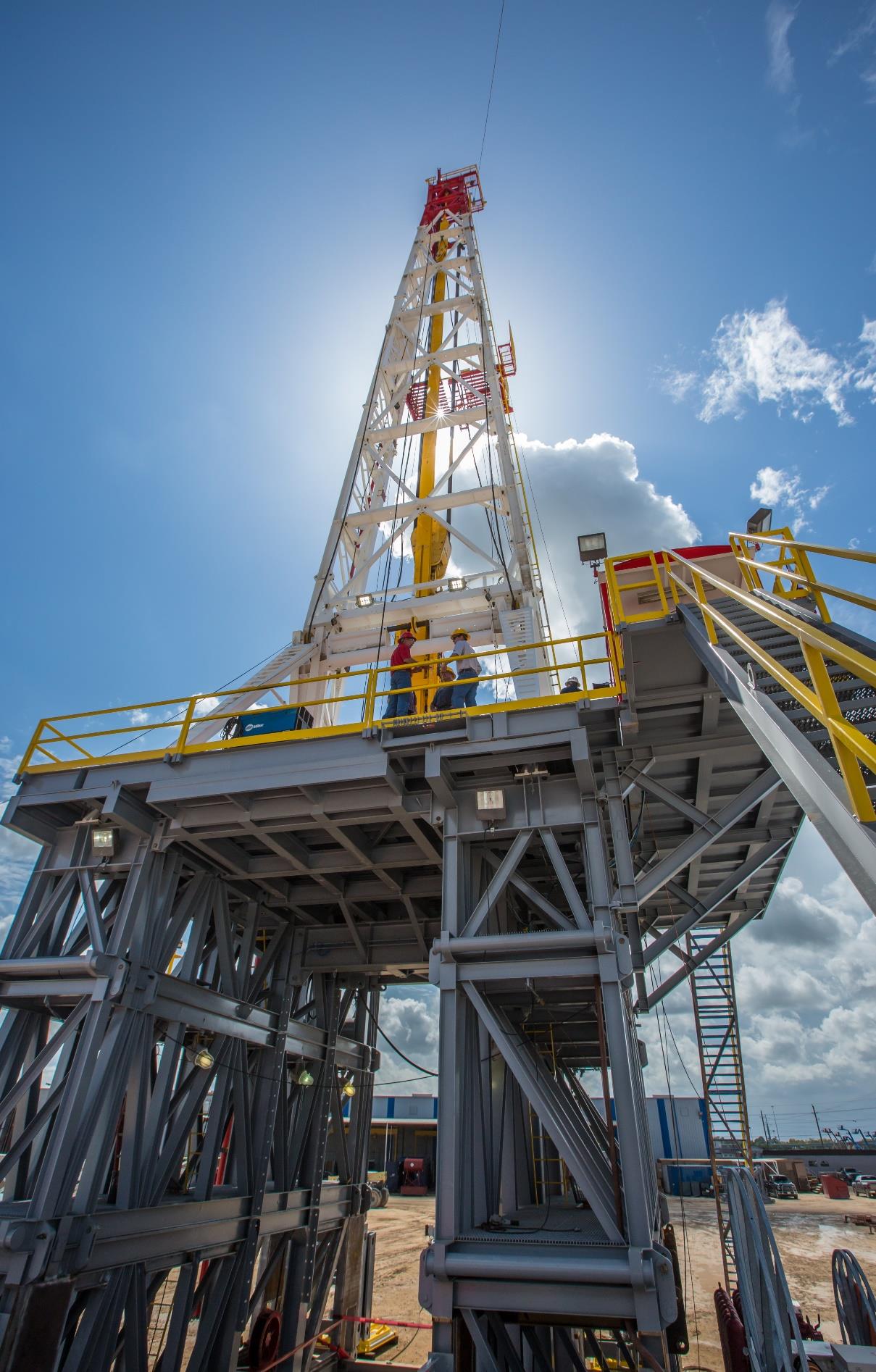

DSI Cantilever Mast — Substructure & Drill Floor

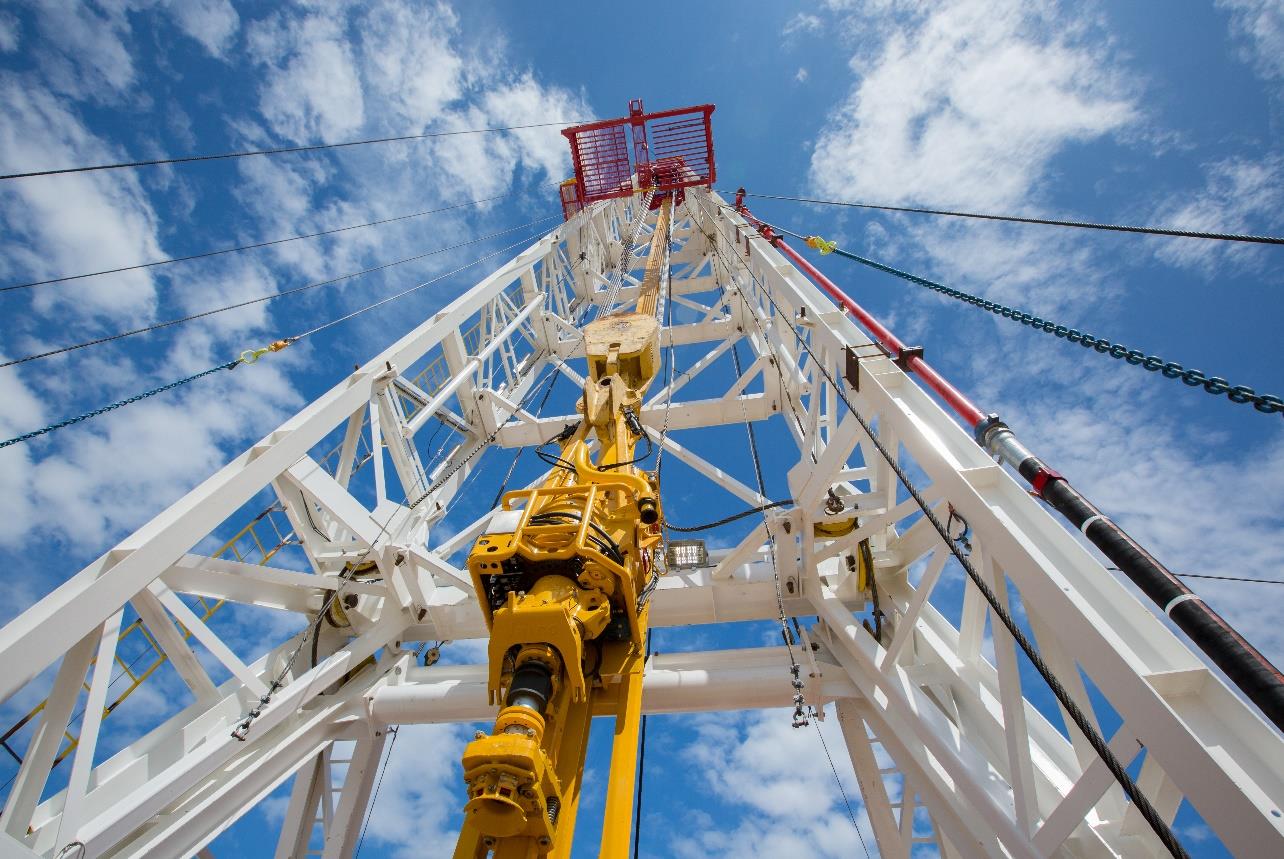

NOV TDS-11 Top Drive — Mast Interior

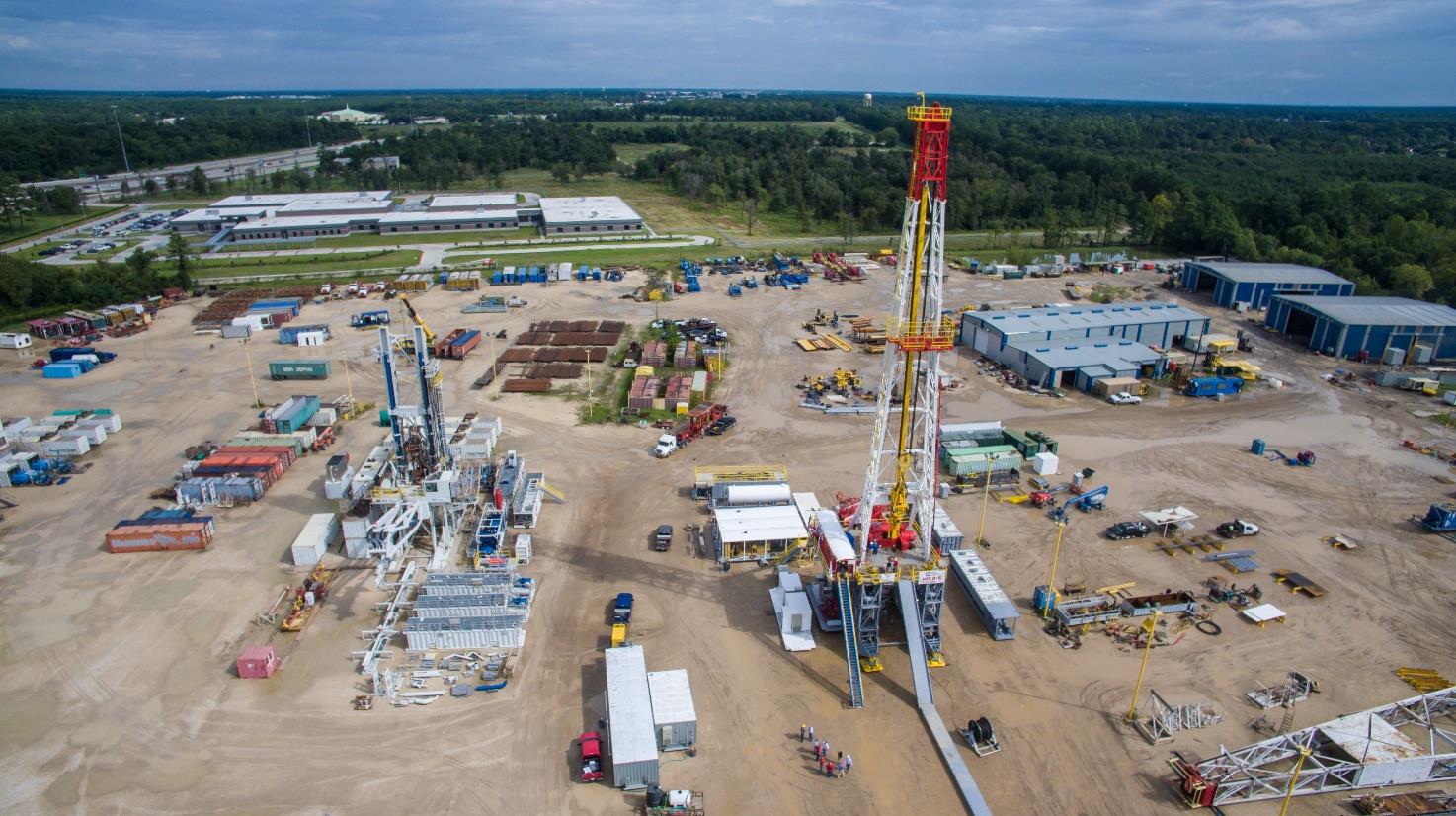

Houston Yard — Full Aerial View

Capabilities

Key Advantages

01

1,000,000 lb Hook Load Capacity

The DSI 150-ft cantilever mast and matching box-on-box substructure are each rated to 1,000,000 lbs static, providing headroom for deep, high-weight drill string configurations.

02

NOV TDS-11 AC Top Drive with Walking System

The 500-ton NOV TDS-11 operates on AC VFD power at 7,500 psi working pressure and includes a hydraulic walking system — enabling pad drilling without a rig move.

03

Triple-Pump 7,500 psi Mud System

Three Weatherford MP-16 triplex pumps, each driven by dual GE 752 DC motors, deliver high-pressure mud circulation at 7,500 psi — sufficient for demanding formation pressures.

04

CAT 3512C Prime Power — 4,095 KW Total

Three Caterpillar 3512C engines producing 1,365 KW each, managed through an Omron Hill 4×4 bay SCR house, give this rig robust, redundant electrical generating capacity.

05

Complete Swaco Solids-Control Train

Three Derrick 514 linear-motion shakers, a Swaco desander, desilter, and degasser form a full four-stage solids-control system, reducing non-productive time from mud issues.

06

10,000 psi BOP Stack — Dual + Single Ram

A Shaffer-style double-ram and single-ram stack at 10,000 psi, backed by a Hydril 5,000 psi annular and a full CAD closing unit with remote, satisfies well-control requirements for intermediate to deep wells.

Complete Data

Full Equipment Status

Drawworks

Make / Model	OIME 2000
Motors	2× GE 752 DC Motors
Drill Line	Grooved for 1-3/8"
Auxiliary Brake	Wichita 336 Water-Cooled

Derrick

Make	DSI
Type	Cantilever Mast
Height	150 ft
Static Hook Load Capacity	1,000,000#

Substructure

Make	DSI
Type	Box-on-Box
Height	30 ft
Casing Capacity	1,000,000#
Setback Capacity	600,000#
Rotary Beam Clearance	26 ft

Power Source

Engines	3× Caterpillar 3512C
Generator Output (each)	1,365 KW
Total Generating Capacity	4,095 KW
SCR House	Omron Hill 4×4 Bay
Fuel Tank	11,000 Gallons with Lubester

Pumps

Mud Pump Make / Model	3× Weatherford MP-16
Liner Size	7-1/2" × 12" Triplex
Drive Motors (each pump)	2× GE 752 DC Motors
Working Pressure	7,500 psi
LP Mud Mixing	2× 8"×6" Centrifugal, 75 HP Electric each
Shakers	3× Derrick 514 Linear Motion
Desander	Swaco (2) 12" Cones — Mission Magnum 5"×6" / 40 HP
Desilter	Swaco (12) 4" Cones — Mission Magnum 5"×6" / 40 HP
Degasser	Swaco
Mud Tanks	2-Tank Round Bottom, 1,000 BBL + Slugging Tank, Electric Agitators
Drill Water Tank	500 BBL
Trip Tank	100 BBL

Drill String

Drill Pipe	5" 19.5# S-135 NC50, 4-1/2" IF connections (~22,300 ft)
Drill Collars (small)	6" – 6-1/2" OD NC44, Hardbanded
Drill Collars (large)	8" – 8-1/2" OD, 6-5/8" REG
Pipe Spinner	Varco J29 Chain Type

Preventers / BOP

Annular	13-5/8" Hydril-type, 5,000 psi WP
Double Ram	13-5/8" Shaffer-style, 10,000 psi
Single Ram	13-5/8" Shaffer-style, 10,000 psi
Valves	1× 4" Manual; 1× 4" HCR; 2× 2-1/16"; 1× 2-1/16" Check — all 10,000 psi
Closing Unit	CAD Type M Series, 5-Station, 220-Gal Capacity, with Remote
Choke Manifold	10,000 psi, 4"×3", 2× Adjustable 3" Chokes

Top Drive & Other Equipment

Top Drive	NOV TDS-11, 500 ton, AC VFD, 7,500 psi WP
Walking System	Included with HPU
Crown Block	7× 60" Sheaves
Traveling Block	Oilwell 500 ton
Rotary Table	37-1/2" × 500 ton
Weight Indicator	Type D
Wireline Unit	.092 Line
OFI Basic Services	Included
Pipe Spinner	Varco J29 Chain Type
