Available — POA

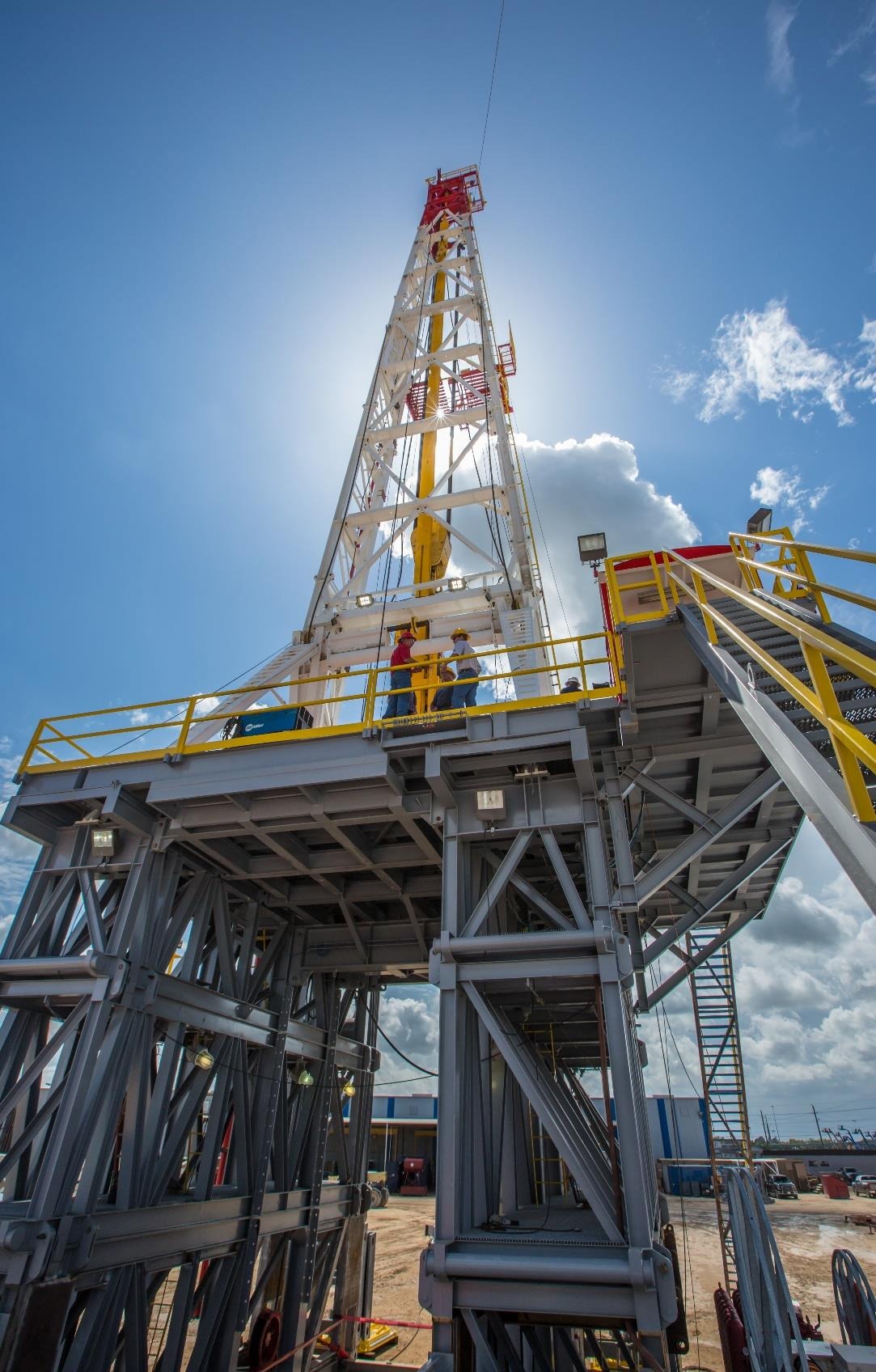

OIME 2000 HP Rig 16

Heavy-duty 2,000 HP AC/SCR land rig with NOV TDS-11 top drive and walking system — 31-page documented package.

2,000 HP
Power Rating
OIME Drawworks
150 ft
DSI Mast Height
1,000,000# Hook Load
3 × 1365 kW
Generator Sets
Cat 3512C Engines
7,500 PSI
Mud System
3 × Weatherford MP-16
OIME 2000 HP Rig 16
Heavy-duty 2,000 HP AC/SCR land rig with NOV TDS-11 top drive and walking system — 31-page documented package.

OIME 2000 HP Rig 16 is a fully equipped heavy land drilling rig featuring an OIME 2000 drawworks with dual GE 752 DC motors, 150 ft DSI cantilever mast rated at 1,000,000# static hook load, three Caterpillar 3512C generators at 1,365 kW each, and three Weatherford MP-16 triplex pumps at 7,500 psi. Equipped with NOV TDS-11 500-ton AC top drive with VFD house and an active walking system. Price on application.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksOIME 2000 — 2x GE 752 DC Motors
  • Drill LineGrooved for 1 3/8"
  • Aux BrakeWichita 336 Water Cooled
  • Generators(3) Cat 3512C — 1,365 kW each
  • SCR HouseOmron Hill 4×4 Bay
🗼

Mast & Substructure

  • MastDSI 150 ft Cantilever
  • Static Hook Load1,000,000#
  • SubstructureDSI Box-on-Box — 30 ft High
  • Rotary Beam Clearance26 ft
  • Casing Capacity1,000,000#
  • Setback Capacity600,000#
💧

Mud System

  • Pumps(3) Weatherford MP-16, 7½"×12" Triplex
  • Working Pressure7,500 PSI
  • Pump Motors2×GE 752 DC Motors each
  • Mud TanksTwo-tank system, 1,000 BBL round bottom
  • Shakers3× Derrick 514 Linear Motion
🔩

Top Drive & Rotary

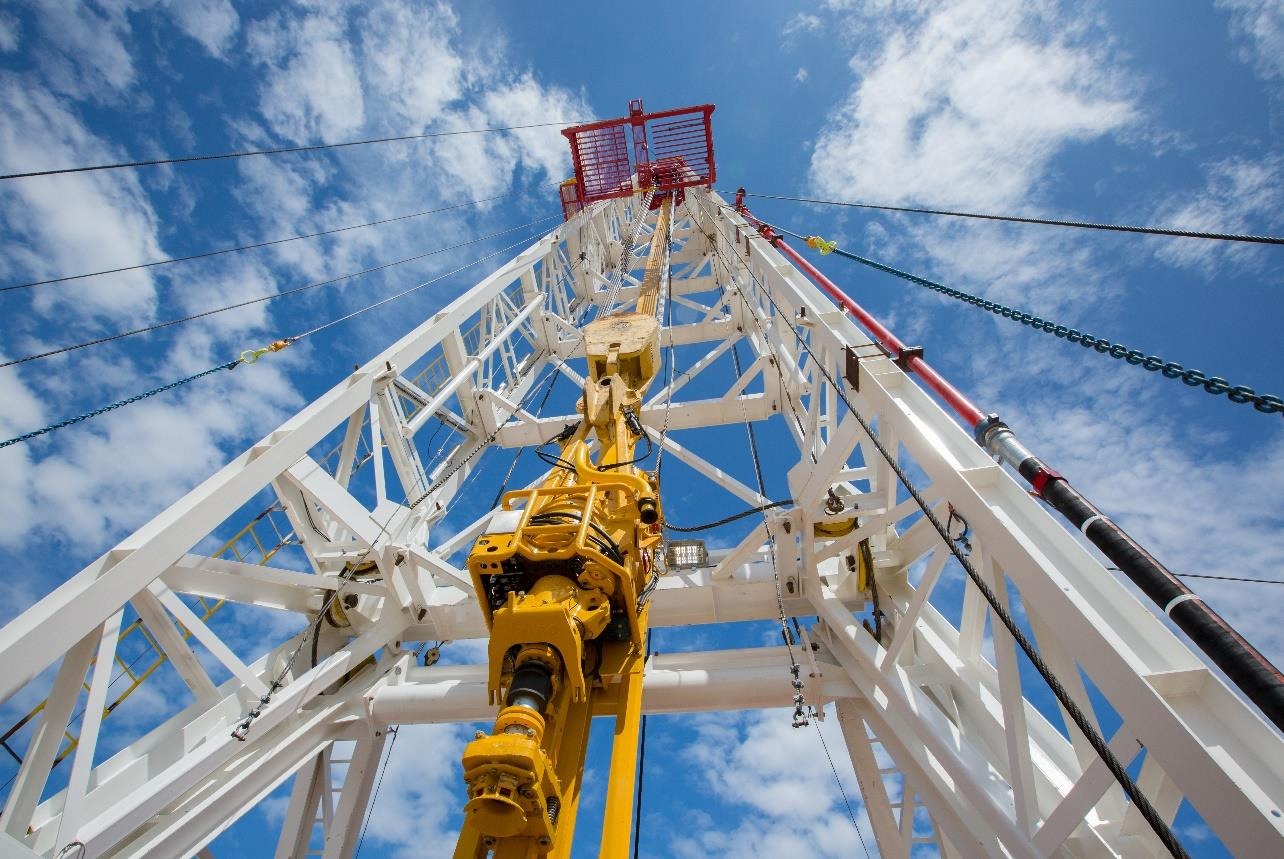

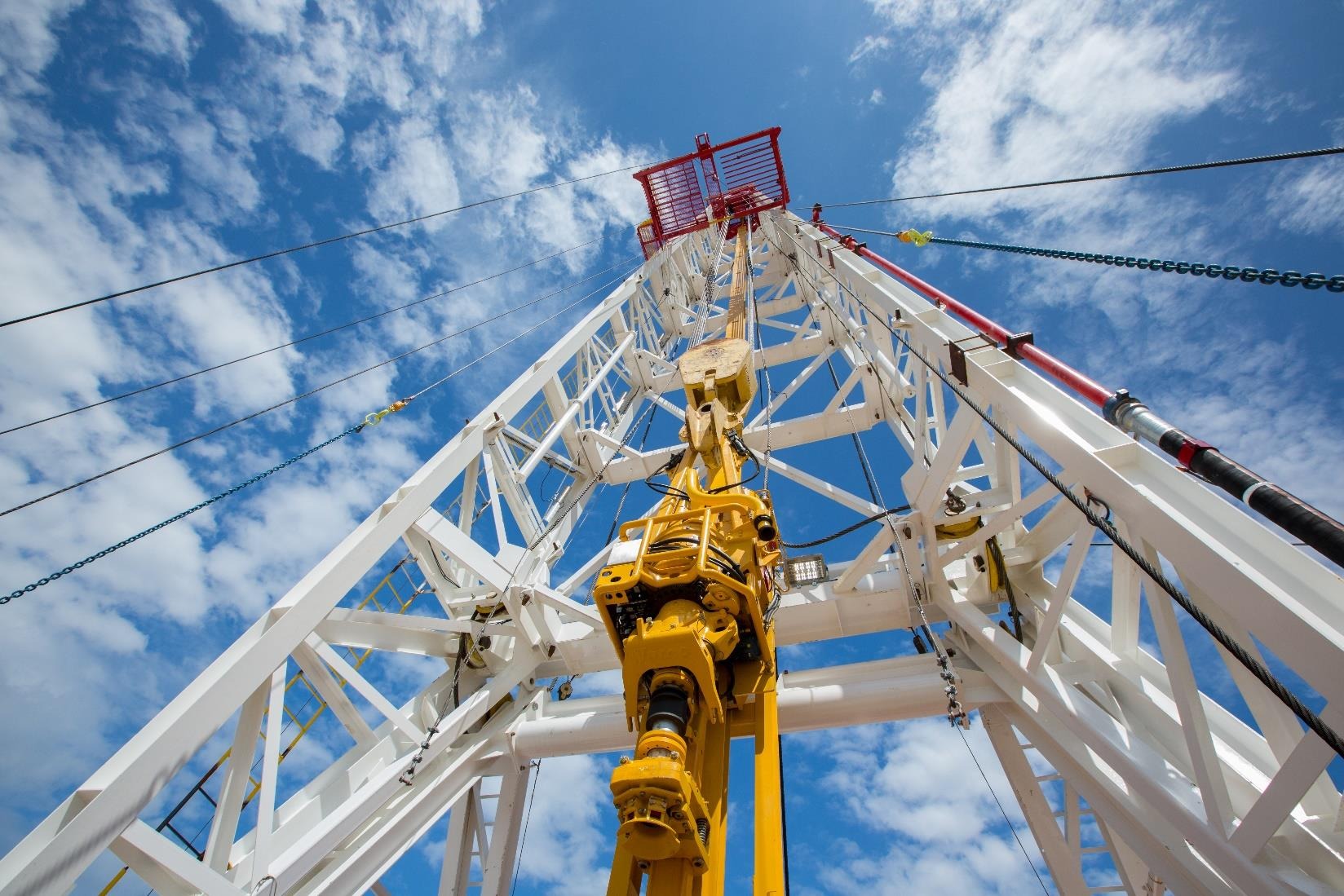

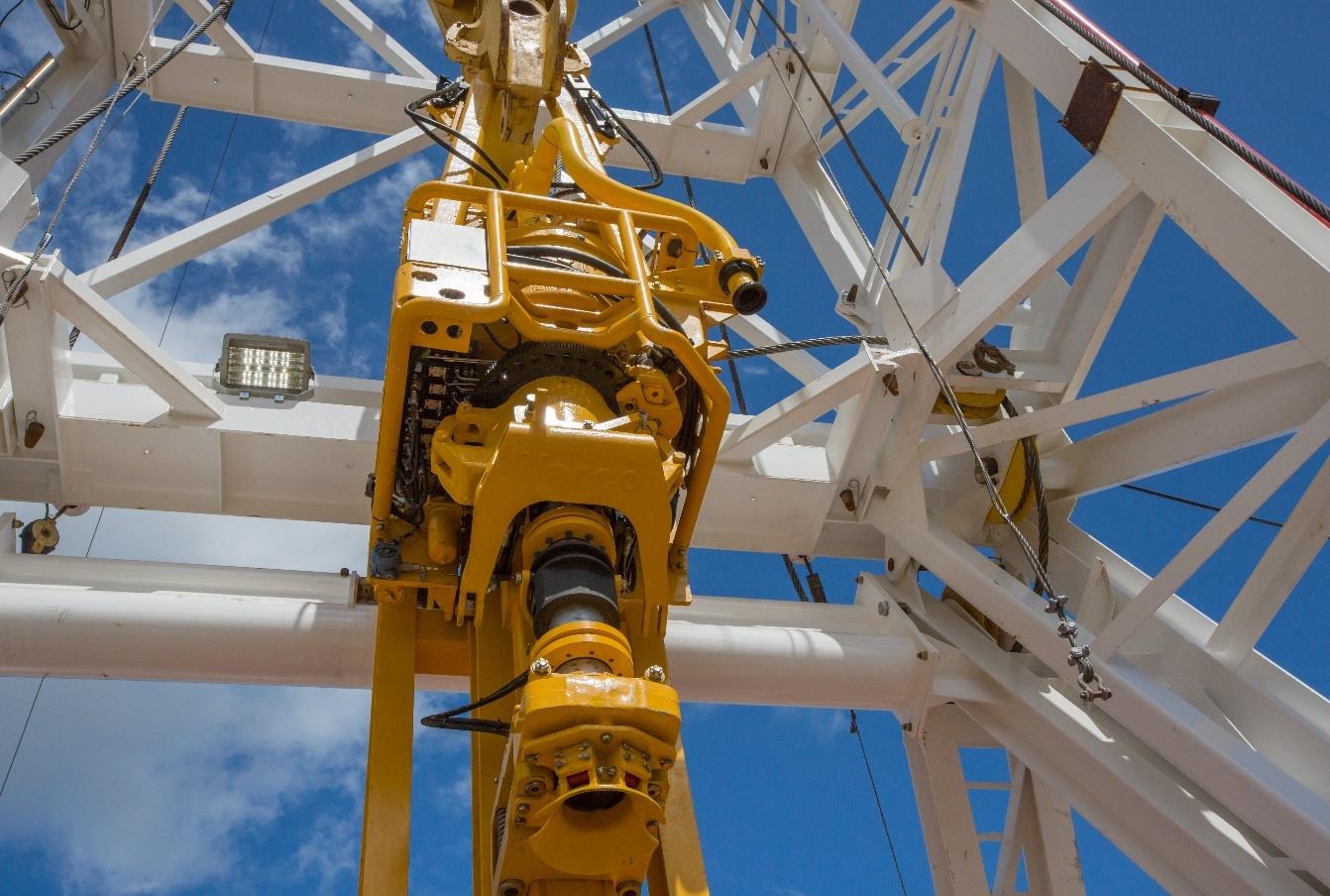

  • Top DriveNOV TDS-11 — 500 Ton AC VFD
  • Top Drive Pressure7,500 PSI
  • Walking SystemYes — with HPU
  • Rotary Table37.5" × 500 Ton
  • Crown Block(7) 60" Sheaves
  • Traveling BlockOilwell 500 Ton
🛡️

BOP Stack

  • Annular13 5/8" Hydril — 5,000 PSI
  • Double RamShaffer 13 5/8" — 10,000 PSI
  • Single RamShaffer 13 5/8" — 10,000 PSI
  • Choke Manifold10,000 PSI — 4"×3" with 2 adj. 3" chokes
  • Closing UnitCAD Type M — 5 Station, 220 Gal
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

2,000 HP Electric Drive

OIME 2000 drawworks driven by dual GE 752 DC motors with Omron Hill 4×4 SCR house and three Caterpillar 3512C generating sets delivering 4,095 kW total — built for sustained deep drilling at high RPM and WOB.

02

NOV TDS-11 Top Drive with Walking

500-ton NOV TDS-11 AC top drive with dedicated VFD house and 7,500 psi working pressure, combined with an active walking/skidding system — enabling offline stand building, batch drilling, and efficient multi-well pad operations.

03

High-Capacity BOP & Well Control

Full 10,000 PSI BOP stack with Hydril annular, Shaffer double and single rams, 10,000 PSI choke manifold, and CAD five-station closing unit — ready for high-pressure deep gas plays.

Complete Data

Full Equipment Status

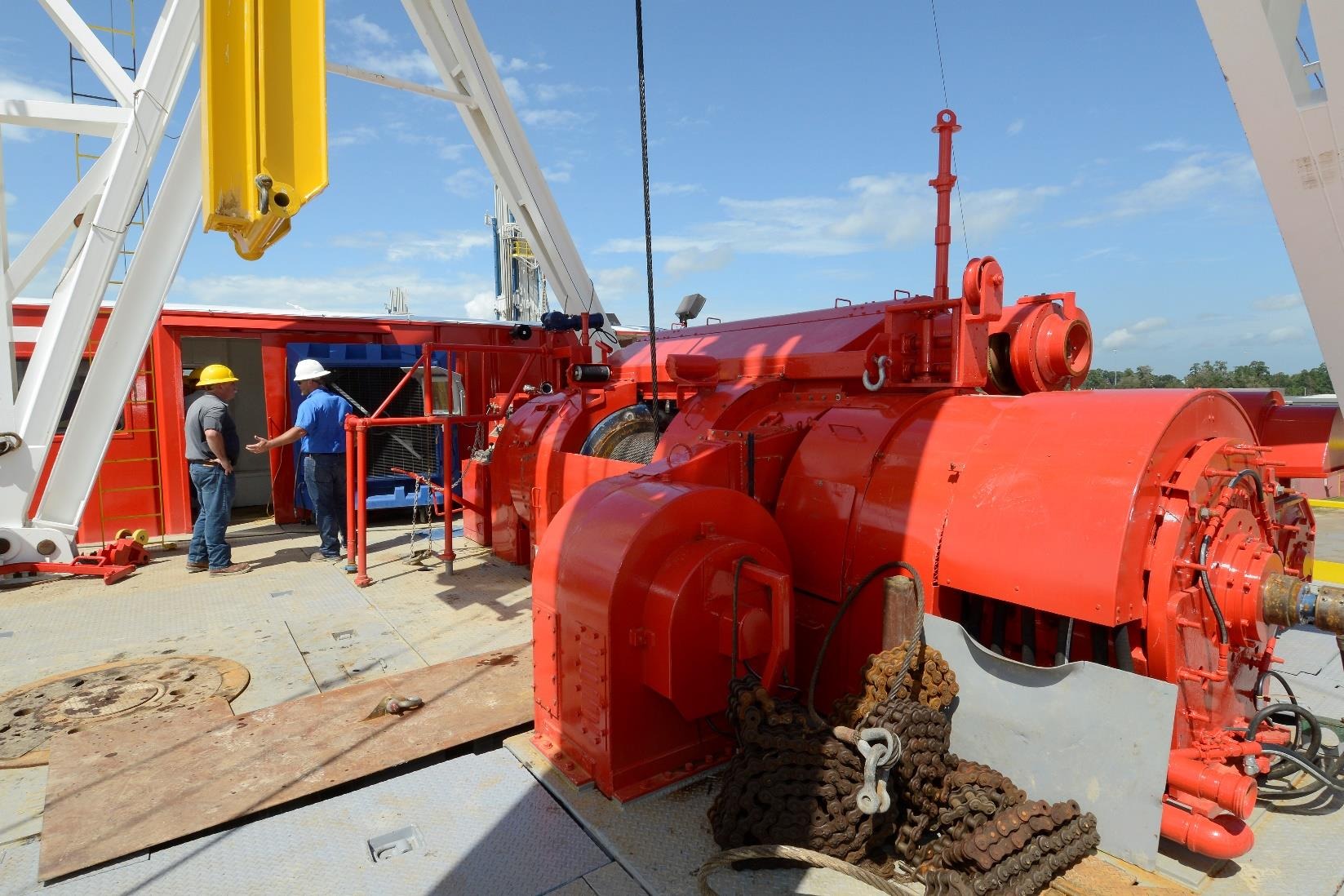

Drawworks

ModelOIME 2000
Motors2× GE 752 DC
Drill LineGrooved for 1 3/8"
Auxiliary BrakeWichita 336 Water Cooled

Mast & Substructure

MastDSI — 150 ft Cantilever
Static Hook Load1,000,000#
Substructure TypeDSI Box-on-Box — 30 ft High
Rotary Beam Clearance26 ft
Casing Capacity1,000,000#
Setback Capacity600,000#

Power

Generators(3) Caterpillar 3512C — 1,365 kW each
Total Power4,095 kW
SCR HouseOmron Hill 4×4 Bay

Mud Pumps

Pumps(3) Weatherford MP-16 — 7.5"×12" Triplex
Working Pressure7,500 PSI
Motors2× GE 752 DC each
LP Mixing2× 8"×6" Centrifugal — 75 HP electric

Top Drive & Rotary

Top DriveNOV TDS-11 — 500 Ton — AC VFD
Top Drive WP7,500 PSI
Walking SystemYes — with HPU
Rotary Table37.5"×500 Ton
Crown Block(7) 60" Sheaves
Traveling BlockOilwell 500 Ton

Drill String

Drill Pipe5" — 19.5# S-135 NC50 (±22,300 ft)
Drill Collars6"–6.5" OD NC44 w/ Hardband
Large Collars8"–8.5" OD — 6-5/8" REG
Pipe SpinnerJ29 Varco Chain Type

BOP Stack

Annular13 5/8" Hydril — 5,000 PSI
Double RamShaffer 13 5/8" — 10,000 PSI
Single RamShaffer 13 5/8" — 10,000 PSI
Choke Manifold10,000 PSI — 4"×3" — 2 adj. 3" chokes
Closing UnitCAD Type M — 5 Station — 220 Gal

Solids Control

Shakers3× Derrick 514 Linear Motion
DesanderSwaco — (2) 12" Cones + Mission 5"×6" Centrifugal
DesilterSwaco — (12) 4" Cones + Mission 5"×6" Centrifugal
DegasserSwaco
Mud TanksTwo-tank — 1,000 BBL Round Bottom + Slug Tank
Drill Water Tank500 BBL

Ancillary

Fuel Tank11,000 Gallons with Lubester
Trip Tank100 BBL
Wireline Unit.092 Line
Weight IndicatorType D

Commercial

ConditionUsed
PricePOA — Contact Bob Neundorf
Contactbob@2tds.com — 860-608-2327
