Drilling Rig 1000 — 1500HP AC 600K Cantilever Triple with Walking Package

1500HP AC 600K Cantilever Triple — 2011 Build with Walking System

1,500
Horsepower
GE AC Motor
600K
Hook Load
lbs
2011
Year Built
20,000'
Depth Rating
with 4-1/2" DP
Drilling Rig 1000 — 1500HP AC 600K Cantilever Triple with Walking Package
1500HP AC 600K Cantilever Triple — 2011 Build with Walking System

A well-specified 2011-built 1500HP AC land rig featuring a 136-foot Hyduke mast rated 600,000 lbs, E80 AC drawworks, GE natural gas generators, and a Hyduke/Hodgson walking system with 900-ton lifting capacity. Equipped with NOV IDS-350PE top drive, RS F-1600 mud pumps, and Cameron BOP — rated to 20,000 feet depth.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksE80 AC, 2 clutches, 1-1/4" cable
  • Brake SystemTriple braking + Eaton 14VC1000 dynamic disc
  • Main MotorGE 1,500HP AC Drilling Motor
  • Generators4× GE Jenbacher 1,000kW 480/240V nat. gas
  • Aux Generator1× 200kW C-18 for cold starts
  • Depth Rating20,000 ft (4-1/2" 16.6ppf DP)
🗼

Mast & Substructure

  • Mast136' Hyduke derrick
  • Capacity600,000 lbs, max 10 lines
  • Substructure Height25.2 ft (22 ft to rotary beams)
  • Rotary Capacity600,000 lbs
  • Setback Capacity400,000 lbs
  • WindbreakIncluded
🔩

Walking System

  • SystemHyduke/Hodgson walking system
  • Rollers6× 150-ton Hillman rollers on lifting jacks
  • Lift Capacity900 tons (9,000,000 lbs)
  • Linear Movement6" push / 5' pull per stroke
  • Move Loads~35 loads
🔧

Hoisting & Rotating

  • Top DriveNOV IDS-350PE, 350 tons, 1,000HP @ 143 RPM
  • Max Drill Torque37,000 ft-lbs continuous
  • M/U & B/O Torque65,000 ft-lbs
  • Rotary TableHacker 27.5", 0–50 RPM
  • Traveling BlockNOV 350-ton, 10 lines
  • Iron RoughneckHyduke ST100C
💧

Mud System

  • Mud Pumps2× RS F-1600, GE Motors, 7,500 PSI
  • Max Operating Pres.6,370 PSI @ 115 SPM
  • Liner Size6.5" × 12"
  • Mud Pits2× 1,080 BBL steel pits (7 compartments)
  • Shakers2× Derrick 504
  • Degasser48" NACE gas buster
🛡️

Well Control

  • BOPCameron 13-5/8" @ 5,000 PSI
  • Rotating HeadWashington
  • Choke ManifoldCameron 10,000 PSI (3-1/8")
  • AccumulatorBurnsco Bison, 250-gal, 5-station
  • Hydraulic Source650 Triplex CAT Pump, 40HP TEXP motor
Equipment Gallery

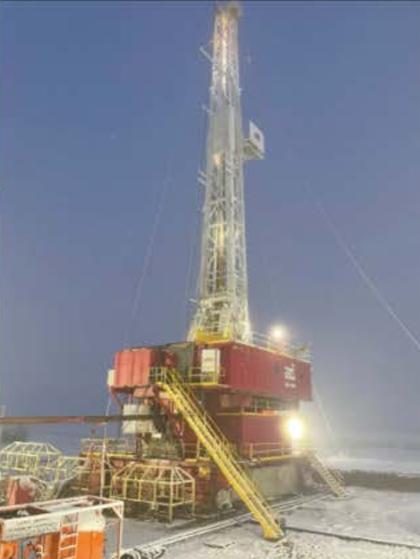

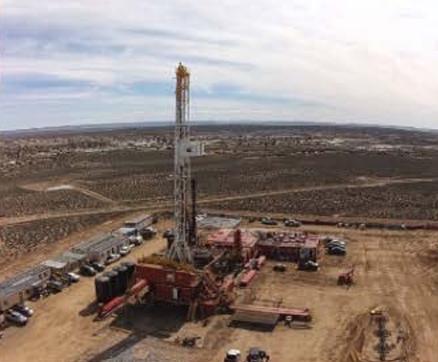

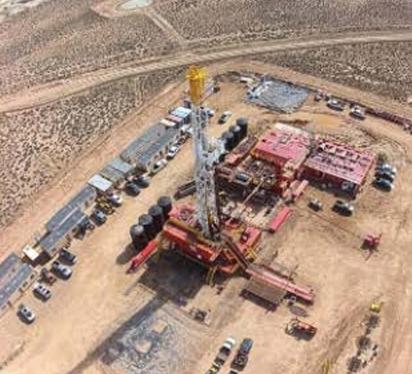

Rig Photos

Capabilities

Key Advantages

01

High-Load Walking System

Hyduke/Hodgson walking system lifts 900 tons on six Hillman rollers — enabling pad drilling without rig-down moves and significantly reducing well-to-well NPT.

02

Deep-Well AC Performance

1,500HP GE AC drive package with E80 drawworks and NOV 350-ton top drive supports programs to 20,000 feet depth with 4-1/2" drill pipe.

03

Natural Gas Power Package

Four GE Jenbacher 1,000kW natural gas generators reduce operating costs versus diesel alternatives while maintaining full rig power redundancy.

Complete Data

Full Equipment Status

General

Rig DesignationRig 1000
Type1500HP AC 600K Cantilever Triple with Walking Package
Year Built2011
Depth Rating20,000 ft (4-1/2" 16.6ppf DP)
Move Loads~35

Power & Drawworks

Main MotorGE 1,500HP AC Drilling Motor
DrawworksE80 AC, 2 clutches, 1-1/4" cable
BrakeTriple braking + Eaton 14VC1000 dynamic disc
Generators4× GE Jenbacher 1,000kW (natural gas)
Aux Generator200kW C-18 (cold start)

Mast, Substructure & Walking

Mast136' Hyduke, 600,000 lbs, 10 lines max
Substructure25.2 ft height, 600K rotary / 400K setback
Walking SystemHyduke/Hodgson
Walk Rollers6× 150-ton Hillman on lifting jacks
Walk Lift Capacity900 tons

Rotating Equipment

Top DriveNOV IDS-350PE, 350 tons, 1,000HP
Max Drill Torque37,000 ft-lbs
M/U B/O Torque65,000 ft-lbs
Rotary TableHacker 27.5"
Traveling BlockNOV 350-ton, 10 lines
Iron RoughneckHyduke ST100C
Hydraulic Catwalk62' Hyduke with V-door & power skate

Mud System

Mud Pumps2× RS F-1600, 7,500 PSI
Operating Pressure6,370 PSI @ 115 SPM
Liner6.5" × 12"
Mud Pits2× 1,080 BBL (8' × 11.6' × 43', 7 compartments)
Shakers2× Derrick 504
CentrifugeDE-7200 (rental available)
Degasser48" NACE gas buster

Well Control

BOPCameron 13-5/8", 5,000 PSI
Rotating HeadWashington
Choke ManifoldCameron 10,000 PSI (3-1/8")
AccumulatorBurnsco Bison, 250-gal, 5-station, 6 pressure bottles
