TDS 1500 HP F Rig 17 – SCR Land Drilling Rig

Complete 1500 HP SCR land rig with Canrig top drive, triple CAT power and hydraulic walking system.

1,500
Drawworks HP
Mid-Continent 914
142 ft
Mast Height
1,000,000 lb Hook Load
500T
Top Drive
Canrig 1250AC
TDS 1500 HP F Rig 17 – SCR Land Drilling Rig
Complete 1500 HP SCR land rig with Canrig top drive, triple CAT power and hydraulic walking system.

TDS F Rig 17 is a fully equipped 1,500 HP SCR land drilling rig featuring a 142-ft mast rated at 1,000,000 lb static hook load. Powered by three Caterpillar 3512C engines generating 4,095 kW total, with a 1,600-amp Omron SCR house. Equipped with triple 1600 HP FB 1600 mud pumps, Canrig 1250AC 500-ton top drive, and a hydraulic walking system for pad drilling.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

  • DrawworksMid-Continent 914, 1,500 HP
  • BrakeBaylor 6032 Electric
  • Generators(3) CAT 3512C, 1,365 KW each
  • SCR HouseOmron 4-Bay, 1,600 Amp
🗼

Mast & Substructure

  • Mast142 ft, 1,000,000 lb Static Hook Load
  • SubstructureDSI, 26.5 ft Floor Height
  • Mobility90 ft Skid System, Wireless Control
🔩

Rotating Equipment

  • Top DriveCanrig 1250AC, 500 Ton, 7,500 PSI
  • Rotary TableNational 275, 27.5 inch
  • Traveling BlockNational 500 Ton
  • CatwalkCanrig PC-3000 Hydraulic Walking
💧

Mud System

  • Mud Pumps(3) FB 1600, 1,600 HP, 7,500 PSI
  • Mud Volume1,100 BBL
  • Shale Shakers(3) MI Swaco Linear Motion
  • BOP11" 5,000 PSI Double Ram + Annular
Equipment Gallery

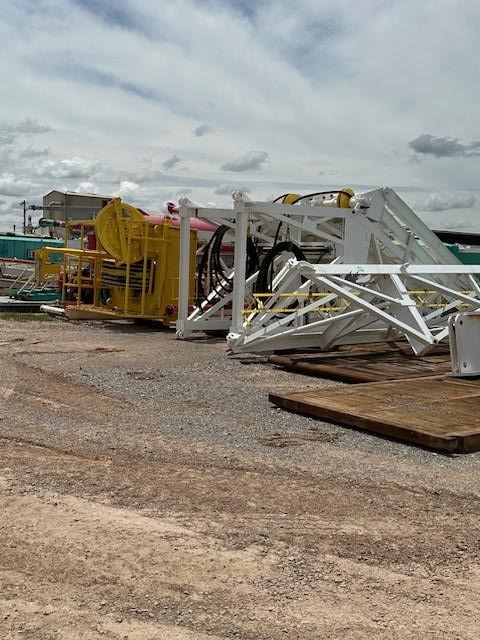

Rig Photos

Capabilities

Key Advantages

01

SCR Power System

Four-bay Omron 1,600-amp SCR control house provides precise speed and torque control across all drive motors.

02

Walking Pad Capability

90-ft skid system with wireless control enables multi-well pad drilling without rig tear-down.

03

High-Pressure Mud System

Triple 1,600 HP FB 1600 mud pumps with P-Quip retention systems rated to 7,500 PSI for deep drilling programs.

Complete Data

Full Equipment Status

Drawworks & Power

DrawworksMid-Continent 914, 1,500 HP
BrakeBaylor 6032 Electric

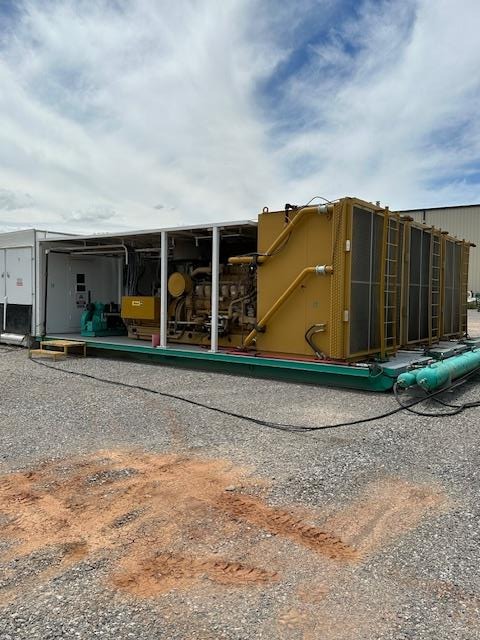

Generators(3) CAT 3512C Diesel, 1,365 KW each
SCR HouseOmron 4-Bay, 1,600 Amp

Mast & Substructure

Mast Height142 ft
Static Hook Load1,000,000 lb
Substructure MakeDSI
Floor Height26.5 ft
Mobility90 ft Skid with Wireless Control

Rotating Equipment

Top DriveCanrig 1250AC, 500 Ton, 7,500 PSI
Rotary TableNational 275, 27.5 inch
Traveling BlockNational 500 Ton, 50 inch Sheaves
Handling ToolNational ST-80C
CatwalkCanrig PC-3000 Hydraulic Walking

Mud System

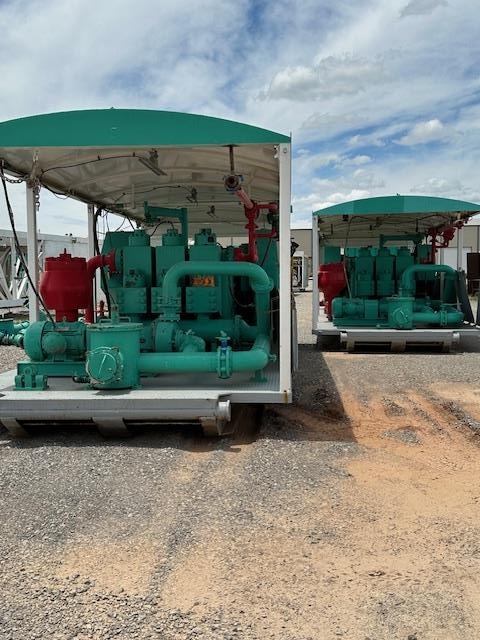

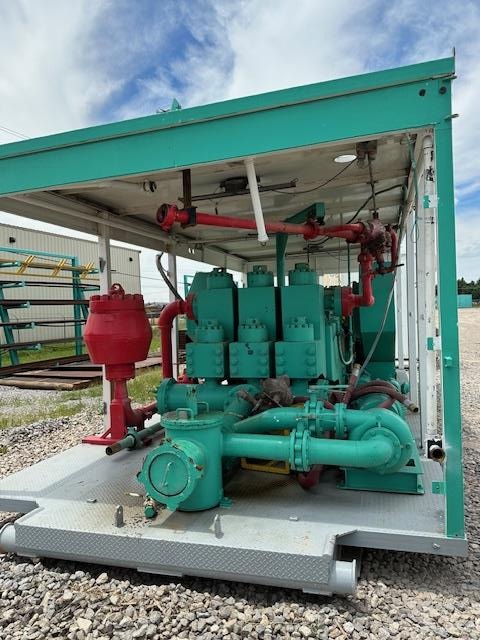

Mud Pumps(3) FB 1600, 1,600 HP
Motor per Pump(2) 1,000 HP GE 752 High Torque
Pressure Rating7,500 PSI
Mud Volume1,100 BBL
Shale Shakers(3) MI Swaco Linear Motion
Choke Manifold3-1/16 inch, 10,000 PSI
BOP11" 5,000 PSI Double Ram + Annular

Ancillary Equipment

Fuel Tank12,000 Gallon Dual Wall
Water Tank500 BBL
Dog House10 x 8 x 45 ft DS; 10 x 8 x 22 ft ODS

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
