Tesco 1000 HYD – 1000 HP Hydraulic Drilling Rig 107

Rig 107 is a Tesco 1000 HYD hydraulic telescopic double featuring a 102-ft swing-up mast rated at 400,000 lb static hook load. All-Tesco rotating package includes the 1000 HYD drawworks and Tesco 250-HMI-475 top drive providing 21,000 ft-lb torque. Powered by twin Detroit Diesel 12v2000 engines delivering 1,000 HP.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Power

DrawworksTesco 1000 HYD, Single Drum Hydraulic
Input Power(2) Detroit Diesel 12v2000, 800 HP each
HP Rating1,000 HP
Rig TypeHydraulic Telescopic Double

🗼

Mast & Substructure

Mast Height102 ft / 31 m
Mast TypeSwing Up
Static Hook Load400,000 lb / 177,800 daN
Setback Capacity200,000 lb / 88,960 daN

🔩

Top Drive & Rotating

Top DriveTesco 250-HMI-475
Load Rating500,000 lb / 222,400 daN
Max Torque21,000 ft-lbs / 28,470 Nm
BlockTesco Split Block, 500,000 lb

💧

Mud System

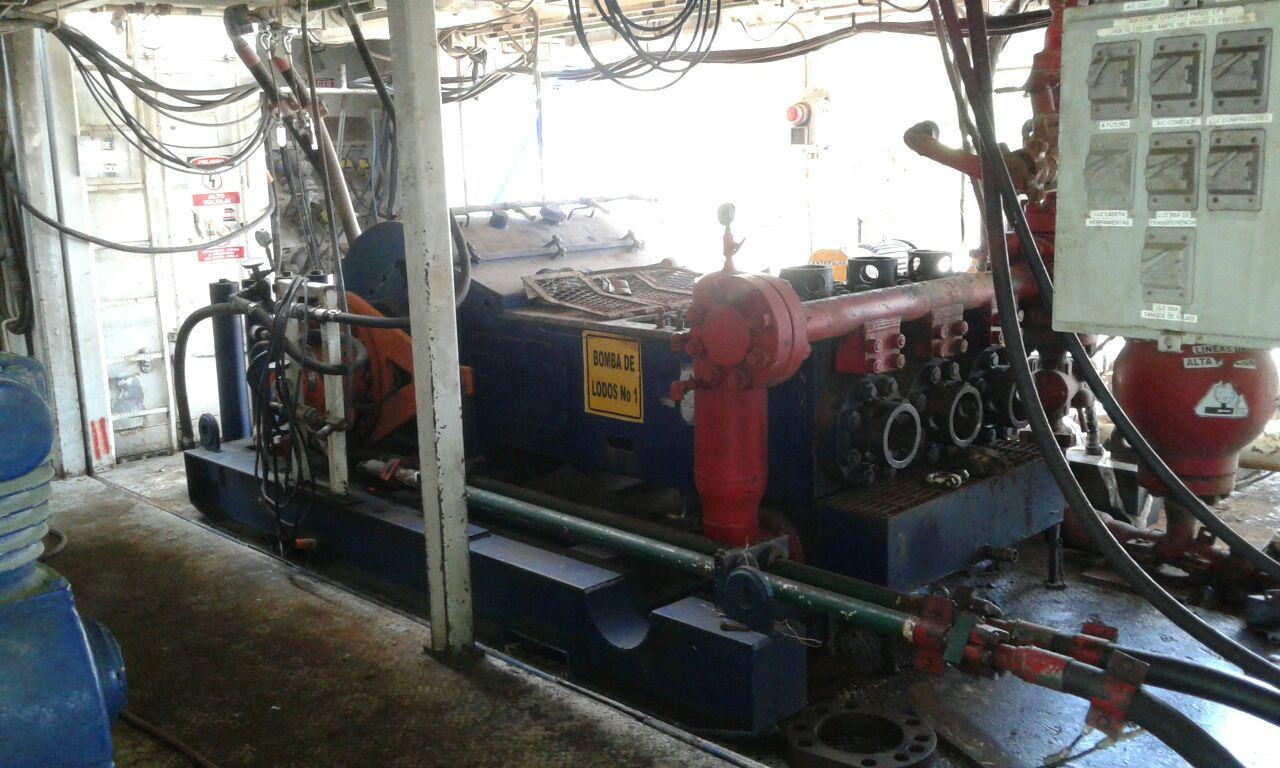

Mud Pumps(1) WH1000A + (1) BSF 1000
HP Rating1,000 HP max
Sub Floor Height17 ft / 5.2 m
Load Count37 loads

Equipment Gallery

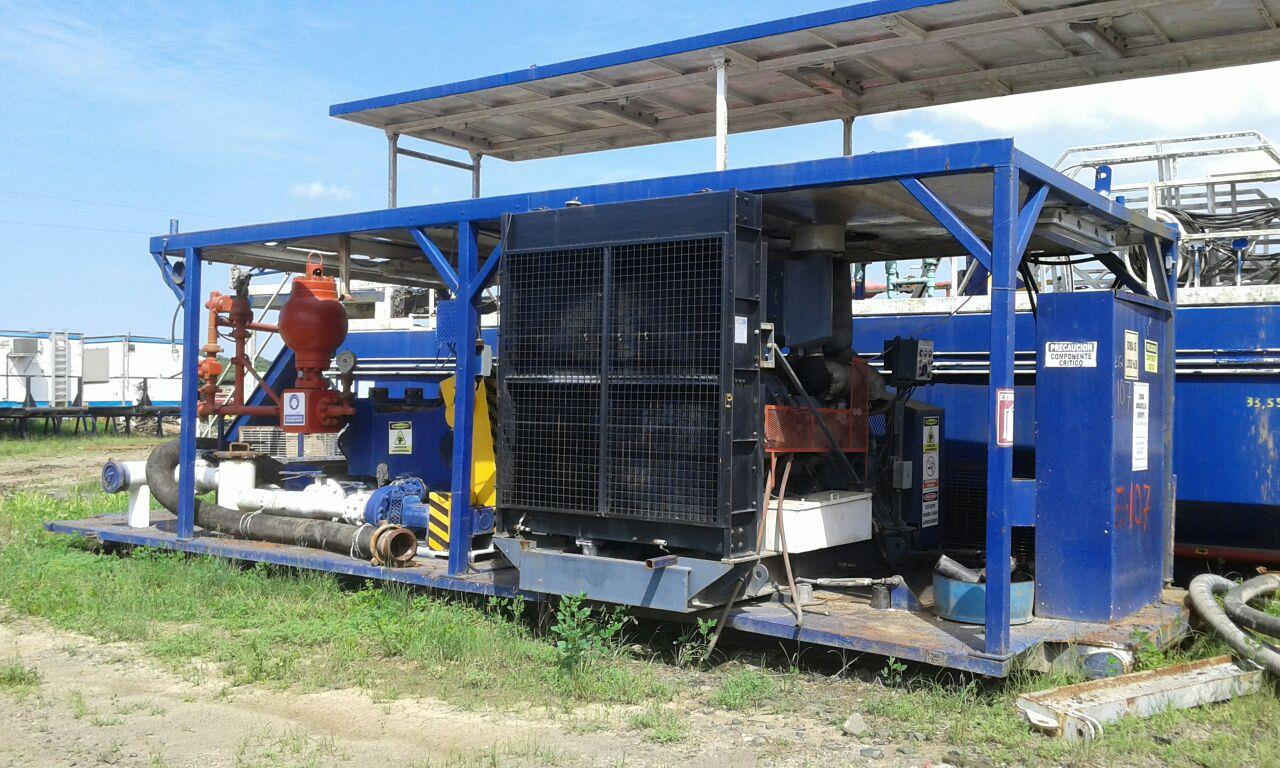

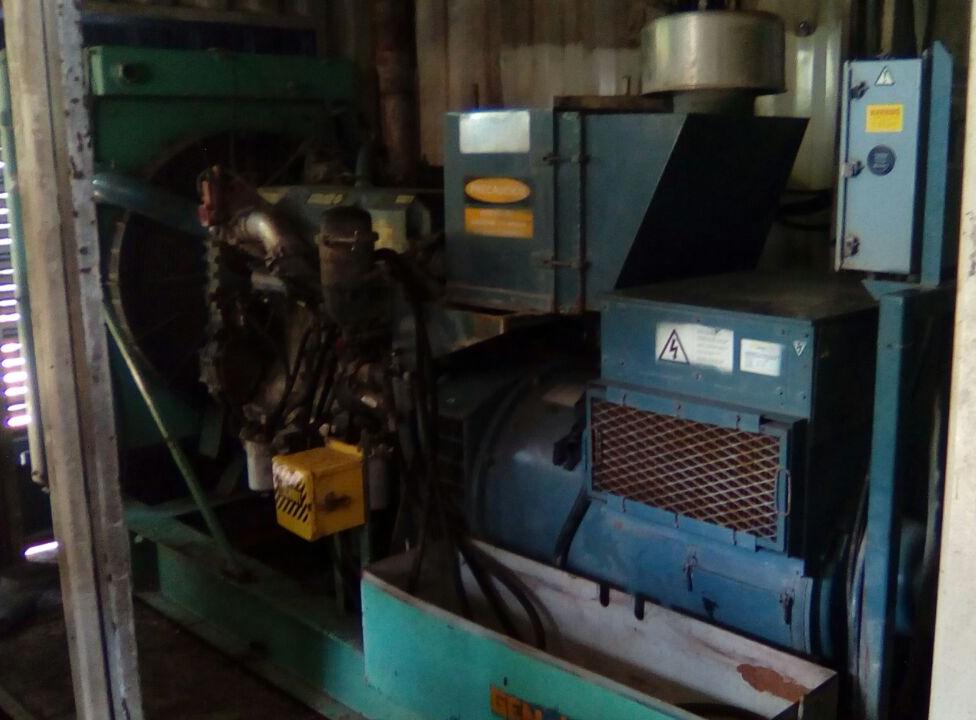

Rig Photos

Capabilities

Key Advantages

01

Hydraulic Drawworks

Single-drum Tesco hydraulic drawworks provides smooth, controlled hoisting ideal for challenging wellbore conditions.

02

All-Tesco Package

Integrated Tesco drawworks, top drive, and block system ensures parts commonality and simplified maintenance.

03

Swing-Up Mast

102-ft swing-up mast speeds rig-up and rig-down operations versus conventional stacked mast configurations.

Complete Data

Full Equipment Status

Rig Summary

HP Rating	1,000 HP
Rig Type	Hydraulic Telescopic Double
Load Count	37
Skidding	Yes (2 cranes required)

Mast

Type	Swing Up
Height	102 ft / 31 m
Static Hook Load	400,000 lb / 177,800 daN
Drilling Line	1-1/8 inch / 28.5 mm

Substructure

Type	Hydraulic Single Drum
Floor Height	14 ft 6 in / 4.4 m
Setback Capacity	200,000 lb / 88,960 daN

Drawworks

Make/Model	Tesco 1000 HYD
Input Power	(2) Detroit Diesel 12v2000, 800 HP
HP Rating	1,000 HP

Top Drive

Make/Model	Tesco 250-HMI-475
Load Rating	500,000 lb / 222,400 daN
Torque	21,000 ft-lbs / 28,470 Nm
Break Out Torque	23,500 ft-lbs / 31,950 Nm

Travelling Assembly

Block	Tesco Split Block, 500,000 lb
Swivel	Tesco R250, 500,000 lb
