For Sale • Land Rig • Trailer-Mounted

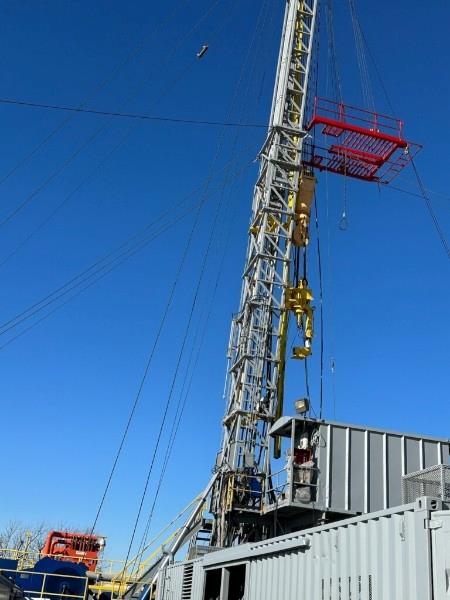

Service King SK-1000 Trailer-Mounted Drilling Rig (2007)

SK-1000 Trailer-Mounted • 1,000 HP • Hydraulic Top Drive • Fully Kitted

1,000 HP
Rated HP
Service King SK-1000
450,000 lbs
Hook Load
117 ft Mast
250 Ton
Top Drive
Venture Tech XK-250
5-Axle
Carrier
Trailer-Mounted Mobile
Service King SK-1000 Trailer-Mounted Drilling Rig (2007)
SK-1000 Trailer-Mounted • 1,000 HP • Hydraulic Top Drive • Fully Kitted

The 2007 Service King SK-1000 is a 1,000 HP trailer-mounted drilling rig offered as a fully kitted package. The rig features a 117-foot mast rated at 450,000 lbs SHL, a Venture Tech XK-250 hydraulic 250-ton top drive, dual Gardner Denver PZ10 mud pumps, and two 450 KW Kohler generator sets. Listed for sale in 2012 with a comprehensive 20-page spec, this self-contained trailer-mounted system is designed for rapid mobilisation and deployment.

Technical Overview

Key Equipment Specifications

🗼ï¸

Mast & Substructure

  • Mast Model117 ft, SHL 450,000# (S/N DK 504)
  • Raising Cylinders3x Hydraulic
  • Standpipe5,000 PSI with Type D MSF Mud Gauge
  • Kelly HoseBuilt-in
  • Top Drive Torque TrackBuilt-in
  • Finger Board22 Fingers
  • Bails2x 250-Ton, 79" Long
  • Substructure35 ft x 11 ft
  • Carrier5-Axle Trailer (SK# 395T), 177,900 lbs GVW
⚙️

Drawworks

  • Model46 x 10 (S/N DW 2387)
  • TransmissionModel 1000 (2x, S/N 5962350 / 5962688)
  • Gear Box2.47:1 Power Drive
  • BrakesDual Actuated Air Band + Hydraulic Drum
  • Crown SaverAir Actuated
  • Cat Heads2x Hydraulic
  • Crown BlockMcKissick 4-Sheave, 1-1/4", SHL 450,000# (S/N DK504)
🔄

Top Drive

  • Make / ModelVenture Tech XK-250 Ton
  • Drive TypeHydraulic
  • Power Source2x Detroit 60 Series 14.0 Litre
  • Hydraulic SystemDan Voss, 2 Pumps x 4 Outlets
  • Service Loop1x Top Drive Service Loop
  • Rotary TableSentry 20.5", 2007 (S/N 074102)
💧

Mud System

  • Mud Pump 1Gardner Denver PZ10
  • Mud Pump 2Gardner Denver PZ10
  • Pit System950 BBL (Shaker + Suction)
  • Shale Shakers2x Swaco Mongoose (S/N PF2664, PF2663)
  • DesanderMongoose Mud Cleaner 2-12
  • DesilterMongoose 6T4
  • Water Tank500 BBL
  • Agitators4x 10 HP

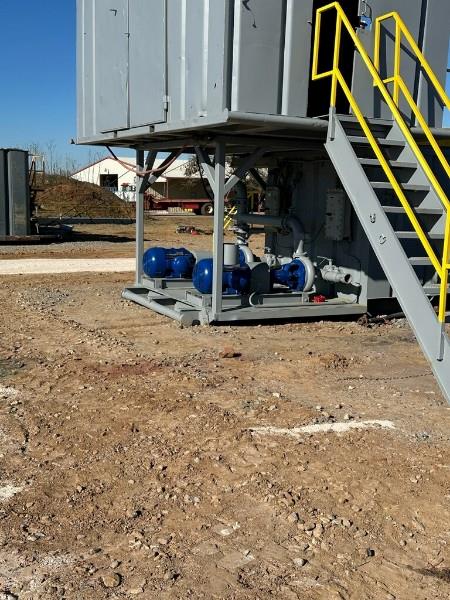

  • Mud Movers2x Mission Magnum 6x5x14, 50 HP
  • Gas BusterSwaco 4ft x 10ft (S/N MGS-M-118)
⚡

Power System

  • Engine #1Detroit 2010 14.0L (S/N 06R1049132)
  • Engine #2Detroit 2010 14.0L (S/N 06R1049335)
  • Genset #112V 2000 / Kohler 450 KW Power Systems 600
  • Genset #212V 2000 / Kohler 450 KW Power Systems 600
  • CompressorGardner Denver Electra Saver EBE 990
  • Hydraulic Tank350 Gallons
🛡

BOP / Pressure Control

  • Choke Manifold6x 4"x5M + 1x 2"x5M + Manual Choke HECI
  • AccumulatorAdvanced Pressure Inc., 12 Bottles, 5 Station, 3,000 PSI
  • Air Pumps2x 55:1 Ratio
  • Accumulator Lines8x Steel Flex
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

01

Trailer-Mounted Mobility

The SK-1000 is built on a 5-axle carrier trailer (GVW 177,900 lbs) for rapid self-contained rig moves. Both engines are on-board, and the hydraulic top drive house travels as a dedicated unit.

02

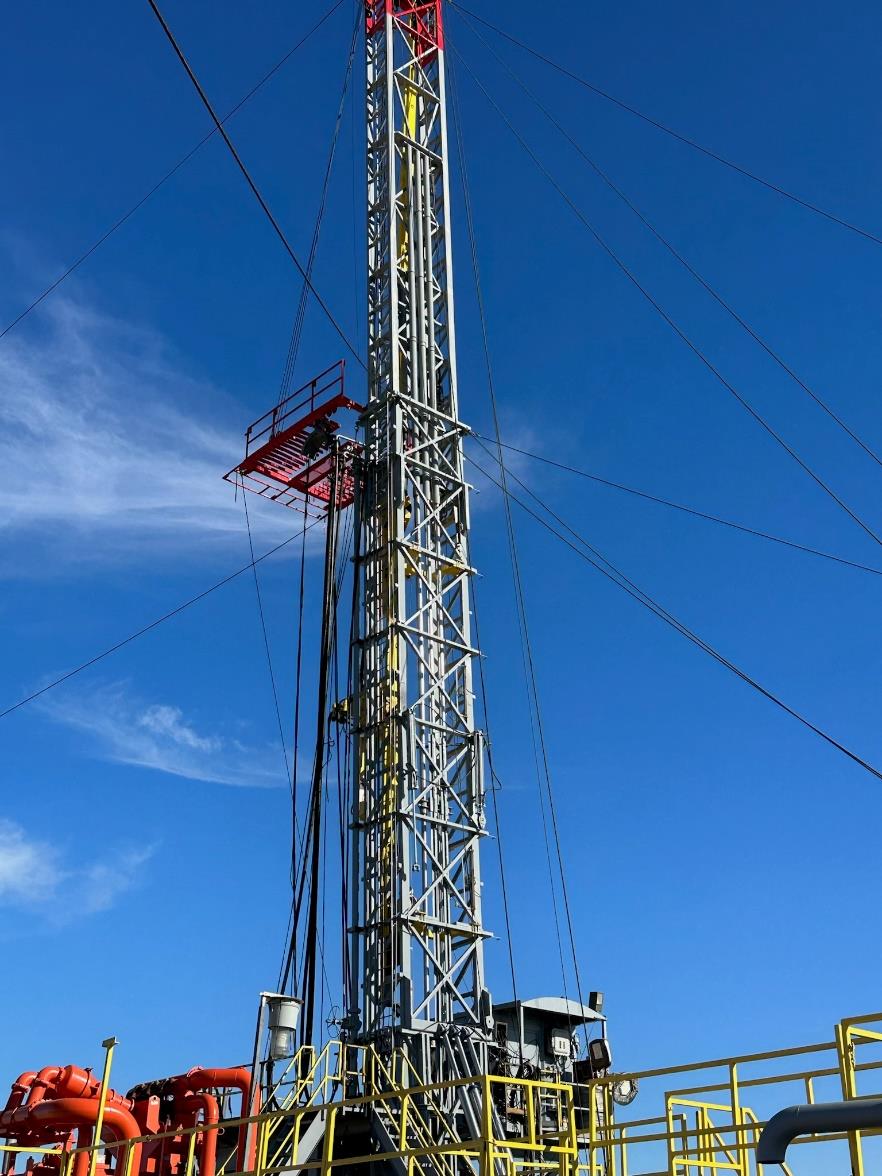

117-foot Mast, 450,000 lb SHL

The 117-foot mast with three hydraulic raising cylinders, 22-finger finger board, and built-in top drive torque track supports efficient single-stand operations. Crown block rated at 450,000 lbs SHL.

03

Venture Tech Hydraulic Top Drive

The XK-250 ton hydraulic top drive is powered by two Detroit 60 Series engines through a Dan Voss hydraulic pump system. Includes service loop and torque track for safe tubular handling.

04

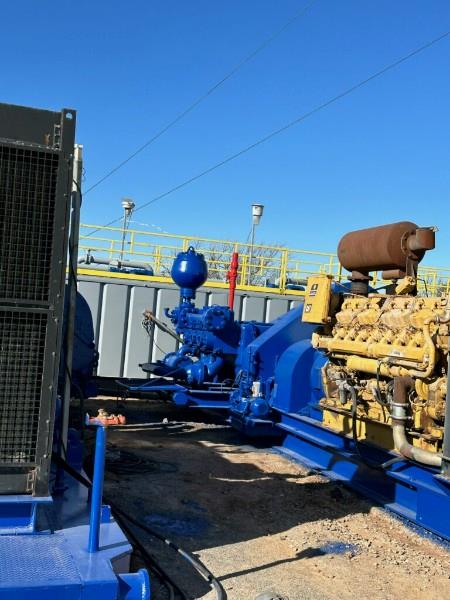

Dual Gardner Denver PZ10 Mud Pumps

Two Gardner Denver PZ10 mud pumps backed by a 950 BBL pit system, two Swaco Mongoose shale shakers, and a Mongoose mud cleaner with integrated desander and desilter.

05

Dual Kohler 450 KW Generators

Two matched gensets — each pairing a 12V 2000 engine with a Kohler 450 KW Power Systems 600 generator — deliver 900 KW total installed capacity for all rig loads.

06

Comprehensive Ancillary Package

Sale includes: Top Dog House with tools, BJ elevators, tongs, slips, 40ft parts house, Sentry rotary table, accumulator suit case, V-door, pill pit, camp transformer, and consumables.

Complete Data

Full Equipment Status

General Specifications

ManufacturerService King
ModelSK-1000
Year2007
Rated HP1,000
ConfigurationTrailer-Mounted (5-Axle)
StatusAvailable

Mast & Substructure

Mast117 ft, 450,000 lbs SHL (S/N DK 504)
Raising3x Hydraulic Cylinders
Finger Board22 Fingers
Substructure35 ft x 11 ft
CarrierSK# 395T, 5-Axle, 177,900 lbs GVW (VIN: 1S90TDD85CL976333)

Drawworks

Model46 x 10 (S/N DW 2387)
TransmissionModel 1000
Gear Box2.47:1
BrakesDual Air Band + Hydraulic Drum + Crown Saver

Power System

Engines2x Detroit 2010 14.0L
Genset #112V 2000 / Kohler 450 KW
Genset #212V 2000 / Kohler 450 KW
CompressorGardner Denver EBE 990

Mud System

Mud Pumps2x Gardner Denver PZ10
Pit System950 BBL
Shakers2x Swaco Mongoose
Mud CleanerMongoose 2-12 / Desilter 6T4
Water Tank500 BBL
Gas BusterSwaco 4' x 10' (S/N MGS-M-118)

Pressure Control

Choke ManifoldHECI 6x4"x5M + 1x2"x5M + Manual
AccumulatorAPI 12-Bottle 5-Station 3,000 PSI

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
