NEW — Available Now

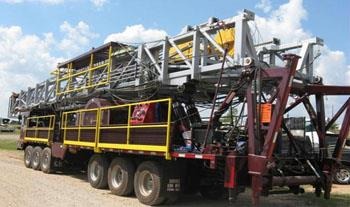

New Service King SK-775HP Workover Rig

Brand-new 775 HP carrier-mounted workover rig — deep-service capable to 18,000 ft.

775 HP
Power Rating
MTU S1300 T4 Engine
18,000'
Service Depth
Max Working Depth
400,000#
Static Hook Load
10-Line Capacity
$5.9M
Asking Price
USD — New Unit
New Service King SK-775HP Workover Rig
Brand-new 775 HP carrier-mounted workover rig — deep-service capable to 18,000 ft.

Brand-new Service King SK-775HP workover rig offered at $5.9M USD. Carrier-mounted on 6 axles with MTU S1300 T4 engine and Allison 4500 OFS transmission, rated for 18,000 ft service depth and 10,000 ft drilling depth. Features a 112 ft mast with 400,000# static hook load, water-circulating drum brakes, and triple chain drive — ready for immediate deployment.

Technical Overview

Key Equipment Specifications

⚙️

Power & Drive

  • EngineMTU S1300 T4
  • TransmissionAllison 4500 OFS
  • Power Rating775 HP
🏗️

Mast & Hook Load

  • Mast Height112 ft Clear
  • Static Hook Load400,000# (10 lines)
  • Tubing Board Setback158,000#
🚛

Carrier

  • Axles6 Axles
  • Front Axles20,000# Capacity (Spring)
  • Rear Axles46,000# Tandem (Walking Beam)
  • Push Axle25,000# Capacity
🔧

Drum & Brakes

  • Main Drum Brakes42 in x 12 in Water Circulating
  • Disc Assist54 in Water Circulating
  • Drum Barrel18 in dia x 43 in wide
  • ChainTriple 140
  • Clutch324 High Torque
Equipment Gallery

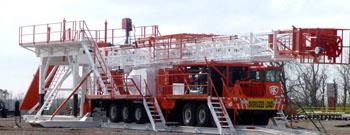

Rig Photos

Capabilities

Key Advantages

01

Deep Service & Workover

Rated to 18,000 ft for service operations and 14,000 ft for workover, with 10,000 ft drilling capability on 3.5-inch drill pipe — versatile across a wide range of well intervention tasks.

02

Carrier-Mounted Mobility

Self-propelled 6-axle carrier with high-tensile alloy wide-flange beam frame, spring and walking-beam axle suspension, delivering rapid rig-up and pad-to-pad mobility.

03

New Unit — Zero Deferred Maintenance

Factory-new condition means full OEM warranty coverage, current regulatory compliance out of the box, and no latent mechanical risk — a significant advantage over used alternatives at this price point.

Complete Data

Full Equipment Status

Depths & Capacity

Service Depth18,000 ft
Workover Depth14,000 ft
Drilling Depth10,000 ft (3.5-in Drill Pipe)
Static Hook Load400,000# (10 lines)
Tubing Board Setback158,000#

Power Train

EngineMTU S1300 T4
TransmissionAllison 4500 OFS

Mast

Clear Height112 ft
Max Static Load400,000# with 10 lines

Main Drum

Brakes42 in dia x 12 in wide — Water Circulating
Disc Assist54 in Water Circulating
Barrel18 in dia x 43 in wide
Lebus Grooving1 1/8 in
ChainTriple 140
Clutch324 High Torque
Shaft6.60 in
Optional Sand Drum42 in x 8 in

Carrier

Axles6 Axles — High Tensile Alloy Wide Flanged Beam
Front Axles20,000# Capacity — Spring Suspension
Rear Axles46,000# Tandem — Walking Beam Suspension
Push Axle25,000# Capacity
Front Tires425/65R22.5
Rear Tires11R22.5

Commercial

ConditionNew
Asking Price$5,900,000 USD
ContactBob Neundorf — bob@2tds.com — 860-608-2327

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
