2000 HP Posted Barge Drilling Rig 54B

2000 HP Posted Barge Rig — 25,000 ft Rated, CanRig Top Drive

2,000
Horsepower
Oilwell E-2000
25,000 ft
Drill Depth
Rating
209 ft
Barge Length
Hull
50 Bunks
Accommodations
Onboard
2000 HP Posted Barge Drilling Rig 54B
2000 HP Posted Barge Rig — 25,000 ft Rated, CanRig Top Drive

Oilwell E-2000 2,000 HP posted barge drilling rig rated to 25,000 ft. Features 148-ft Pyramid cantilever mast with 1,330,000-lb static hook load, 650T CanRig top drive, two Oilwell A-1700PT triplex pumps, and four Caterpillar D-399 engine/KATO generator sets. 209-ft × 54-ft hull with 50-bunk accommodations, helipad, and zero-discharge capability.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • Make/ModelOilwell E-2000
  • HP2,000 HP
  • Brake7838 Elmago Electric
  • Motors2x GE 752 Electric
  • Top DriveCanRig 650T
🚢

Barge Hull

  • Length209 ft
  • Beam54 ft
  • Hull Depth14 ft
  • Towing Draft8 ft
  • Accommodations50 bunks
  • Helipad68' × 50'
💧

Mud Pumps

  • Qty2
  • Make/ModelOilwell A-1700PT Triplex
  • HP1,700 HP each
  • Mud Tanks1,440 barrels
  • Drill Water6,720 barrels
⚡

Power

  • Engines4x Caterpillar D-399 (1,215 HP)
  • Generators4x KATO 1,030 kW
  • SCR SystemIPS Four Bay
  • Fuel Capacity65,800 gallons
Equipment Gallery

Rig Photos

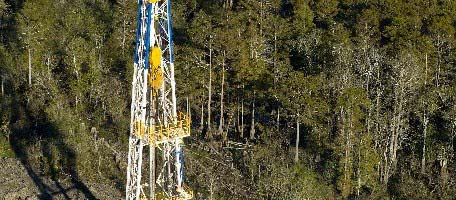

Barge Rig 54B – Mast and Deck
Barge Rig 54B – Mast and Deck

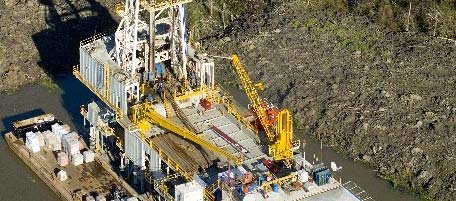

Barge Rig 54B – Side View
Barge Rig 54B – Side View

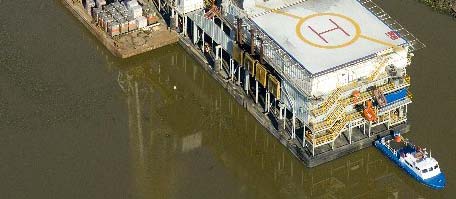

Barge Rig 54B – Rig Equipment
Barge Rig 54B – Rig Equipment
Capabilities

Key Advantages

01

Deep Drilling Capability

Rated to 25,000 ft with 5" drill pipe; 148-ft Pyramid cantilever mast delivering 1,330,000 lbs static hook load with CanRig 650-ton top drive.

02

Posted Barge Platform

209 × 54-ft hull with 8-ft towing draft, helipad, 50-bunk accommodations, and zero-discharge systems for environmentally sensitive areas.

03

Full Solids Control

Derrick Flowline Cleaners, Hy-G Dryer, desander/desilter, Brandt degasser, and complete mud handling system for optimized drilling fluid management.

Complete Data

Full Equipment Status

Barge

Length209 ft
Beam54 ft
Hull Depth14 ft
Draft (Towing)8 ft
Towing Height69 ft
Key Slot40' × 10'
Accommodations50 bunks
Helipad68' × 50'

Capacities

Potable Water72,000 gallons
Drill Water6,720 barrels
Mud Tanks1,440 barrels
Fuel65,800 gallons
Bulk Barite4,000 sacks

Drawworks

ModelOilwell E-2000
HP2,000 HP
Brake7838 Elmago electric
Motors2x GE 752

Mast

Type148-ft Pyramid Cantilever
Hook Load1,330,000 lbs
Crown750T Pyramid 7-sheave
Top DriveCanRig 650T
Rotary Table27 1/2" Oilwell

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.

📞 1-860-608-2327 ✉ bob@2tds.com
