Available

TDS Barge Rig 21 — 3,000 HP

24-Hour Inland Bay Barge Drilling Rig — 30,000 ft Rated, Canrig 750 Top Drive

3,000 HP
Drawworks
30,000 ft
Drill Depth (Rated)
2,000,000 lbs
Hook Load
220×64 ft
Barge Dimensions

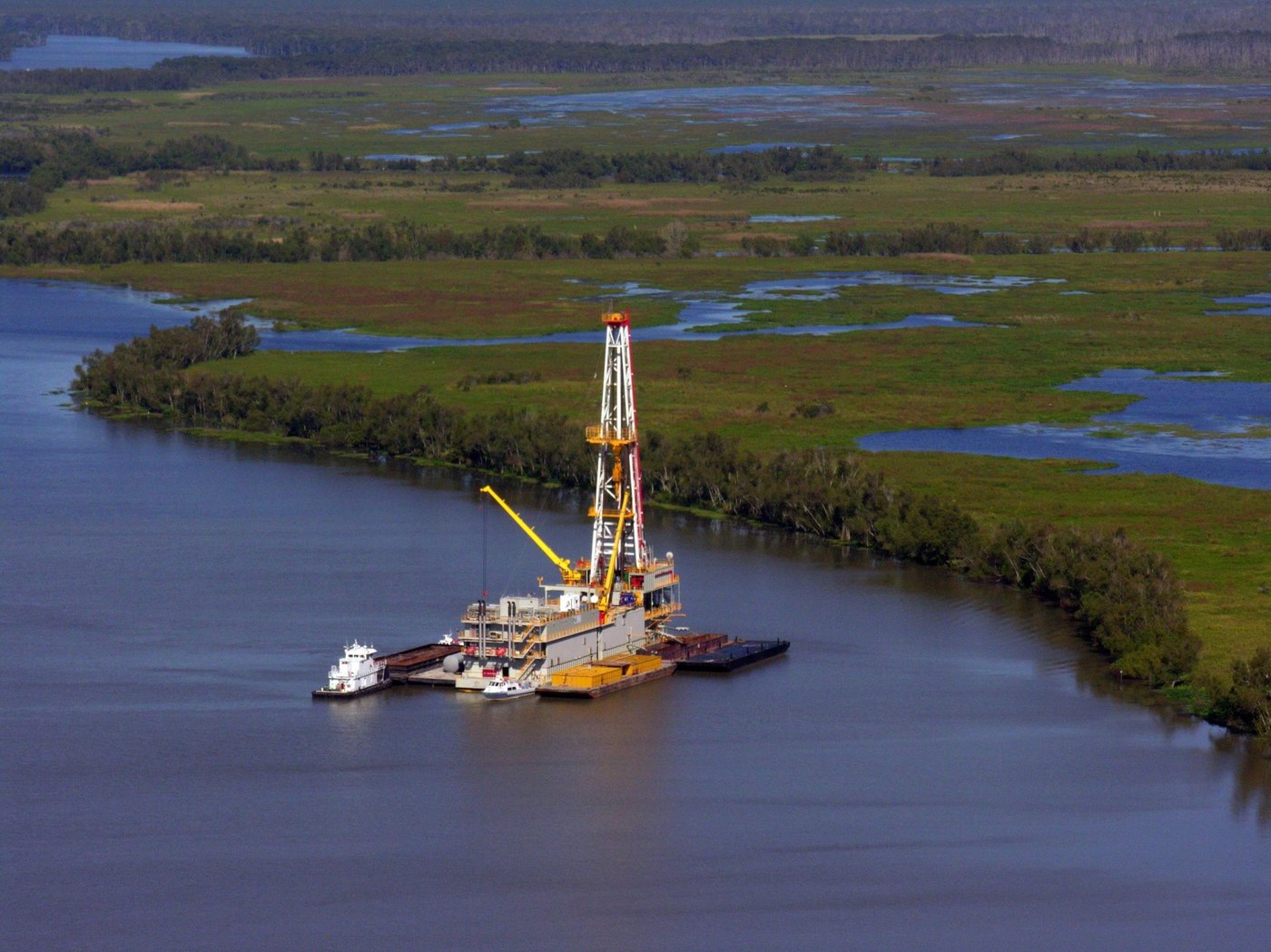

TDS Barge Rig 21 aerial view — inland barge drilling rig in bayou
TDS Barge Rig 21 — 3,000 HP Inland Barge Rig, Constructed 2005

TDS Barge Drilling Rig 21 is a 24-hour inland bay barge drilling rig constructed in 2005, rated to 30,000 feet with a 2,000,000-lb hook load. Powered by Continental EMSCO C-3 Type 2 drawworks and a Canrig 750-ton top drive, Rig 21 is equipped for deep-shelf barge drilling in the Gulf Coast transition zone and shallow water environments worldwide.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks & Top Drive

  • Make/ModelContinental EMSCO C-3 Type 2
  • HP3,000 HP
  • BrakeElectric (GE Motors)
  • Motors3 × 1000 HP GE Electric
  • Top DriveCanrig 750 Ton
  • TongsNational Oilwell VARCO ST-80
🚢

Barge Hull

  • Length220 ft
  • Beam64 ft
  • Hull Depth16 ft
  • Draft8 ft
  • Type24-Hr Inland Bay Barge
  • Year Built2005
💧

Mud Pumps

  • Qty3
  • Make/ModelContinental FC-1600 HP Triplex
  • MotorsGE 752 Electric
  • Fluid Ends7,500 PSI
  • Mud Capacity2,200 barrels
  • Sand Trap74 barrels
⚡

Power

  • Engines4 × CAT 3512 Electronic (1500 HP)
  • Generators4 × KATO 1300 KW
  • TypeElectronic Fuel Efficient
  • Cooling4 Cooling Towers
Equipment Gallery

Rig Photos

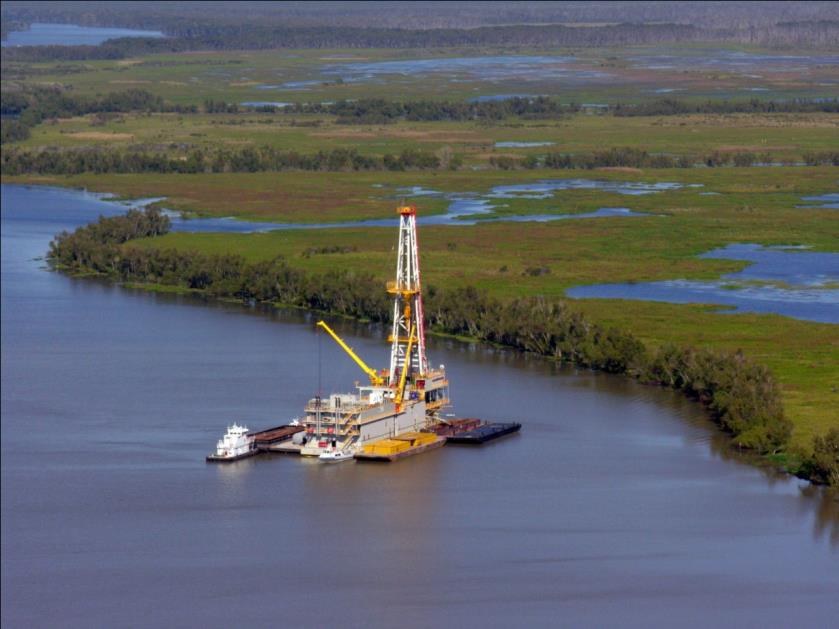

Barge Rig 21 — Aerial Overview, Inland Bayou
Barge Rig 21 — Aerial Overview, Inland Bayou
Capabilities

Key Advantages

01

Deep Drilling Capability

SOMAC 152-ft mast with 2,000,000-lb static hook load strung on 16 lines. Rated to 30,000 ft with 5.5" HT-55 drill pipe and 15/8" – 8" drill collars. BOP stack rated to 10,000 PSI.

02

Shallow Water Access

Floating hull designed for inland bays and transition zone environments with 8-ft towing draft. Capable of accessing very shallow water locations (7–9 ft) in Gulf Coast marshes and bayous.

03

BOP & Well Control

Annular 13 5/8" 5,000 PSI rams, 13 5/8" 10,000 PSI drilling spool, 2-10,000 PSI HCR valves, and 2-10,000 PSI manual valves. 2-50 ton air-operated and manual chain falls for BOP handling.

Complete Data

Full Equipment Status

Barge Hull

Length220 ft
Beam64 ft
Hull Depth16 ft
Draft (Towing)8 ft
TypeInland Bay Barge
Year Constructed2005

Drawworks

Make/ModelContinental EMSCO C-3 Type 2
HP3,000 HP
InputGrooved for 1¾" drill line
BrakeElectric Brake
Motors3 × 1000 HP GE Electric

Mast & Rotary

MastSOMAC 152 ft
Hook Load2,000,000 lbs
Lines16 lines 1¾" drill line
Stand PipesDual 7,500 PSI
Rotary37½" Pin Drive, 2-Speed Gearbox
Motor1 × 752 GE Electric
TongsNational Oilwell VARCO ST-80

Mud Pumps

Qty3
Make/ModelContinental FC-1600 HP
Motors3 × GE 752 Electric
Fluid Ends7,500 PSI
Capacity2,200 barrels
Sand Trap74 barrels
Trip Tanks130 barrels

Top Drive & BOP

Top DriveCanrig 750 Ton
Rotary TongsBJ Type DB
BOP Annular13 5/8" 5,000 PSI
BOP Rams13 5/8" 10,000 PSI
Drilling Spool13 5/8" 10,000 PSI
BOP Handling2-50T Air & Manual Chain Falls

Power & Cranes

Engines4 × CAT 3512 Electronic 1500 HP
Generators4 × KATO 1300 KW
Cooling4 Cooling Towers + SCR House (6-SCR panels)
Cranes2 × Oil States Mod 60B3A-70 (70' booms) 30-Ton
Standby1 × CAT 350 KW Standby

Storage & Fluid Capacities

Drill Water98,000 gallons
Potable Water50,000 gallons
Fuel50,000 gallons
ManifoldChoke rated to 15,000 PSI
Closing UnitCAD 020411589-1 Master Unit

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
